Colloidal transport in twisted lattices of optical tweezers

Nex C. X. Stuhlm\"uller , Thomas M. Fischer , Daniel de las Heras This is my paper

Pith reviewed 2026-05-24 11:35 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.optics
keywords colloidal transportoptical tweezerstwisted latticesmagic anglesflat channelspercolationdrift force
0
0 comments X

The pith

Two rotated lattices of optical tweezers produce flat channels that percolate at specific magic angles and let colloids move under weak drift forces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that negative interference between the optical potentials of two parallel, shifted, and rotated lattices of tweezers creates flat channels in the total potential landscape. At discrete twist angles labeled magic angles these channels connect across the full system. Colloidal particles subject to a weak homogeneous drift force can then travel through the lattice. The same percolation and transport occurs in both square and hexagonal lattice geometries. A reader would care because the setup converts a geometric twist parameter into a controllable transport pathway without requiring strong external drives.

Core claim

Negative interference between the potentials of two lattices of optical tweezers rotated by a twist angle produces flat channels; at magic angles these channels percolate the entire system so that colloidal particles driven by a weak static and homogeneous drift force can be transported across the lattice.

What carries the argument

Magic angles at which flat channels percolate the system due to negative interference between the two lattice potentials.

If this is right

  • Colloidal particles traverse the full system under only weak drift forces once the twist reaches a magic angle.
  • The transport effect appears in both square and hexagonal twisted lattices.
  • The flat channels arise directly from the geometric rotation and shift between the two lattices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Varying the twist angle around a magic value could switch the system between trapped and flowing colloidal states.
  • The same interference principle might guide particle motion in other multi-lattice optical or acoustic potentials.
  • Real-space imaging of colloidal trajectories at the calculated magic angles would directly test the percolation prediction.

Load-bearing premise

Negative interference between the potentials of the two lattices produces flat channels that percolate the system at discrete magic angles.

What would settle it

If simulations or experiments at the predicted magic angles show no percolating flat channels or require strong forces for transport, the central claim is false.

Figures

Figures reproduced from arXiv: 2205.12319 by Daniel de las Heras, Nex C. X. Stuhlm\"uller, Thomas M. Fischer.

Figure 1

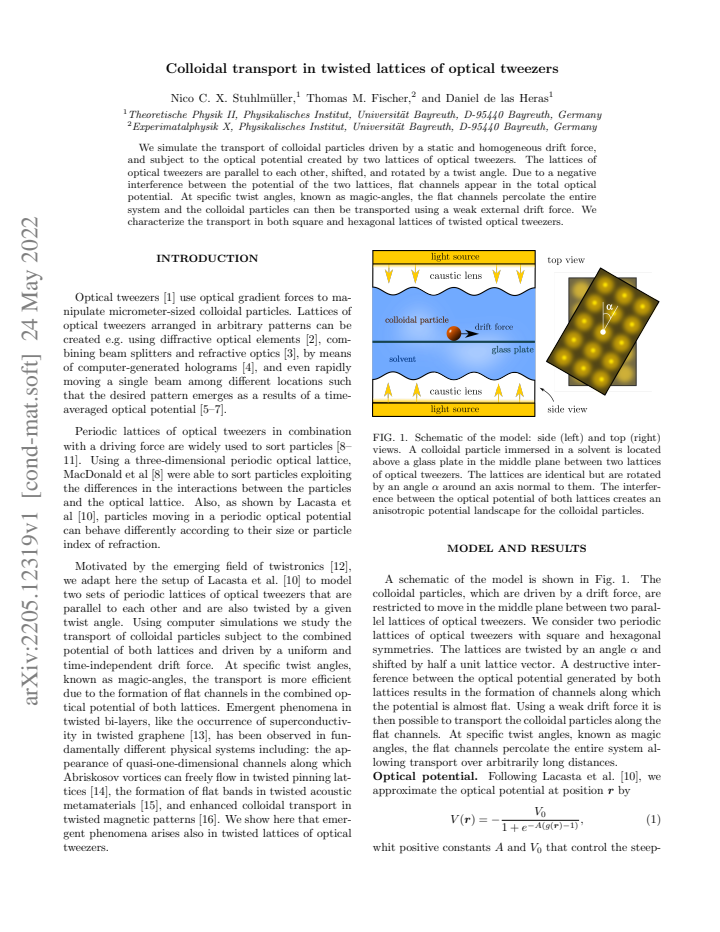

Figure 1. Figure 1: FIG. 1. Schematic of the model: side (left) and top (right) [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

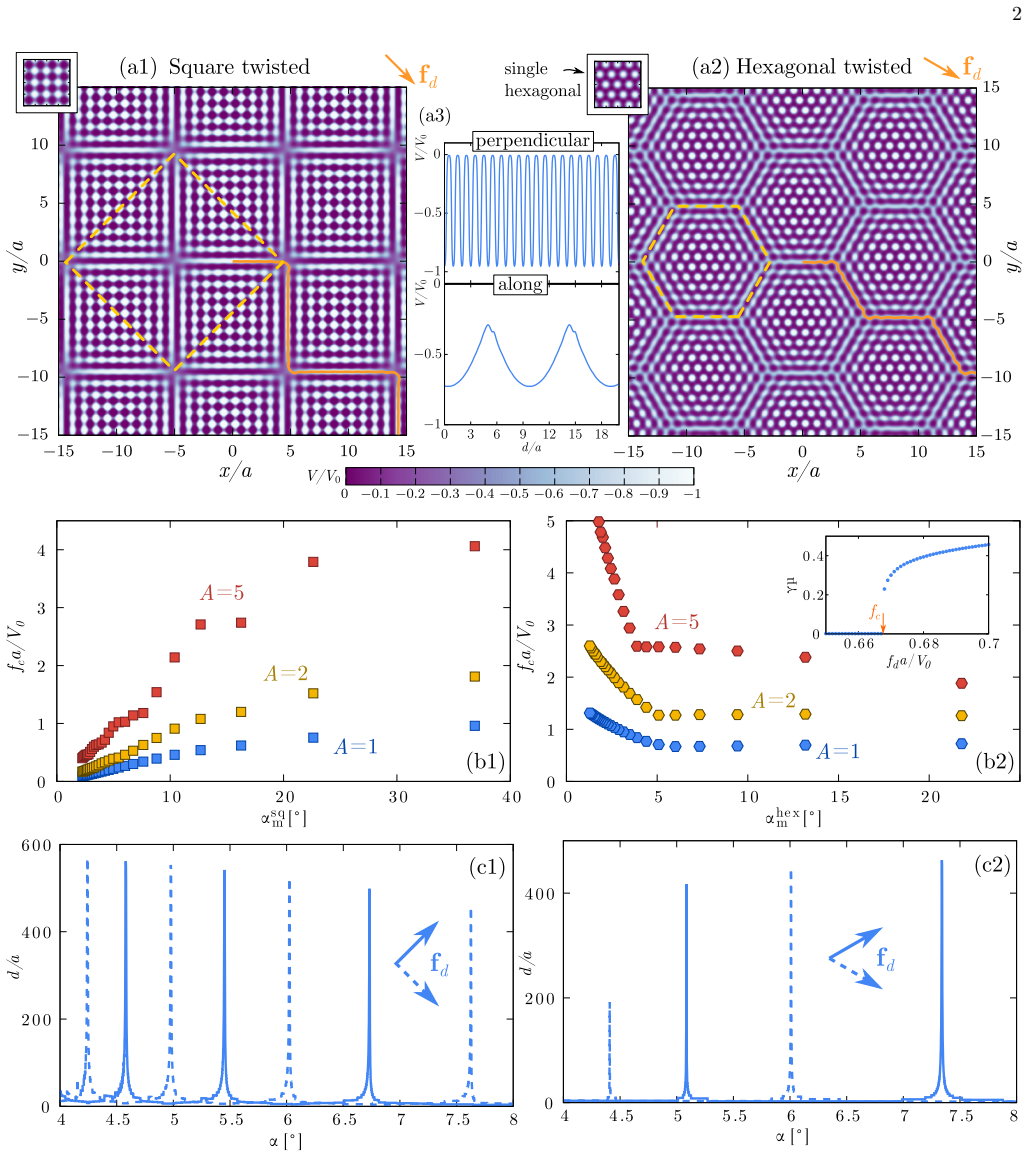

Figure 2. Figure 2: FIG. 2. Optical potential (A=1) generated by two square (a1) and two hexagonal (a2) twisted lattices of optical tweezers [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
read the original abstract

We simulate the transport of colloidal particles driven by a static and homogeneous drift force, and subject to the optical potential created by two lattices of optical tweezers. The lattices of optical tweezers are parallel to each other, shifted, and rotated by a twist angle. Due to a negative interference between the potential of the two lattices, flat channels appear in the total optical potential. At specific twist angles, known as magic-angles, the flat channels percolate the entire system and the colloidal particles can then be transported using a weak external drift force. We characterize the transport in both square and hexagonal lattices of twisted optical tweezers

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript simulates colloidal particles subject to a homogeneous drift force in the optical potential formed by two parallel, rotated lattices of optical tweezers. It claims that negative interference between the lattices produces flat channels; at discrete 'magic' twist angles these channels percolate the system, permitting particle transport under arbitrarily weak drift. Transport behavior is characterized numerically for both square and hexagonal lattices.

Significance. If the percolation claim holds in the continuum limit, the result identifies a mechanism for low-force colloidal transport in twisted optical-tweezer arrays, which could be relevant to controlled particle manipulation in soft-matter and microfluidic contexts. The work is observational; it supplies no analytical derivation, parameter-free predictions, or machine-checked results.

major comments (2)
  1. [Abstract and simulation description] Abstract and simulation description: the central claim requires that the total potential is exactly flat (zero barrier) along system-spanning channels at magic angles so that any weak homogeneous drift produces transport. The manuscript supplies no information on grid spacing, interpolation scheme, convergence checks with respect to discretization, or quantitative error bars on the evaluated potential, leaving open the possibility that sub-grid residual barriers remain undetected.
  2. [Results section on magic angles] Results section on magic angles: the identification of discrete angles where channels percolate is presented as a direct numerical observation, yet no metric is given for the maximum potential variation along the purported flat channels nor any finite-size scaling or percolation-threshold analysis that would confirm true percolation in the continuum limit rather than an artifact of the sampled grid.
minor comments (2)
  1. The abstract states that transport is characterized for square and hexagonal lattices but does not indicate the range of twist angles sampled or the precise numerical criterion used to declare a channel 'flat' or 'percolating'.
  2. Figure legends should report the magnitude of the applied drift force (in appropriate units) so that the qualifier 'weak' can be assessed quantitatively.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments on the numerical aspects of our work. We address each major comment below and will revise the manuscript to incorporate additional details and analyses as described.

read point-by-point responses

  1. Referee: [Abstract and simulation description] Abstract and simulation description: the central claim requires that the total potential is exactly flat (zero barrier) along system-spanning channels at magic angles so that any weak homogeneous drift produces transport. The manuscript supplies no information on grid spacing, interpolation scheme, convergence checks with respect to discretization, or quantitative error bars on the evaluated potential, leaving open the possibility that sub-grid residual barriers remain undetected.

    Authors: We agree that the manuscript should provide explicit details on the numerical evaluation of the potential to support the claim of flat channels. In the revised manuscript we will add a dedicated paragraph (or appendix) specifying the grid spacing used, the interpolation scheme, convergence tests with respect to discretization, and quantitative error bars or maximum residual variation along the channels at the reported magic angles. These additions will demonstrate that any sub-grid barriers are below the scale relevant to the drift forces considered. revision: yes

  2. Referee: [Results section on magic angles] Results section on magic angles: the identification of discrete angles where channels percolate is presented as a direct numerical observation, yet no metric is given for the maximum potential variation along the purported flat channels nor any finite-size scaling or percolation-threshold analysis that would confirm true percolation in the continuum limit rather than an artifact of the sampled grid.

    Authors: We acknowledge the value of a quantitative flatness metric and percolation analysis. In revision we will introduce an explicit metric (maximum potential variation along candidate channels) and report its values at the identified magic angles. We will also add a discussion of finite-size effects based on the system sizes already simulated. A full continuum-limit percolation threshold analysis would require additional large-scale runs that are beyond the scope of the present study; we will therefore qualify the percolation claim accordingly while retaining the numerical observations as reported. revision: partial

Circularity Check

0 steps flagged

No circularity: result is direct numerical observation of potential superposition

full rationale

The paper reports numerical simulations of particle transport under the superimposed optical potentials of two rotated lattices. Magic angles are identified by direct inspection of the computed total potential for percolation of flat channels, followed by integration of particle trajectories under a weak drift force. No parameters are fitted to data and then re-used as predictions, no quantities are defined in terms of themselves, and no load-bearing claims rest on self-citations. The central result is therefore an output of the simulation rather than a re-statement of its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review supplies insufficient detail to enumerate all free parameters or background assumptions; the sole explicit premise is the negative interference that generates flat channels.

axioms (1)
  • domain assumption The total optical potential is formed by negative interference between the two individual lattice potentials.
    Stated directly in the abstract as the origin of the flat channels.
