Unraveling the Key of Machine Learning-based Android Malware Detection
Pith reviewed 2026-05-24 03:29 UTC · model grok-4.3
The pith
ML-based Android malware detectors remain vulnerable to evolving threats and adversarial attacks because they fail to capture semantic information that characterizes malicious behaviors from APK features.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Through the taxonomy and re-implementation of 12 approaches, the paper shows that existing ML-based Android malware detectors achieve encouraging results in standard settings yet remain vulnerable to malware evolution and adversarial attacks, with these limitations stemming from insufficient capture and use of malware semantics defined as semantic information characterizing malicious behaviors derived from APK features.
What carries the argument

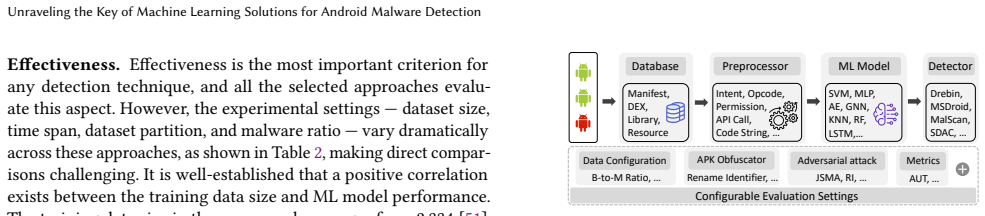

A general-purpose framework that unifies Android app representations and the ML modeling pipeline to enable consistent re-implementation and cross-dimensional evaluation of detection approaches.
If this is right
- Improving the capture of malware semantics should directly increase robustness to evolution and attacks.
- Current detectors trade off effectiveness for efficiency in ways that limit semantic depth.
- A taxonomy organized by representations and pipelines allows systematic identification of gaps across research communities.
- Recommendations for future work center on designing features and models that better encode malicious behavior semantics.
Where Pith is reading between the lines
- The evaluation setup could be extended to test whether newer representation learning methods overcome the identified semantic shortfall.
- If semantics are the key missing element, then hybrid systems combining static and dynamic behavioral traces may close the robustness gap faster than pure ML refinements.
- The taxonomy provides a reusable structure for classifying and comparing any future Android malware detector without redoing the full re-implementation effort.
Load-bearing premise
The twelve re-implemented approaches accurately reproduce the original published methods and the chosen datasets, metrics, and attack models reflect real-world Android malware detection conditions.
What would settle it
A single detector that maintains high accuracy against both unseen malware families over time and adversarial perturbations while explicitly deriving and using semantic behavioral information from APK features.
Figures
read the original abstract
With the rapid advancement of machine learning (ML), ML-based Android malware detection has gained significant popularity due to its ability to automatically learn malicious patterns from Android apps. However, the lack of an in-depth and systematic analysis of existing research makes it difficult to obtain a holistic understanding of the state of the art in this field. In this work, we present the most comprehensive investigation to date of ML-based Android malware detection systems, combining both empirical and quantitative analyses. We first organize prior work into a unified taxonomy based on Android app representations and the ML modeling pipeline. Building on this taxonomy, we design a general-purpose framework for ML-based Android malware detection and re-implement 12 representative approaches from three research communities -- software engineering, security, and machine learning. Using this framework, we conduct a large-scale evaluation across three key dimensions: detection effectiveness, robustness to real-world challenges, and efficiency. Despite extensive research efforts and encouraging results, our findings reveal that existing learning-based Android malware detectors still face significant challenges, including vulnerability to malware evolution and susceptibility to adversarial attacks. We attribute these limitations to the detectors' ability to capture and leverage malware semantics, defined as semantic information that characterizes malicious behaviors derived from APK features. Finally, we summarize our key insights and provide actionable recommendations to guide future research in this domain.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper organizes prior ML-based Android malware detection work into a taxonomy based on app representations and the ML modeling pipeline, designs a general-purpose framework, re-implements 12 representative detectors from SE, security, and ML communities, and evaluates them at scale on detection effectiveness, robustness to malware evolution and adversarial attacks, and efficiency. It concludes that existing detectors remain vulnerable to evolution and adversarial examples because they fail to capture and leverage malware semantics (defined as semantic information characterizing malicious behaviors from APK features), and offers insights plus recommendations for future work.
Significance. If the central empirical claims hold after verification of reproduction fidelity, the work would be a significant contribution as the largest-scale comparative study in this area, providing a reusable framework and concrete evidence of persistent limitations that could steer the community toward semantics-aware approaches. The explicit taxonomy and unified re-implementation effort are strengths that enable direct comparability across communities.
major comments (2)
- [§4] §4 (Re-implementation section): The manuscript does not report quantitative fidelity metrics (e.g., side-by-side F1 or accuracy on the exact dataset splits used in the original publications) for any of the 12 re-implemented detectors. Because the central attribution of failure modes to lack of semantic capture rests entirely on these reproductions, absence of such checks leaves open the possibility that observed vulnerabilities are artifacts of implementation differences rather than intrinsic properties of the original methods.
- [§5.2–5.3] §5.2–5.3 (Evolution and adversarial evaluation): The paper attributes poor performance on evolved malware and adversarial examples to insufficient semantic capture, yet provides no ablation or feature-importance analysis showing that the detectors' learned representations indeed lack the semantic properties defined in the introduction. Without such evidence, the causal link between the observed failures and the semantics hypothesis remains correlational.
minor comments (2)
- [Abstract / §1] The abstract and introduction repeatedly use the phrase 'most comprehensive investigation to date' without a supporting citation or explicit comparison table against prior surveys; a brief related-work paragraph quantifying coverage would strengthen this claim.
- [§3] Notation for the unified framework (e.g., how APK features are mapped to the taxonomy categories) is introduced in §3 but not summarized in a single table; adding such a table would improve readability for readers comparing the 12 approaches.
Simulated Author's Rebuttal
We thank the referee for the constructive comments. We address each major comment point-by-point below.
read point-by-point responses
-
Referee: [§4] §4 (Re-implementation section): The manuscript does not report quantitative fidelity metrics (e.g., side-by-side F1 or accuracy on the exact dataset splits used in the original publications) for any of the 12 re-implemented detectors. Because the central attribution of failure modes to lack of semantic capture rests entirely on these reproductions, absence of such checks leaves open the possibility that observed vulnerabilities are artifacts of implementation differences rather than intrinsic properties of the original methods.
Authors: We agree this is a valid concern for strengthening the reproduction claims. Our re-implementations followed the original papers as closely as possible within the unified framework, and overall trends align with published results. We will add a table in the revised §4 reporting side-by-side F1/accuracy comparisons against original publications on their reported dataset splits where those splits and data are available and reproducible. revision: yes
-
Referee: [§5.2–5.3] §5.2–5.3 (Evolution and adversarial evaluation): The paper attributes poor performance on evolved malware and adversarial examples to insufficient semantic capture, yet provides no ablation or feature-importance analysis showing that the detectors' learned representations indeed lack the semantic properties defined in the introduction. Without such evidence, the causal link between the observed failures and the semantics hypothesis remains correlational.
Authors: The attribution rests on the taxonomy in §3, which classifies each detector by its feature representations and explicitly identifies which rely on syntactic rather than semantic properties (as defined in the introduction). The uniform vulnerability pattern across non-semantic detectors provides supporting evidence. We acknowledge the absence of explicit ablation or feature-importance studies. We will expand the discussion in §5.2–5.3 to more directly connect results to the taxonomy classifications; adding full ablations would require new experiments beyond the current scope. revision: partial
Circularity Check
No circularity; empirical re-implementations and evaluations are independent of the paper's own inputs.
full rationale
The paper organizes prior work into a taxonomy, re-implements 12 detectors in a general framework, and evaluates them empirically on detection effectiveness, robustness to evolution/adversarial attacks, and efficiency. Claims about limitations and attribution to 'malware semantics' (defined as semantic information characterizing malicious behaviors from APK features) follow from these new comparisons rather than reducing by construction to fitted parameters, self-definitions, or self-citation chains. No equations, predictions, or uniqueness theorems are present that equate outputs to inputs. The work is self-contained against external benchmarks via the re-implementations and large-scale evaluation.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Standard ML evaluation assumptions hold, including that benchmark datasets are representative of real-world Android malware distributions.
