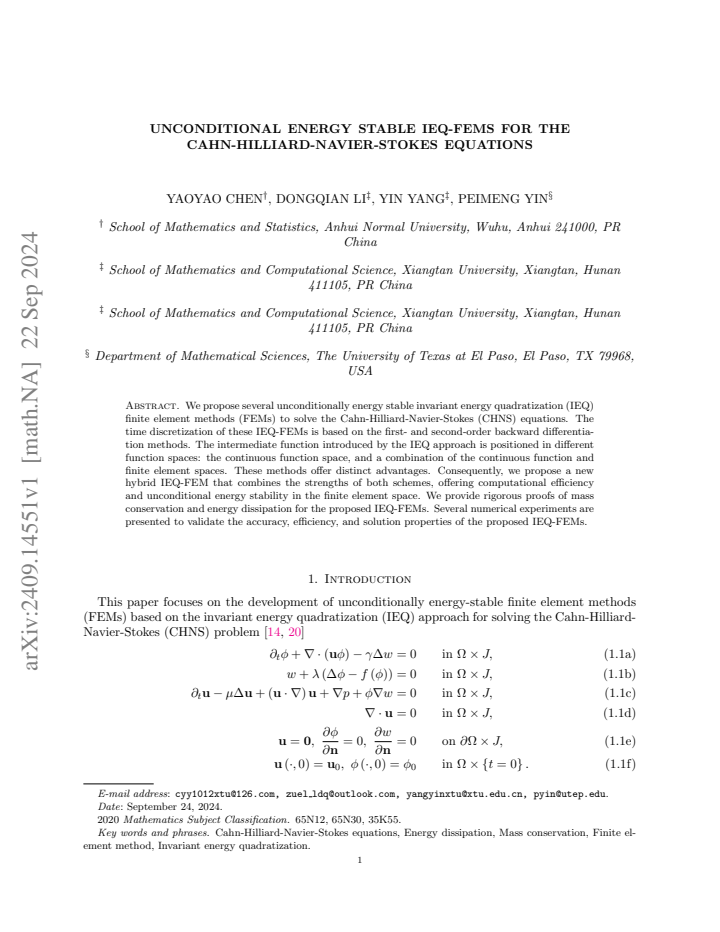

Unconditional energy stable hybrid IEQ-FEMs for the Cahn-Hilliard-Navier-Stokes equations

Yaoyao Chen , Dongqian Li , Yin Yang , Peimeng Yin This is my paper

Pith reviewed 2026-05-23 20:22 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords Cahn-Hilliard-Navier-Stokesinvariant energy quadratizationfinite element methodsenergy stabilitymass conservationhybrid discretizationunconditional stability
0
0 comments X

The pith

A hybrid IEQ finite element method achieves unconditional energy stability for the Cahn-Hilliard-Navier-Stokes equations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors examine two existing unconditionally energy stable IEQ finite element methods for the Cahn-Hilliard-Navier-Stokes equations and identify that the auxiliary energy variable falls outside the finite element space. They introduce a hybrid scheme that merges the two approaches to retain computational efficiency while ensuring the stability property holds in the discrete setting. Rigorous proofs establish that the hybrid method conserves mass exactly and dissipates energy unconditionally. Numerical tests are used to verify these properties along with accuracy. This construction allows stable long-time integration of the coupled phase-field and fluid equations without time-step restrictions.

Core claim

The hybrid IEQ-FEM combines the strengths of first- and second-order backward differentiation IEQ schemes with finite element discretization, providing unconditional energy stability in the finite element space despite the auxiliary variable not belonging to that space, together with proofs of mass conservation and energy dissipation.

What carries the argument

Hybrid IEQ-FEM that selects between two IEQ formulations to ensure the auxiliary energy variable is handled consistently with the finite element space while preserving unconditional stability.

If this is right

  • The discrete solution conserves mass exactly.
  • The discrete energy decreases monotonically for any positive time step size.
  • The method achieves the expected convergence rates in space and time.
  • Both first- and second-order time accuracy variants are available with the same stability guarantee.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This construction suggests a general strategy for other IEQ-based schemes when auxiliary variables are not representable in the chosen approximation space.
  • Applications to three-dimensional two-phase flow problems could benefit from the reduced computational overhead compared to fully implicit alternatives.
  • Adaptive time-stepping strategies might be combined with this scheme to further optimize efficiency in long simulations.

Load-bearing premise

The auxiliary energy function, defined as the square root of the nonlinear part of the free energy, does not lie in the finite element space.

What would settle it

A computed solution in which the discrete energy increases over successive time steps for arbitrarily small time steps would falsify the unconditional stability.

Figures

Figures reproduced from arXiv: 2409.14551 by Dongqian Li, Peimeng Yin, Yaoyao Chen, Yin Yang.

Figure 1
Figure 1. Figure 1: Example 4.2, snapshots of numerical solutions for phase field function, First and second lines: P-BDF1-IEQ-FEM scheme (3.1)-(3.3); Third and fourth lines: P-BDF2-IEQ-FEM scheme (3.36)-(3.37). Figures 1-2 show the numerical solution of phase field ϕ n+1 h and velocity field u n+1 h by using the P-BDF1-IEQ-FEM scheme (3.1)-(3.3) and P-BDF2-IEQ-FEM scheme (3.36)-(3.37). From the pictures, we can see that the … view at source ↗
Figure 2

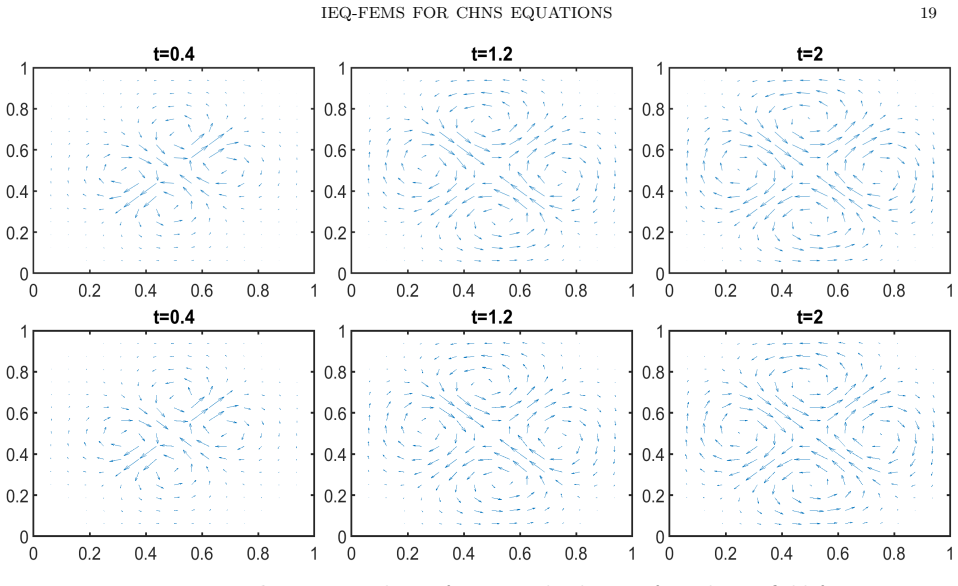

Figure 2. Figure 2: Example 4.2, snapshots of numerical solutions for velocity field func￾tion, First line: P-BDF1-IEQ-FEM scheme (3.1)-(3.3); Second line: P-BDF2-IEQ￾FEM scheme (3.36)-(3.37) [PITH_FULL_IMAGE:figures/full_fig_p019_2.png] view at source ↗
Figure 3

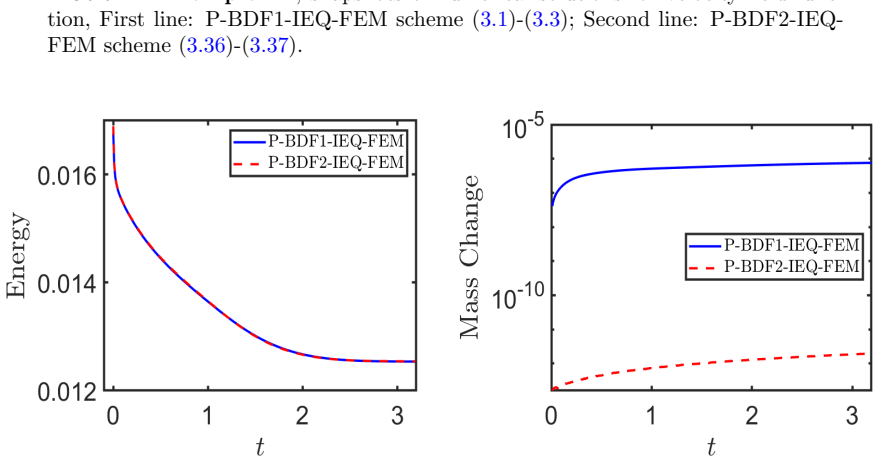

Figure 3. Figure 3: Example 4.2, the modified discrete energy history and discrete mass history. The evolution of the discrete energy and total mass are shown in [PITH_FULL_IMAGE:figures/full_fig_p019_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Example 4.3, P-BDF2-IEQ-FEM scheme (3.36)-(3.37), snapshots of numerical solutions for phase field function. A sequence snapshots of the approximate solutions for phase field function and the velocity field function are produced in Figures 4-5 by the proposed P-BDF2-IEQ-FEM scheme. It is easy to see the numerical solutions satisfy the expectation. The graphs depicting the evolution of discrete energy and c… view at source ↗
Figure 5

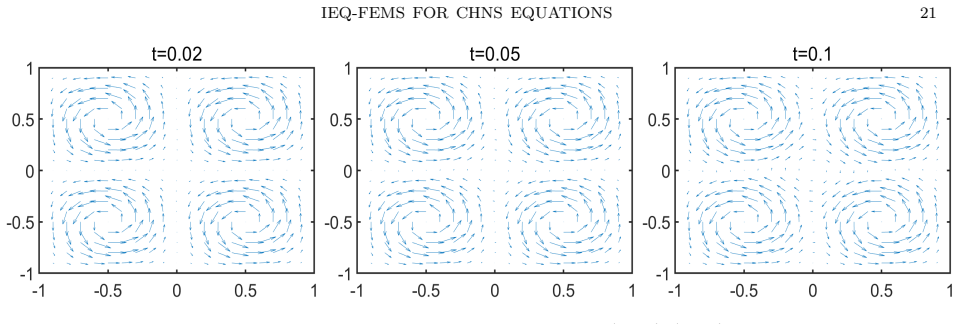

Figure 5. Figure 5: Example 4.3, P-BDF2-IEQ-FEM scheme (3.36)-(3.37), snapshots of numerical solutions for velocity field function [PITH_FULL_IMAGE:figures/full_fig_p021_5.png] view at source ↗
Figure 6

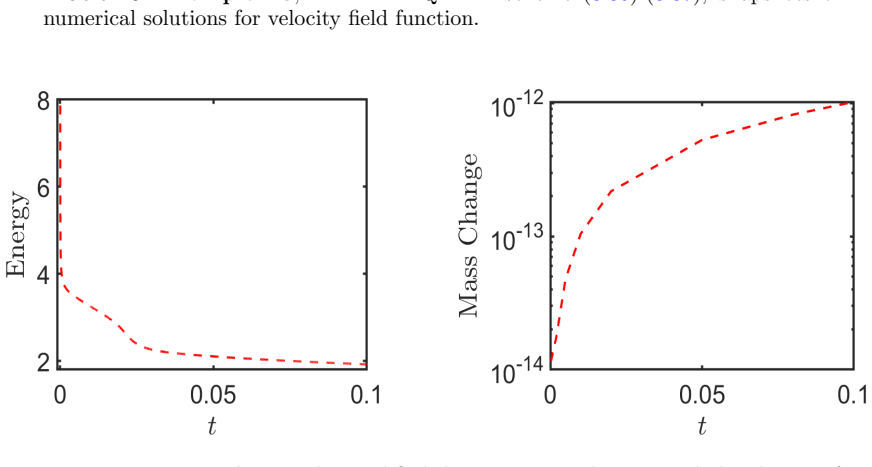

Figure 6. Figure 6: Example 4.3, the modified discrete energy history and the change of total mass. Example 4.4. Let domain Ω = [−2, 2]2 , define m1 = [0, 2] , m2 = [0, 0] , m3 = [0, −2]. For given ϵ = 1 16 , let r1 = r3 = 2− 3ϵ 2 , r2 = 1 and set d (x) = max {−d1 (x), d2 (x), d3 (x)}, dj (x) = |x − mj | −rj for j = 1, 2, 3, we consider the CHNS equations (1.1) with the following initial condition ϕ0 = − tanh  d (x) √ 2ϵ  ,… view at source ↗
Figure 7

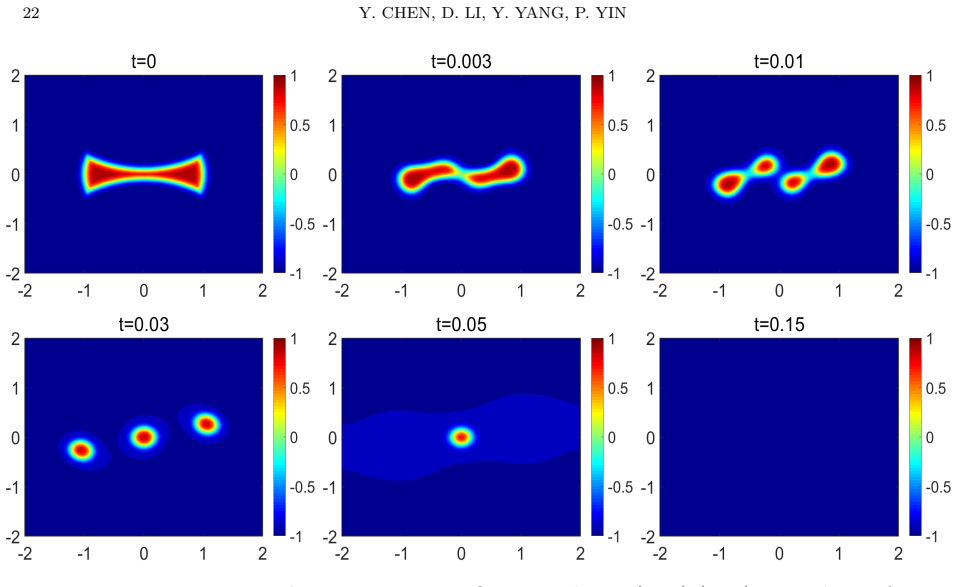

Figure 7. Figure 7: Example 4.4, P-BDF2-IEQ-FEM scheme (3.36)-(3.37), snapshots of numerical solutions for phase field function [PITH_FULL_IMAGE:figures/full_fig_p022_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Example 4.4, P-BDF2-IEQ-FEM scheme (3.36)-(3.37), snapshots of numerical solutions for velocity field function. Example 4.5. [6] In the last example, let Ω = [− 1 2 , − 1 2 ]×[− 1 5 , − 1 5 ], we consider the CHNS equations satisfying the following initial condition ϕ0 =    1, x < x0, −1, x > x1, − sin  πx 2x1  , x0 ≤ x ≤ x1, u0 = [0 0]⊤, (4.8) where x1 = x0 = √ 2 20 , ϵ = 1 500√ 10 , λ = 1 100 … view at source ↗
Figure 9
Figure 9. Figure 9: Example 4.4, the modified discrete energy history and discrete mass history. shown in [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗
Figure 10

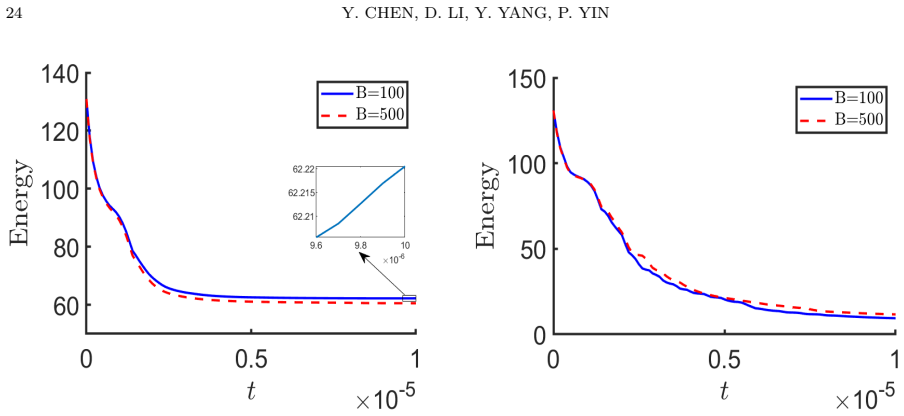

Figure 10. Figure 10: Example 4.5, Effect of constant B on the discrete energy, Left: C￾BDF1-IEQ-FEM scheme; Right: P-BDF1-IEQ-FEM scheme, h = 1 10 [PITH_FULL_IMAGE:figures/full_fig_p024_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Example 4.5, Effect of mesh size on the difference of discrete energy, B = 500. Left: h = 1 160 ; Right: h = 1 320 . energy stability in the FEM space, but the projection step incurs additional computational costs. The third IEQ-FEM scheme is a hybrid of the two, designed to leverage the benefits of both. It begins with the former IEQ-FEM for computational efficiency but switches to the latter if the ener… view at source ↗
Figure 12

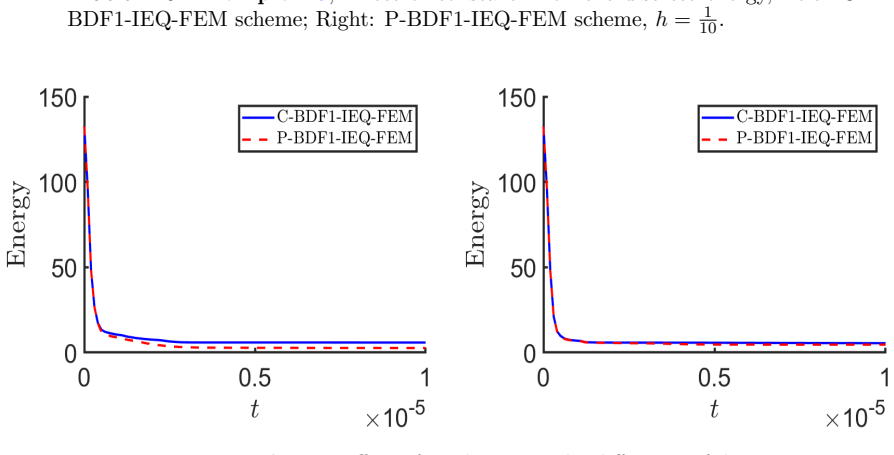

Figure 12. Figure 12: Example 4.5, The comparison of energy curves for three methods. B = 100. Left: h = 1 10 , right: h = 1 160 [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
