Observation of Macroscopic Nonlocal Voltage at Room Temperature

Jae Ho Jeon , Hong Ryeol Na , Sahng-Kyoon Jerng , Seyoung Kwon , Sungkyun Park , Kang Rok Choe , Jun Sung Kim , Heeju Kim
show 8 more authors
Gunn Kim Sangmin Ji Taegeun Yoon Young Jae Song Dirk Wulferding Jeong Kim Hwayong Noh Seung-Hyun Chun
This is my paper

Pith reviewed 2026-05-19 06:27 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords nonlocal voltagehydrodynamic electron flowchalcogenideYBa2Cu3O7room temperature transportmomentum conservationnegative resistancemacroscopic nonlocal conductor
0
0 comments X

The pith

Electrons in thin chalcogenide and YBa2Cu3O7 devices produce nonlocal voltages of 0.1 V across 1 mm distances at room temperature, marking a shift from Ohmic to hydrodynamic conduction.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports that devices made from thin chalcogenides combined with YBa2Cu3O7 transition below a threshold temperature from standard Ohmic conduction, where current follows local electric fields, to a nonlocal conductor. In the nonlocal state, voltages appear across regions conventionally treated as equipotential, reaching about 0.1 V over millimeter scales, accompanied by nonlinear current-voltage behavior. Negative local resistances measured in a vicinal geometry are presented as supporting evidence for macroscopic hydrodynamic electron flow that conserves momentum over long distances. A reader would care because the usual diffusive scattering picture of electron transport would no longer hold at these scales, potentially enabling new device concepts that reduce dissipation without requiring cryogenic conditions.

Core claim

In devices composed of thin chalcogenides and YBa2Cu3O7, the authors observe a transition from an Ohmic conductor to a nonlocal conductor below a certain temperature. The nonlocal conductor is characterized by significant nonlocal voltages (~0.1 V) across macroscopic regions (~1 mm) that are conventionally considered to be equipotential. Nonlinear responses are an additional characteristic. Negative local resistances in a vicinal geometry support macroscopic hydrodynamic flow as the underlying mechanism, implying electron momentum conservation over incredibly long distances. This new conduction state is observable at room temperature.

What carries the argument

Macroscopic hydrodynamic electron flow, in which electron momentum is conserved over millimeter scales instead of being lost to frequent scattering, producing voltage distributions that violate conventional equipotential assumptions.

If this is right

  • Nonlocal voltages appear across distances of order 1 mm at room temperature.
  • Negative local resistance emerges in vicinal electrode geometries.
  • Nonlinear current-voltage characteristics accompany the nonlocal regime.
  • Low-dissipation conduction becomes accessible without cryogenic cooling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the hydrodynamic interpretation holds, device layouts could be redesigned so that voltage is deliberately nonuniform over macroscopic distances.
  • The effect may appear in other layered materials once similar interfaces are engineered, extending beyond the specific chalcogenide-YBCO combination.
  • Scaling studies that change channel width or length could map the temperature dependence of the momentum-conservation length directly.
  • Integration with existing superconducting circuits might allow hybrid devices that combine zero-resistance paths with controlled nonlocal sensing regions.

Load-bearing premise

The observed nonlocal voltages and negative resistances stem from intrinsic long-range momentum conservation in the electron fluid rather than from contact imperfections, local heating, or measurement artifacts.

What would settle it

Reproduce the nonlocal voltage signal while systematically varying contact materials or geometries to eliminate possible interface contributions, or confirm that the signal vanishes when device dimensions exceed the claimed momentum-conservation length.

Figures

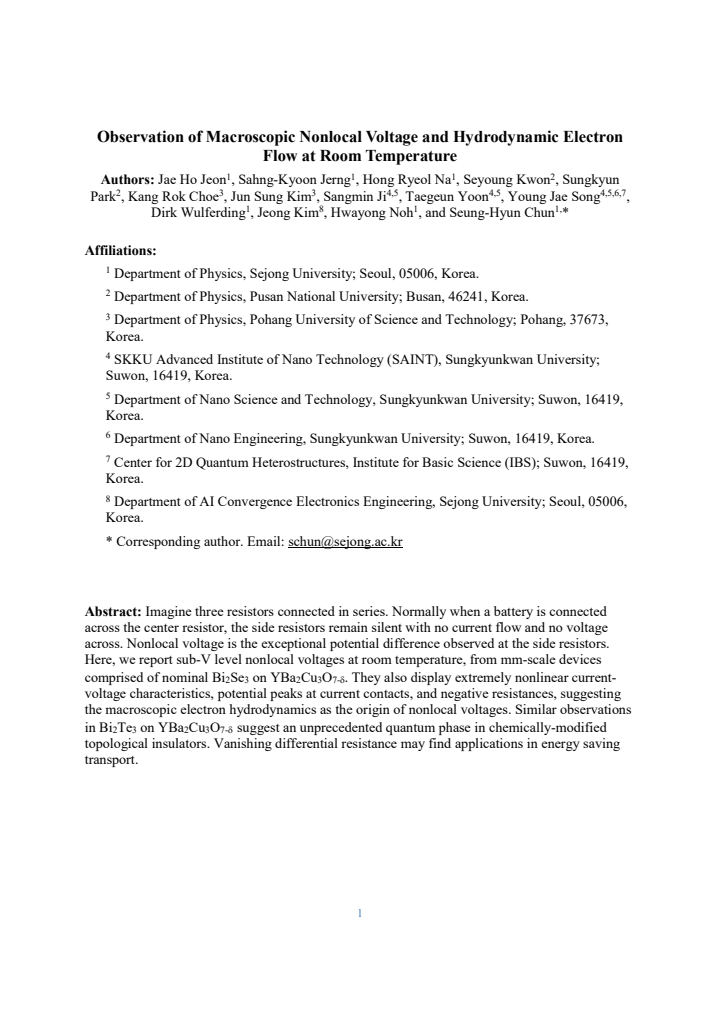

Figures reproduced from arXiv: 2507.06548 by Dirk Wulferding, Gunn Kim, Heeju Kim, Hong Ryeol Na, Hwayong Noh, Jae Ho Jeon, Jeong Kim, Jun Sung Kim, Kang Rok Choe, Sahng-Kyoon Jerng, Sangmin Ji, Seung-Hyun Chun, Seyoung Kwon, Sungkyun Park, Taegeun Yoon, Young Jae Song.

Figure 1
Figure 1. Figure 1: Nonlocal voltage as a function of distance from the source contact. [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2

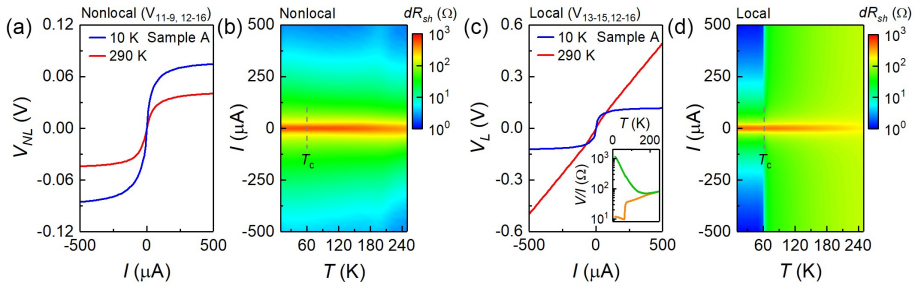

Figure 2. Figure 2: Nonlinear I-V characteristics and numerically calculated differential sheet resistance 𝒅𝑹𝒔𝒉 as a function of current and temperature. (a) Nonlinear I-V of nonlocal voltage at 290 K and 10 K. (b) 𝑑𝑅௦௛ of nonlocal voltage. Note that the scale is exponential. (c) I-V of local voltage at 290 K and 10 K. The inset shows V/I as a function of temperature for I = 2 μA (green line) and 3 mA (orange line). (d) 𝑑𝑅௦௛ … view at source ↗
Figure 3

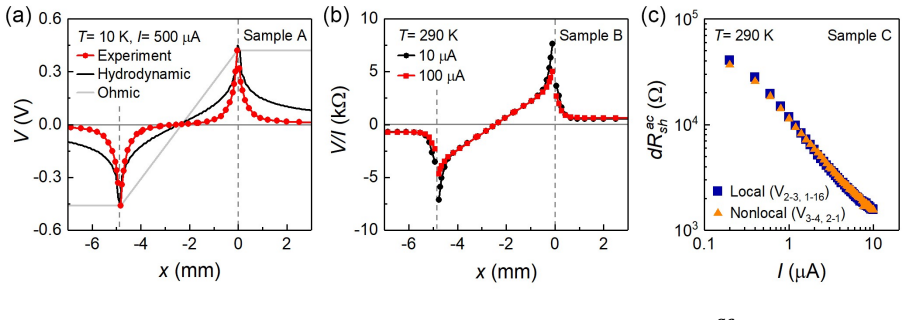

Figure 3. Figure 3: Anomalous potential profile and differential sheet resistance [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4

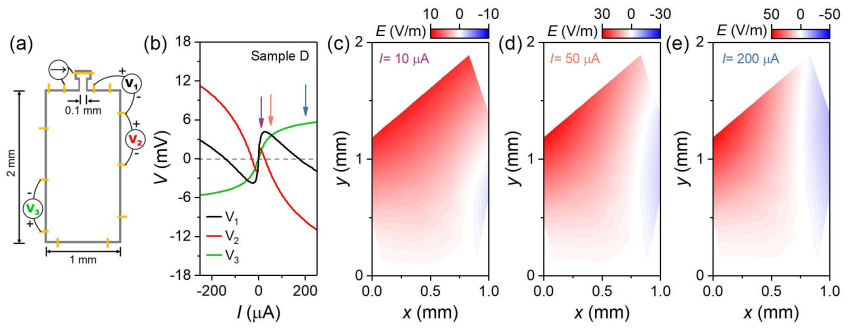

Figure 4. Figure 4: Negative local resistance in a vicinity geometry. [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

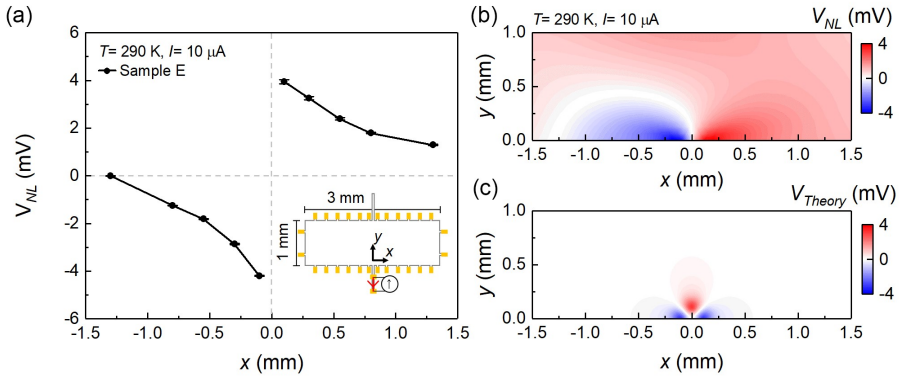

Figure 5. Figure 5: Broken-parity Nonlocal Potential Distribution at 290 K. [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
