arxiv: 2511.13096 · v1 · submitted 2025-11-17 · 💻 cs.RO

ResAlignNet: A Data-Driven Approach for INS/DVL Alignment

Guy Damari , Itzik Klein This is my paper

Pith reviewed 2026-05-17 22:33 UTC · model grok-4.3

classification 💻 cs.RO
keywords INS/DVL alignmentautonomous underwater vehiclesResNetSim2Real transfersensor alignmentunderwater navigationdata-driven navigationinertial navigation
0
0 comments X

The pith

ResAlignNet uses a neural network to align INS and DVL sensors in 25 seconds without external aids.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces ResAlignNet, a data-driven method that applies the 1D ResNet-18 architecture to estimate the alignment between an inertial navigation system and a Doppler velocity log. This approach converts the traditional alignment task into a neural network optimization problem that can be trained using synthetic data and then applied directly to real sensor readings on board an autonomous underwater vehicle. It eliminates the need for external positioning aids or specific vehicle movement patterns, allowing alignment to complete in just 25 seconds with accuracy within 0.8 degrees. A sympathetic reader would value this because current methods take much longer to converge and restrict operational flexibility, while this enables quicker and more flexible deployment for underwater missions where GPS is unavailable.

Core claim

ResAlignNet is a data-driven approach using the 1D ResNet-18 architecture that transforms the alignment problem between INS and DVL into deep neural network optimization. It operates as an in-situ solution requiring only onboard sensors, without external positioning aids or complex vehicle maneuvers, while achieving rapid convergence in seconds. The method demonstrates Sim2Real transfer by training on synthetic data and deploying on operational sensor measurements, with experimental validation showing alignment accuracy within 0.8° using only 25 seconds of data collection and a 65% reduction in convergence time compared to standard velocity-based methods.

What carries the argument

The 1D ResNet-18 neural network architecture that processes time-series sensor data to directly estimate the misalignment angles between the INS and DVL reference frames.

If this is right

  • Alignment no longer requires external aiding sensors such as GPS.
  • The process becomes independent of the vehicle's trajectory or prescribed motion patterns.
  • Convergence occurs in 25 seconds instead of longer periods required by velocity-based methods.
  • Training on synthetic data allows deployment without extensive real-world data collection.
  • It scales across different vehicles, sensors, and operational scenarios without retraining.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the Sim2Real transfer holds, similar neural network approaches could reduce calibration times for other multi-sensor systems in robotics.
  • Shorter alignment times could enable more frequent recalibrations during long underwater missions to maintain accuracy.
  • Eliminating motion pattern requirements might allow alignment during normal survey operations rather than dedicated setup phases.
  • Success here suggests data-driven methods could replace model-based techniques in other navigation alignment problems where analytic solutions are slow or restrictive.

Load-bearing premise

The neural network trained on synthetic data transfers reliably to real operational sensor measurements without significant performance degradation across different vehicles and scenarios.

What would settle it

Conducting an experiment on a new autonomous underwater vehicle with different INS and DVL sensors where the alignment error remains above 0.8 degrees after 25 seconds of data would falsify the performance claim.

Figures

Figures reproduced from arXiv: 2511.13096 by Guy Damari, Itzik Klein.

Figure 1

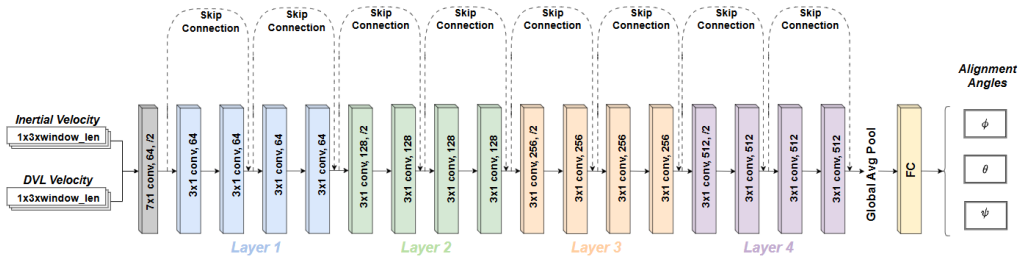

Figure 1. Figure 1: ResAlignNet architecture utilizing 1D ResNet-18 structure with residual connections for alignment parameters estimation. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

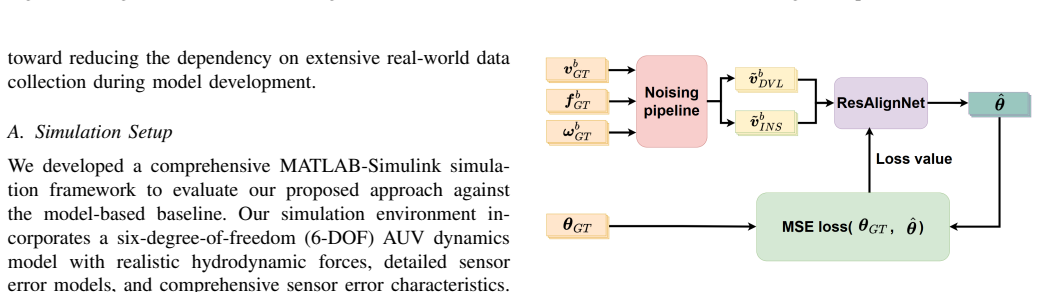

Figure 2. Figure 2: Overview of the ResAlignNet training pipeline. The [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

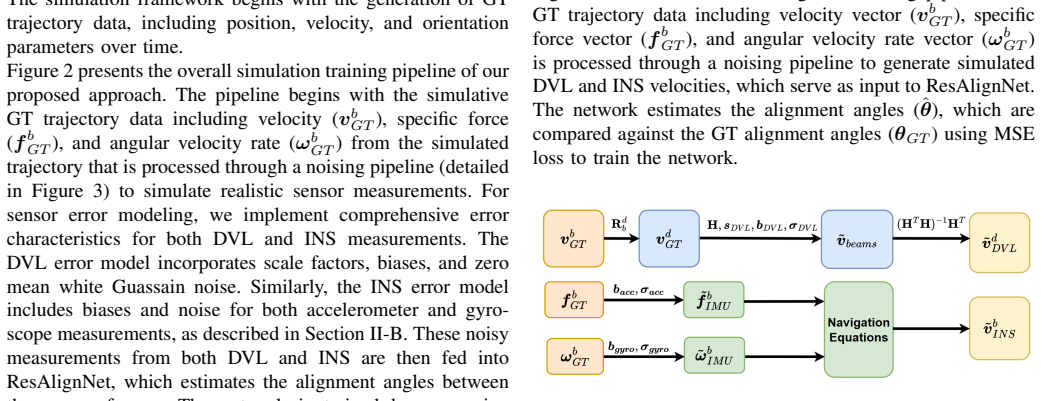

Figure 3. Figure 3: Detailed noising pipeline for simulation data gen [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

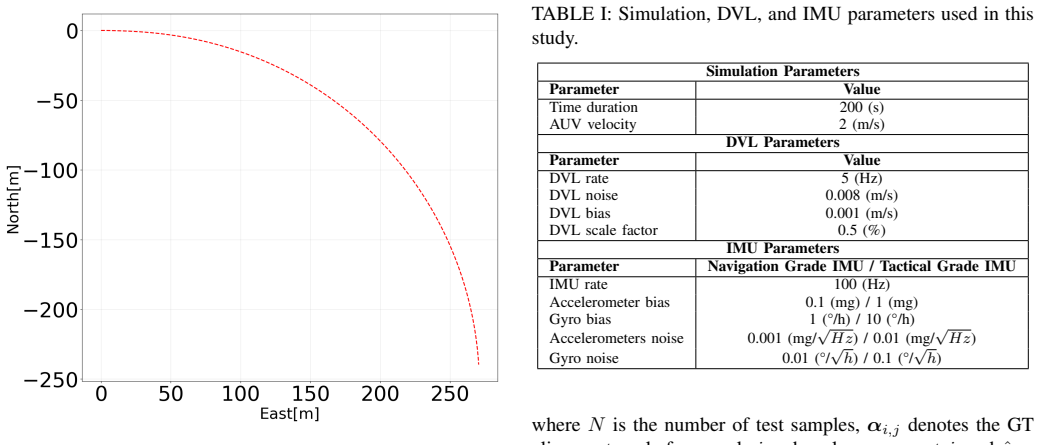

Figure 4. Figure 4: Simulated 200-second right-turn trajectory at constant [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6

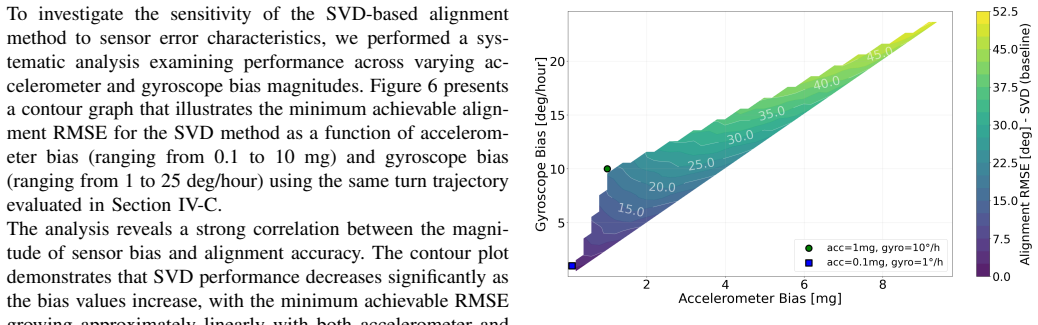

Figure 6. Figure 6: SVD method alignment RMSE sensitivity to IMU [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 5

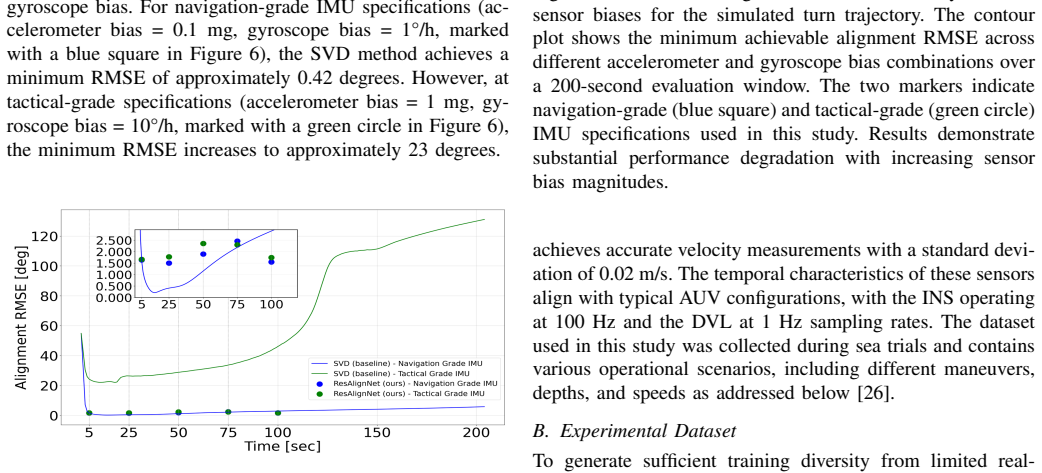

Figure 5. Figure 5: Simulation results: RMSE alignment performance for [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7

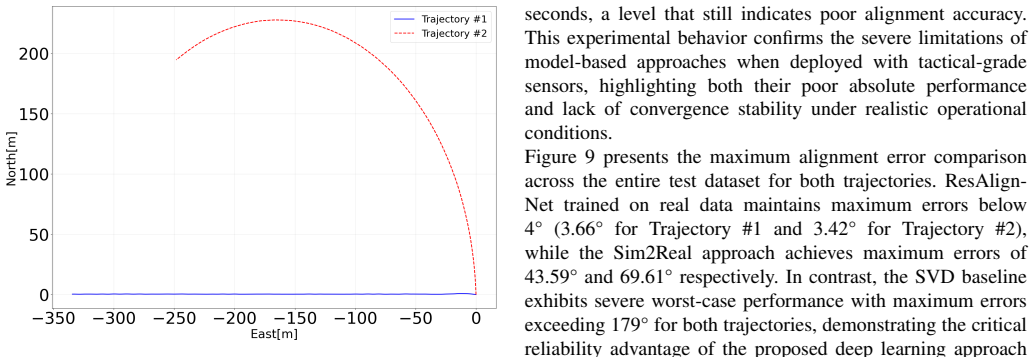

Figure 7. Figure 7: AUV Snapir real trajectories: Trajectory #1 (straight [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

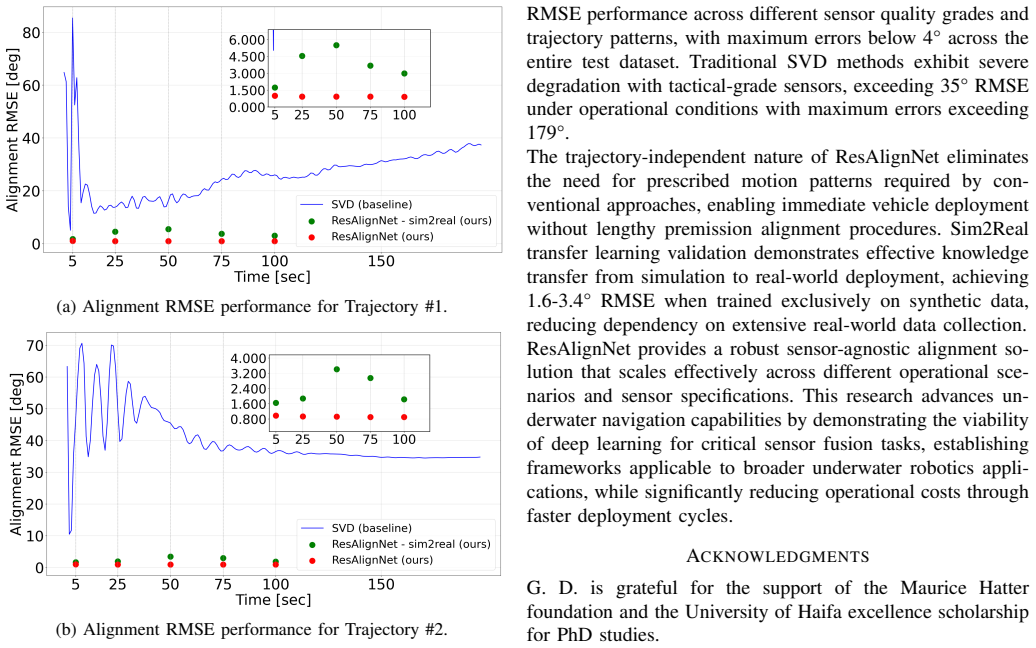

Figure 8. Figure 8: RMSE alignment performance for an alignment range [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

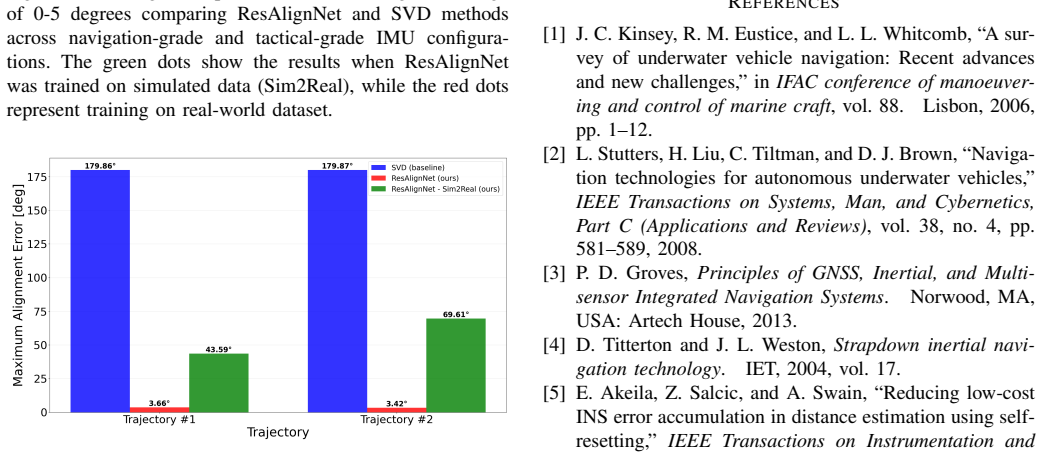

Figure 9. Figure 9: Maximum alignment error comparison between SVD [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Autonomous underwater vehicles rely on precise navigation systems that combine the inertial navigation system and the Doppler velocity log for successful missions in challenging environments where satellite navigation is unavailable. The effectiveness of this integration critically depends on accurate alignment between the sensor reference frames. Standard model-based alignment methods between these sensor systems suffer from lengthy convergence times, dependence on prescribed motion patterns, and reliance on external aiding sensors, significantly limiting operational flexibility. To address these limitations, this paper presents ResAlignNet, a data-driven approach using the 1D ResNet-18 architecture that transforms the alignment problem into deep neural network optimization, operating as an in-situ solution that requires only sensors on board without external positioning aids or complex vehicle maneuvers, while achieving rapid convergence in seconds. Additionally, the approach demonstrates the learning capabilities of Sim2Real transfer, enabling training in synthetic data while deploying in operational sensor measurements. Experimental validation using the Snapir autonomous underwater vehicle demonstrates that ResAlignNet achieves alignment accuracy within 0.8{\deg} using only 25 seconds of data collection, representing a 65\% reduction in convergence time compared to standard velocity-based methods. The trajectory-independent solution eliminates motion pattern requirements and enables immediate vehicle deployment without lengthy pre-mission procedures, advancing underwater navigation capabilities through robust sensor-agnostic alignment that scales across different operational scenarios and sensor specifications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes ResAlignNet, a data-driven INS/DVL alignment method for AUVs that uses a 1D ResNet-18 architecture to recast sensor frame alignment as a neural network optimization problem. It operates in-situ with only onboard sensors, requires no external aids or prescribed maneuvers, and claims to achieve 0.8° accuracy after 25 seconds of data collection—a 65% reduction in convergence time relative to standard velocity-based methods—via Sim2Real transfer (synthetic training to real Snapir AUV deployment). The approach is presented as trajectory-independent and scalable across sensor specifications and operational scenarios.

Significance. If the performance numbers and Sim2Real generalization are substantiated with proper validation, the work could meaningfully advance underwater navigation by shortening alignment times and removing motion-pattern constraints, thereby increasing operational flexibility for AUVs in GPS-denied settings. The data-driven framing offers a practical alternative to lengthy model-based procedures, though its broader claims depend on demonstrating reliable transfer without retraining.

major comments (2)
  1. [Experimental validation] Experimental validation section: The abstract and results report concrete metrics (0.8° accuracy, 25 s convergence, 65 % time reduction) yet supply no information on training hyperparameters, data splits (synthetic vs. real), number of independent runs, error bars, or statistical tests; without these the central performance claim cannot be verified.
  2. [Sim2Real transfer] Sim2Real transfer discussion: The assertion that the network trained on synthetic INS/DVL sequences transfers reliably to real Snapir AUV measurements, supporting sensor-agnostic and scenario-scalable alignment, is not accompanied by domain-gap quantification, held-out real-test performance, or ablation on domain randomization; this leaves the weakest assumption untested.
minor comments (1)
  1. [Results] The comparison baseline labeled 'standard velocity-based methods' should be specified with exact algorithm references and implementation details to allow direct reproduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review of our manuscript. The comments identify key areas where additional information would improve reproducibility and strengthen the claims. We respond to each major comment below and have prepared revisions to address them.

read point-by-point responses

  1. Referee: [Experimental validation] Experimental validation section: The abstract and results report concrete metrics (0.8° accuracy, 25 s convergence, 65 % time reduction) yet supply no information on training hyperparameters, data splits (synthetic vs. real), number of independent runs, error bars, or statistical tests; without these the central performance claim cannot be verified.

    Authors: We agree that the experimental validation section requires additional details to allow independent verification of the reported metrics. In the revised manuscript we will expand this section to specify the training hyperparameters, the exact data splits and volumes used for synthetic training versus real evaluation, the number of independent runs performed, error bars on all quantitative results, and the statistical tests employed to compare against the velocity-based baseline. These additions will directly support the claims of 0.8° accuracy, 25 s convergence, and 65 % time reduction. revision: yes

  2. Referee: [Sim2Real transfer] Sim2Real transfer discussion: The assertion that the network trained on synthetic INS/DVL sequences transfers reliably to real Snapir AUV measurements, supporting sensor-agnostic and scenario-scalable alignment, is not accompanied by domain-gap quantification, held-out real-test performance, or ablation on domain randomization; this leaves the weakest assumption untested.

    Authors: We acknowledge that the Sim2Real transfer discussion would benefit from explicit supporting analyses. We will revise the manuscript to include quantitative measures of the domain gap, performance results on held-out real-world test sequences from the Snapir AUV, and ablation experiments that isolate the contribution of domain randomization. These additions will provide stronger evidence for the reliability of the transfer and the sensor-agnostic nature of the approach. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical ML training and real-data validation are independent of reported metrics

full rationale

The paper frames alignment as a supervised learning task solved by training a 1D ResNet-18 on synthetic INS/DVL sequences and measuring performance on real Snapir AUV streams. No derivation chain, equations, or first-principles steps are presented that reduce to fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations. The 0.8° / 25 s result is an observed test-set outcome after training, not a quantity forced by construction from the training data itself. Domain-gap concerns affect generalization risk but do not create circularity under the defined criteria, as the evaluation remains externally falsifiable on held-out real measurements.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the central claim rests on the unstated assumption that the learned mapping generalizes from simulation to real sensor data.
