arxiv: 2512.10584 · v2 · submitted 2025-12-11 · 💱 q-fin.CP

Volatility time series modeling by single-qubit quantum circuit learning

Tetsuya Takaishi This is my paper

Pith reviewed 2026-05-16 23:27 UTC · model grok-4.3

classification 💱 q-fin.CP
keywords quantum circuit learningvolatility time seriesasymmetric volatilityRational GARCHHurst exponentmultifractal analysisfinancial time series
0
0 comments X

The pith

Single-qubit quantum circuit learning models volatility time series while preserving negative return-volatility correlation and multifractal structure.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies single-qubit quantum circuit learning to forecast volatility dynamics in synthetic financial time series. Data come from the Rational GARCH model, chosen because it incorporates volatility asymmetry. The quantum predictions maintain the negative correlation between returns and volatility that marks asymmetric behavior. They also keep the anti-persistent character measured by the Hurst exponent and the multifractal spectrum of the original series.

Core claim

A single-qubit quantum circuit trained by quantum circuit learning on volatility series generated by the Rational GARCH model produces predictions that preserve the negative return-volatility correlation, a signature of asymmetric volatility dynamics. The predicted series further exhibit anti-persistent behavior according to the Hurst exponent and retain the multifractal structure of the input synthetic data.

What carries the argument

Single-qubit quantum circuit learning (QCL), which optimizes the parameters of a one-qubit quantum circuit to approximate the mapping from past volatility to future values.

If this is right

  • QCL captures asymmetric volatility features directly from data without explicit asymmetry parameters.
  • The predicted series retain anti-persistent scaling and multifractal properties observed in the generating process.
  • Single-qubit circuits can reproduce statistical signatures of financial volatility time series.
  • The approach works for data designed to exhibit the leverage effect.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the preservation results hold on real market data, single-qubit QCL could serve as a lightweight alternative to classical GARCH variants for short-term volatility forecasting.
  • The implicit learning of nonlinear dependencies may extend to joint modeling of returns and volatility in one circuit.
  • Computational cost comparisons with classical recurrent networks on the same task would clarify any efficiency edge.

Load-bearing premise

The synthetic volatility series produced by the Rational GARCH model are representative of the dynamics found in real financial markets.

What would settle it

Train the same single-qubit circuit on real historical volatility data from equity markets and check whether the negative return-volatility correlation and multifractal spectrum are still preserved in the out-of-sample predictions.

Figures

Figures reproduced from arXiv: 2512.10584 by Tetsuya Takaishi.

Figure 1
Figure 1. Figure 1: illustrates the single-qubit PQC employed in this study. |0i Rr X Rr Z Rv X Rv Z U(θ) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

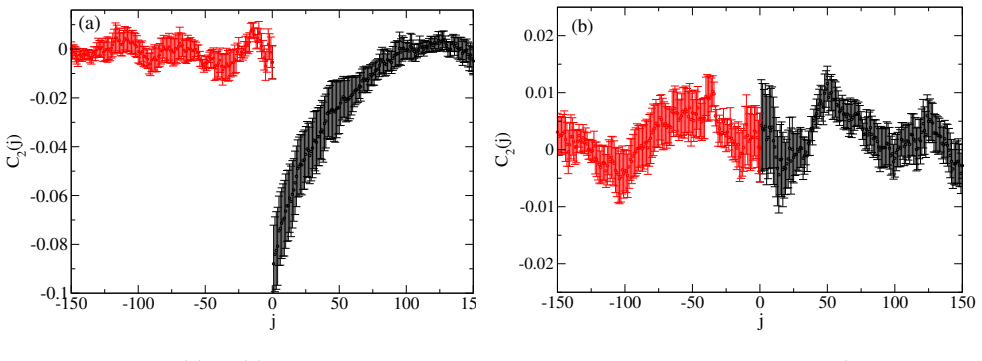

Figure 2. Figure 2: (a) C2(j) computed from RGARCH data with asymmetric volatility (α = 0.11, β = 0.85, ω = 0.005, γ = 0.1). (b) C2(j) computed from symmetric volatility data (α = 0.11, β = 0.85, ω = 0.005, γ = 0.0). 4. Volatility Modeling via Quantum Circuit Learning We first generate 1,095 data points (corresponding to three years of daily data) using the RGARCH model with parameters (α = 0.11, β = 0.85, ω = 0.005, γ = 0.1)… view at source ↗
Figure 3
Figure 3. Figure 3: Return rt and volatility σ 2 t used as input data. Using the rescaled data, we estimate volatilities via QCL with the single-qubit quantum circuit shown in [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

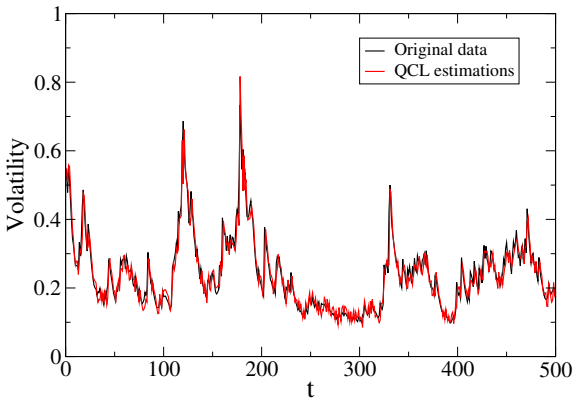

Figure 4. Figure 4: Comparison between the original volatility and the volatility estimates obtained via QCL. The first 500 data points are displayed. 0 500 1000 1500 2000 -1 -0.5 0 0.5 1 r p t 0 500 1000 1500 2000 t 0 0.2 0.4 0.6 0.8 1 v t [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

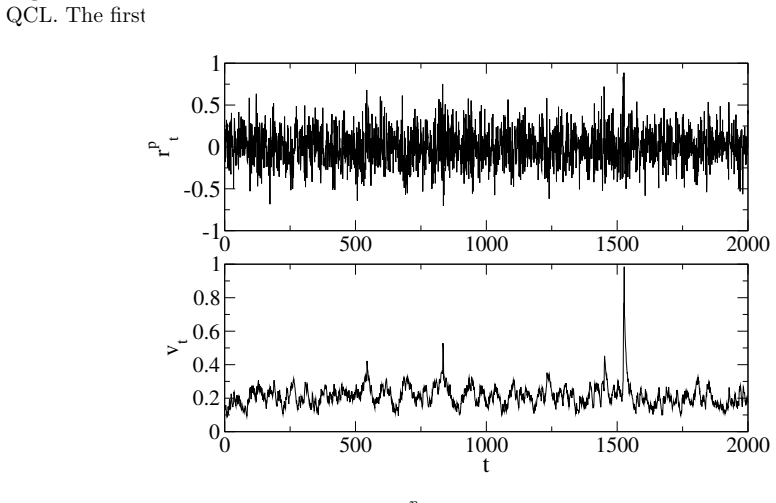

Figure 5. Figure 5: Predicted return r p t and volatility vt generated using QCL. the original data. Next, using the optimized parameters from QCL, we generate 100,000 data points for the predicted return r p t and volatility vt , where r p t = √ vtǫt [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: C2(j) computed from QCL-generated data. 0 10 20 30 40 50 j 0.001 0.01 0.1 -C2(j) (a) 0 20 40 60 80 100 j 0.001 0.01 0.1 -C2(j) (b) [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

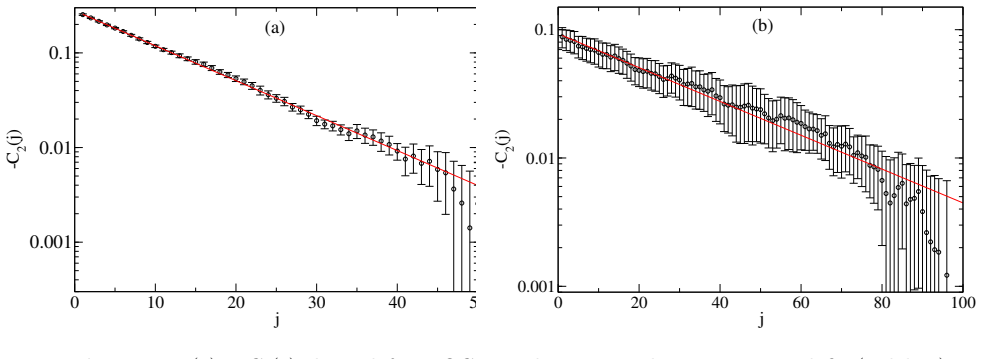

Figure 7. Figure 7: (a) −C2(j) derived from QCL predictions, with an exponential fit (red line) to ∼ exp(−j/τ ), yielding τ ≈ 12. (b) −C2(j) derived from the original data. The exponential fit yields τ ≈ 33. Empirically, volatility increment time series are known to exhibit anti-persistent behavior, with a Hurst exponent less than 0.5. The volatility increment dVt is defined as dVt = log vt −log vt−1. We compute the Hurst exp… view at source ↗
Figure 8
Figure 8. Figure 8: Hurst exponent h(2) computed from QCL and original data. 0 50 100 t -0.05 -0.025 0 0.025 Autocorrelation (a) 0 50 100 t -0.05 -0.025 0 0.025 Autocorrelation (b) [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: (a) Autocorrelation function from QCL predictions. (b) Autocorrelation function from original data. -4 -2 0 2 4 q 0.2 0.3 0.4 0.5 h(q) QCL Original data (a) 0.1 0.2 0.3 0.4 0.5 0.6 α 0.5 0.6 0.7 0.8 0.9 1 f(α) QCL Orignal data (b) [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: (a) Generalized Hurst exponent h(q). (b) Singularity spectrum f(α) [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
read the original abstract

We employ single-qubit quantum circuit learning (QCL) to model the dynamics of volatility time series. To assess its effectiveness, we generate synthetic data using the Rational GARCH model, which is specifically designed to capture volatility asymmetry. Our results show that QCL-based volatility predictions preserve the negative return-volatility correlation, a hallmark of asymmetric volatility dynamics. Moreover, analysis of the Hurst exponent and multifractal characteristics indicates that the predicted series, like the original synthetic data, exhibits anti-persistent behavior and retains its multifractal structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that single-qubit quantum circuit learning (QCL) can model volatility time series dynamics. Using synthetic data generated by the Rational GARCH model (chosen to embed volatility asymmetry), the authors show that QCL predictions preserve the negative return-volatility correlation, anti-persistent behavior via the Hurst exponent, and the multifractal structure of the original series.

Significance. If the results hold, this demonstrates that a minimal single-qubit variational circuit can reproduce key stylized facts of volatility without explicit asymmetry modeling, contributing to quantum machine learning applications in quantitative finance. The focus on multifractal and correlation preservation rather than point forecasts is a strength, though the exclusive use of synthetic data limits immediate practical impact.

major comments (2)
  1. [Abstract] Abstract: The claim that QCL predictions preserve the negative return-volatility correlation, Hurst exponent, and multifractal structure provides no numerical values, error bars, statistical tests, or quantitative measures of preservation. This absence prevents assessment of how closely the properties are retained.
  2. [Experimental results] Experimental results section: All demonstrations use synthetic series from the Rational GARCH model, which is constructed to exhibit the exact asymmetry, anti-persistence, and multifractality being measured. No validation on real-market volatility data (e.g., realized volatility or VIX) is reported, leaving the generalization of the modeling claim untested.
minor comments (1)
  1. [Methods] The manuscript should specify circuit depth, number of variational parameters, optimizer, training epochs, and data length to enable reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment point by point below, indicating where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim that QCL predictions preserve the negative return-volatility correlation, Hurst exponent, and multifractal structure provides no numerical values, error bars, statistical tests, or quantitative measures of preservation. This absence prevents assessment of how closely the properties are retained.

    Authors: We agree that quantitative details are needed for proper assessment. In the revised manuscript we will update the abstract to report the specific measured values (e.g., return-volatility correlation coefficient, Hurst exponent with standard error, and key multifractal spectrum parameters) together with the statistical tests used to confirm preservation. revision: yes

  2. Referee: [Experimental results] Experimental results section: All demonstrations use synthetic series from the Rational GARCH model, which is constructed to exhibit the exact asymmetry, anti-persistence, and multifractality being measured. No validation on real-market volatility data (e.g., realized volatility or VIX) is reported, leaving the generalization of the modeling claim untested.

    Authors: The exclusive use of Rational GARCH synthetic data was intentional to create a controlled setting in which the ground-truth properties are known exactly, enabling a direct and unambiguous test of whether the single-qubit QCL can reproduce them. We will revise the experimental-results and discussion sections to state this scope explicitly, to quantify the degree of preservation with the numerical measures requested above, and to outline concrete next steps for empirical validation on real volatility series. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical evaluation on external synthetic generator

full rationale

The paper generates synthetic volatility series from the Rational GARCH model (an external parametric process), trains a single-qubit QCL model on a training subset, and evaluates statistical properties (negative return-volatility correlation, Hurst exponent, multifractality) on held-out test series. No derivation chain, equation, or self-citation reduces the reported preservation results to fitted parameters by construction. The data-generating process is independent of the QCL training loop, and the measured properties are computed post-hoc on model outputs rather than being imposed as targets. This is a standard empirical modeling study with no load-bearing circular step.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The work rests on the standard variational quantum circuit framework and the Rational GARCH data generator. No new physical entities are postulated.

free parameters (1)
  • variational circuit parameters
    The single-qubit circuit contains rotation angles that are optimized to minimize prediction error on the training portion of the synthetic series.
axioms (2)
  • standard math Standard quantum mechanics and measurement postulates for a single qubit
    The QCL procedure assumes the usual Hilbert-space description and projective measurement.
  • domain assumption Rational GARCH model correctly generates asymmetric volatility
    The paper treats the Rational GARCH output as ground-truth synthetic data whose statistical properties must be reproduced.
