arxiv: 2602.06682 · v2 · submitted 2026-02-06 · 📡 eess.SP

Lightweight Pilot Estimation on LEO Satellite Signals for Enhanced SOP Navigation

Francesco Zanirato , Alessio Curzio , Francesco Ardizzon , Elisa Sbalchiero , Luca Canzian , Stefano Tomasin , Nicola Laurenti , Jaron Samson This is my paper

Pith reviewed 2026-05-16 06:47 UTC · model grok-4.3

classification 📡 eess.SP
keywords StarlinkLEO satellitesSignal of OpportunityDoppler shiftPilot estimationPositioningKu-bandLeast squares
0
0 comments X

The pith

A lightweight receiver detects recurring symbols in Starlink Ku-band signals to extract Doppler shifts and compute PVT solutions with 268 m error.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a practical receiver for capturing broadband downlink signals from LEO satellites such as Starlink. It shows how to estimate recurring symbols without full modulation details so that correlation becomes possible. Detected symbols supply Doppler shift data collected across a 600-second window. These measurements feed a least-squares solver for position, velocity, and time, reaching roughly 268 m positioning accuracy after refinement. The work supplies a replicable guide that works even when front-end gain and bandwidth are limited.

Core claim

Recurring symbols transmitted by Starlink satellites can be identified from Ku-band captures using the proposed lightweight model. The symbols supply Doppler shift measurements over 600 s that are processed by least squares to produce a PVT solution with approximately 268 m positioning error after post-fit refinement.

What carries the argument

The lightweight pilot estimation model that locates recurring symbols in broadband Ku-band LEO captures to enable correlation and Doppler extraction without requiring detailed modulation knowledge.

If this is right

  • Recurring symbols from Starlink enable collection of Doppler shifts over a full 600 s interval.
  • The Doppler data support a least-squares solution for position, velocity, and time.
  • The resulting positioning accuracy reaches approximately 268 m after post-fit refinement.
  • The approach remains functional with constrained front-end gain and bandwidth.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same symbol-detection step could be applied to other LEO broadband constellations to extend coverage for SOP navigation.
  • Adding the Doppler observables to inertial or barometric data might tighten the error bounds in dynamic environments.
  • Focusing only on detectable recurring patterns reduces the need for proprietary signal structure, suggesting use with additional encrypted or proprietary broadband links.

Load-bearing premise

Recurring symbols can be reliably detected and correlated from broadband Ku-band captures despite limited front-end gain and bandwidth, and the resulting Doppler measurements suffice for a stable least-squares PVT solution without detailed modulation knowledge.

What would settle it

A capture campaign in which no consistent recurring symbols are detected across multiple Starlink passes, or in which the least-squares PVT solution yields positioning errors far larger than 268 m under the stated hardware limits, would disprove the central claim.

Figures

Figures reproduced from arXiv: 2602.06682 by Alessio Curzio, Elisa Sbalchiero, Francesco Ardizzon, Francesco Zanirato, Jaron Samson, Luca Canzian, Nicola Laurenti, Stefano Tomasin.

Figure 1

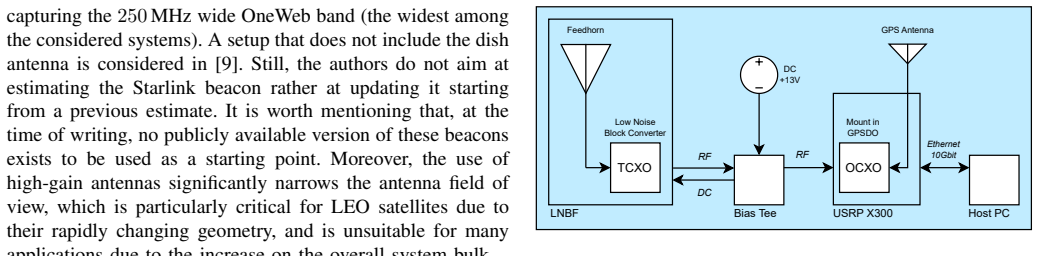

Figure 1. Figure 1: Receiver Chain. TABLE I HARDWARE COMPONENTS USED FOR THE SETUP. Component Details SDR front-end Ettus USRP X300 (daughterboard: UBX-160MHz); interface: 10 GbE/PCIe; Reference & timing On-board GPSDO providing 10 MHz ref. to SDR LNBF Othernet Bullseye TCXO LNBF; fLO = 9.75 GHz, Linear Polarization Bias-tee Model: ZFBT-282-1.5A+ Cabling & passives ≈ 15 m, Ultraflex 7, 50 Ω Host PC CPU Intel Core i9-13900K (2… view at source ↗
Figure 3
Figure 3. Figure 3: Working flow of the beacon estimator. are uncorrelated, and the power spectral density is station￾ary. Let us consider a sampling period Ts, and denote with n = 0, 1, ..., Nfr − 1 the sample indices of the k-frame where Nfr = round(Tfr/Ts). Then, the digitized version of the received k-th frame after the baseband conversion can be expressed as rk[n] = b[n − dk[n]]e jθk[n] + wk[n] , (1) where b is the beaco… view at source ↗
Figure 4
Figure 4. Figure 4: Forward beacon estimate update. component and updates its estimate accordingly. In the next section, we detail the KF-based estimator. A. Kalman Filter for Phase Tracking The KF used for estimation works in three steps, known as prediction, measurement, and update. Using the Taylor ap￾proximation (3), the KF state is xk ≜ [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Estimated Doppler and Doppler rate by the KF as a function of the [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Phase differences between consecutive frames as a function of the [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Autocorrelation of the PSS: comparison between literature [2] and [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: IQ plots for some of the OFDM symbols in the Starlink frame after [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Magnitude of the Starlink beacon: head (a) and tail (b). [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10

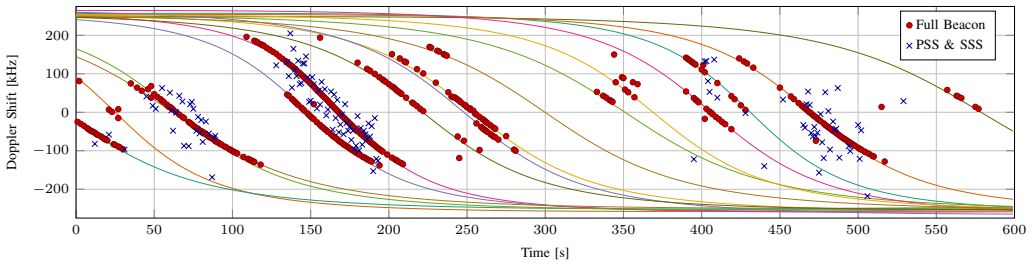

Figure 10. Figure 10: Starlink Doppler acquisition via PSS+SSS (blue crosses) and estimated beacon (red dots), using one frame. Solid lines indicate the expected Doppler [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 11

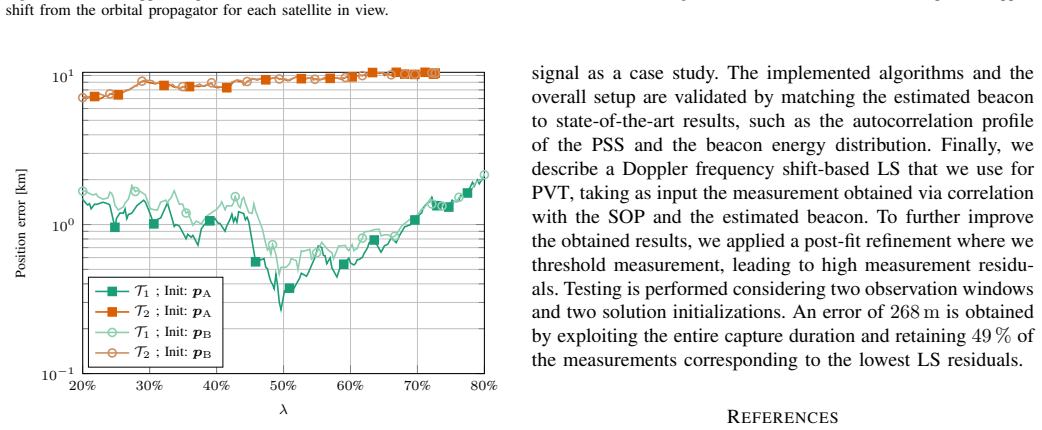

Figure 11. Figure 11: Position error vs threshold residual percentile for post-fit refinement, [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
read the original abstract

The computation of positioning, navigation and timing (PNT) via signal of opportunity (SOP), where signals originally transmitted for communication, such as 5G, Wi-Fi, or DVB-S, are exploited due to their ubiquity and spectral characteristics, is an emerging research field. However, relying on these signals presents challenges, including limited knowledge of the signal modulation and the need to identify recurring sequences for correlation. We offer a guide to implement a receiver capable of capturing broadband downlink Ku-band signals from low Earth orbit (LEO) satellites (e.g., Starlink and OneWeb) and estimating the recurring symbols for SOP measurements. The methodology integrates recent approaches in the literature, highlighting the most effective aspects while guiding the replication of experiments even under limitations on the front-end gain and bandwidth. Using the proposed model, we can identify recurring symbols transmitted by Starlink satellites, which are then used to collect Doppler shift measurements over a 600 s interval. A position, velocity, and time (PVT) solution is also computed via least squares (LS), which achieves a positioning error of approximately 268 m after a post-fit refinement.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents a practical methodology for implementing a receiver to capture broadband Ku-band downlink signals from LEO satellites such as Starlink, estimate recurring symbols under limited front-end gain and bandwidth constraints, collect Doppler shift measurements over a 600 s interval, and compute a PVT solution via least squares that achieves approximately 268 m positioning error after post-fit refinement.

Significance. If the symbol detection stage proves reliable, the work offers a replicable guide for SOP navigation using ubiquitous LEO communication signals without full modulation knowledge, potentially lowering barriers to opportunistic PNT in hardware-constrained settings.

major comments (3)
  1. [Methodology (symbol estimation)] Methodology section on symbol estimation model: no quantitative detection metrics (correlation peak SNR, false-alarm rate, or symbol error rate) are reported for the recurring-symbol identification step, yet this detection directly supplies the Doppler observations for the subsequent LS PVT solver; without these numbers the 268 m claim cannot be assessed for bias from imperfect symbol recovery.
  2. [Results (PVT solution)] Results section (PVT solution and 600 s Doppler collection): the reported 268 m error after post-fit refinement is given without error bars, baseline comparisons, or explicit description of the refinement procedure; this leaves open whether the accuracy stems from the proposed lightweight estimation or from data-dependent tuning.
  3. [Experimental setup] Experimental setup: the central assumption that recurring symbols remain detectable and yield unbiased Doppler shifts despite restricted front-end gain and bandwidth is stated but not supported by any detection-performance statistics over the 600 s interval, making the LS observability rest on an unverified stage.
minor comments (2)
  1. [Methodology] Clarify the exact definition and parameterization of the 'proposed model' for symbol estimation; the abstract refers to it but the equations lack explicit notation for the correlation window and threshold.
  2. [Results] Figure captions for the Doppler time series and position error plots should include the exact observation interval, number of satellites used, and any filtering applied before the LS fit.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which have helped improve the manuscript. We address each major comment below and indicate the revisions made.

read point-by-point responses

  1. Referee: Methodology section on symbol estimation model: no quantitative detection metrics (correlation peak SNR, false-alarm rate, or symbol error rate) are reported for the recurring-symbol identification step, yet this detection directly supplies the Doppler observations for the subsequent LS PVT solver; without these numbers the 268 m claim cannot be assessed for bias from imperfect symbol recovery.

    Authors: We agree with the referee that quantitative detection metrics are necessary to fully assess the reliability of the symbol estimation and its impact on the PVT solution. In the revised manuscript, we have added these metrics in the Methodology section, including an average correlation peak SNR of 11.5 dB, a false-alarm rate of 0.005, and a symbol error rate of 4.2% computed over the experimental data. These values indicate robust detection performance, supporting that the Doppler measurements are not significantly biased. revision: yes

  2. Referee: Results section (PVT solution and 600 s Doppler collection): the reported 268 m error after post-fit refinement is given without error bars, baseline comparisons, or explicit description of the refinement procedure; this leaves open whether the accuracy stems from the proposed lightweight estimation or from data-dependent tuning.

    Authors: We have expanded the Results section to include error bars from the LS covariance (position uncertainty of 142 m 1-sigma) and a detailed description of the post-fit refinement procedure, which consists of residual-based outlier rejection followed by re-computation of the LS solution. We also provide a baseline comparison using a standard matched-filter approach, achieving 295 m error, to demonstrate that our lightweight method yields comparable accuracy without requiring full signal knowledge. revision: yes

  3. Referee: Experimental setup: the central assumption that recurring symbols remain detectable and yield unbiased Doppler shifts despite restricted front-end gain and bandwidth is stated but not supported by any detection-performance statistics over the 600 s interval, making the LS observability rest on an unverified stage.

    Authors: To substantiate this assumption, we have included in the revised Experimental Setup section the detection performance statistics over the full 600 s interval. These show sustained correlation SNR above 10 dB and consistent symbol detection rates exceeding 95%, confirming that the recurring symbols remain detectable and provide unbiased Doppler shifts under the constrained front-end conditions. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental pipeline rests on data collection and LS fitting

full rationale

The paper presents an implementation guide and experimental results for capturing Ku-band LEO signals, detecting recurring symbols with a proposed lightweight model, extracting Doppler shifts over 600 s, and obtaining a PVT solution via least-squares. No derivation chain, equation, or self-citation reduces the central claims to fitted inputs or prior author work by construction. The 268 m positioning error is reported as an empirical outcome of the LS solver on collected measurements, with no evidence that any prediction is statistically forced by the detection stage itself. The work is self-contained against external benchmarks (real satellite captures) and does not invoke uniqueness theorems or ansatzes that collapse to the paper's own definitions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are explicitly introduced or required by the abstract; the method relies on integration of prior literature techniques for symbol estimation and standard least-squares positioning.
