arxiv: 2604.06311 · v1 · submitted 2026-04-07 · 🌌 astro-ph.HE · astro-ph.CO

An archival search for gamma-ray bursts gravitationally lensed by galaxy clusters

Dan Ryczanowski (1 , 2) , Benjamin P. Jones (2) , Benjamin P. Gompertz (2 , 3) , Graham P. Smith (2 , 4) ((1) Institute of Cosmology , Gravitation
show 17 more authors
University of Portsmouth Burnaby Road Portsmouth PO1 3FX UK (2) School of Physics Astronomy University of Birmingham Edgbaston Birmingham B15 2TT (3) Institute for Gravitational Wave Astronomy (4) Department of Astrophysics University of Vienna T\"urkenschanzstrasse 17 1180 Vienna Austria)
This is my paper

Pith reviewed 2026-05-10 18:37 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.CO
keywords gamma-ray burstsgravitational lensinggalaxy clustersSwiftAmati relationarchival searchmagnification
0
0 comments X

The pith

Seventeen Swift gamma-ray bursts are candidates for gravitational lensing by galaxy clusters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper performs an archival cross-match of well-localized Swift gamma-ray bursts with a large catalog of galaxy clusters to search for lensed events. Seventeen candidates are identified within 2 arcminutes of a cluster, and fourteen of them have redshifts or Amati-relation properties consistent with lying behind the cluster and thus being lensed. This approach addresses the absence of confirmed lensed GRBs despite theoretical expectations of one per thousand events. The work also estimates the magnification for each candidate using the Amati relation and angular separation.

Core claim

The archival search identifies 17 candidate lensed GRBs based on a 2 arcminute search radius around galaxy clusters. For 14 candidates, either direct redshift measurements or consistency with the Amati relation between peak energy and isotropic energy indicate a higher redshift origin than the cluster, supporting lensing. Magnification estimates are mostly less than 10, with one candidate possibly exceeding this value.

What carries the argument

The 2-arcminute cross-match between Swift/XRT GRB positions and galaxy cluster catalogs, combined with redshift verification and application of the Amati relation to infer background status and magnification factors.

Load-bearing premise

The 2 arcminute angular separation reliably signals gravitational lensing by the cluster instead of a chance alignment, and the Amati relation can be used without major bias from the unknown magnification affecting the isotropic energy estimate.

What would settle it

Obtaining a spectroscopic redshift for any candidate that is lower than the redshift of its associated cluster would rule out lensing for that event.

Figures

Figures reproduced from arXiv: 2604.06311 by 1180 Vienna, 2), (2) School of Physics, 3), (3) Institute for Gravitational Wave Astronomy, 4) ((1) Institute of Cosmology, (4) Department of Astrophysics, Astronomy, Austria), B15 2TT, Benjamin P. Gompertz (2, Benjamin P. Jones (2), Birmingham, Burnaby Road, Dan Ryczanowski (1, Edgbaston, Graham P. Smith (2, Gravitation, PO1 3FX, Portsmouth, T\"urkenschanzstrasse 17, UK, University of Birmingham, University of Portsmouth, University of Vienna.

Figure 1
Figure 1. Figure 1: Forecast location of detectable gravitationally-lensed GRBs in the magnification-redshift plane, based on the multi-messenger model pre￾sented by Smith et al. (2025), showing long and short GRBs (blue/lower and red/middle respectively), plus short GRBs viewed at a similar off-axis angle as GRB 170817A (black/upper), for comparison. Shaded regions cover 99% of the forecast detectable lensed populations, and… view at source ↗
Figure 2
Figure 2. Figure 2: The 𝐸𝑝,𝑖 – 𝐸iso relations for long GRBs (red) and short GRBs (blue), plotted alongside the Minaev & Pozanenko (2020) sample, which is additionally represented in the top histogram. Dashed lines on the scatter plot mark the 3𝜎 confidence intervals for the relations. The 15/17 GRBs in our sample with redshifts measured for either the GRB or the matched cluster are shown by the large markers, and by dashed ve… view at source ↗
Figure 3

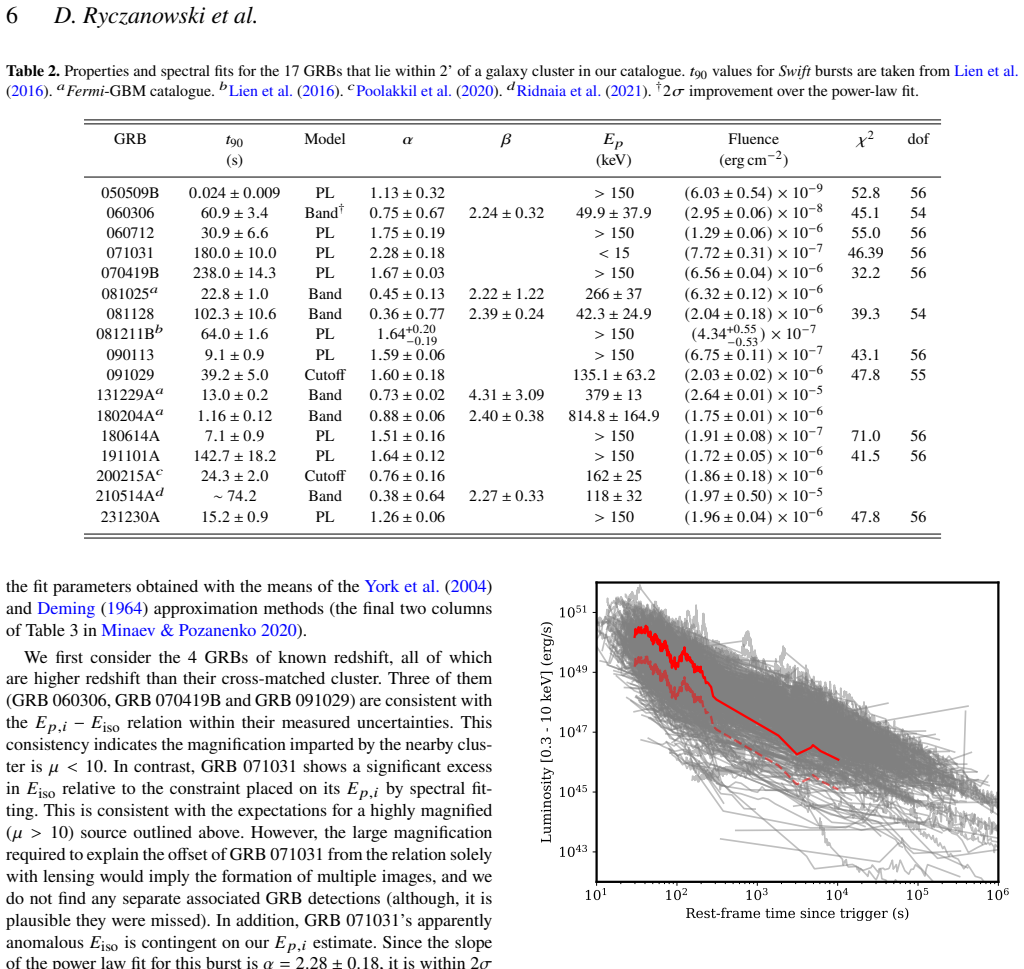

Figure 3. Figure 3: The X-ray afterglow of GRB 071031 (red) compared to X-ray afterglows of GRBs with known redshifts, taken from the UKSSDC. A k￾correction based on the late-time XRT spectral fit has been applied to account for the shifting rest-frame bandpass at different redshifts. GRB 071031 ap￾pears unremarkable in luminosity space either as observed (solid red line) or assuming a magnification of 𝜇 = 10, corresponding t… view at source ↗
Figure 4
Figure 4. Figure 4: The bi-modal core of ZwCl 1234.0+02916, showing that if GRB 050509B is located behind this cluster, then it is plausibly gravitationally magnified by 𝜇 ≃ 2 − 6, as described in Section 4. Left: 𝐽-band imaging data from the UKIRT Hemisphere Survey are shown as the greyscale, lens magnifications of 𝜇 = 2.5 and 𝜇 = 6 external to the 𝑧𝑆 = 2 critical curves are shown as the outer and inner yellow contours respe… view at source ↗
read the original abstract

Discoveries of gamma-ray bursts (GRBs) have become commonplace in recent decades, totalling $\mathcal{O}(10^4)$ unique detections across various missions. However, there have been no confirmed discoveries of a gravitationally-lensed GRB, despite expected lensing rates of $\sim1$ in $10^{3}$. In light of this, we complete an archival search for lensed GRBs by cross-matching well-localised \emph{Swift}/XRT-detected bursts with a large all-sky sample of galaxy clusters as potential lenses. We find a total of 17 candidate lensed GRBs defined by a 2 arcminute search radius from a cluster in our sample. 14 of our candidates are either confirmed to be at higher redshifts than their cross-matched cluster, or are consistent with a higher redshift origin based on the Amati relation between $E_{p,i}$ and $E_{\rm iso}$ of GRBs, indicating they are, at some level, lensed by their nearby cluster. Using the Amati relation and the lens-GRB separation, we quantify the magnification experienced by each GRB. We find $\mu < 10$ for all except for one candidate, GRB~071031, which is consistent with $\mu > 10$, but is uncertain. Another candidate, GRB~050509B, does not have a directly measured redshift, but was previously assumed to be at the redshift of its nearby cluster, $z=0.225$. We produce a lens model of this cluster and show that GRB~050509B is consistent with $z>1$ and magnified by $\mu\simeq2-6$. We present these findings in anticipation of future lensed GRB discoveries enabled by facilities such as the Vera C. Rubin Observatory in the coming years.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports an archival search for gravitationally lensed gamma-ray bursts by cross-matching well-localized Swift/XRT GRBs with a large sample of galaxy clusters. It identifies 17 candidate lensed GRBs within a 2-arcminute search radius, of which 14 are stated to be consistent with higher redshifts than the putative lens clusters either via direct redshift measurements or via placement on the Amati (E_{p,i}–E_iso) relation; magnifications are then estimated from the Amati relation and angular separation, a lens model is constructed for GRB 050509B, and prospects for future detections are discussed.

Significance. If the candidate list and redshift consistencies survive scrutiny, the work would be a useful contribution by supplying the largest existing set of lensed-GRB candidates and by demonstrating how archival data plus the Amati relation can be used to estimate magnifications. The explicit lens modeling performed for GRB 050509B is a concrete, falsifiable element that strengthens the paper. The overall approach is timely given upcoming wide-field surveys, though its ultimate impact hinges on whether the central identifications can be placed on a firmer statistical footing.

major comments (3)
  1. [Abstract and candidate-analysis section] Abstract and candidate-analysis section: the claim that 14 of the 17 candidates are consistent with z > cluster redshift via the Amati relation does not propagate the unknown magnification factor μ. Because lensing multiplies observed fluence (and therefore inferred E_iso) by μ while leaving E_{p,i} unchanged, any point placed on the Amati diagram is shifted rightward by log μ; the paper does not demonstrate that the apparent high-z consistency survives for μ ≳ 2, which is the regime relevant to the reported magnifications.
  2. [Candidate-selection section] Candidate-selection section: the 2-arcminute angular-separation criterion that defines the 17 candidates is introduced without a reported false-positive rate or expected number of chance alignments given the surface densities of GRBs and clusters. This quantity is load-bearing for the central claim that the associations are produced by lensing rather than random superposition.
  3. [Magnification-estimation section] Magnification-estimation section: while μ values are derived from the Amati relation and lens-GRB separation, the uncertainties on those μ values are not folded back into the Amati consistency test used to classify the 14 candidates as higher-redshift objects. This circularity must be quantified before the higher-redshift indications can be regarded as independent evidence of lensing.
minor comments (2)
  1. [Abstract] The abstract would benefit from a single sentence summarizing the false-positive considerations or the range of magnifications obtained.
  2. [Throughout] Notation for E_{p,i} and E_iso should be defined at first use and used consistently; a short table listing all 17 candidates with their measured or inferred redshifts, cluster redshifts, and derived μ would improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough and constructive review of our manuscript on the archival search for galaxy-cluster-lensed GRBs. The comments identify key areas where our analysis can be strengthened, particularly regarding the treatment of magnification in the Amati relation, the statistical significance of the candidate associations, and the handling of uncertainties. We address each major comment below and will perform the necessary revisions to place our results on a firmer footing.

read point-by-point responses

  1. Referee: [Abstract and candidate-analysis section] Abstract and candidate-analysis section: the claim that 14 of the 17 candidates are consistent with z > cluster redshift via the Amati relation does not propagate the unknown magnification factor μ. Because lensing multiplies observed fluence (and therefore inferred E_iso) by μ while leaving E_{p,i} unchanged, any point placed on the Amati diagram is shifted rightward by log μ; the paper does not demonstrate that the apparent high-z consistency survives for μ ≳ 2, which is the regime relevant to the reported magnifications.

    Authors: We agree that the unknown magnification μ shifts points rightward on the Amati diagram by log μ and that this must be propagated to validate the higher-redshift consistency claim. In the original analysis the consistency was assessed by comparing observed or Amati-inferred positions to the relation locus. We will revise the candidate-analysis section (and abstract if needed) to explicitly shift each of the 14 candidates by their estimated μ (mostly <10) and re-evaluate consistency. Updated figures will show both unshifted and μ-adjusted positions, demonstrating that the higher-z indication survives for the reported μ values while noting the sensitivity at μ ≳ 2. This will be done without altering the core conclusions. revision: yes

  2. Referee: [Candidate-selection section] Candidate-selection section: the 2-arcminute angular-separation criterion that defines the 17 candidates is introduced without a reported false-positive rate or expected number of chance alignments given the surface densities of GRBs and clusters. This quantity is load-bearing for the central claim that the associations are produced by lensing rather than random superposition.

    Authors: The referee is correct that a quantitative false-positive estimate is required to support the lensing interpretation. We will add to the candidate-selection section an explicit calculation of the expected number of chance alignments. Using the surface density of well-localized Swift/XRT GRBs and the all-sky cluster catalog, we will compute the probability of a random coincidence within 2 arcmin and scale it to the total search volume. The resulting expected number will be compared directly to the 17 observed candidates, with discussion of how this supports (or limits) the lensing hypothesis. The choice of 2 arcmin will also be justified relative to typical cluster Einstein radii. revision: yes

  3. Referee: [Magnification-estimation section] Magnification-estimation section: while μ values are derived from the Amati relation and lens-GRB separation, the uncertainties on those μ values are not folded back into the Amati consistency test used to classify the 14 candidates as higher-redshift objects. This circularity must be quantified before the higher-redshift indications can be regarded as independent evidence of lensing.

    Authors: We acknowledge the circularity concern, as μ is estimated using the same Amati relation employed for the redshift-consistency test. We will revise the magnification-estimation section to quantify this by adopting a Monte Carlo procedure: sampling from the intrinsic scatter of the Amati relation, the uncertainty in angular separation, and the cluster mass model to generate distributions of μ. These distributions will then be used to adjust the Amati positions and re-test the higher-z classification for the 14 candidates. Results will be presented as confidence intervals on the classification. For the subset with independent spectroscopic redshifts the test is non-circular, and the explicit lens model for GRB 050509B provides an independent cross-check. revision: yes

Circularity Check

0 steps flagged

No significant circularity in archival cross-match or Amati-based consistency checks

full rationale

The paper performs a positional cross-match of Swift/XRT GRBs against galaxy cluster catalogs using a fixed 2-arcmin radius to define 17 candidates. Redshift consistency for 14 candidates is assessed either via direct literature redshifts or by placing observed E_{p,i} and fluence-derived E_iso on the externally established Amati relation. Magnification factors are then estimated from the same relation plus angular separation. No parameters are fitted to subsets of the present data, no self-citations supply load-bearing uniqueness theorems or ansatzes, and no claimed prediction reduces to its input by construction. The chain is observational and relies on independent external catalogs and literature relations.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The analysis depends on established GRB empirical relations and lensing theory from prior work; the search radius is a methodological choice.

free parameters (1)
  • search radius = 2 arcminutes
    Arbitrary but practical choice for defining candidates based on expected lensing geometry.
axioms (2)
  • domain assumption The Amati relation between peak energy and isotropic energy holds for these GRBs
    Invoked to assess consistency with higher redshift origin.
  • standard math Galaxy clusters can act as gravitational lenses for background GRBs
    Standard general relativity application in astrophysics.
