pith. sign in

arxiv: 2604.14554 · v1 · submitted 2026-04-16 · ❄️ cond-mat.mtrl-sci

First-principles study of infrared, Raman, piezoelectric and elastic properties of Mg-IV-Ntextsubscript{2} (IV = Ge, Si, Sn)

Sarker Md. Sadman , Walter R. L. Lambrecht This is my paper

Pith reviewed 2026-05-10 11:39 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords Mg-IV-N2DFPTphonon modesRaman spectrainfrared spectrapiezoelectric tensorelastic propertiesultra-wide band gap
0
0 comments X

The pith

Density functional perturbation theory calculations provide the vibrational modes, Raman and infrared activity, piezoelectric tensors, and elastic compliance for Mg-IV-N2 compounds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies density functional perturbation theory to the Pna21 structure of Mg-Si-N2, Mg-Ge-N2, and Mg-Sn-N2. It computes zone-center phonon modes and assigns them to irreducible representations that fix Raman and infrared selection rules. Full Brillouin-zone dispersions and phonon densities of states are also obtained. Piezoelectric and elastic compliance tensors are reported alongside these vibrational results. The data supply the electromechanical and spectroscopic signatures needed to evaluate these ultra-wide-gap nitrides for electronic and optoelectronic use.

Core claim

DFPT calculations on Mg-IV-N2 (IV = Si, Ge, Sn) establish the zone-center vibrational frequencies and their point-group symmetries, which determine Raman and infrared activity, while also yielding the piezoelectric tensor and elastic compliance tensor for the Pna21 structure.

What carries the argument

Density functional perturbation theory applied to the Pna21 crystal structure, used to extract zone-center phonons with symmetry labels, full phonon dispersions, piezoelectric tensor components, and elastic compliance tensor.

Load-bearing premise

The chosen density functional and pseudopotentials reproduce the vibrational frequencies and electromechanical couplings of these nitrides without large systematic errors.

What would settle it

Experimental Raman or infrared spectra whose measured peak positions or polarization dependencies deviate substantially from the calculated frequencies and selection rules.

Figures

Figures reproduced from arXiv: 2604.14554 by Sarker Md. Sadman, Walter R. L. Lambrecht.

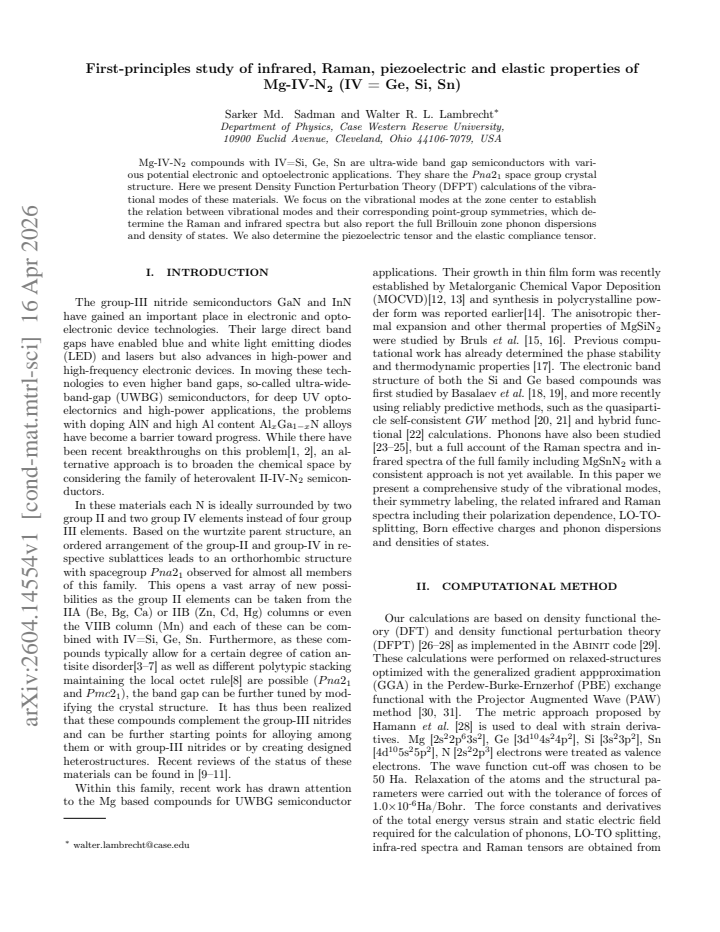

Figure 1
Figure 1. Figure 1: FIG. 1. Crystal Structure of MgSiN [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Electronic bandstructure of Mg-IV-N [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Phonon bandstructure of MgSiN [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Dielectric properties of Mg-IV-N [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Macroscopic optical properties of Mg-IV-N [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. This figure represents the Raman spectra of averaging [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Longitudinal piezoelectric modulus [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Mg-IV-N\textsubscript{2} compounds with IV=Si, Ge, Sn are ultra-wide band gap semiconductors with various potential electronic and optoelectronic applications. They share the \textit{Pna}2\textsubscript{1} space group crystal structure. Here we present Density Function Perturbation Theory (DFPT) calculations of the vibrational modes of these materials. We focus on the vibrational modes at the zone center to establish the relation between vibrational modes and their corresponding point-group symmetries, which determine the Raman and infrared spectra but also report the full Brillouin zone phonon dispersions and density of states. We also determine the piezoelectric tensor and the elastic compliance tensor.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports Density Functional Perturbation Theory (DFPT) calculations of the zone-center vibrational modes (with symmetry assignments determining Raman and IR activity), full Brillouin-zone phonon dispersions and density of states, the piezoelectric tensor, and the elastic compliance tensor for the Pna2_1 Mg-IV-N2 compounds (IV = Si, Ge, Sn).

Significance. If the numerical results hold, the work supplies a complete first-principles dataset for the vibrational spectra and electromechanical response of these ultra-wide-band-gap nitrides, directly supporting experimental characterization and optoelectronic device modeling. The use of DFPT for all second- and mixed-derivative quantities is a standard, parameter-free approach that constitutes a clear strength of the study.

major comments (2)
  1. [Methods] Methods section: the manuscript provides no convergence tests (k-point mesh, plane-wave cutoff, or supercell size) for the DFPT dynamical matrix, piezoelectric, or elastic calculations, nor does it specify the exchange-correlation functional and pseudopotentials employed. These choices directly control the reported phonon frequencies and tensor components, and their omission prevents assessment of numerical reliability.
  2. [Results] Results section (phonon and piezoelectric tables/figures): no direct comparison is made to measured Raman/IR spectra or to independent calculations with a different functional (e.g., hybrid), despite well-documented 5–15 % GGA errors in nitride phonon frequencies and comparable uncertainties in piezoelectric coefficients. This leaves the quantitative utility of the central numbers unverified.
minor comments (2)
  1. [Abstract] Abstract: the compound ordering “Ge, Si, Sn” differs from the conventional Si–Ge–Sn sequence used in the title and throughout the text; standardize for consistency.
  2. [Figures] Figure captions: ensure each panel or curve is explicitly labeled with the specific compound (MgSiN2, MgGeN2, MgSnN2) rather than relying solely on color or line style.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment of the significance of our work and for the constructive comments. We address each major point below and will revise the manuscript to improve its completeness and transparency.

read point-by-point responses

  1. Referee: [Methods] Methods section: the manuscript provides no convergence tests (k-point mesh, plane-wave cutoff, or supercell size) for the DFPT dynamical matrix, piezoelectric, or elastic calculations, nor does it specify the exchange-correlation functional and pseudopotentials employed. These choices directly control the reported phonon frequencies and tensor components, and their omission prevents assessment of numerical reliability.

    Authors: We agree that these details are essential for evaluating numerical reliability. The original manuscript omitted a dedicated computational methods section. In the revised version we will add explicit information on the exchange-correlation functional, pseudopotentials, plane-wave cutoff, k-point mesh, and convergence tests for the DFPT phonon frequencies, piezoelectric tensor, and elastic compliance tensor. We will also clarify that DFPT calculations do not require supercells and report any auxiliary finite-displacement checks performed. revision: yes

  2. Referee: [Results] Results section (phonon and piezoelectric tables/figures): no direct comparison is made to measured Raman/IR spectra or to independent calculations with a different functional (e.g., hybrid), despite well-documented 5–15 % GGA errors in nitride phonon frequencies and comparable uncertainties in piezoelectric coefficients. This leaves the quantitative utility of the central numbers unverified.

    Authors: We acknowledge the value of external validation. However, no experimental Raman or IR spectra for Mg-IV-N2 compounds have been published to date, as these materials remain at an early stage of experimental characterization. In the revision we will add a discussion of the typical accuracy of GGA functionals for nitride phonons, citing relevant benchmark studies, and will explicitly note the expected uncertainties in the piezoelectric and elastic results. This will better contextualize the quantitative utility of the reported dataset. revision: partial

Circularity Check

0 steps flagged

No circularity: DFPT properties computed directly from electronic structure

full rationale

The manuscript performs standard Density Functional Perturbation Theory calculations to obtain zone-center vibrational modes (with symmetry assignments), full phonon dispersions/DOS, piezoelectric tensor, and elastic compliance tensor. These quantities are obtained as second (or mixed) derivatives of the total energy with respect to atomic displacements and electric field/strain, using a chosen XC functional and pseudopotentials. No parameters are fitted to the target observables, no self-referential definitions appear, and no load-bearing step reduces to a prior result by the same authors that itself lacks independent verification. The derivation chain is therefore self-contained against external benchmarks (the electronic Hamiltonian and its derivatives).

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard DFT/DFPT approximations without introducing new free parameters, axioms beyond domain conventions, or invented entities.

axioms (1)
  • domain assumption The exchange-correlation functional and pseudopotentials chosen for these nitrides yield sufficiently accurate forces and polarizations for the reported properties.
    Invoked implicitly by the use of DFPT; no specific functional named in abstract.

pith-pipeline@v0.9.0 · 5429 in / 1128 out tokens · 28799 ms · 2026-05-10T11:39:59.086342+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

37 extracted references · 37 canonical work pages

  1. [1]

    It made use of the High Performance Comput- ing Resource in the Core Facility for Advanced Research Computing at Case Western Reserve University

    work page

  2. [2]

    Ahmad, J

    H. Ahmad, J. Lindemuth, Z. Engel, C. M. Matthews, T. M. McCrone, and W. A. Doolittle, Substantial p-type conductivity of aln achieved via beryllium doping, Ad- vanced Materials33, 2104497 (2021)

    work page 2021

  3. [3]

    Ahmad, Z

    H. Ahmad, Z. Engel, C. M. Matthews, S. Lee, and W. A. Doolittle, Realization of homojunction pn aln diodes, Journal of Applied Physics131, 175701 (2022)

    work page 2022

  4. [4]

    Skachkov, A

    D. Skachkov, A. Punya Jaroenjittichai, L.-y. Huang, and W. R. L. Lambrecht, Native point defects and doping in ZnGeN2, Phys. Rev. B93, 155202 (2016)

    work page 2016

  5. [5]

    Skachkov, P

    D. Skachkov, P. C. Quayle, K. Kash, and W. R. L. Lam- brecht, Disorder effects on the band structure ofZnGeN2: Roleofexchangedefects,Phys.Rev.B94,205201(2016)

    work page 2016

  6. [6]

    S. Lany, A. N. Fioretti, P. P. Zawadzki, L. T. Schelhas, E. S. Toberer, A. Zakutayev, and A. C. Tamboli, Monte Carlo simulations of disorder inZnSnN2 and the effects on the electronic structure, Phys. Rev. Mater.1, 035401 (2017)

    work page 2017

  7. [7]

    J. J. Cordell, J. Pan, A. C. Tamboli, G. J. Tucker, and S. Lany, Probing configurational disorder inZnGeN2 us- ing cluster-based Monte Carlo, Phys. Rev. Mater.5, 11 024604 (2021)

    work page 2021

  8. [8]

    J. J. Cordell, M. K. Miller, M. B. Tellekamp, A. Tamboli, G.J.Tucker,andS.Lany,SimulatedStructuralandElec- tronic Properties of Cation-DisorderedZnGeN 2 and its Interface withGaN, Phys. Rev. Appl.18, 064030 (2022)

    work page 2022

  9. [9]

    P. C. Quayle, E. W. Blanton, A. Punya, G. T. Junno, K. He, L. Han, H. Zhao, J. Shan, W. R. L. Lam- brecht, and K. Kash, Charge-neutral disorder and poly- types in heterovalent wurtzite-based ternary semiconduc- tors: The importance of the octet rule, Phys. Rev. B91, 205207 (2015)

    work page 2015

  10. [10]

    W. R. L. Lambrecht and A. Punya, Heterovalent ternary II-IV-N2 compounds: perspectives for a new class of wide-band-gap nitrides, inIII-Nitride Semiconductors and their Modern Devices, edited by B. Gill (Oxford Uni- versity Press, 2013) Chap. 15, pp. 519–585

    work page 2013

  11. [11]

    S. Lyu, D. Skachkov, K. Kash, E. W. Blanton, and W. R. L. Lambrecht, Band Gaps, Band-Offsets, Disorder, Stability Region, and Point Defects in II-IV-N2 Semicon- ductors, physica status solidi (a)216, 1800875 (2019)

    work page 2019

  12. [12]

    A. D. Martinez, A. N. Fioretti, E. S. Toberer, and A. C. Tamboli, Synthesis, structure, and optoelectronic prop- erties of II–IV–V2 materials, J. Mater. Chem. A5, 11418 (2017)

    work page 2017

  13. [13]

    C. Hu, A. Mukit, V. G. Thirupakuzi Vangipuram, C. Chae, J. Hwang, K. Kash, and H. Zhao, Optimizing Metal-Organic Chemical Vapor Deposition for Ultraw- ide Bandgap MgSiN2 Thin-Films, physica status solidi (RRL) – Rapid Research Letters19, 2500109 (2025)

    work page 2025

  14. [14]

    C. Hu, V. G. Thirupakuzi Vangipuram, C. Chae, I. K. Turan, N. Hoven, W. R. L. Lambrecht, J. Hwang, Y. Ijiri, H. Zhao, and K. Kash, Metal-organic chemical vapor de- position of MgGeN2 films on GaN and sapphire, APL Materials13, 041127 (2025)

    work page 2025

  15. [15]

    R. J. Bruls, H. T. Hintzen, and R. Metselaar, Prepara- tion and characterisation of mgsin2 powders, Journal of Materials Science34, 4519 (1999)

    work page 1999

  16. [16]

    Bruls, H

    R. Bruls, H. Hintzen, R. Metselaar, and C.-K. Loong, Anisotropic thermal expansion of mgsin2 from 10 to 300 k as measured by neutron diffraction, Journal of Physics and Chemistry of Solids61, 1285 (2000)

    work page 2000

  17. [17]

    Bruls, H

    R. Bruls, H. Hintzen, G. de With, R. Metselaar, and J. van Miltenburg, The temperature dependence of the Grüneisen parameters of MgSiN 2, AlN andβ-Si 3N4, Journal of Physics and Chemistry of Solids62, 783 (2001)

    work page 2001

  18. [18]

    F. Arab, F. A. Sahraoui, K. Haddadi, A. Bouhemadou, and L. Louail, Phase stability, mechanical and thermody- namic properties of orthorhombic and trigonal MgSiN2: an ab initio study, Phase Transitions: A Multinational Journal89, 480 (2016)

    work page 2016

  19. [19]

    Y.M.BasalaevandP.V.Demushin,Energybandgenesis from sublattice states in mgsin2 and mggen2 crystals, Journal of Structural Chemistry51, 1191 (2010)

    work page 2010

  20. [20]

    Y. M. Basalaev, P. V. Demushin, E. V. Nikolaeva, and A. V. Silinin, Zone structure and its genesis from the states of sublattices in orthorhombic mggen2, Moscow University Physics Bulletin66, 39 (2011)

    work page 2011

  21. [21]

    A. P. Jaroenjittichai and W. R. L. Lambrecht, Elec- tronic band structure ofMg−IV−N 2 compounds in the quasiparticle-self-consistentGWapproximation, Phys. Rev. B94, 125201 (2016)

    work page 2016

  22. [22]

    Lyu and W

    S. Lyu and W. R. Lambrecht, Quasiparticle self- consistent GW band structures of Mg-IV-N2 compounds: The role of semicore d states, Solid State Communica- tions299, 113664 (2019)

    work page 2019

  23. [23]

    J. B. Quirk, M. Råsander, C. M. McGilvery, R. Palgrave, and M. A. Moram, Band gap and electronic structure of MgSiN2, Applied Physics Letters105, 112108 (2014)

    work page 2014

  24. [24]

    Pramchu, A

    S. Pramchu, A. P. Jaroenjittichai, and Y. Laosiritaworn, Phonon and phonon-related properties of mgsin2 and mggen2 ceramics: First principles studies, Ceramics In- ternational43, S444 (2017), the 10th Asian Meeting on Electroceramics (AMEC-10)

    work page 2017

  25. [25]

    Råsander, J

    M. Råsander, J. B. Quirk, T. Wang, S. Mathew, R. Davies, R. G. Palgrave, and M. A. Moram, Structure and lattice dynamics of the wide band gap semiconductors MgSiN 2 and MgGeN 2, Jour- nal of Applied Physics122, 085705 (2017), http://dx.doi.org/10.1063/1.4985775

    work page doi:10.1063/1.4985775 2017

  26. [26]

    Kaewmeechai, Y

    C. Kaewmeechai, Y. Laosiritaworn, and A. P. Jaroen- jittichai, First-principles calculations of zone center phonons and related thermal properties of MgSiN2, Jour- nal of Physics: Conference Series901, 012031 (2017)

    work page 2017

  27. [27]

    Gonze, First-principles responses of solids to atomic displacements and homogeneous electric fields: Imple- mentation of a conjugate-gradient algorithm, Phys

    X. Gonze, First-principles responses of solids to atomic displacements and homogeneous electric fields: Imple- mentation of a conjugate-gradient algorithm, Phys. Rev. B55, 10337 (1997)

    work page 1997

  28. [28]

    Gonze and C

    X. Gonze and C. Lee, Dynamical matrices, Born effective charges, dielectric permittivity tensors, and interatomic force constants from density-functional perturbation the- ory, Phys. Rev. B55, 10355 (1997)

    work page 1997

  29. [29]

    D. R. Hamann, X. Wu, K. M. Rabe, and D. Vanderbilt, Metric tensor formulation of strain in density-functional perturbation theory, Phys. Rev. B71, 035117 (2005)

    work page 2005

  30. [30]

    Gonze, B

    X. Gonze, B. Amadon, G. Antonius, F. Arnardi, L. Baguet, J.-M. Beuken, J. Bieder, F. Bottin, J. Bouchet, E. Bousquet, N. Brouwer, F. Bruneval, G. Brunin, T. Cavignac, J.-B. Charraud, W. Chen, M. Côté, S. Cottenier, J. Denier, G. Geneste, P. Ghosez, M. Giantomassi, Y. Gillet, O. Gingras, D. R. Hamann, G. Hautier, X. He, N. Helbig, N. Holzwarth, Y. Jia, F. ...

    work page 2020

  31. [31]

    P. E. Blöchl, Projector augmented-wave method, Physi- cal Review B50, 17953 (1994)

    work page 1994

  32. [32]

    Torrent, F

    M. Torrent, F. Jollet, F. Bottin, G. Zérah, and X. Gonze, Implementation of the projector augmented- wave method in the ABINIT code: Application to the study of iron under pressure, Computational Materials Science42, 337 (2008)

    work page 2008

  33. [33]

    Veithen, X

    M. Veithen, X. Gonze, and P. Ghosez, Nonlinear optical susceptibilities, raman efficiencies, and electro-optic ten- sors from first-principles density functional perturbation theory, Phys. Rev. B71, 125107 (2005)

    work page 2005

  34. [34]

    Miwa, Prediction of Raman spectra with ultrasoft pseudopotentials, Phys

    K. Miwa, Prediction of Raman spectra with ultrasoft pseudopotentials, Phys. Rev. B84, 094304 (2011)

    work page 2011

  35. [35]

    Nye,Physical Properties of Crystals(Clarendon Press - Oxford, 1985)

    J. Nye,Physical Properties of Crystals(Clarendon Press - Oxford, 1985)

    work page 1985

  36. [36]

    X. Wu, D. Vanderbilt, and D. R. Hamann, Systematic treatment of displacements, strains, and electric fields in 12 density-functional perturbation theory, Phys. Rev. B72, 035105 (2005)

    work page 2005

  37. [37]

    de Jong, W

    M. de Jong, W. Chen, H. Geerlings, M. Asta, and K. A. Persson, A database to enable discovery and design of piezoelectric materials, Sci. Data2, 150053 (2015)

    work page 2015
