arxiv: 2604.16355 · v1 · submitted 2026-03-17 · 💻 cs.HC

A Multi-Technique Approach for Improving Summary Polar Diagrams

Aleksandar An\v{z}el , Zewen Yang , Georges Hattab This is my paper

Pith reviewed 2026-05-15 09:42 UTC · model grok-4.3

classification 💻 cs.HC
keywords polar diagramsdata visualizationhybrid techniquesuser studyinteractive filteringsmall multiplesoverview and detailTaylor diagrams
0
0 comments X

The pith

A hybrid approach using overview detail aggregation filtering Cartesian links and small multiples improves summary polar diagrams.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Summary polar diagrams such as Taylor and mutual information diagrams help uncover data relationships and quantify similarity but can suffer from overplotting and reduced intuitiveness. The paper shows that layering overview plus detail aggregation interactive filtering Cartesian linking and small multiples creates clearer more comprehensive versions of these diagrams. Domain experts in climate data science and machine learning reviewed and refined an implementation of the method. A user study then found that participants maintained comparable response times when using the enhanced diagrams compared to basic ones. This combination adds functionality while preserving the speed of interpretation.

Core claim

The central claim is that integrating overview+detail, aggregation, interactive filtering, Cartesian linking, and small multiples produces more effective summary polar diagrams for discovering relationships visualizing similarity and quantifying correspondence. The authors applied the method to climate data novel data science tasks and machine learning and refined it through expert review. A subsequent user study confirmed that response times remained comparable supporting the claim that the enhancements improve clarity comprehensiveness and functionality without added time cost.

What carries the argument

The hybrid approach that layers overview+detail for inspection aggregation to reduce clutter interactive filtering for focus Cartesian linking to connect polar and standard views and small multiples for side by side comparison.

If this is right

  • Experts can apply the enhanced diagrams to climate analysis data science exploration and machine learning model comparison.
  • Users gain better access to overplotted relationships while keeping interpretation times the same.
  • Small multiples and filtering allow direct comparison across multiple datasets or models in one view.
  • Cartesian linking reduces the need to mentally convert between polar and rectangular representations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same layering of standard techniques might reduce overplotting in other non Cartesian chart types such as radial plots or network diagrams.
  • Measuring error rates alongside response times in future studies would give stronger evidence of improved understanding.
  • Deployment in live decision tools such as weather dashboards could test whether the gains appear under time pressure.

Load-bearing premise

That comparable response times and expert feedback demonstrate real gains in comprehension and utility without new cognitive costs or biases in participant selection.

What would settle it

A follow up study in which users of the hybrid diagrams produce more errors or take measurably longer to answer questions about data relationships than users of the original diagrams.

Figures

Figures reproduced from arXiv: 2604.16355 by Aleksandar An\v{z}el, Georges Hattab, Zewen Yang.

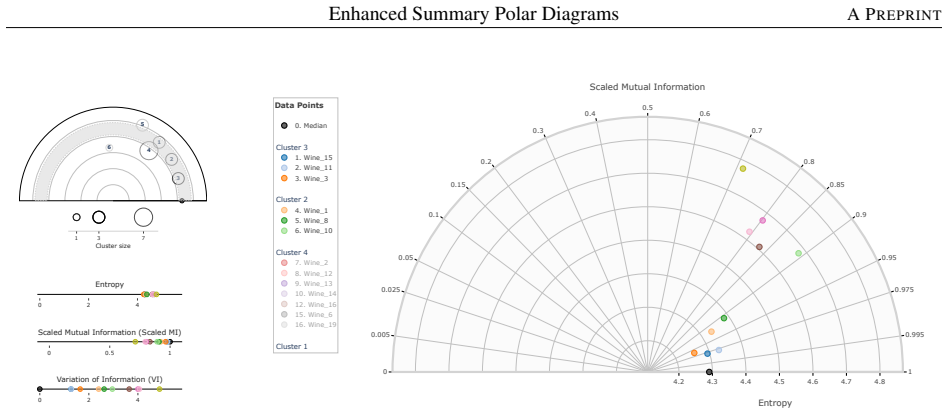

Figure 1
Figure 1. Figure 1: Enhanced scaled mutual information diagrams using overview+detail, aggregation, Cartesian linking, and interactive filtering. The diagrams visualize nineteen wine samples compared to the theoretical wine sample containing median property values. The highlighted section in the overview indicates the region of interest, with the selected wine samples identified in the scrollable interactive legend, Cartesian… view at source ↗

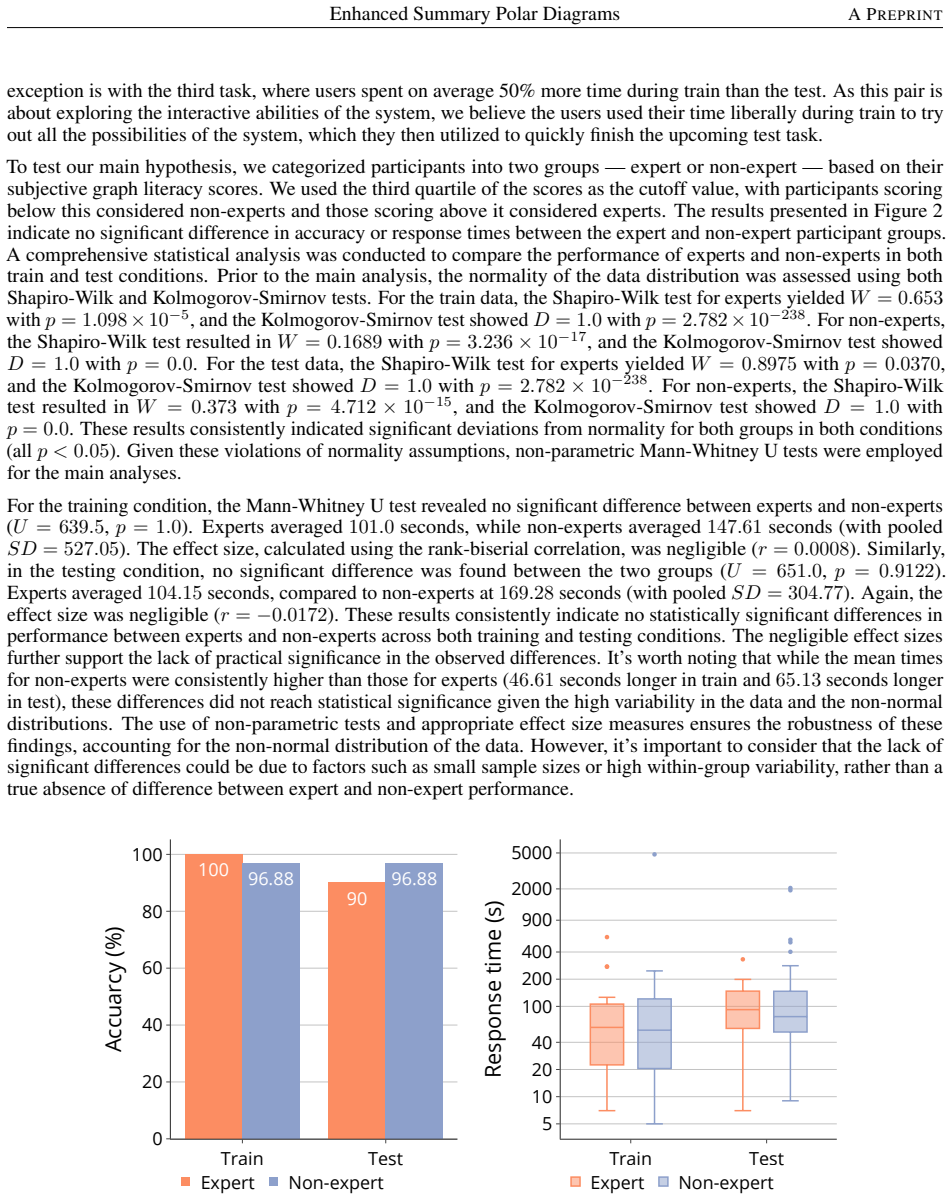

Figure 2
Figure 2. Figure 2: Accuracy and response time for experts and non-experts. The y-axis of the right figure is presented on a logarithmic scale to better visualize the wide range of values. The results indicate that the experts achieved perfect accuracy on the train tasks, with all responses classified as correct. However, their performance declined on the test tasks, where they produced a mix of correct and incorrect response… view at source ↗

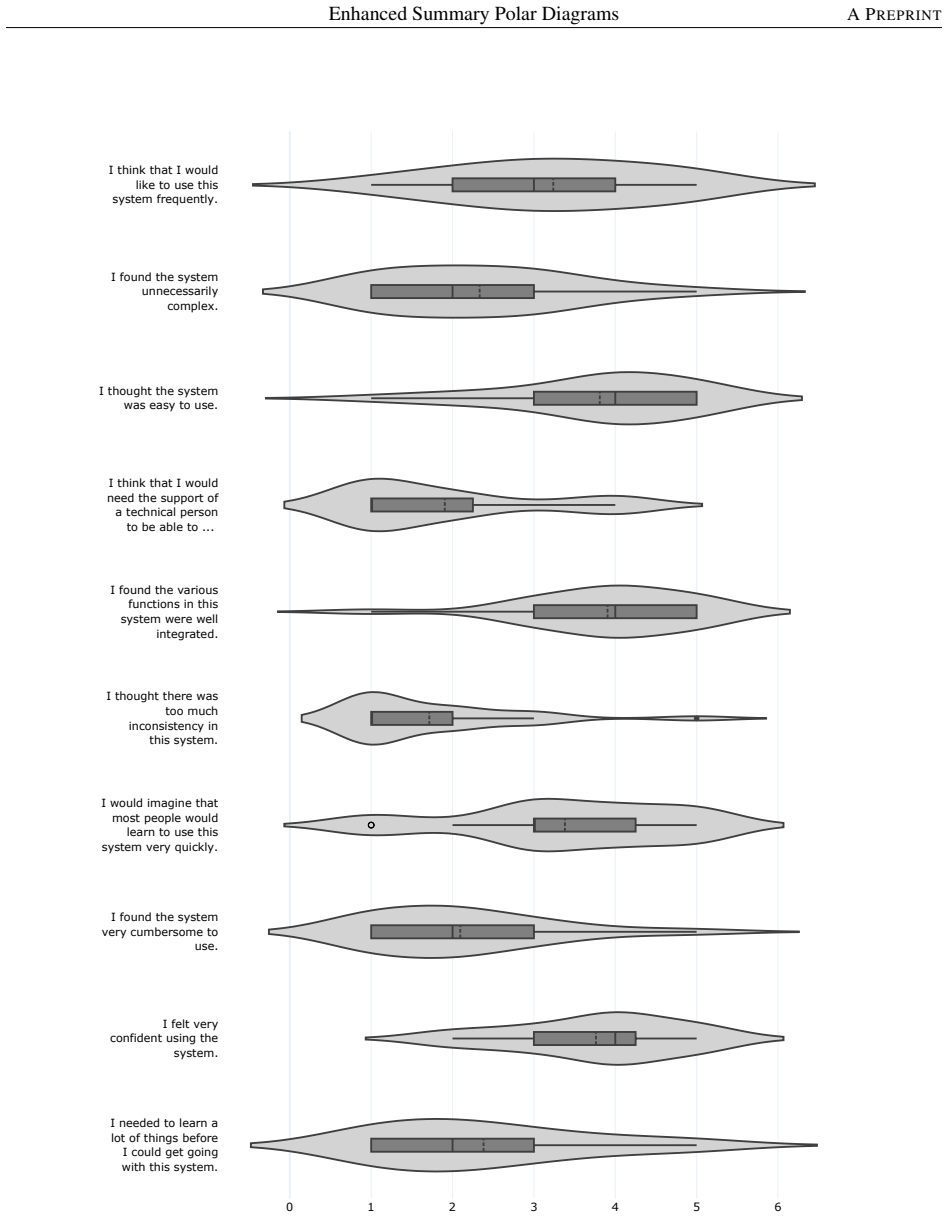

Figure 3
Figure 3. Figure 3: System Usability Scale (SUS) scores from user study participants. We can see that the majority of participants evaluated the system as highly usable and well integrated. However, the results also show disagreement among users regarding whether they would learn to use this system quickly, suggesting there are still opportunities to further improve certain aspects of the system’s design and functionality. Th… view at source ↗

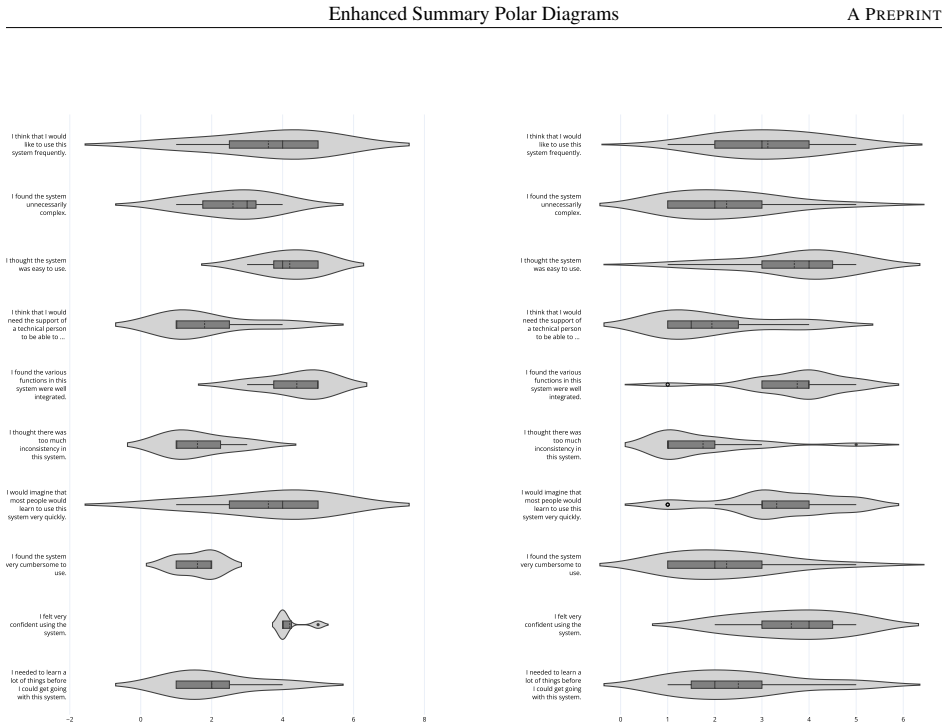

Figure 4
Figure 4. Figure 4: Stratified System Usability Scale (SUS) scores from user study participants. Results are stratified by user expertise with experts on the left (mean SUS score 76, median 77.5) and non-experts on the right (mean SUS score 67.03, median 70). 1 2 21 5 Cluster size 0 0.5 1 1.5 −1 −0.5 0 0.5 1 0 0.5 1 1.5 Standard Deviation Correlation Centered Root Mean Squared Error (CRMSE) -1 -0.99 -0.95 -0.9 -0.8 -0.7 -0.6 … view at source ↗
Figure 5
Figure 5. Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗

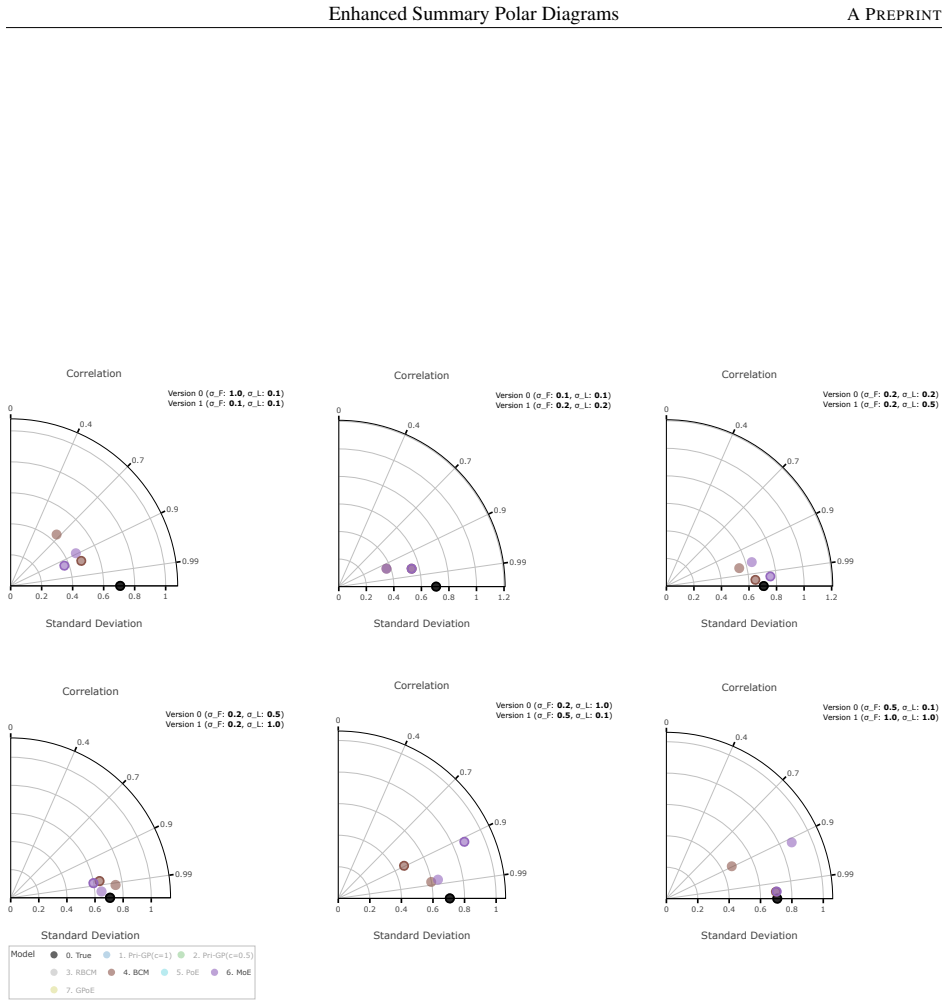

Figure 6
Figure 6. Figure 6: Enhanced Taylor diagrams using small multiple and interactive filtering. The diagrams are utilized to visually compare seven Gaussian Process models with the ground truth. Only two models are highlighted for easier visual comparison. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_6.png] view at source ↗

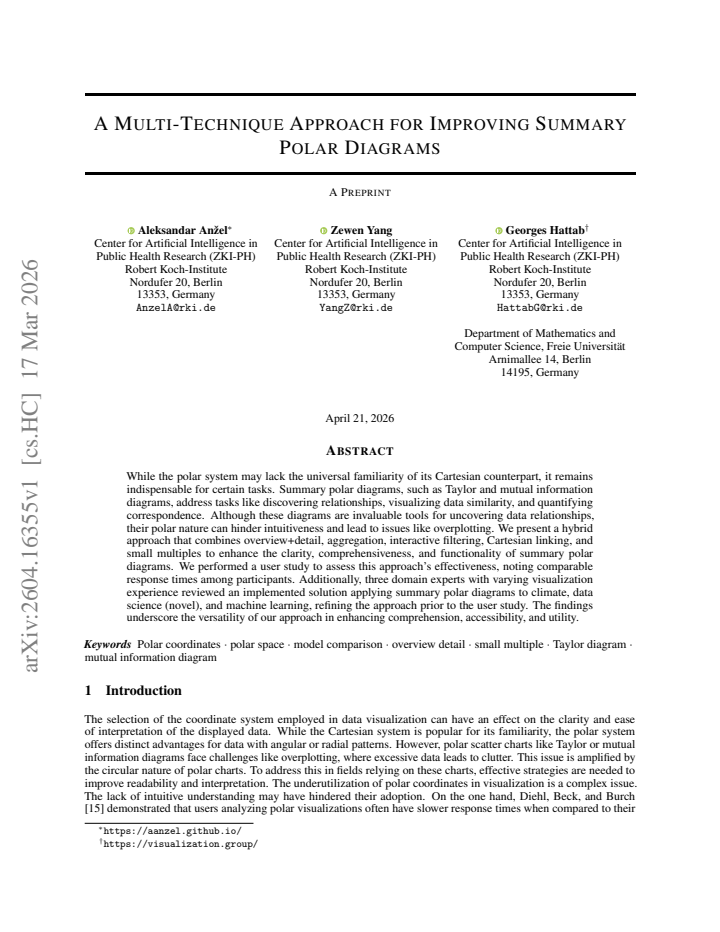

read the original abstract

While the polar system may lack the universal familiarity of its Cartesian counterpart, it remains indispensable for certain tasks. Summary polar diagrams, such as Taylor and mutual information diagrams, address tasks like discovering relationships, visualizing data similarity, and quantifying correspondence. Although these diagrams are invaluable tools for uncovering data relationships, their polar nature can hinder intuitiveness and lead to issues like overplotting. We present a hybrid approach that combines overview+detail, aggregation, interactive filtering, Cartesian linking, and small multiples to enhance the clarity, comprehensiveness, and functionality of summary polar diagrams. We performed a user study to assess this approach's effectiveness, noting comparable response times among participants. Additionally, three domain experts with varying visualization experience reviewed an implemented solution applying summary polar diagrams to climate, data science (novel), and machine learning, refining the approach prior to the user study. The findings underscore the versatility of our approach in enhancing comprehension, accessibility, and utility.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a hybrid multi-technique approach (overview+detail, aggregation, interactive filtering, Cartesian linking, and small multiples) to address intuitiveness and overplotting issues in summary polar diagrams such as Taylor and mutual information diagrams. It applies the approach to climate, data science, and machine learning examples, refines it via iterative review by three domain experts, and evaluates it in a user study that reports comparable response times among participants. The central claim is that the approach enhances clarity, comprehensiveness, and functionality.

Significance. If the hybrid techniques can be shown to improve comprehension and utility without introducing new cognitive costs, the work would offer practical design guidance for polar visualizations in scientific domains. The multi-domain application and combination of established techniques are positive elements, but the current evidence base limits the demonstrated significance.

major comments (3)
  1. [User Study] User Study section: the reported evidence consists only of comparable response times with no accompanying accuracy rates, comprehension scores, error bars, sample size, or statistical tests. This is insufficient to support the claim of enhanced clarity and functionality, as equivalence in time is consistent with no net benefit or hidden costs.
  2. [Expert Review] Expert Review description: the three experts performed iterative refinement prior to the user study rather than a blinded or independent evaluation. This design reduces the ability of the review to provide generalizable support for the hybrid approach's effectiveness.
  3. [Abstract and Conclusions] Abstract and Conclusions: the statements that the findings 'underscore the versatility... enhancing comprehension, accessibility, and utility' are not directly warranted by the described results (comparable times plus pre-study qualitative feedback). A more precise alignment between claims and evidence is needed.
minor comments (2)
  1. Provide explicit details on the user-study tasks, participant demographics, and exact response-time data (means, variances) to improve replicability and allow readers to assess the strength of the 'comparable' finding.
  2. Clarify whether the expert review was structured with specific evaluation criteria or remained open-ended, as this affects how much weight it can carry.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on the evaluation and claim alignment. We address each major comment below, with plans to revise the manuscript for greater precision and transparency.

read point-by-point responses

  1. Referee: [User Study] User Study section: the reported evidence consists only of comparable response times with no accompanying accuracy rates, comprehension scores, error bars, sample size, or statistical tests. This is insufficient to support the claim of enhanced clarity and functionality, as equivalence in time is consistent with no net benefit or hidden costs.

    Authors: We agree the user study evidence is limited to comparable response times, which primarily shows the hybrid approach does not introduce measurable time penalties but does not quantify accuracy or comprehension gains. The study focused on efficiency for the selected tasks; accuracy metrics were not collected. We will revise the section to report sample size and any available details, explicitly note these limitations, and adjust claims to emphasize maintained performance rather than proven enhancements in clarity. revision: yes

  2. Referee: [Expert Review] Expert Review description: the three experts performed iterative refinement prior to the user study rather than a blinded or independent evaluation. This design reduces the ability of the review to provide generalizable support for the hybrid approach's effectiveness.

    Authors: The expert review was intentionally iterative to refine the design and implementation using domain knowledge from climate, data science, and machine learning before the user study. It was not designed as a blinded evaluation. We will revise the description to clarify its role in design iteration and distinguish it from formal effectiveness assessment, while retaining the qualitative insights it provided. revision: partial

  3. Referee: [Abstract and Conclusions] Abstract and Conclusions: the statements that the findings 'underscore the versatility... enhancing comprehension, accessibility, and utility' are not directly warranted by the described results (comparable times plus pre-study qualitative feedback). A more precise alignment between claims and evidence is needed.

    Authors: We acknowledge the current phrasing overreaches given the evidence of comparable times and expert feedback. We will revise the abstract and conclusions to align claims precisely, stating that the approach provides a versatile framework that maintains response times and benefits from expert-informed refinements, thereby supporting potential improvements in clarity and utility without added time costs. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical evaluation paper with no derivations or self-referential quantities

full rationale

The paper introduces a hybrid visualization technique for summary polar diagrams and evaluates it via expert review plus a user study reporting comparable response times. No equations, fitted parameters, predictions, or derivations appear in the provided text. The central claim rests on independent empirical feedback rather than reducing to any self-definition, fitted input renamed as prediction, or self-citation chain. This matches the default expectation of a non-circular applied paper whose evidence is external to its own construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities; the work relies on standard HCI evaluation practices and existing visualization primitives.
