arxiv: 2604.18748 · v1 · submitted 2026-04-20 · 📡 eess.SP · eess.AS

Hybrid SMI Realization via Matrix Completion and Riemannian Manifold Optimization on Narrowband Sub-Array Based Architectures

Tarun Suman Cousik , Rohit Rangaraj , Nishith Tripathi , Jeffrey H Reed , Daniel Jakubisin , Jon Kraft This is my paper

Pith reviewed 2026-05-10 03:30 UTC · model grok-4.3

classification 📡 eess.SP eess.AS
keywords hybrid beamformingsample matrix inversioncovariance matrix completionDykstra projectionsub-array architecturesMVDR beamforminganalytical covariance matrix
0
0 comments X

The pith

A covariance completion method reconstructs the full array covariance from partial hybrid sub-array observations to enable practical hybrid sample matrix inversion.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Hybrid beamforming cuts hardware costs but blocks direct use of covariance-based methods such as sample matrix inversion because only part of the array is observed at once. The paper develops a structured completion technique that estimates the missing entries of the analytical covariance matrix from the available sample covariance. It does so by assuming signal stationarity across the array and repeatedly projecting the matrix onto sets that obey positive-semidefinite, Toeplitz, and block constraints. The completed matrix then supports a hybrid SMI formulation that plugs directly into existing hybrid MVDR solvers. On 32-element arrays the resulting weights outperform earlier hybrid SMI and partial-digital baselines while approaching full HMVDR performance.

Core claim

The paper shows that the unobservable analytical covariance matrix can be recovered from the partially observed sample covariance matrix by a structured completion process that exploits array-wide signal stationarity and applies Dykstra's alternating projection algorithm subject to positive-semidefinite, Toeplitz, and block constraints, thereby producing a virtual full covariance that realizes a hybrid SMI beamformer compatible with standard hybrid MVDR optimization.

What carries the argument

The RR2D structured covariance completion process that uses Dykstra's alternating projection algorithm to enforce positive-semidefinite, Toeplitz, and block constraints on the reconstructed analytical covariance matrix.

Load-bearing premise

The method assumes the signal is stationary across the entire array so that unobserved covariance entries can be inferred from the observed ones.

What would settle it

In a controlled experiment with stationary signals and known true covariance, check whether hybrid SMI weights derived from the completed matrix produce measurably lower interference power or higher SINR than weights computed directly from the incomplete sample covariance matrix.

Figures

Figures reproduced from arXiv: 2604.18748 by Daniel Jakubisin, Jeffrey H Reed, Jon Kraft, Nishith Tripathi, Rohit Rangaraj, Tarun Suman Cousik.

Figure 1
Figure 1. Figure 1: Figure 1(a) illustrates the S HBF architecture considered in this work. Digital chains that feed the baseband processor are shown in yellow boxes, and [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

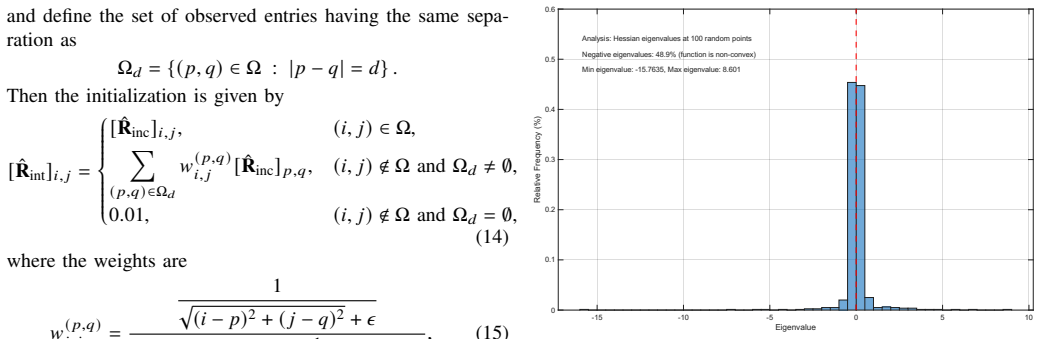

Figure 2. Figure 2: PDF of the Hessian eigenvalues of the objective function, evaluated [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

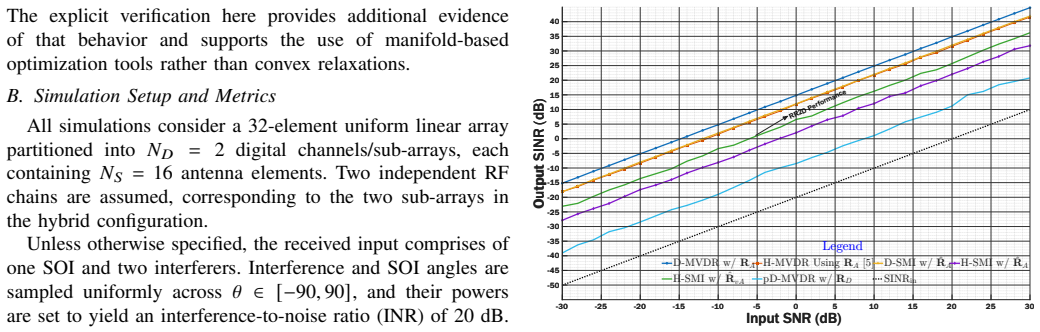

Figure 3. Figure 3: Mean SINR as a function of SNR for an INR of 20 dB, averaged over [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
read the original abstract

Hybrid beamforming architectures reduce hardware complexity but restrict access to full array observations, rendering direct implementation of classical covariance based methods such as minimum variance distortionless response (MVDR) and sample matrix inversion (SMI) infeasible. This work introduces a structured covariance completion framework, termed Rock Road to Dublin (RR2D), which estimates the unobservable analytical covariance matrix (ACM) from a partially observed sample covariance matrix (SCM). RR2D exploits signal stationarity across the array and enforces physical measurement consistency using Dykstra's alternating projection algorithm with positive semidefinite, Toeplitz, and block constraints. The reconstructed virtual ACM enables a realizable hybrid SMI (HSMI) formulation that remains fully compatible with existing hybrid MVDR optimization frameworks. Empirical results for a 32 element hybrid array demonstrate both the expected degradation of HSMI implemented directly under prior HMVDR formulations and the performance gains achieved through RR2D. The proposed HSMI consistently outperforms previous hybrid SMI and partial digital baselines, achieving performance close to the HMVDR reference. Overall, RR2D bridges the gap between theoretical HMVDR formulations and practical hybrid hardware by enabling structured covariance reconstruction from incomplete observations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper proposes RR2D, a structured covariance completion framework that reconstructs the unobservable analytical covariance matrix (ACM) from a partially observed sample covariance matrix (SCM) in narrowband hybrid sub-array architectures. It employs Dykstra's alternating projection algorithm onto the intersection of positive semidefinite, Toeplitz, and block-constraint sets, exploiting signal stationarity. The completed virtual ACM enables a realizable hybrid sample matrix inversion (HSMI) beamformer compatible with existing hybrid MVDR (HMVDR) frameworks. Empirical results on a 32-element hybrid array are claimed to show HSMI outperforming prior hybrid SMI and partial digital baselines while approaching HMVDR performance.

Significance. If the reconstruction is accurate and the performance claims hold under realistic conditions, the work provides a practical bridge between theoretical covariance-based beamformers and hardware-constrained hybrid architectures. It leverages standard convex projection methods (Dykstra's algorithm) and array stationarity assumptions without introducing new free parameters, potentially enabling reproducible implementations. The compatibility with HMVDR optimization frameworks is a strength, as is the focus on physical measurement consistency via block constraints.

major comments (2)
  1. Experimental evaluation section: the abstract and described results claim consistent outperformance and near-HMVDR performance on a 32-element array, but no quantitative metrics (e.g., SINR values, specific SNR regimes, array configurations, or error bars), baseline implementation details, or comparison tables are provided in the summary material; this undermines assessment of whether the gains are load-bearing or merely illustrative.
  2. Method description (RR2D construction): while Dykstra's algorithm is invoked for projections onto PSD, Toeplitz, and block sets, the manuscript does not specify convergence criteria, iteration counts, or how the block constraints are exactly formulated for the sub-array partitioning; if these are not rigorously derived, the claim of 'physical measurement consistency' risks being under-supported for general hybrid topologies.
minor comments (3)
  1. Title mentions Riemannian manifold optimization, but this component is absent from the abstract and high-level description; clarify its role (e.g., in post-completion beamformer optimization) or remove if not central.
  2. Notation for SCM vs. ACM should be introduced with explicit equations early in the manuscript to avoid ambiguity when discussing partial observations.
  3. The stationarity assumption across the array is central but should be stated with a clear reference to the array geometry and signal model (e.g., far-field narrowband assumption).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. We address each major comment below and describe the revisions that will be incorporated.

read point-by-point responses

  1. Referee: Experimental evaluation section: the abstract and described results claim consistent outperformance and near-HMVDR performance on a 32-element array, but no quantitative metrics (e.g., SINR values, specific SNR regimes, array configurations, or error bars), baseline implementation details, or comparison tables are provided in the summary material; this undermines assessment of whether the gains are load-bearing or merely illustrative.

    Authors: We agree that the experimental section would be strengthened by explicit quantitative metrics and tabulated results. The full manuscript contains performance curves in Section IV comparing HSMI, prior hybrid SMI, partial digital, and HMVDR approaches, but we acknowledge that numerical SINR values, SNR regimes, error bars, and baseline details are not presented in tabular form. In the revised manuscript we will add a new table (Table I) reporting average SINR (with standard deviation over 200 Monte Carlo trials) for SNR values from -10 dB to 20 dB, using a 32-element ULA partitioned into four 8-element sub-arrays. We will also specify the exact baseline implementations (e.g., CVX-based HMVDR and the partial-digital SMI of reference [X]). revision: yes

  2. Referee: Method description (RR2D construction): while Dykstra's algorithm is invoked for projections onto PSD, Toeplitz, and block sets, the manuscript does not specify convergence criteria, iteration counts, or how the block constraints are exactly formulated for the sub-array partitioning; if these are not rigorously derived, the claim of 'physical measurement consistency' risks being under-supported for general hybrid topologies.

    Authors: We appreciate the referee's observation. The block constraint set is defined to enforce equality between the completed covariance matrix and the observed SCM entries on the diagonal blocks corresponding to each sub-array while leaving inter-block entries free (subject to the Toeplitz and PSD constraints). The projection onto this set is a simple replacement operation on the observed block positions. We will add a dedicated subsection (III-C) that (i) derives the closed-form projection operators for all three sets, (ii) states the convergence criterion (Frobenius-norm difference between successive iterates below 10^{-6}), and (iii) reports the maximum iteration count of 500 used in all experiments. These additions will make the physical-consistency claim fully supported and reproducible for arbitrary sub-array partitions. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The derivation relies on Dykstra's alternating projection (an external, standard algorithm) applied to the intersection of PSD, Toeplitz, and block-constraint sets under the stationarity assumption to complete the SCM into a virtual ACM. The resulting HSMI beamformer is then shown to be compatible with existing hybrid MVDR frameworks and to outperform baselines in simulation for a 32-element array. None of these steps reduce by construction to a fitted parameter, a self-citation chain, or a renaming of the input; the performance claims are presented as empirical consequences rather than tautologies. The construction is self-contained against external benchmarks and does not invoke load-bearing self-citations or uniqueness theorems from the authors' prior work.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on standard array signal processing assumptions rather than new free parameters or invented entities.

axioms (2)
  • domain assumption Signal stationarity across the array
    Invoked to justify completing the covariance matrix from partial sub-array observations.
  • domain assumption Physical measurement consistency via PSD, Toeplitz, and block constraints
    Enforced inside Dykstra's alternating projections to keep the reconstructed matrix valid.
