arxiv: 2604.19136 · v1 · submitted 2026-04-21 · 📡 eess.SY · cs.SY

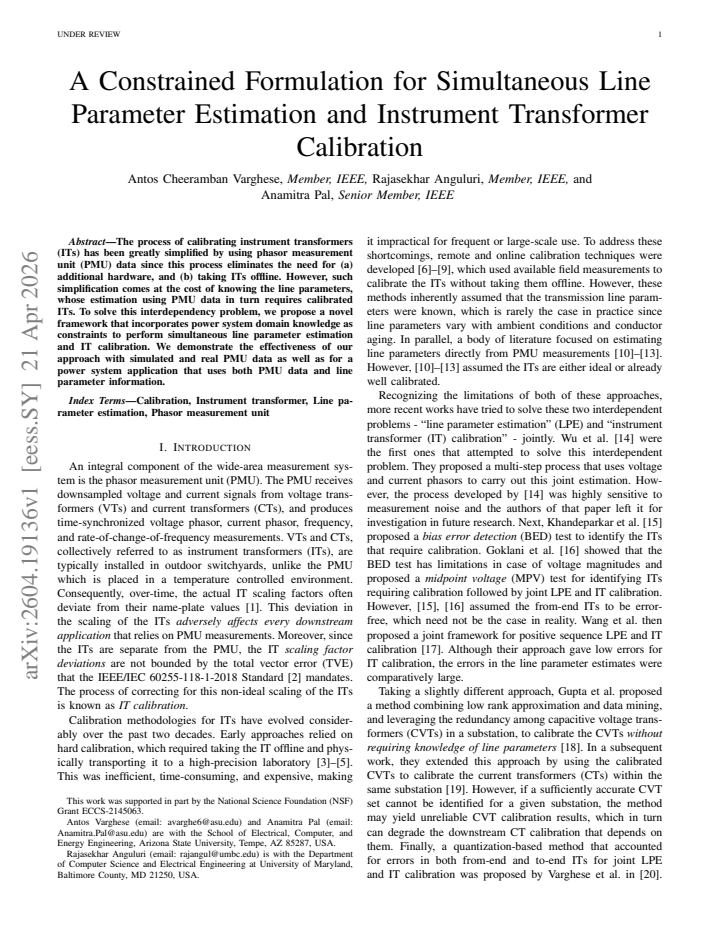

A Constrained Formulation for Simultaneous Line Parameter Estimation and Instrument Transformer Calibration

Pith reviewed 2026-05-10 02:19 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords line parameter estimationinstrument transformer calibrationphasor measurement unitsconstrained optimizationpower system monitoringPMU datajoint estimation
0
0 comments X

The pith

Power system domain knowledge cast as constraints breaks the mutual dependency between line parameter estimation and instrument transformer calibration from PMU data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper identifies a circular dependency: calibrating instrument transformers with phasor measurement unit data requires known line parameters, while estimating those parameters requires calibrated transformers. It introduces a constrained optimization approach that embeds standard power system relationships directly into the problem to solve both tasks simultaneously. This removes the need for separate hardware or offline procedures. The method is shown to work on simulated cases, real field measurements, and a downstream power system application that uses the resulting values.

Core claim

A constrained formulation incorporates power system domain knowledge to perform simultaneous line parameter estimation and instrument transformer calibration from phasor measurement unit data, eliminating the interdependency that previously required one to be known before the other could be obtained.

What carries the argument

The constrained optimization framework that encodes power system domain knowledge directly as equality and inequality constraints on the joint estimation variables.

If this is right

  • Calibration of instrument transformers becomes possible without prior knowledge of line parameters or taking equipment out of service.
  • Line parameter estimates become available even when instrument transformers are initially uncalibrated.
  • The resulting values can be fed directly into power system applications that combine phasor measurement unit data with line parameters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same constraint-based idea could be tested on other interdependent sensor and model estimation tasks in power systems, such as joint topology and parameter identification.
  • If the constraints remain effective on larger networks, the approach might reduce the frequency of periodic manual calibrations across entire grids.
  • Extension to streaming data would require checking whether the constraints still hold under time-varying operating conditions not examined in the reported tests.

Load-bearing premise

Power system domain knowledge can be expressed as constraints that resolve the circular dependency without requiring extra assumptions or introducing large errors in the resulting estimates.

What would settle it

If the joint estimates obtained from the constrained method deviate substantially from independently verified line parameters and calibration factors on the same data set, the claim that the constraints break the interdependency without significant error would be falsified.

Figures

Figures reproduced from arXiv: 2604.19136 by Anamitra Pal, Antos Cheeramban Varghese, Rajasekhar Anguluri.

Figure 1

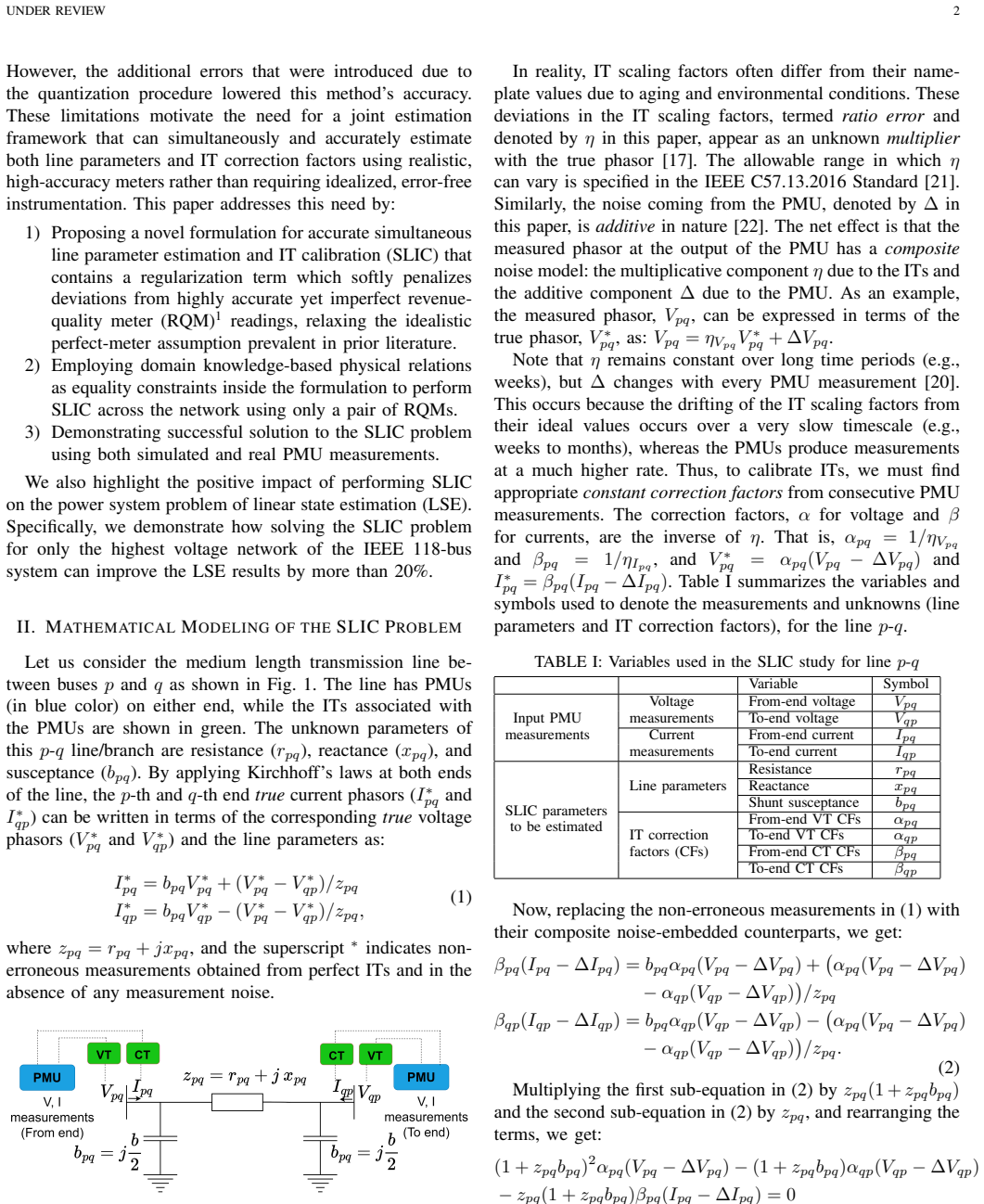

Figure 1. Figure 1: π-model of a transmission line used for explaining the proposed solution to the SLIC problem 1RQMs are high quality ITs that are typically present at critical points in the power system where ownership of electricity changes hands, or where precise billing and financial settlement are required. A likely location where RQMs exist in a modern transmission system are the ends of the tie-lines that connect one… view at source ↗
Figure 2

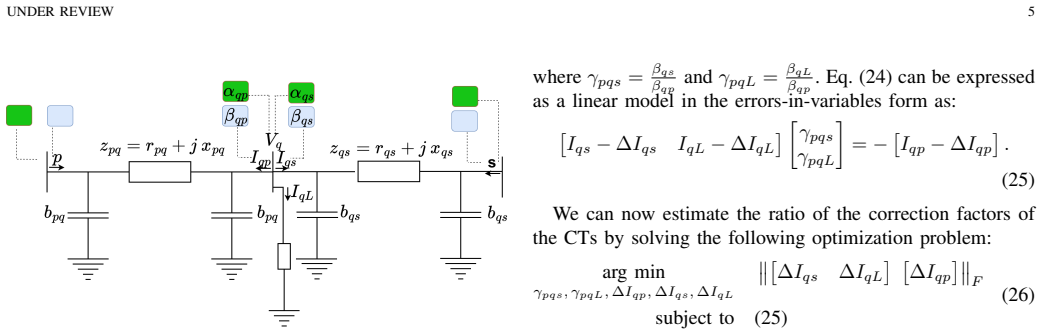

Figure 2. Figure 2: π-model of two transmission lines connected to bus q the composite noise model (see Section II) to express V ∗ q in two ways as shown below: V ∗ q = αqp(Vqp − ∆Vqp) V ∗ q = αqs(Vqs − ∆Vqs). (19) Now, we define the variable ρpqs: ρpqs = (Vqp − ∆Vqp) (Vqs − ∆Vqs) = αqs αqp . (20) where ρpqs is the ratio of the correction factors of the VTs located at the q-end of branches p-q and q-s. An estimate of ρpqs, de… view at source ↗
Figure 3

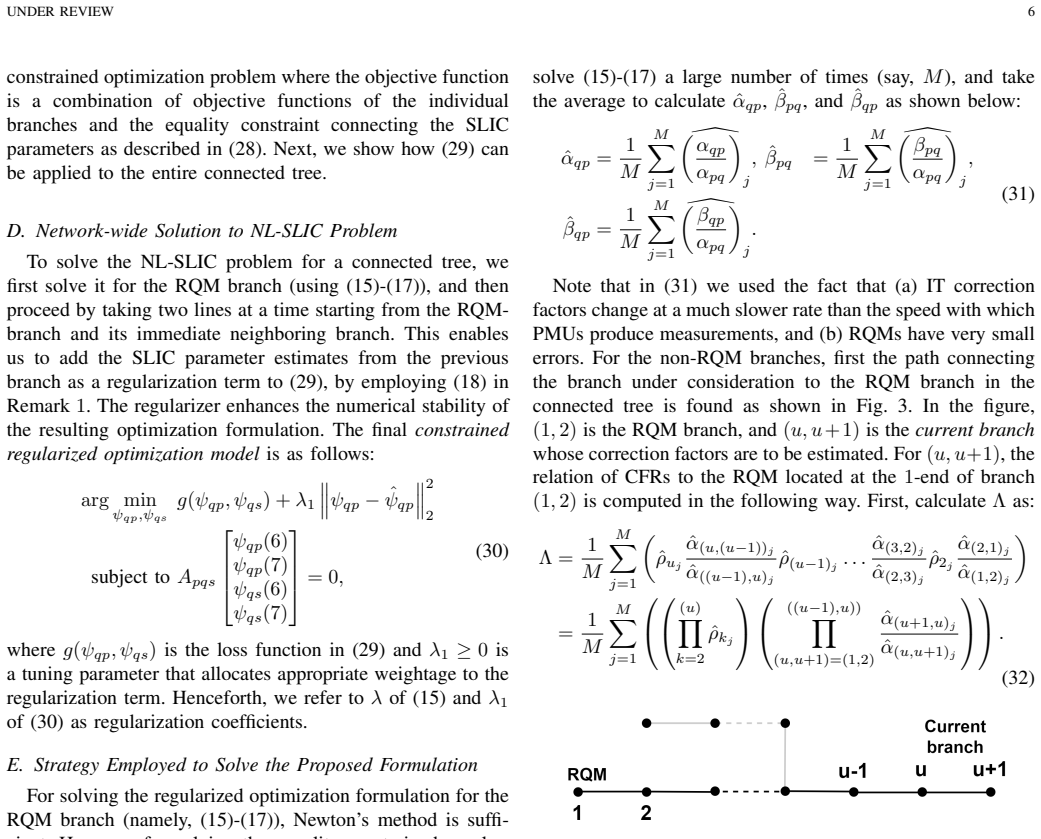

Figure 3. Figure 3: Branches of the connected tree (in black) joining RQM branch to current branch; the lines in gray are not part of the connected tree Then, the correction factors for (u, u+1) is computed using Λ and the CFRs of every line segment in between (u, u + 1) and the RQM branch (1, 2) as shown below: αˆ(u,u+1) = Λ, αˆ(u+1,u) = Λ αˆ(u+1,u) αˆ(u,u+1) βˆ (u,u+1) = Λ βˆ (u,u+1) αˆ(u,u+1) , βˆ (u+1,u) = Λ βˆ (u+1,u) αˆ… view at source ↗
Figure 4

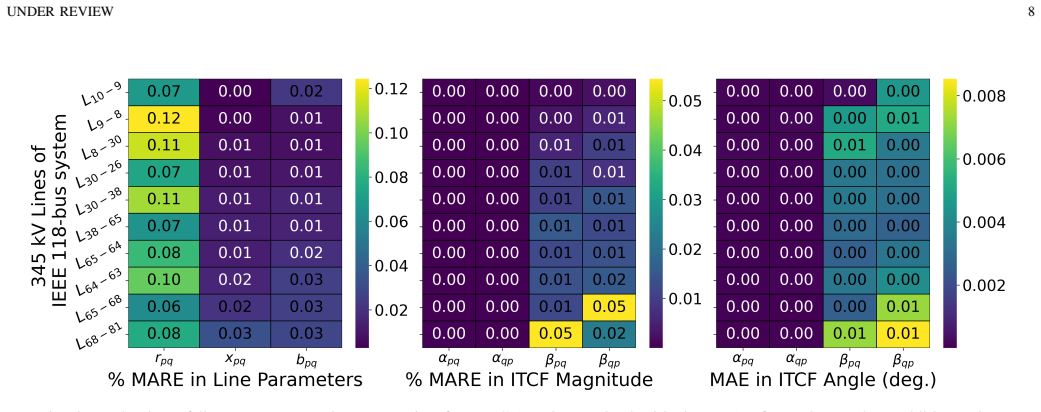

Figure 4. Figure 4: Evaluation of line parameter and IT correction factor (CF) estimates in the ideal case (perfect RQM and no additive noise) [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

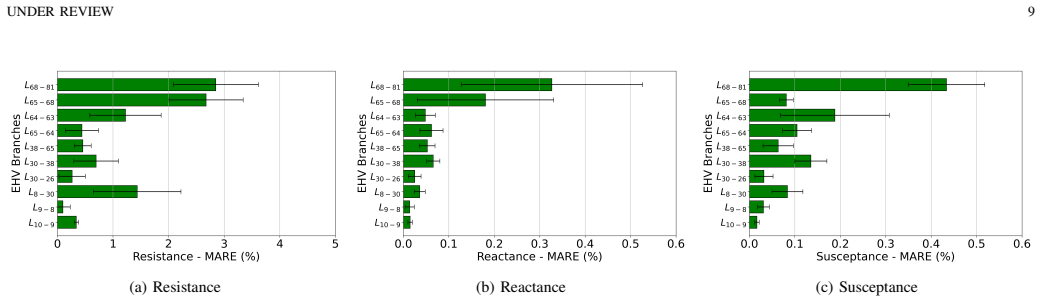

Figure 5. Figure 5: Evaluation of line parameter estimates in presence of a perfect RQM pair but with additive PMU noise [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

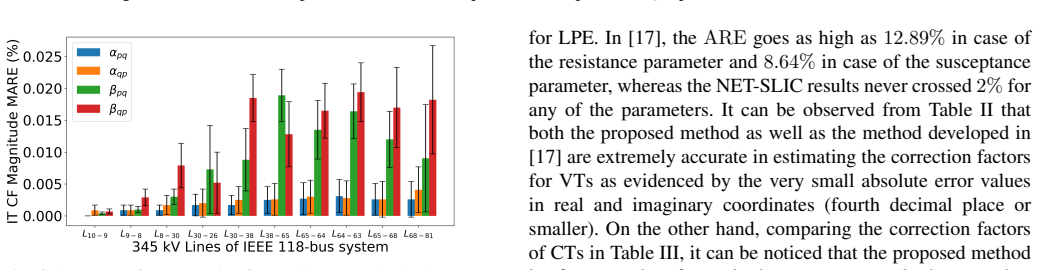

Figure 6. Figure 6: Accuracy of IT correction factor (CF) - magnitude, in presence [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

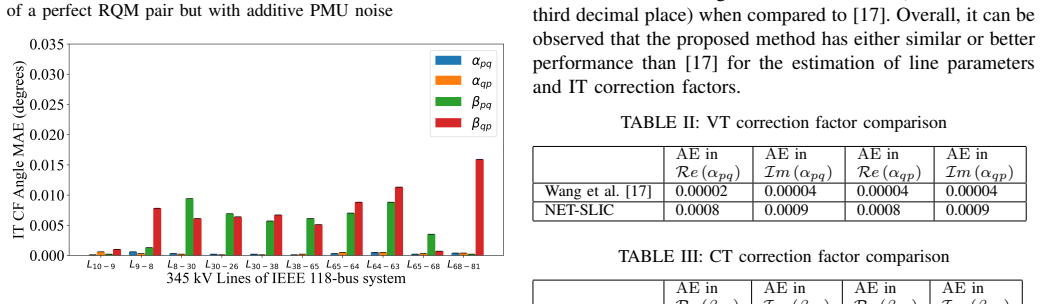

Figure 7. Figure 7: Accuracy of IT correction factor (CF) - angle, in presence of [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

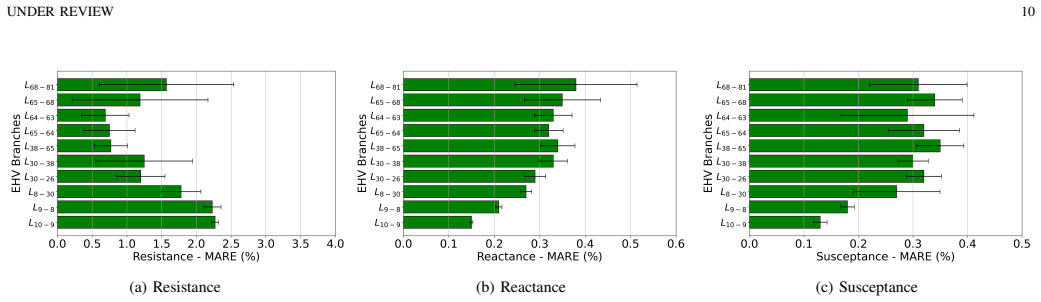

Figure 8. Figure 8: Evaluation of line parameter estimates in presence of a non-ideal RQM pair and additive PMU noise [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9

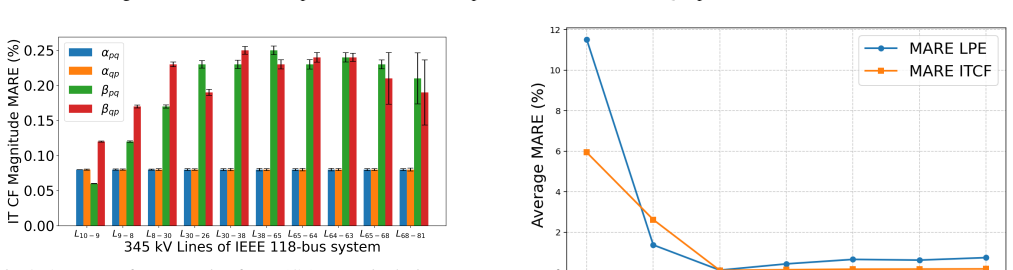

Figure 9. Figure 9: Accuracy of IT correction factor (CF) - magnitude, in presence [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10

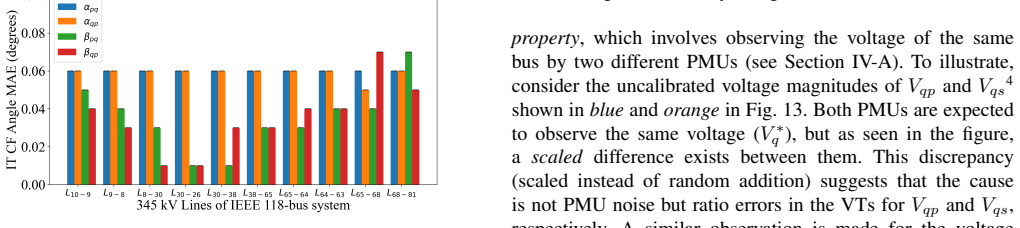

Figure 10. Figure 10: Accuracy of IT correction factor (CF) - angle, in presence [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Comparison of LPE errors in % between the approach developed in Wang et al. [17] and NET-SLIC TABLE IV: Line parameter estimates (in p.u.) obtained using NET-SLIC with real PMU data Resistance Reactance Susceptance 8 AM–11 AM 3 PM–6 PM 8 AM–11 AM 3 PM–6 PM 8 AM–11 AM 3 PM–6 PM Estimated Monday 0.0036 0.0037 0.0262 0.0262 0.0046 0.0045 Tuesday 0.0036 0.0041 0.0261 0.0259 0.0047 0.0046 Wednesday 0.0036 0.00… view at source ↗
Figure 13
Figure 13. Figure 13: Voltage magnitude measurements before and after calibration [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 15
Figure 15. Figure 15: Improvements in estimating states of the 345 kV network of [PITH_FULL_IMAGE:figures/full_fig_p011_15.png] view at source ↗
read the original abstract

The process of calibrating instrument transformers (ITs) has been greatly simplified by using phasor measurement unit (PMU) data since this process eliminates the need for (a) additional hardware, and (b) taking ITs offline. However, such simplification comes at the cost of knowing the line parameters, whose estimation using PMU data in turn requires calibrated ITs. To solve this interdependency problem, we propose a novel framework that incorporates power system domain knowledge as constraints to perform simultaneous line parameter estimation and IT calibration. We demonstrate the effectiveness of our approach with simulated and real PMU data as well as for a power system application that uses both PMU data and line parameter information.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper proposes a constrained optimization framework that incorporates power system domain knowledge to jointly estimate transmission line parameters and calibrate instrument transformers (ITs) from PMU measurements. This addresses the circular dependency where line parameter estimation requires calibrated ITs and vice versa. The approach is validated through simulations, real PMU data, and demonstrated in a power system application that relies on both PMU data and line parameters.

Significance. If the domain-knowledge constraints prove sufficient to ensure identifiability without introducing substantial bias, the work could enable more accurate and practical deployment of PMU-based monitoring, protection, and estimation applications without requiring separate calibration hardware or offline procedures. The inclusion of real-data validation and an end-use application strengthens the practical relevance.

minor comments (3)
  1. The abstract states that the method is demonstrated with simulated and real PMU data, but the results section would benefit from explicit reporting of estimation errors, convergence behavior, and sensitivity to constraint tightness (e.g., via tables or figures showing bias introduced by the chosen constraints).
  2. Notation for the constraint set and the optimization variables (IT ratio/phase errors and line parameters) should be introduced earlier and used consistently to improve readability for readers outside the immediate subfield.
  3. The power-system application example would be strengthened by a quantitative comparison against a baseline that performs sequential estimation (first calibrate ITs assuming nominal line parameters, then estimate parameters).

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary of our work and the recommendation for minor revision. The referee's description accurately reflects the core contribution of our constrained optimization approach that resolves the circular dependency between line parameter estimation and instrument transformer calibration using PMU data.

Circularity Check

0 steps flagged

No significant circularity detected; derivation relies on independent domain-knowledge constraints

full rationale

The paper explicitly identifies the mutual dependency between line parameter estimation and IT calibration from PMU data, then resolves it by formulating established power system domain knowledge (e.g., physical laws and network properties) as explicit constraints within a joint optimization. No equations or steps in the provided abstract reduce a claimed prediction or result to a fitted parameter or self-citation by construction. The constraints are drawn from external, standard power-system principles rather than being defined in terms of the target estimates themselves, rendering the framework self-contained and non-circular. Without load-bearing self-citations or ansatz smuggling visible in the abstract, the central claim stands on independent content.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides insufficient detail to specify free parameters, axioms, or invented entities. The method relies on power system domain knowledge encoded as constraints.
