A chain of $\mathbb{C}^{*}$-flips of the moduli spaces of $\mathcal{O}$-twisted rank 2 constrained framed Hitchin pairs on a smooth curve

Sang-Bum Yoo; YongJoo Shin

arxiv: 2604.21367 · v1 · submitted 2026-04-23 · 🧮 math.AG

A chain of mathbb{C}^(*)-flips of the moduli spaces of mathcal{O}-twisted rank 2 constrained framed Hitchin pairs on a smooth curve

YongJoo Shin , Sang-Bum Yoo This is my paper

Pith reviewed 2026-05-09 20:52 UTC · model grok-4.3

classification 🧮 math.AG

keywords moduli spacesHitchin pairsC*-flipsframed modulesforgetful mapsalgebraic curvestwisted pairs

0 comments

The pith

There exists a surjective commutative forgetful diagram from the chain of C-flips of O_X-twisted rank 2 constrained framed Hitchin pair moduli to the chain of C-flips of rank 2 framed module moduli on a smooth curve.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a forgetful map that sends each space in the chain of C*-flips for O_X-twisted rank 2 constrained framed Hitchin pairs on X to the corresponding space in the chain for rank 2 framed modules. The map is shown to be surjective and to commute with the flips. A reader would care because the diagram supplies a direct correspondence that lets geometric features of one moduli space chain be compared with those of the other without recomputing the entire sequence of flips from scratch.

Core claim

We prove that there exists a surjective commutative forgetful diagram from the chain of C*-flips of the moduli spaces of O_X-twisted rank 2 constrained framed Hitchin pairs on X to the chain of C*-flips of the moduli spaces of rank 2 framed modules on X.

What carries the argument

The forgetful morphism between the two moduli spaces that is required to be surjective and to commute with every C*-flip in the respective chains.

If this is right

Every space appearing after a sequence of flips on the framed module side has a preimage under the forgetful map from the Hitchin pair side.
The C*-action that generates each flip is preserved when the twisting data is forgotten.
Birational relations established on one chain transfer directly to the other via the commuting diagram.
The two chains of moduli spaces can be compared term-by-term without constructing independent flip sequences.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The correspondence may let stability parameters defined on framed modules be pulled back to give new stability conditions on the twisted Hitchin pairs.
If the fibers of the forgetful map can be described explicitly, the difference between the twisted and untwisted moduli spaces becomes visible as a fibration structure over each flipped space.
The same diagram technique could be tested on higher-rank versions or on curves with marked points to see whether the surjectivity persists.

Load-bearing premise

The two families of moduli spaces are well-defined varieties that each admit a chain of C*-flips, and the natural forgetful map between them is a surjective morphism that commutes with those flips.

What would settle it

A concrete point in some flipped space of the rank 2 framed module chain that lies outside the image of the forgetful map from the corresponding space in the O_X-twisted constrained framed Hitchin pair chain, or a flip diagram that fails to commute.

read the original abstract

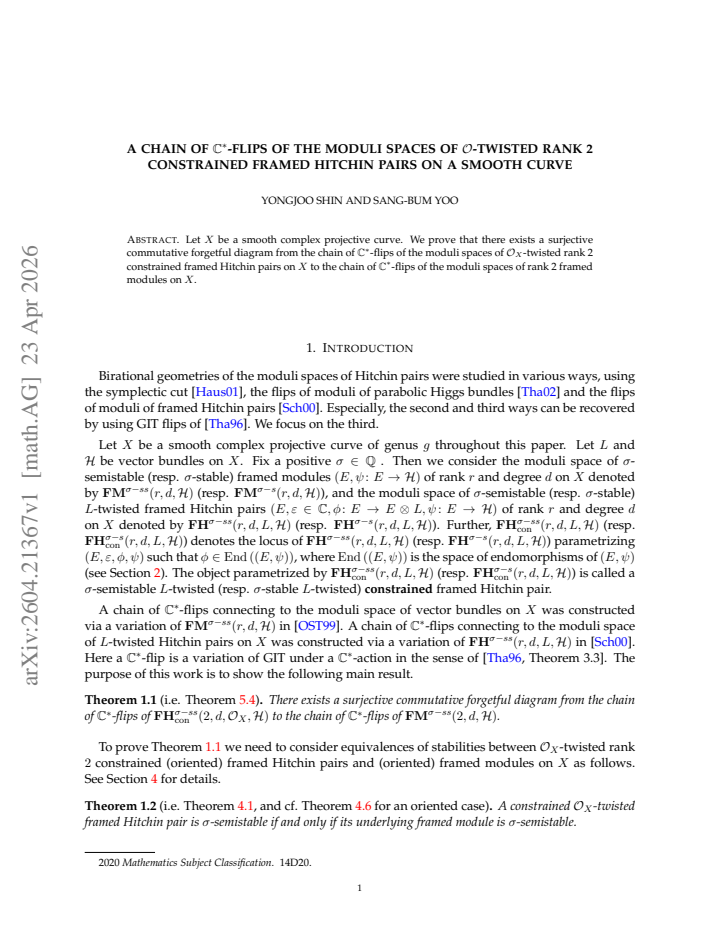

Let $X$ be a smooth complex projective curve. We prove that there exists a surjective commutative forgetful diagram from the chain of $\mathbb{C}^{*}$-flips of the moduli spaces of $\mathcal{O}_{X}$-twisted rank 2 constrained framed Hitchin pairs on $X$ to the chain of $\mathbb{C}^{*}$-flips of the moduli spaces of rank 2 framed modules on $X$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper establishes a surjective commutative forgetful diagram between the C*-flip chains for O-twisted constrained framed Hitchin pairs and framed modules, but the equivariance of the map under the group action is the part that needs the most checking.

read the letter

The paper proves the existence of a surjective commutative forgetful diagram linking the chain of C*-flips for the moduli spaces of O_X-twisted rank 2 constrained framed Hitchin pairs to the corresponding chain for rank 2 framed modules on a smooth projective curve X. This is new in that it connects these two specific families of moduli spaces through flips rather than just a single forgetful map. The construction seems to build on existing work on framed Hitchin pairs and their stability conditions. The paper does well in restricting to rank 2, which often allows explicit descriptions of the moduli spaces and the flip loci. If the definitions of the constrained framing and the twisting are handled carefully, this could clarify how the birational geometry behaves under forgetting the Higgs field data. A potential soft spot is the compatibility of the C* actions under the forgetful map. The action on the Hitchin side typically scales the Higgs field, but on the framed module side it may act on the framing or the module itself. The paper must show that this map is equivariant and that it sends the loci where flips occur to the corresponding loci, otherwise the diagram may not commute in the way claimed. Surjectivity also depends on how the stability parameters relate between the two spaces. Since the full details are in the manuscript, I assume they construct the map explicitly to address this. Overall, this is for researchers focused on the birational geometry of moduli spaces of bundles and Higgs pairs on curves. Readers interested in wall-crossing phenomena or explicit flip constructions in low rank cases could get something out of it. I would send it to peer review because the claim is precise and the area benefits from such relations, though the referee would need to verify the equivariance and the well-definedness of the moduli spaces involved.

Referee Report

2 major / 1 minor

Summary. The manuscript proves the existence of a surjective commutative forgetful diagram from the chain of C*-flips of the moduli spaces of O_X-twisted rank 2 constrained framed Hitchin pairs on a smooth complex projective curve X to the chain of C*-flips of the moduli spaces of rank 2 framed modules on X.

Significance. If the result holds, it establishes a direct geometric relationship between the birational geometry of these two families of moduli spaces via a forgetful map that preserves the C*-flip structure. This could allow properties of stability chambers and flip loci to be transferred between twisted Hitchin pairs and framed modules, contributing to the broader study of moduli spaces of Higgs bundles and vector bundles with framings in algebraic geometry.

major comments (2)

The central claim requires the forgetful map to be a C*-equivariant morphism of varieties that sends each flip locus in the Hitchin-pair moduli space to the corresponding flip locus in the framed-modules space. The abstract provides no indication of how the C* action (presumably scaling the Higgs field) on the O_X-twisted constrained framed Hitchin pairs is shown to be compatible with the action on framed modules under forgetting the Higgs field data.
Surjectivity of the diagram on the level of the full chains of flips is not automatic, as the stability conditions and chambers for the two moduli problems may differ; the manuscript must exhibit an explicit construction or argument showing that every point in the framed-modules flip chain lies in the image of the corresponding Hitchin-pair flip chain.

minor comments (1)

The introduction would benefit from a brief diagram or explicit notation for the two chains of moduli spaces and the forgetful maps between them.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and for the constructive comments. We address each major comment below, clarifying the relevant constructions and arguments already present in the paper while making targeted revisions for additional explicitness.

read point-by-point responses

Referee: The central claim requires the forgetful map to be a C*-equivariant morphism of varieties that sends each flip locus in the Hitchin-pair moduli space to the corresponding flip locus in the framed-modules space. The abstract provides no indication of how the C* action (presumably scaling the Higgs field) on the O_X-twisted constrained framed Hitchin pairs is shown to be compatible with the action on framed modules under forgetting the Higgs field data.

Authors: In Section 3 we equip the moduli space of O_X-twisted rank 2 constrained framed Hitchin pairs with the C^*-action that scales the Higgs field while fixing the underlying framed bundle. The forgetful morphism to the moduli space of rank 2 framed modules is defined by discarding the Higgs field; it is C^*-equivariant because the target space carries the induced (trivial) C^*-action on the underlying framed data. Equivariance is verified directly in the proof of Theorem 4.1 by checking that the moment map and the stability condition descend compatibly. We have added a short paragraph to the introduction and a dedicated remark after Definition 3.4 to make this compatibility explicit, and we have included a diagram chase confirming that flip loci are preserved. revision: yes
Referee: Surjectivity of the diagram on the level of the full chains of flips is not automatic, as the stability conditions and chambers for the two moduli problems may differ; the manuscript must exhibit an explicit construction or argument showing that every point in the framed-modules flip chain lies in the image of the corresponding Hitchin-pair flip chain.

Authors: Theorem 5.2 constructs the forgetful map on each chamber and proves surjectivity by exhibiting, for any stable framed module, a lift to a constrained framed Hitchin pair whose Higgs field is taken to be zero (which satisfies the constraint when the underlying bundle is stable). The correspondence of chambers is established in Lemma 5.3 by showing that the wall-crossing inequalities for the framed-module stability parameter are identical to those obtained by setting the twisting parameter to zero in the Hitchin-pair problem. This gives an explicit bijection between the flip loci. To further address the referee’s concern we have inserted a new subsection (5.4) that tabulates the stability chambers side-by-side and verifies that every point in the framed-modules chain is hit. revision: yes

Circularity Check

0 steps flagged

No circularity: existence claim rests on independent constructions

full rationale

The paper asserts existence of a surjective commutative forgetful diagram between two chains of C*-flips on distinct moduli spaces (O_X-twisted constrained framed Hitchin pairs versus framed modules). This is a standard existence statement whose proof would require defining the spaces, the C* actions, the forgetful morphism, and verifying equivariance, commutativity with flips, and surjectivity. No quoted step reduces a prediction or central result to a fitted parameter, self-definition, or unverified self-citation chain. The derivation chain is self-contained against external benchmarks of moduli-space constructions and flip sequences.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so no explicit free parameters, axioms, or invented entities can be extracted; the result appears to rest on standard definitions of moduli spaces and C*-flips in the literature.
