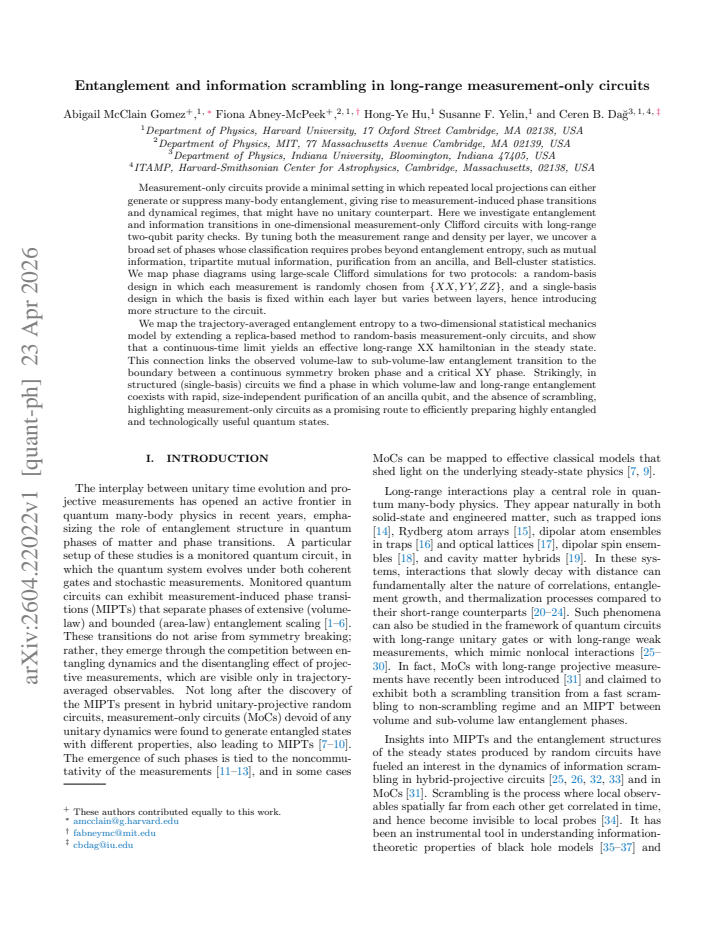

Entanglement and information scrambling in long-range measurement-only circuits
Pith reviewed 2026-05-09 21:18 UTC · model grok-4.3
The pith
Structured long-range measurement circuits sustain volume-law entanglement with rapid ancilla purification and no scrambling.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In single-basis long-range measurement-only Clifford circuits there exists a dynamical phase in which volume-law and long-range entanglement coexist with rapid, size-independent purification of an ancilla qubit together with the absence of scrambling, a combination not observed in the corresponding random-basis circuits or in typical unitary dynamics.
What carries the argument
The replica-based mapping of trajectory-averaged entanglement entropy to a two-dimensional statistical mechanics model whose continuous-time limit produces an effective long-range XX Hamiltonian whose symmetry phases locate the entanglement transitions.
If this is right
- The volume-law to sub-volume-law entanglement transition maps directly onto the boundary between a continuous symmetry broken phase and a critical XY phase in the effective long-range XX model.
- Structured single-basis circuits allow preparation of highly entangled states that also purify an ancilla rapidly and without scrambling.
- Probes such as mutual information, tripartite mutual information, and Bell-cluster statistics are required to distinguish the phases beyond entanglement entropy alone.
- The same mapping and phase structure apply to both random-basis and single-basis protocols, with the latter revealing additional non-scrambling behavior.
Where Pith is reading between the lines
- The reported phase supplies a concrete route to generate long-range entangled states for quantum sensing or metrology while keeping ancilla qubits clean.
- Absence of scrambling in this regime may allow the circuits to preserve logical information in a manner useful for measurement-based error correction.
- Tuning the measurement range or layer density further could uncover additional phases with controlled information flow.
- The effective long-range XX description suggests analogous entanglement transitions may appear in other long-range interacting spin systems.
Load-bearing premise
The replica mapping to a statistical mechanics model together with the continuous-time limit to a long-range XX Hamiltonian accurately reproduces the steady-state entanglement properties without extra fitting parameters that would shift the phase boundaries.
What would settle it
A simulation in which the ancilla purification time grows with system size or in which tripartite mutual information shows scrambling signatures inside the reported volume-law regime would falsify the claimed phase.
Figures
read the original abstract
Measurement-only circuits provide a minimal setting in which repeated local projections can either generate or suppress many-body entanglement, giving rise to measurement-induced phase transitions and dynamical regimes, that might have no unitary counterpart. Here we investigate entanglement and information transitions in one-dimensional measurement-only Clifford circuits with long-range two-qubit parity checks. By tuning both the measurement range and density per layer, we uncover a broad set of phases whose classification requires probes beyond entanglement entropy, such as mutual information, tripartite mutual information, purification from an ancilla, and Bell-cluster statistics. We map phase diagrams using large-scale Clifford simulations for two protocols: a random-basis design in which each measurement is randomly chosen from $\lbrace XX,YY,ZZ \rbrace$, and a single-basis design in which the basis is fixed within each layer but varies between layers, hence introducing more structure to the circuit. We map the trajectory-averaged entanglement entropy to a two-dimensional statistical mechanics model by extending a replica-based method to random-basis measurement-only circuits, and show that a continuous-time limit yields an effective long-range XX hamiltonian in the steady state. This connection links the observed volume-law to sub-volume-law entanglement transition to the boundary between a continuous symmetry broken phase and a critical XY phase. Strikingly, in structured (single-basis) circuits we find a phase in which volume-law and long-range entanglement coexists with rapid, size-independent purification of an ancilla qubit, and the absence of scrambling, highlighting measurement-only circuits as a promising route to efficiently preparing highly entangled and technologically useful quantum states.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript investigates entanglement and information transitions in one-dimensional long-range measurement-only Clifford circuits by tuning measurement range and density per layer. It considers two protocols: a random-basis design with measurements randomly chosen from {XX, YY, ZZ} and a single-basis design with fixed basis per layer but varying across layers. Large-scale Clifford simulations map the phases using diagnostics including mutual information, tripartite mutual information, ancilla purification dynamics, and Bell-cluster statistics. For the random-basis protocol, the trajectory-averaged entanglement entropy is mapped to a two-dimensional statistical mechanics model via an extended replica method, with a continuous-time limit yielding an effective long-range XX Hamiltonian that links the volume-law to sub-volume-law transition to the boundary between a continuous symmetry broken phase and a critical XY phase. In the single-basis protocol, the authors report a phase in which volume-law and long-range entanglement coexist with rapid, size-independent ancilla purification and absence of scrambling.
Significance. If the numerical observations hold, the work is significant for identifying a structured measurement-only regime that generates volume-law entangled states while enabling fast purification without scrambling, offering a promising route to preparing technologically useful quantum states. The replica extension and continuous-time limit provide a theoretical connection between the observed transitions and statistical mechanics phases with broken symmetry. The manuscript is strengthened by its large-scale Clifford simulations and use of multiple independent probes (mutual information, tripartite mutual information, purification dynamics, and Bell-cluster statistics) to classify phases beyond entanglement entropy alone. The mapping to the 2D stat-mech model is applied only to the random-basis protocol and is not invoked for the central single-basis phase claim.
minor comments (3)
- Figure captions and methods sections should explicitly state the number of trajectories averaged, system sizes simulated, and any data exclusion criteria to allow assessment of statistical reliability of the reported phase boundaries.
- Clarify the precise definition and normalization of the 'measurement density per layer' parameter when tuning the phase diagrams, including how it interacts with the long-range measurement range.
- The abstract would benefit from briefly noting the specific diagnostics (beyond entanglement entropy) used to identify the absence of scrambling in the single-basis phase.
Simulated Author's Rebuttal
We thank the referee for their positive evaluation of the manuscript and for recommending minor revision. We appreciate the recognition of the significance of the structured single-basis phase and the value of the multiple numerical probes employed. No specific major comments were raised in the report.
Circularity Check
No significant circularity; central claims rest on direct simulation diagnostics
full rationale
The paper's strongest claims concern numerically observed phases in single-basis long-range measurement-only Clifford circuits, supported by large-scale simulations with independent probes (mutual information, tripartite mutual information, ancilla purification dynamics, Bell-cluster statistics). The replica-based mapping to a 2D stat-mech model and continuous-time limit to an effective long-range XX Hamiltonian are explicitly restricted to interpreting the random-basis entanglement transition and are not invoked for the single-basis phase or its coexistence of volume-law entanglement with size-independent purification. No load-bearing step reduces by construction to fitted parameters, self-citations, or ansatz smuggling; the derivation chain remains self-contained against external simulation benchmarks.
Axiom & Free-Parameter Ledger
free parameters (1)
- measurement range and density per layer
axioms (1)
- domain assumption Clifford circuits and replica trick extension accurately represent the entanglement dynamics of the measurement-only model
Reference graph
Works this paper leans on
-
[1]
Trajectory Averaged Entanglement Entropy Here we express⟨S (l) A ⟩l, the von Neumann entangle- ment entropy of subsystemAaveraged over all trajec- tories and circuit realizations. LetCdenote the Kraus operator associated with a given circuit instance and a particular set of measurement outcomes. We defineE C as an expectation value over all Kraus operator...
-
[2]
to obtain⟨S (l) A ⟩l as a limit ofn th order “conditional R´ enyi entropies” that is denoted below by˜S(n) A : ⟨S(l) A ⟩l = lim n→1 ˜S(n) A ≡lim n→1 log ZA (n) −log Z∅ (n) 1−n , (5) where the quantitiesZ A andZ ∅ can be expressed as: ZA (n) =E C Tr C|ψ⟩ ⟨ψ|C † ⊗n Sn,A) (6) Z∅ (n) =E C Tr C|ψ⟩ ⟨ψ|C † )⊗n. Here,S n,A is the permutation operator that acts on...
-
[3]
Random-basis statistical mechanics model Here we formulate the functionsZ A andZ ∅ in the random-basis MoC as partition functions of a classical statistical mechanics model and the entropy as the free energy cost associated with changing a boundary condi- tion. Similar mappings have been done for random uni- tary circuits with single qubit measurements [4...
-
[4]
(14), forn= 2 replicas is equivalent to imagi- nary time evolution under an effective Hamiltonian
Mapping to an effective XX hamiltonian Adapting the methodology of [27], which writes an ef- fective Hamiltonian for long-range unitary circuits with single qubit measurements, we show that the continuous time limit of the partition function in the random basis MoC, Eq. (14), forn= 2 replicas is equivalent to imagi- nary time evolution under an effective ...
-
[5]
Phases of Entanglement Growth In the lower left plot of Fig. 3, we examine the entan- glement entropy scaling with system size by comparing R2 values when the ¯Sversus system sizeNdata is fit to a linear and a logarithmic function. Linear entan- glement growth is indicative of a volume-law entangled phase, while logarithmic entanglement growth (also re- f...
-
[6]
Purification In the lower right panel of Fig. 3, we examine how the purification timescaleτscales with system size by comparingR 2 values when theτversusNdata fit to an exponential and a linear function. Dark red indicates a preference for the exponential fit and suggests that pu- rification does not occur, while light yellow indicates a preference for li...
-
[7]
Scrambling and Non-Scrambling Regimes The top left plot in Fig. 3 displays the steady state value of the tripartite mutual information ¯I3. Two re- gions emerge closely following the transition boundaries found in previous sections. In a long-range measurement circuit with smallα, the tripartite mutual information is negative with a large magnitude, which...
-
[8]
Mutual information The top right plot in Fig. 3 displays the steady state value of the mutual information ¯Ibetween two maximally distant qubits in the system. The value of ¯Iremains small throughout the phase diagram, with marginally elevated values in the long-range measure- ment regime (smallα). Fig. 7b examines mutual infor- mation in more detail by p...
-
[9]
Projective XXZ Model We emphasize that all random-basis circuits discussed can be considered asprojective Heisenberg modelsin the steady-state, meaning that these circuits consist of se- quentially applied measurements in the equally weighted bases, similar to the projective Ising model introduced in [7]. The projective Heisenberg models also effectively ...
-
[10]
Both single-basis (light blue / purple) and random-basis (dark blue / purple) scenarios are considered and contrasted. Note that in the regime of the bottom plots (M2/N= 0), the single and random-basis cases are identical. 7a: Average number of Bell pairs observed in the final state of 1000 circuit trajectories. Data is arranged according to the distance ...
-
[11]
Phases of Entanglement Growth We examine the trends of entanglement growth by comparing linear and logarithmic fits of ¯Sversus sys- tem sizeN(lower left panel of Fig. 9). Two regimes emerge: in long-range measurement circuit, entangle- ment grows linearly with system size, consistent with volume-law entanglement, while in the short-range mea- surement ci...
-
[12]
9, we probe the puri- fying capacity of single-basis MoCs

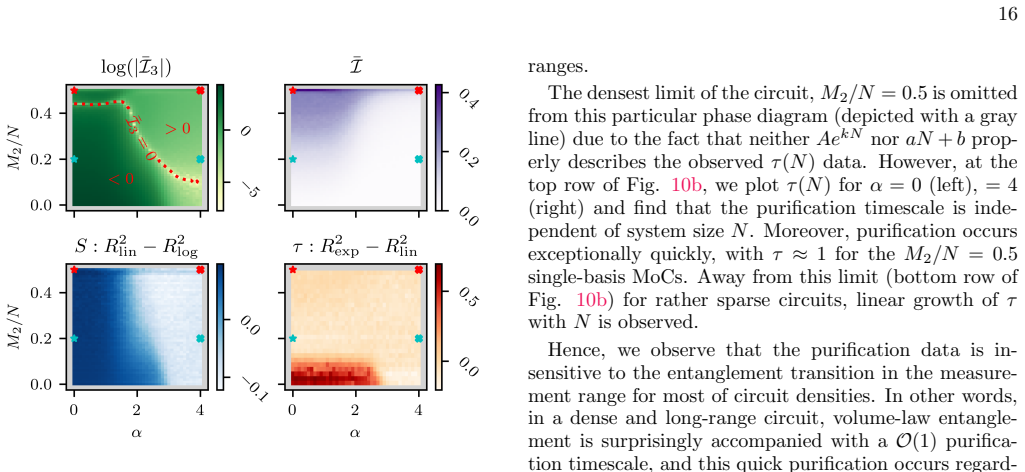

Purification In the lower right plot of Fig. 9, we probe the puri- fying capacity of single-basis MoCs. This plot visualizes the difference inR 2 values when theτversusNdata is fit to an exponential (non-purifying) and a linear (purifying) function. The sparsest (M 2/N∼0) and long-range mea- surement regime is found to haveτ(N)∼e N – as it must, in order ...
-
[13]
Scrambling and Non-Scrambling Regimes The steady state behavior ofI 3 is quite nontrivial across the parameter space for the single-basis circuit de- sign, (top left corner in Fig. 9). For sparse circuits, the value of ¯I3 transitions from negative values with large magnitude in the long-range circuit to small but positive values in short-range circuits. ...
-
[14]
Mutual information and a regime of Bell-pairs In single-basis MoC, there is considerably more mutual information, and hence long-range entanglement, in the generated steady states compared to the random-basis design, see the comparison in Fig. 7b. We find Bell pairs across the entire chain when the circuit is dense, regard- less of the measurement range. ...
-
[15]
Y. Li, X. Chen, and M. P. A. Fisher, Phys. Rev. B98, 205136 (2018)
work page 2018
- [16]
-
[17]
A. Chan, R. M. Nandkishore, M. Pretko, and G. Smith, Phys. Rev. B99, 224307 (2019)
work page 2019
-
[18]
Y. Bao, S. Choi, and E. Altman, Phys. Rev. B101, 104301 (2020)
work page 2020
-
[19]
M. J. Gullans and D. A. Huse, Phys. Rev. X10, 041020 (2020)
work page 2020
-
[20]
C.-M. Jian, Y.-Z. You, R. Vasseur, and A. W. W. Lud- wig, Phys. Rev. B101, 104302 (2020)
work page 2020
- [21]
-
[22]
M. Ippoliti, M. J. Gullans, S. Gopalakrishnan, D. A. Huse, and V. Khemani, Phys. Rev. X11, 011030 (2021)
work page 2021
- [23]
-
[24]
G.-Y. Zhu, N. Tantivasadakarn, and S. Trebst, Phys. Rev. Res.6, L042063 (2024)
work page 2024
- [25]
- [26]
- [27]
- [28]
- [29]
- [30]
-
[31]
L. Su, A. Douglas, M. Szurek, R. Groth, S. F. Ozturk, A. Krahn, A. H. H´ ebert, G. A. Phelps, S. Ebadi, S. Dick- erson, F. Ferlaino, O. Markovi´ c, and M. Greiner, Nature 622, 724–729 (2023)
work page 2023
-
[32]
E. J. Davis, B. Ye, F. Machado, S. A. Meynell, W. Wu, T. Mittiga, W. Schenken, M. Joos, B. Kobrin, Y. Lyu, et al., Nature Physics19, 836 (2023)
work page 2023
- [33]
- [34]
-
[35]
P. Richerme, Z.-X. Gong, A. Lee, C. Senko, J. Smith, M. Foss-Feig, S. Michalakis, A. V. Gorshkov, and C. Monroe, Nature511, 198 (2014)
work page 2014
-
[36]
B. Neyenhuis, J. Zhang, P. W. Hess, J. Smith, A. C. Lee, P. Richerme, Z.-X. Gong, A. V. Gorshkov, and C. Monroe, Science advances3, e1700672 (2017)
work page 2017
-
[37]
M. Foss-Feig, Z.-X. Gong, C. W. Clark, and A. V. Gor- shkov, Phys. Rev. Lett.114, 157201 (2015)
work page 2015
- [38]
- [39]
-
[40]
S. Kuriyattil, T. Hashizume, G. Bentsen, and A. J. Da- ley, PRX Quantum4, 030325 (2023)
work page 2023
- [41]
- [42]
- [43]
- [44]
-
[45]
Y. Kuno, T. Orito, and I. Ichinose, Phys. Rev. B108, 094104
-
[46]
T. Hashizume, G. Bentsen, and A. J. Daley, Phys. Rev. Res.4, 013174 (2022)
work page 2022
-
[47]
Z. Weinstein, S. P. Kelly, J. Marino, and E. Altman, Phys. Rev. Lett.131, 220404 (2023)
work page 2023
- [48]
-
[49]
P. Hayden and J. Preskill, Journal of High Energy Physics2007, 120 (2007)
work page 2007
-
[50]
N. Lashkari, D. Stanford, M. Hastings, T. Osborne, and P. Hayden, Journal of High Energy Physics2013, 22 (2013)
work page 2013
-
[51]
K. A. Landsman, C. Figgatt, T. Schuster, N. M. Linke, B. Yoshida, N. Y. Yao, and C. Monroe, Nature567, 61–65 (2019)
work page 2019
-
[52]
A. A. Patel, D. Chowdhury, S. Sachdev, and B. Swingle, Physical Review X7, 031047 (2017)
work page 2017
-
[53]
B. Swingle and D. Chowdhury, Phys. Rev. B95, 060201 (2017), arXiv:1608.03280 [cond-mat.str-el]
- [54]
- [55]
-
[56]
M. J. Klug, M. S. Scheurer, and J. Schmalian, Phys. Rev. B98, 045102 (2018)
work page 2018
-
[57]
S. Pappalardi, A. Russomanno, B. ˇZunkoviˇ c, F. Iemini, A. Silva, and R. Fazio, Phys. Rev. B98, 134303 (2018)
work page 2018
-
[58]
C. W. von Keyserlingk, T. Rakovszky, F. Pollmann, and S. L. Sondhi, Phys. Rev. X8, 021013 (2018)
work page 2018
-
[59]
T. Rakovszky, F. Pollmann, and C. W. von Keyserlingk, Phys. Rev. X8, 031058 (2018)
work page 2018
-
[60]
A. Chan, A. De Luca, and J. T. Chalker, Phys. Rev. Lett.122, 220601 (2019)
work page 2019
-
[61]
C. B. Da˘ g, L.-M. Duan, and K. Sun, Phys. Rev. B101, 104415 (2020)
work page 2020
-
[62]
B. Swingle, G. Bentsen, M. Schleier-Smith, and P. Hay- den, Phys. Rev. A94, 040302 (2016)
work page 2016
- [63]
-
[64]
T. Hashizume, G. S. Bentsen, S. Weber, and A. J. Daley, Phys. Rev. Lett.126, 200603 (2021)
work page 2021
- [65]
-
[66]
T. Schuster, F. Ma, A. Lombardi, F. Brandao, and H.-Y. Huang, arXiv e-prints , arXiv:2509.26310 (2025), arXiv:2509.26310 [quant-ph]
-
[67]
H.-Y. Hu, C. Zhao, T. Patti, Y. Tan, S. F. Yelin, and Y.- Z. You, “PyClifford: An intuitive programming package for simulating and analyzing clifford-dominated circuits,” https://github.com/hongyehu/PyClifford(2023)
work page 2023
-
[68]
Y. Li, X. Chen, and M. P. A. Fisher, Phys. Rev. B100, 134306 (2019)
work page 2019
- [69]
-
[70]
Entanglement in the stabilizer formalism
D. Fattal, T. S. Cubitt, Y. Yamamoto, S. Bravyi, and I. L. Chuang, arXiv e-prints , quant-ph/0406168 (2004), arXiv:quant-ph/0406168 [quant-ph]
work page Pith review arXiv 2004
- [71]
-
[72]
C. M. Duque, H.-Y. Hu, Y.-Z. You, V. Khemani, R. Ver- resen, and R. Vasseur, Phys. Rev. B103, L100207 (2021)
work page 2021
- [73]
-
[74]
R. Vasseur, A. C. Potter, Y.-Z. You, and A. W. W. Ludwig, Phys. Rev. B100, 134203 (2019)
work page 2019
-
[75]
The Clifford group forms a unitary 3-design
Z. Webb, Quant. Inf. Comput.16, 1379 (2016), arXiv:1510.02769 [quant-ph]
work page Pith review arXiv 2016
-
[76]
M. F. Maghrebi, Z.-X. Gong, and A. V. Gorshkov, Phys. Rev. Lett.119, 023001 (2017)
work page 2017
- [77]
-
[78]
Y. Sekino and L. Susskind, Journal of High Energy Physics2008, 065 (2008)
work page 2008
-
[79]
C. B. Da˘ g, K. Sun, and L.-M. Duan, Phys. Rev. Lett. 123, 140602 (2019)
work page 2019
-
[80]
A. Hamma, S. M. Giampaolo, and F. Illuminati, Phys. Rev. A93, 012303 (2016). Appendix A: Simulation Details We utilize the package PyClifford to perform our Clif- ford circuit simulations. In this appendix, we provide a few examples of individual circuit trajectories to demon- strate the depth of our simulation (Figs. 12, 13). In order to establish steady...
work page 2016
