The antiferromagnetic Chern insulator phase in the Kane-Mele-Hubbard model

Bao-Qing Wang , Can Shao , Takami Tohyama , Hong-Gang Luo , Hantao Lu This is my paper

Pith reviewed 2026-05-08 09:56 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords antiferromagnetic Chern insulatorKane-Mele-Hubbard modelexact diagonalizationtwisted boundary conditionsChern numbertime-reversal symmetrytopological phase
0
0 comments X

The pith

The Kane-Mele-Hubbard model with sublattice potential supports an antiferromagnetic Chern insulator phase with quantized Hall conductance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the possibility of an antiferromagnetic Chern insulator emerging in the Kane-Mele-Hubbard model, a system that preserves time-reversal symmetry overall. Exact diagonalization calculations on finite lattices track the excitation gap, anisotropic spin correlations, and fidelity susceptibility under twisted boundary conditions. These diagnostics converge on a phase in which antiferromagnetic order coexists with a topological response. The authors further show that the Hubbard term drives an instability that breaks adiabatic continuity in twist-angle space, and they introduce a modified scheme that recovers a stable Chern number of one.

Core claim

In the Kane-Mele-Hubbard model with a finite sublattice potential, exact diagonalization establishes an antiferromagnetic Chern insulator phase in which Hubbard-induced antiferromagnetic correlations along the z-axis and in the xy-plane coexist with a quantized Hall conductance. The (spin) Chern number computation reveals a breakdown of adiabatic continuity in twist-angle space, signaling an instability toward time-reversal symmetry breaking; a modified evaluation scheme then yields a robust quantized value C=1 throughout the phase.

What carries the argument

Hubbard-induced antiferromagnetic perturbations that produce a breakdown of adiabatic continuity in twist-angle space, together with the modified computational scheme that extracts the quantized Chern number from the resulting non-adiabatic regime.

If this is right

  • The antiferromagnetic order and the topological invariant remain compatible inside the same parameter window.
  • The excitation gap and fidelity susceptibility both serve as reliable indicators for locating the phase boundary.
  • The modified Chern-number scheme produces C=1 consistently once the adiabaticity breakdown is accounted for.
  • The phase can be reached by increasing the Hubbard interaction strength while keeping the sublattice potential finite.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Interaction-driven magnetic order may stabilize topological responses in other time-reversal-symmetric lattice models without explicit symmetry-breaking terms.
  • Edge-state transport measurements in candidate materials could test whether the Hall conductance remains quantized when antiferromagnetic correlations are present.
  • Similar modifications to topological invariant calculations may be needed whenever interactions induce order that competes with adiabatic continuity.

Load-bearing premise

Finite-size effects and the particular choice of twisted boundary conditions in exact diagonalization do not alter the existence or stability of the antiferromagnetic Chern insulator phase in the thermodynamic limit.

What would settle it

A calculation on substantially larger lattices or with a different method such as density-matrix renormalization group that finds either the disappearance of the excitation gap or a non-quantized Hall response at the same interaction and potential strengths.

Figures

Figures reproduced from arXiv: 2604.22329 by Bao-Qing Wang, Can Shao, Hantao Lu, Hong-Gang Luo, Takami Tohyama.

Figure 1
Figure 1. Figure 1: FIG. 1. ED Phase diagram of the KMH model ( view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Contour plots of (a) the excitation gap ∆ view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (a) CDW and SDW structure factors, view at source ↗

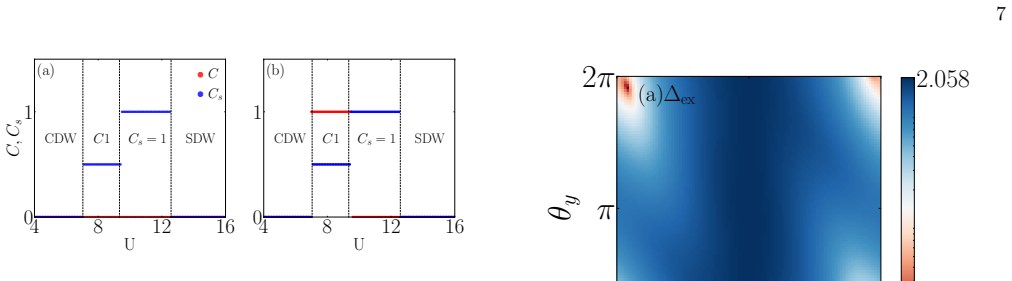

Figure 4
Figure 4. Figure 4: FIG. 4. Evaluation of the Chern number view at source ↗

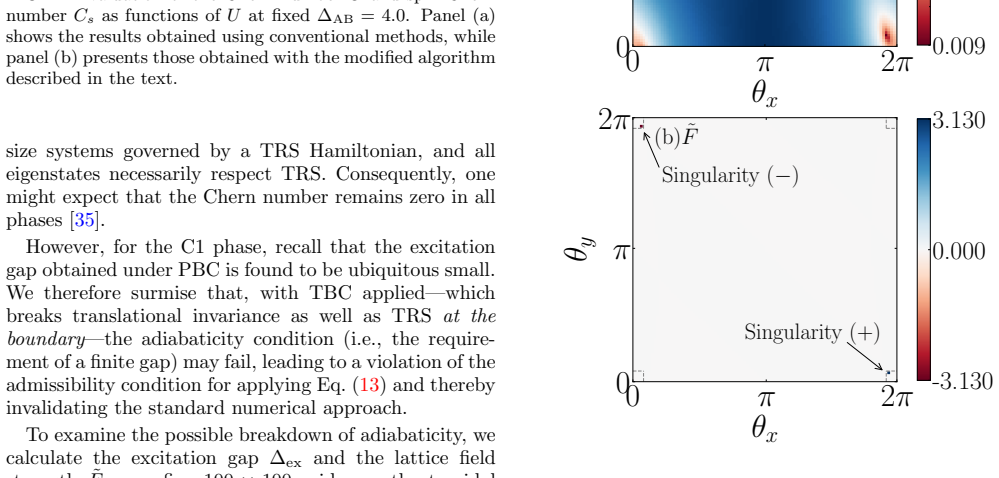

Figure 5
Figure 5. Figure 5: FIG. 5. (a) Excitation gap ∆ view at source ↗

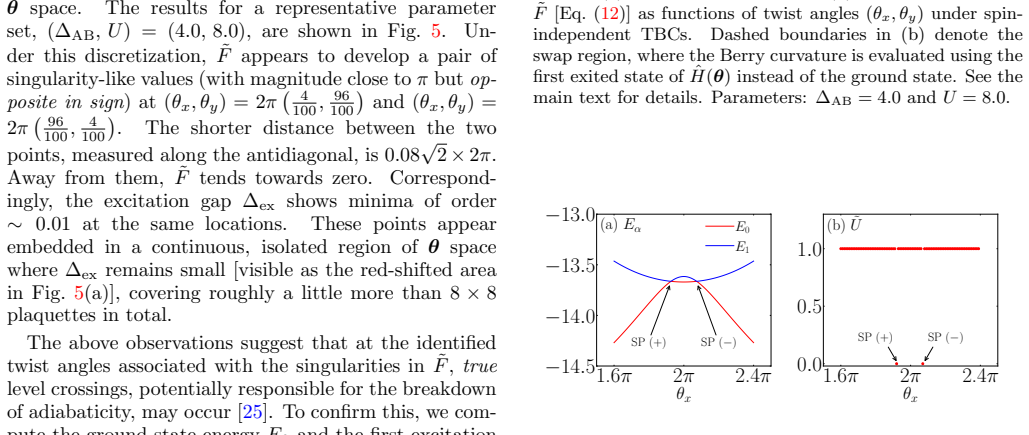

Figure 6
Figure 6. Figure 6: FIG. 6. (a) Ground-state energy view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. ED phase diagram of the KMH Hamiltonian ( view at source ↗

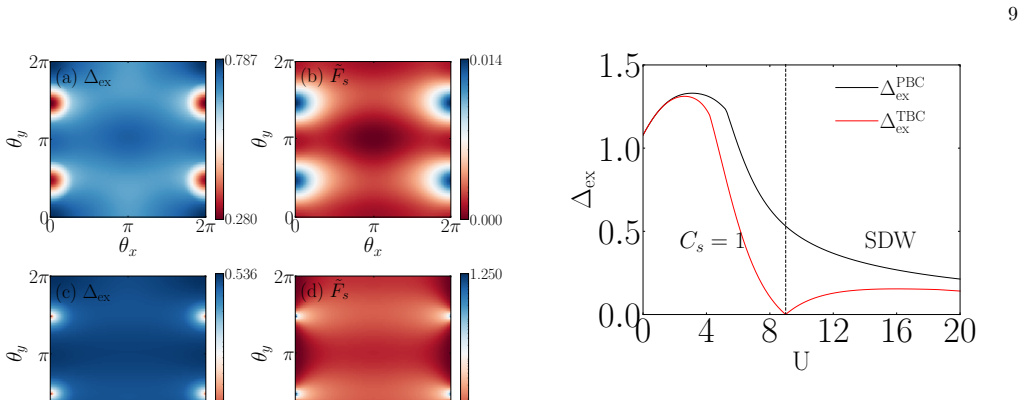

Figure 9
Figure 9. Figure 9: FIG. 9. Evolution of the excitation gaps as functions of view at source ↗

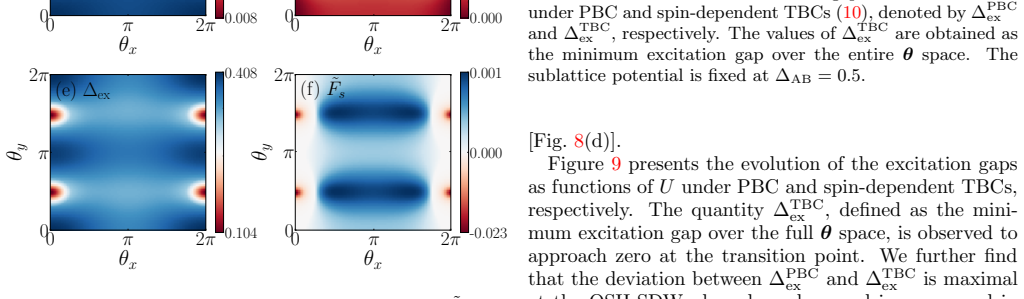

Figure 8
Figure 8. Figure 8: FIG. 8. Excitation gap ∆ view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. MF phase diagram of the KMH model ( view at source ↗

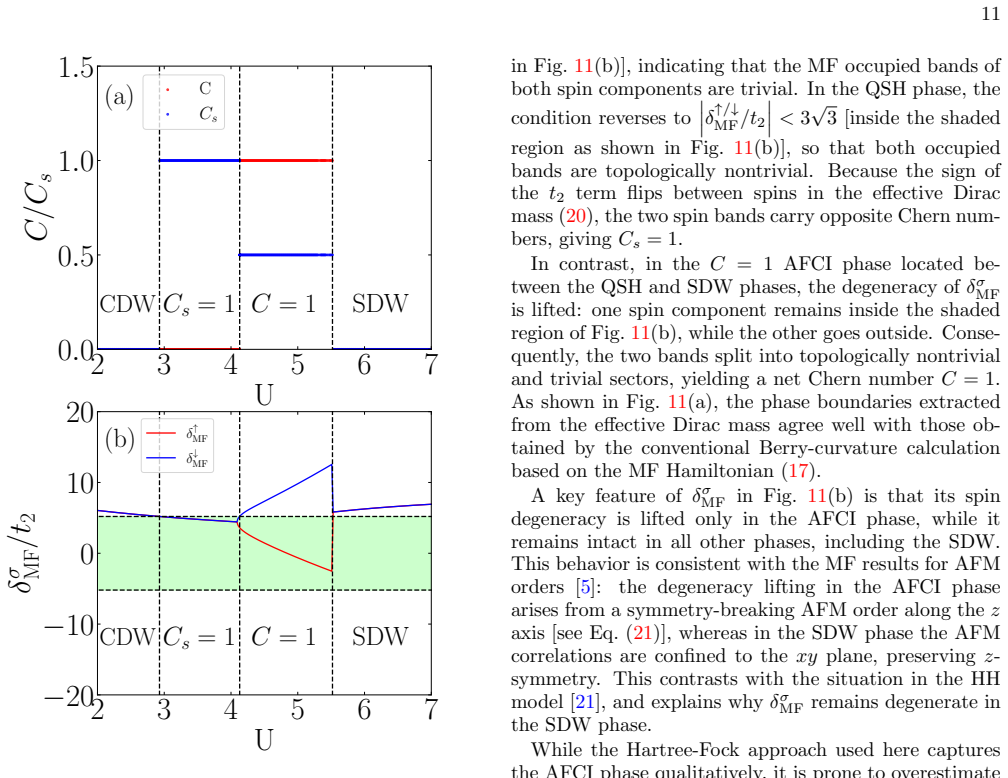

Figure 11
Figure 11. Figure 11: FIG. 11. MF analysis of the topological phase transitions in view at source ↗
read the original abstract

The emergence of the antiferromagnetic (AFM) Chern insulator (AFCI) phase in the Kane-Mele-Hubbard (KMH) model with a finite sublattice potential is investigated. The AFCI, characterized by AFM correlations coexisting with quantized Hall conductance, has long raised the question of whether it can exist in the KMH model that respects time-reversal symmetry (TRS). Using exact diagonalization, we analyze the excitation gap, anisotropic AFM correlations along the $z$ axis and in the $xy$ plane, and the fidelity susceptibility under twisted boundary conditions, all of which provide consistent evidence for the AFCI phase. In particular, our numerical evaluation on the (spin) Chern number reveals a breakdown of adiabatic continuity in the twist-angle space, indicating an instability toward TRS breaking driven by Hubbard-induced AFM perturbations. A modified computational scheme is further proposed, which yields a robust quantized Chern number $C=1$ within this phase.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript claims that the Kane-Mele-Hubbard model with finite sublattice potential hosts an antiferromagnetic Chern insulator (AFCI) phase in which AFM correlations coexist with a quantized Hall conductance (Chern number C=1). Evidence is obtained from exact diagonalization on small clusters via consistent signals in the excitation gap, anisotropic AFM correlations, fidelity susceptibility under twisted boundary conditions, and a modified scheme for computing the (spin) Chern number after observing breakdown of adiabatic continuity in twist-angle space.

Significance. If the result holds, the work would establish that Hubbard-driven AFM order can induce an instability toward TRS breaking and stabilize a topological phase with C=1 inside a TRS-preserving microscopic model, addressing a long-standing question in interacting topological insulators. The multi-observable consistency (gap, correlations, fidelity, Chern number) on small clusters is a methodological strength that lends internal coherence to the finite-size evidence.

major comments (1)
  1. [numerical evaluation of the (spin) Chern number] The central claim of an AFCI phase with Hall conductance relies on the modified Chern-number scheme yielding a robust C=1. The manuscript reports breakdown of adiabatic continuity under twisted boundary conditions (indicating possible level crossings or gap closings), which invalidates the standard Berry-phase integration over the torus. The modified scheme is introduced without benchmarking against known limits, alternative invariants (entanglement spectrum, edge-mode counting), or the Kubo response formula. This is load-bearing because finite-size ED alone cannot confirm the thermodynamic topological phase without a reliable invariant.
minor comments (2)
  1. [Chern number section] Clarify the precise definition and implementation of the modified Chern-number scheme (e.g., which states are included or excluded in the integration) and state any assumptions about the gap remaining open.
  2. [Abstract and introduction] The abstract and text use the parenthetical '(spin) Chern number'; define this quantity explicitly at first use and distinguish it from the total Chern number if necessary.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and for recognizing the internal consistency of our multi-observable evidence for the antiferromagnetic Chern insulator phase. We address the central concern regarding the modified Chern-number evaluation below, offering clarifications while agreeing to strengthen the presentation in revision.

read point-by-point responses

  1. Referee: The central claim of an AFCI phase with Hall conductance relies on the modified Chern-number scheme yielding a robust C=1. The manuscript reports breakdown of adiabatic continuity under twisted boundary conditions (indicating possible level crossings or gap closings), which invalidates the standard Berry-phase integration over the torus. The modified scheme is introduced without benchmarking against known limits, alternative invariants (entanglement spectrum, edge-mode counting), or the Kubo response formula. This is load-bearing because finite-size ED alone cannot confirm the thermodynamic topological phase without a reliable invariant.

    Authors: We agree that a reliable topological invariant is essential and that the breakdown of adiabatic continuity requires careful handling. The modified scheme computes the Chern number by integrating the Berry curvature along paths that avoid the observed level crossings in twist-angle space, yielding a quantized value C=1 that is stable across the parameter region identified by the gap, anisotropic correlations, and fidelity susceptibility. In the non-interacting limit the scheme recovers the standard result (C=1 for the topological phase), providing an internal consistency check. Alternative invariants such as the entanglement spectrum or edge-mode counting are not directly accessible in our periodic-boundary ED clusters; the fidelity susceptibility under twisted boundaries serves as a complementary diagnostic of the topological transition. We acknowledge that the Kubo formula is not implemented here and that finite-size ED cannot by itself prove the thermodynamic limit. In the revised manuscript we will add explicit benchmarking against the non-interacting case and the standard Chern number where adiabatic continuity holds, together with a clearer discussion of the scheme's assumptions and the limitations imposed by system size. revision: partial

Circularity Check

0 steps flagged

Direct numerical evaluation of observables from the KMH Hamiltonian with no self-referential reductions

full rationale

The paper's central claims rest on exact diagonalization computations of the excitation gap, AFM correlations, fidelity susceptibility, and a modified Chern number under twisted boundary conditions. These are direct outputs from the model Hamiltonian without fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations that reduce the result to its inputs. The modified scheme for the Chern number is introduced after observing breakdown of adiabatic continuity, but the provided description shows no equation-level reduction where the scheme is constructed to force C=1 by definition. This is a standard numerical study whose evidence is independent of the target phase claim.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the standard Kane-Mele-Hubbard Hamiltonian plus a sublattice potential term; all quantities are computed directly from exact diagonalization without additional fitted constants or new postulated entities.

free parameters (2)
  • Hubbard interaction U
    Model parameter varied to locate the phase window; not fitted to external data.
  • sublattice potential Delta
    Finite value introduced to enable the phase; treated as a tunable model parameter.
axioms (2)
  • domain assumption The underlying lattice model respects time-reversal symmetry when Delta is finite.
    Stated explicitly in the abstract as the starting point for the question.
  • domain assumption Exact diagonalization on finite clusters with twisted boundaries accurately captures bulk topological properties.
    Implicit in the use of fidelity susceptibility and Chern number calculations.
