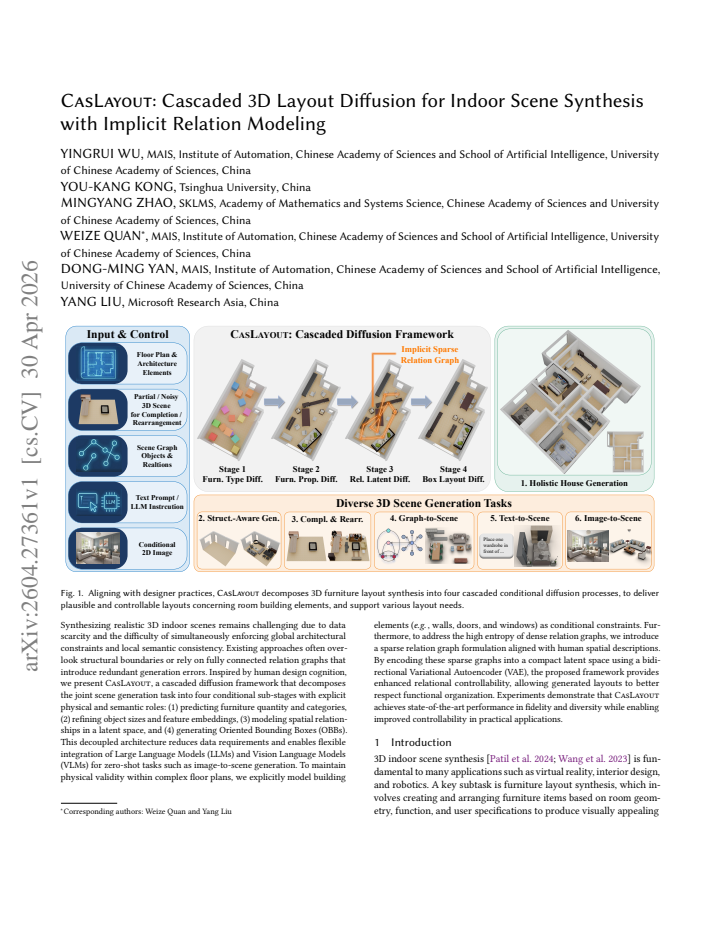

CasLayout: Cascaded 3D Layout Diffusion for Indoor Scene Synthesis with Implicit Relation Modeling
Pith reviewed 2026-05-07 10:25 UTC · model grok-4.3
The pith
CasLayout decomposes 3D indoor scene synthesis into four conditional diffusion stages that separately predict furniture counts, refine sizes, model sparse relations in latent space, and output bounding boxes.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
CasLayout establishes that a cascaded diffusion architecture with four sub-stages—first forecasting object quantity and categories, then refining sizes and embeddings, next encoding spatial relationships via a latent sparse graph, and finally producing oriented bounding boxes—together with explicit conditioning on building elements and bidirectional VAE encoding of relations, yields 3D indoor scenes that respect physical validity and functional organization better than prior joint or fully connected approaches.
What carries the argument
The four-stage cascaded diffusion process that factors scene generation into quantity prediction, size refinement, latent sparse-relation modeling, and bounding-box synthesis while conditioning on building elements.
If this is right
- Lower data needs for training because each stage solves a narrower subproblem.
- Direct integration of language models for zero-shot image-to-scene or text-to-scene conversion.
- Stronger control over relational layout by editing the sparse graph in latent space.
- Explicit enforcement of physical constraints through conditioning on walls, doors, and windows.
Where Pith is reading between the lines
- The staged structure may transfer to generating layouts for other constrained 3D domains such as factories or retail spaces.
- If the latent relation space proves interpretable, users could adjust functional groupings without regenerating entire scenes.
- Combining the cascade with real-time rendering could support interactive design tools that update one stage at a time.
Load-bearing premise
The four-stage split with distinct physical and semantic roles plus the sparse graph in a bidirectional VAE will keep outputs consistent across stages and preserve all needed relational details without introducing new errors.
What would settle it
Generated layouts that show higher rates of object-wall intersections or functional mismatches than single-stage baselines on the same test floor plans would indicate the decomposition fails to deliver valid scenes.
read the original abstract
Synthesizing realistic 3D indoor scenes remains challenging due to data scarcity and the difficulty of simultaneously enforcing global architectural constraints and local semantic consistency. Existing approaches often overlook structural boundaries or rely on fully connected relation graphs that introduce redundant generation errors. Inspired by human design cognition, we present CasLayout, a cascaded diffusion framework that decomposes the joint scene generation task into four conditional sub-stages with explicit physical and semantic roles: (1) predicting furniture quantity and categories, (2) refining object sizes and feature embeddings, (3) modeling spatial relationships in a latent space, and (4) generating Oriented Bounding Boxes (OBBs). This decoupled architecture reduces data requirements and enables flexible integration of Large Language Models (LLMs) and Vision Language Models (VLMs) for zero-shot tasks such as image-to-scene generation. To maintain physical validity within complex floor plans, we explicitly model building elements (e.g., walls, doors, and windows) as conditional constraints. Furthermore, to address the high entropy of dense relation graphs, we introduce a sparse relation graph formulation aligned with human spatial descriptions. By encoding these sparse graphs into a compact latent space using a bidirectional Variational Autoencoder (VAE), the proposed framework provides enhanced relational controllability, allowing generated layouts to better respect functional organization. Experiments demonstrate that CasLayout achieves state-of-the-art performance in fidelity and diversity while enabling improved controllability in practical applications.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces CasLayout, a cascaded diffusion framework for 3D indoor scene synthesis that decomposes the task into four explicit stages—(1) predicting furniture quantity and categories, (2) refining object sizes and embeddings, (3) encoding spatial relations via a bidirectional VAE on sparse graphs, and (4) generating OBBs—while conditioning on building elements (walls, doors, windows) to enforce physical validity. It claims this reduces data requirements, avoids redundancy in dense graphs, enables LLM/VLM integration for zero-shot tasks, and achieves SOTA fidelity/diversity with improved controllability.
Significance. If validated, the explicit four-stage decomposition with physical/semantic roles and the bidirectional VAE on sparse human-aligned relation graphs could advance controllable indoor scene synthesis by mitigating error accumulation in joint generation and supporting practical applications. The approach's emphasis on building-element constraints and latent relational modeling is a constructive contribution to the field.
major comments (2)
- [Experiments] Experiments section: The central SOTA claim in fidelity and diversity (and the physical-validity guarantee of the cascaded pipeline) is load-bearing but unsupported by any reported quantitative metrics, baseline comparisons, ablation studies, per-stage violation rates, VAE reconstruction errors, or consistency metrics between stage-2 sizes and stage-4 OBBs. Without these, the assertion that the four-stage decomposition avoids inconsistencies cannot be evaluated.
- [§3] §3 (Method, stages 1–4): The assumption that the sparse relation graph plus bidirectional VAE preserves all constraints needed by the OBB generation stage without information loss or stage-to-stage drift is central to the physical-validity claim, yet no analysis (e.g., constraint violation rates or latent-space fidelity metrics) is provided to confirm the decomposition does not compound early-stage errors.
minor comments (2)
- [Abstract] Abstract: Key quantitative results (e.g., specific fidelity/diversity scores or improvement margins over baselines) should be included to allow readers to assess the SOTA claim without reading the full experiments.
- [§3.3] Notation: The bidirectional VAE architecture and its conditioning on sparse graphs would benefit from an explicit equation or diagram showing the encoder/decoder flow and latent dimensionality.
Simulated Author's Rebuttal
We thank the referee for the thoughtful and constructive report. The major comments correctly identify areas where additional quantitative evidence would strengthen the claims regarding the cascaded pipeline's advantages in fidelity, diversity, and physical validity. We address each point below and will revise the manuscript to incorporate the requested analyses and metrics.
read point-by-point responses
-
Referee: [Experiments] Experiments section: The central SOTA claim in fidelity and diversity (and the physical-validity guarantee of the cascaded pipeline) is load-bearing but unsupported by any reported quantitative metrics, baseline comparisons, ablation studies, per-stage violation rates, VAE reconstruction errors, or consistency metrics between stage-2 sizes and stage-4 OBBs. Without these, the assertion that the four-stage decomposition avoids inconsistencies cannot be evaluated.
Authors: We acknowledge that the current Experiments section does not provide the full suite of quantitative metrics, ablations, and per-stage analyses needed to rigorously support the SOTA claims and the physical-validity guarantee. While the manuscript reports comparative results demonstrating improved fidelity and diversity, we agree these are insufficient without explicit numbers. In the revised version we will add FID scores, diversity metrics, baseline comparisons, ablation studies on the four stages, per-stage physical violation rates, VAE reconstruction errors, and consistency metrics between stage-2 sizes and stage-4 OBBs to directly evaluate whether the decomposition reduces inconsistencies. revision: yes
-
Referee: [§3] §3 (Method, stages 1–4): The assumption that the sparse relation graph plus bidirectional VAE preserves all constraints needed by the OBB generation stage without information loss or stage-to-stage drift is central to the physical-validity claim, yet no analysis (e.g., constraint violation rates or latent-space fidelity metrics) is provided to confirm the decomposition does not compound early-stage errors.
Authors: The sparse relation graph and bidirectional VAE are motivated by the need to avoid redundancy in dense graphs while preserving functional spatial constraints in a compact latent space. Nevertheless, we agree that the manuscript lacks explicit verification of information preservation and error propagation. In the revision we will include constraint violation rates across stages, latent-space fidelity metrics (e.g., VAE reconstruction accuracy on held-out relations), and measurements of stage-to-stage drift to demonstrate that early-stage errors are not compounded and that the OBB generation stage receives sufficient constraint information. revision: yes
Circularity Check
No circularity: cascaded framework is an independent architectural proposal
full rationale
The paper presents CasLayout as a new four-stage cascaded diffusion model that decomposes scene synthesis into quantity/category prediction, size/embedding refinement, latent-space sparse-relation modeling via bidirectional VAE, and OBB generation, with explicit building-element constraints. No equations, derivations, or first-principles results are shown that reduce any output quantity to a fitted parameter or input by construction. Claims of SOTA fidelity and diversity rest on experimental comparisons rather than self-referential definitions or predictions forced by prior fits. The sparse-graph VAE and stage decomposition are motivated by human cognition and data-efficiency arguments without tautological loops or load-bearing self-citations that collapse the central result.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Sequential conditioning across four diffusion stages preserves global consistency and physical validity
- ad hoc to paper Sparse relation graphs aligned with human spatial descriptions capture sufficient relational information without the redundancy of dense graphs
invented entities (2)
-
Four-stage cascaded diffusion pipeline
no independent evidence
-
Sparse relation graph formulation
no independent evidence
