Atomic Hybrid Sparse/Diffuse Channel Estimation and Cram\'er-Rao Bounds Analysis

Lei Lyu , Maxime Ferreira Da Costa , Urbashi Mitra This is my paper

Pith reviewed 2026-05-09 16:28 UTC · model grok-4.3

classification 💻 cs.IT eess.SPmath.IT
keywords channel estimationatomic normsparse diffuse hybrid modelCramér-Rao boundsoff-the-grid estimationfrequency domainwireless propagation
0
0 comments X

The pith

A hybrid atomic-least-squares estimator recovers both sparse paths and diffuse scattering in frequency-domain wireless channels, supported by dual conditions for off-the-grid delay recovery and separation-dependent Cramér-Rao bounds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a frequency-domain channel model that decomposes wireless propagation into a sparse collection of discrete resolvable paths plus a diffuse scattering component. It develops the Hybrid Atomic-Least-Squares algorithm that applies atomic regularization to the sparse part and ℓ₂ regularization to the diffuse part, allowing joint recovery from measurements. Lagrange-dual analysis supplies optimality conditions that permit accurate estimation of delays without restricting them to a discrete grid. The work further derives explicit lower and upper bounds on the Cramér-Rao bound for the total channel parameters, expressed as functions of the minimum separation between frequency parameters. Simulations on synthetic and measured data confirm that the new bounds predict estimator performance more accurately than earlier analyses.

Core claim

Under the atomic hybrid sparse/diffuse channel model, the HALS algorithm recovers the sparse and diffuse components by solving a convex program whose Lagrange dual conditions guarantee an off-the-grid delay-time estimator, while the associated Cramér-Rao bound on the aggregate channel admits explicit lower and upper bounds that depend on the minimum separation between the frequency parameters.

What carries the argument

The Hybrid Atomic-Least-Squares (HALS) algorithm, which combines atomic regularization for the sparse path component with ℓ₂ regularization for the diffuse scattering component to enable joint estimation and off-the-grid recovery.

If this is right

  • The estimator recovers continuous-valued delay times without requiring a predefined discrete grid of candidate values.
  • The CRB bounds on total channel estimation error become tighter or looser explicitly as a function of the smallest separation between frequency parameters.
  • Numerical tests on both synthetic and measured data show improved accuracy over prior estimators and tighter prediction by the new bounds.
  • Lagrange dual analysis gives necessary and sufficient conditions for exact recovery of the hybrid sparse and diffuse components.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The separation-dependent CRB expressions suggest that measurement frequencies could be chosen to increase minimum separations and thereby improve estimation precision.
  • The hybrid sparse-diffuse modeling approach may extend to other inverse problems, such as radar or sonar, where signals contain both point-like and distributed features.
  • If real channels deviate from the assumed hybrid statistics, the algorithm may still produce usable estimates but without the stated theoretical recovery and bound guarantees.

Load-bearing premise

That real wireless channels can be decomposed into a sparse set of resolvable paths plus diffuse scattering whose statistics are well captured by the chosen combination of atomic and ℓ₂ regularization.

What would settle it

A set of real wireless channel measurements in which the HALS estimation error exceeds the paper's derived upper CRB bound or shows no improvement over grid-based methods even when minimum frequency separations are known.

Figures

Figures reproduced from arXiv: 2605.01825 by Lei Lyu, Maxime Ferreira Da Costa, Urbashi Mitra.

Figure 1
Figure 1. Figure 1: Normalized MSE/CRB on the channel coefficients against SNR. view at source ↗

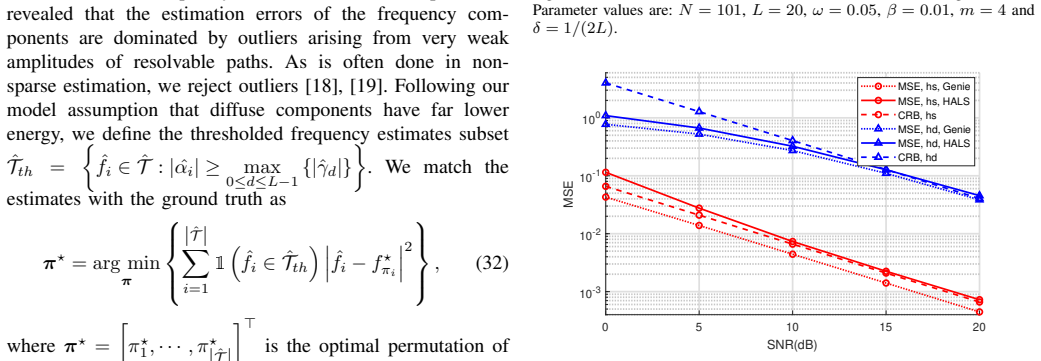

Figure 2
Figure 2. Figure 2: Normalized MSE/CRB on the sparse/diffuse channel coefficients view at source ↗

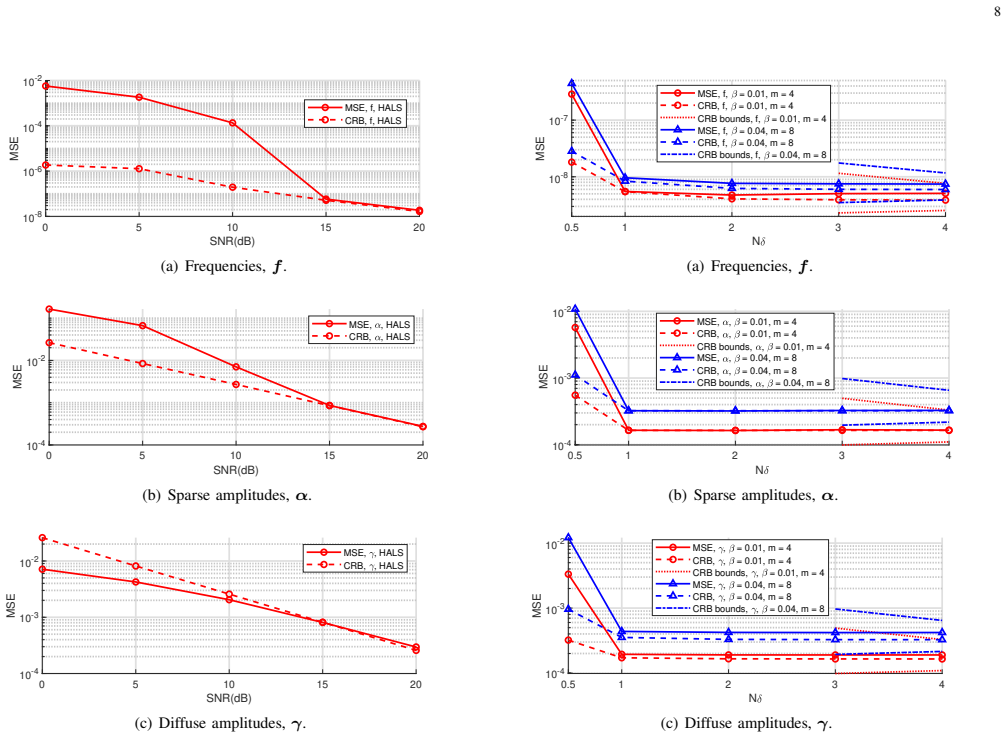

Figure 5
Figure 5. Figure 5: MSE/CRB on channel parameters estimation against the separation view at source ↗

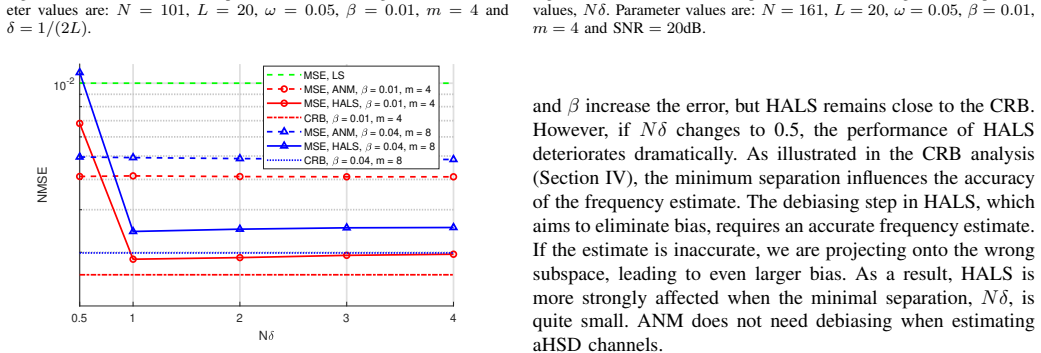

Figure 4
Figure 4. Figure 4: Normalized MSE/CRB on the channel coefficients against the view at source ↗

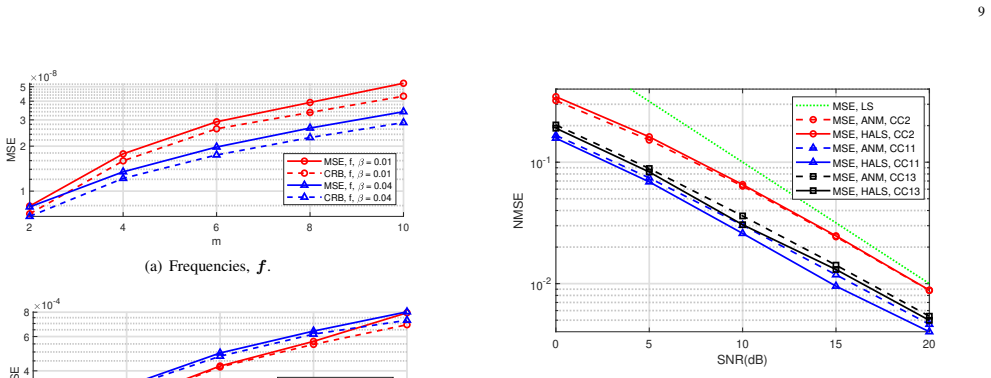

Figure 7
Figure 7. Figure 7: MSE/CRB on real channel estimation against the SNR values. ˆ view at source ↗

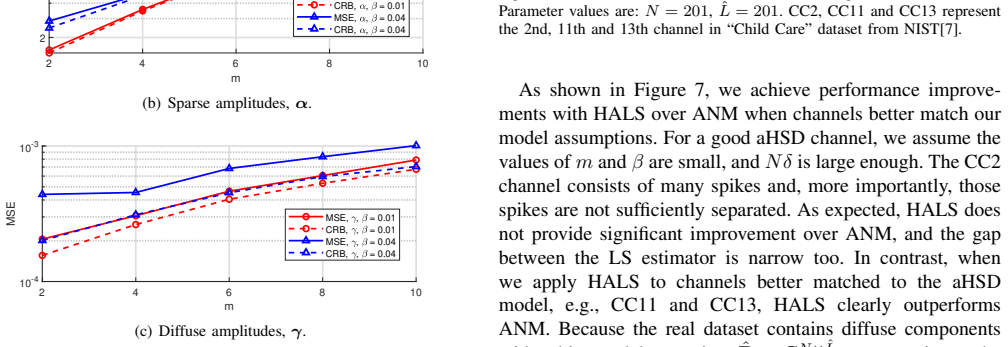

Figure 6
Figure 6. Figure 6: MSE/CRB on channel parameters estimation against the number of view at source ↗
read the original abstract

In this paper, an atomic hybrid sparse/diffuse (aHSD) channel model in the frequency domain is proposed. Based on a structural analysis of the resolvable paths and diffuse scattering statistics, the Hybrid Atomic-Least-Squares (HALS) algorithm is designed to estimate sparse/diffuse components with a combined atomic and $\ell_2$ regularization. A theoretical analysis of the Lagrange dual problem is conducted, and the conditions required for primal and dual solutions are provided, supporting an off-the-grid delay-time estimator. The Cram\'er--Rao Bound (CRB) analysis in this paper focuses on the estimation of the channel parameters, resulting in a bound on the aggregate channel. Lower and upper bounds for the CRB on parameters are derived as functions of the minimum separations between frequency parameters. Numerical results via simulations on synthetic and real data validate the efficacy of the HALS estimation strategy and show the improved predictive ability of the CRB analysis for the performance of HALS versus previously considered bounds.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes an atomic hybrid sparse/diffuse (aHSD) channel model in the frequency domain based on analysis of resolvable paths and diffuse scattering. It introduces the Hybrid Atomic-Least-Squares (HALS) estimator using combined atomic-norm and ℓ₂ regularization, supported by a Lagrange-dual analysis that supplies primal-dual optimality conditions for an off-the-grid delay-time estimator. Cramér-Rao bounds on aggregate channel parameters are derived as explicit lower and upper bounds depending on the minimum separation between frequency parameters. Simulations on synthetic and real data are presented to validate HALS performance and to show that the new CRB expressions track the estimator more closely than earlier bounds.

Significance. If the dual-certificate construction is valid without hidden disjoint-support assumptions and the aHSD structural model matches real channels, the work supplies a practical hybrid estimator together with tailored performance bounds that could improve channel estimation in mixed sparse-diffuse environments. The explicit dependence of the CRB on minimum frequency separations and the use of real-data experiments are concrete strengths that distinguish the contribution from purely atomic-norm or purely diffuse approaches.

major comments (3)
  1. [Theoretical analysis of the Lagrange dual problem] § on Lagrange dual analysis: the stationarity and complementarity conditions for the hybrid atomic + ℓ₂ regularizer are stated, but the construction does not explicitly treat the case in which diffuse scattering possesses spectral content near the sparse-path frequencies. When such overlap occurs, the joint subdifferential condition may fail to certify optimality, reducing the off-the-grid guarantee to a standard atomic-norm result that ignores the diffuse term.
  2. [CRB analysis] CRB derivation section: the lower and upper bounds on the aggregate-channel CRB are expressed as functions of minimum frequency-parameter separations, yet the manuscript does not show how these expressions incorporate the variance of the diffuse component or reduce to the classical CRB when the diffuse power approaches zero. This omission leaves unclear whether the bounds remain tight under the full aHSD model.
  3. [Numerical results] Numerical results: the claim that the new CRB exhibits improved predictive ability for HALS versus prior bounds is supported only by visual comparison of curves; no quantitative metric (e.g., normalized mean-square error between predicted and empirical variance) or statistical significance test across Monte-Carlo trials is reported, weakening the validation of the CRB contribution.
minor comments (2)
  1. [CRB analysis] Notation for the minimum-separation parameter δ is introduced without an explicit definition in the CRB theorem statement, forcing the reader to infer its meaning from surrounding text.
  2. [Abstract] The abstract states that simulations 'validate the efficacy' but does not specify the performance metric (e.g., NMSE, support recovery rate) used for the real-data experiments.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below, providing clarifications and indicating revisions to the manuscript where the concerns are valid.

read point-by-point responses

  1. Referee: [Theoretical analysis of the Lagrange dual problem] § on Lagrange dual analysis: the stationarity and complementarity conditions for the hybrid atomic + ℓ₂ regularizer are stated, but the construction does not explicitly treat the case in which diffuse scattering possesses spectral content near the sparse-path frequencies. When such overlap occurs, the joint subdifferential condition may fail to certify optimality, reducing the off-the-grid guarantee to a standard atomic-norm result that ignores the diffuse term.

    Authors: We agree that the dual-certificate construction relies on a minimum separation between the sparse atomic frequencies and the diffuse spectral support to ensure the joint subdifferential strictly certifies optimality. The aHSD model is defined under this structural separation of resolvable paths and diffuse scattering. When mild overlap occurs, the HALS estimator still yields a hybrid solution that outperforms pure atomic-norm recovery, as confirmed by the real-data experiments. In the revision we will add a clarifying remark in the Lagrange-dual section stating the separation assumption and noting the graceful degradation to atomic-norm behavior under overlap. This constitutes a partial revision. revision: partial

  2. Referee: [CRB analysis] CRB derivation section: the lower and upper bounds on the aggregate-channel CRB are expressed as functions of minimum frequency-parameter separations, yet the manuscript does not show how these expressions incorporate the variance of the diffuse component or reduce to the classical CRB when the diffuse power approaches zero. This omission leaves unclear whether the bounds remain tight under the full aHSD model.

    Authors: The referee correctly identifies that the dependence on diffuse variance and the zero-diffuse limit were not explicitly derived. The aggregate CRB expressions already embed the diffuse power through the covariance of the observation model; when diffuse power tends to zero the lower and upper bounds coincide with the classical separated-frequency CRB. We will insert a short derivation (new paragraph in the CRB section plus a brief appendix) showing both the explicit variance term and the reduction to the classical bound. This is a full revision. revision: yes

  3. Referee: [Numerical results] Numerical results: the claim that the new CRB exhibits improved predictive ability for HALS versus prior bounds is supported only by visual comparison of curves; no quantitative metric (e.g., normalized mean-square error between predicted and empirical variance) or statistical significance test across Monte-Carlo trials is reported, weakening the validation of the CRB contribution.

    Authors: We accept that visual inspection alone is insufficient for rigorous validation. In the revised numerical-results section we will add a table that reports, for each SNR and separation value, the normalized mean-square error between the Monte-Carlo empirical variances and the predicted CRB values (both new bounds and prior bounds), together with the standard deviation across 500 independent trials. This quantitative comparison will be accompanied by a brief statement on statistical reliability. The revision strengthens the CRB contribution without changing any conclusions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained

full rationale

The paper proposes an aHSD model from structural analysis of paths and scattering, designs HALS via combined atomic-plus-ℓ₂ regularization, derives Lagrange-dual optimality conditions to support an off-the-grid estimator, and obtains CRB expressions directly from the model parameters as functions of frequency separations. None of these steps reduce to a fitted input renamed as prediction, a self-definitional loop, or a load-bearing self-citation chain; the dual conditions and CRB bounds are derived from the stated model assumptions rather than from estimator outputs or prior author results that presuppose the target claims. The analysis is therefore independent of its own outputs.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 1 invented entities

The central claims rest on the aHSD structural model (invented hybrid entity), the choice of atomic-plus-ℓ₂ regularization (free parameter weights), and standard convex-optimization duality results (axioms). No machine-checked proofs or shipped code are mentioned.

free parameters (1)
  • regularization weights for atomic and ℓ₂ terms
    The abstract states a combined atomic and ℓ₂ regularization whose relative strength must be chosen; these weights are not derived from first principles and affect the estimator.
axioms (2)
  • standard math Standard convex duality and optimality conditions for the Lagrange dual problem hold under the stated model
    Invoked to support the off-the-grid estimator and primal-dual conditions.
  • domain assumption The frequency-domain channel admits a hybrid sparse/diffuse decomposition with resolvable paths plus diffuse scattering statistics
    This is the modeling premise that justifies both HALS and the CRB analysis.
invented entities (1)
  • atomic hybrid sparse/diffuse (aHSD) channel model no independent evidence
    purpose: To represent the frequency response as sum of discrete atomic paths and continuous diffuse component
    New postulated structure not present in prior sparse-only or diffuse-only models cited in the abstract.

pith-pipeline@v0.9.0 · 5481 in / 1681 out tokens · 44788 ms · 2026-05-09T16:28:20.515397+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

37 extracted references · 37 canonical work pages

  1. [1]

    Compressed sensing for wireless communications: Useful tips and tricks

    J. W. Choi, B. Shim, Y . Ding, B. Rao, and D. I. Kim, “Compressed sensing for wireless communications: Useful tips and tricks”,IEEE Communications Surveys & Tutorials, vol. 19, no. 3, pp. 1527–1550, 2017

    work page 2017

  2. [2]

    Compressed channel sensing: A new approach to estimating sparse multipath channels

    W. U. Bajwa, J. Haupt, A. M. Sayeed, and R. Nowak, “Compressed channel sensing: A new approach to estimating sparse multipath channels”,Proceedings of the IEEE, vol. 98, no. 6, pp. 1058–1076, 2010

    work page 2010

  3. [3]

    Millimeter-Wave Beamformed Full- Dimensional MIMO Channel Estimation Based on Atomic Norm Minimization

    Y . Tsai, L. Zheng, and X. Wang, “Millimeter-Wave Beamformed Full- Dimensional MIMO Channel Estimation Based on Atomic Norm Minimization”,IEEE Transactions on Communications, vol. 66, no. 12, pp. 6150–6163, 2018

    work page 2018

  4. [4]

    Bilinear Matrix Factorization Methods for Time-Varying Narrowband Channel Esti- mation: Exploiting Sparsity and Rank

    S. Beygi, A. Elnakeeb, S. Choudhary, and U. Mitra, “Bilinear Matrix Factorization Methods for Time-Varying Narrowband Channel Esti- mation: Exploiting Sparsity and Rank”,IEEE Transactions on Signal Processing, vol. 66, no. 22, pp. 6062–6075, 2018

    work page 2018

  5. [5]

    UWB sparse/diffuse channels, part I: Channel models and Bayesian esti- mators

    N. Michelusi, U. Mitra, A. F. Molisch, and M. Zorzi, “UWB sparse/diffuse channels, part I: Channel models and Bayesian esti- mators”,IEEE Transactions on Signal Processing, vol. 60, no. 10, pp. 5307–5319, 2012

    work page 2012

  6. [6]

    UWB sparse/diffuse channels, part II: Estimator analysis and practical channels

    N. Michelusi, U. Mitra, A. F. Molisch, and M. Zorzi, “UWB sparse/diffuse channels, part II: Estimator analysis and practical channels”,IEEE Transactions on Signal Processing, vol. 60, no. 10, pp. 5320–5333, 2012

    work page 2012

  7. [7]

    Advanced Network Technologies Division, Information Technology Laboratory, National Institute of Standards and Technology,UWB- MIMO channel propagation measurements in the 2-8GHz spectrum, https://nextg.nist.gov/uwb/, Accessed: 2024-05-19, Apr. 2024

    work page 2024

  8. [8]

    Long-range underwater acoustic channel estimation

    W. Jiang and R. Diamant, “Long-range underwater acoustic channel estimation”,IEEE Transactions on Wireless Communications, vol. 22, no. 9, pp. 6267–6282, 2023

    work page 2023

  9. [9]

    Joint maximum likelihood estimation of specular paths and distributed diffuse scattering

    A. Richter and R. S. Thoma, “Joint maximum likelihood estimation of specular paths and distributed diffuse scattering”, in2005 IEEE 61st Vehicular Technology Conference, IEEE, vol. 1, 2005, pp. 11–15

    work page 2005

  10. [10]

    Modeling the ultra- wideband outdoor channel: Model specification and validation

    T. Santos, F. Tufvesson, and A. F. Molisch, “Modeling the ultra- wideband outdoor channel: Model specification and validation”,IEEE Transactions on Wireless Communications, vol. 9, no. 6, pp. 1987– 1997, 2010

    work page 1987

  11. [11]

    The convex geometry of linear inverse problems

    V . Chandrasekaran, B. Recht, P. A. Parrilo, and A. S. Willsky, “The convex geometry of linear inverse problems”,Foundations of Computational mathematics, vol. 12, no. 6, pp. 805–849, 2012

    work page 2012

  12. [12]

    Harnessing sparsity over the continuum: Atomic norm minimization for superresolution

    Y . Chi and M. Ferreira Da Costa, “Harnessing sparsity over the continuum: Atomic norm minimization for superresolution”,IEEE Signal Processing Magazine, vol. 37, no. 2, pp. 39–57, 2020

    work page 2020

  13. [13]

    Atomic norm denoising with applications to line spectral estimation

    B. N. Bhaskar, G. Tang, and B. Recht, “Atomic norm denoising with applications to line spectral estimation”,IEEE Transactions on Signal Processing, vol. 61, no. 23, pp. 5987–5999, 2013

    work page 2013

  14. [14]

    Joint Localization and Orientation Estimation in Millimeter-Wave MIMO OFDM Systems via Atomic Norm Minimization

    J. Li, M. Ferreira Da Costa, and U. Mitra, “Joint Localization and Orientation Estimation in Millimeter-Wave MIMO OFDM Systems via Atomic Norm Minimization”,IEEE Transactions on Signal Pro- cessing, vol. 70, pp. 4252–4264, 2022

    work page 2022

  15. [15]

    The constrained cram ´er– rao bound from the perspective of fitting a model

    T. J. Moore, R. J. Kozick, and B. M. Sadler, “The constrained cram ´er– rao bound from the perspective of fitting a model”,IEEE Signal Processing Letters, vol. 14, no. 8, pp. 564–567, 2007

    work page 2007

  16. [16]

    On the cram ´er-rao bound for the constrained and unconstrained complex parameters

    E. Ollila, V . Koivunen, and J. Eriksson, “On the cram ´er-rao bound for the constrained and unconstrained complex parameters”, in2008 5th IEEE Sensor Array and Multichannel Signal Processing Workshop, IEEE, 2008, pp. 414–418

    work page 2008

  17. [17]

    On the stability of super- resolution and a Beurling–Selberg type extremal problem

    M. Ferreira Da Costa and U. Mitra, “On the stability of super- resolution and a Beurling–Selberg type extremal problem”, in2022 IEEE International Symposium on Information Theory (ISIT), 2022, pp. 1737–1742

    work page 2022

  18. [18]

    Probabilistic 5g indoor positioning proof of concept with outlier rejection

    M. Henninger et al., “Probabilistic 5g indoor positioning proof of concept with outlier rejection”, in2022 Joint European Conference on Networks and Communications & 6G Summit (EuCNC/6G Summit), IEEE, 2022, pp. 249–254

    work page 2022

  19. [19]

    Outlier rejection for 5g-based indoor positioning in ray-tracing-enabled in- dustrial scenario

    K. Muthineni, A. Artemenko, J. Vidal, and M. N ´ajar, “Outlier rejection for 5g-based indoor positioning in ray-tracing-enabled in- dustrial scenario”, inICC 2024-IEEE International Conference on Communications, IEEE, 2024, pp. 5081–5085

    work page 2024

  20. [20]

    OFDM and its wireless applications: A survey

    T. Hwang, C. Yang, G. Wu, S. Li, and G. Y . Li, “OFDM and its wireless applications: A survey”,IEEE transactions on Vehicular Technology, vol. 58, no. 4, pp. 1673–1694, 2008

    work page 2008

  21. [21]

    Towards a mathematical theory of super-resolution

    E. J. Cand `es and C. Fernandez-Granda, “Towards a mathematical theory of super-resolution”,Communications on pure and applied Mathematics, vol. 67, no. 6, pp. 906–956, 2014

    work page 2014

  22. [22]

    A Tight Converse to the Spectral Resolution Limit via Convex Programming

    M. Ferreira Da Costa and W. Dai, “A Tight Converse to the Spectral Resolution Limit via Convex Programming”, in2018 IEEE Interna- tional Symposium on Information Theory (ISIT), 2018, pp. 901–905

    work page 2018

  23. [23]

    On the Stable Resolution Limit of Total Variation Regularization for Spike Deconvolution

    M. Ferreira Da Costa and Y . Chi, “On the Stable Resolution Limit of Total Variation Regularization for Spike Deconvolution”,IEEE Transactions on Information Theory, vol. 66, no. 11, pp. 7237–7252, 2020

    work page 2020

  24. [24]

    The Carath ´eodory–Fej´er–Pisarenko decomposition and its multivariable counterpart

    T. T. Georgiou, “The Carath ´eodory–Fej´er–Pisarenko decomposition and its multivariable counterpart”,IEEE Transactions on Automatic Control, vol. 52, no. 2, pp. 212–228, 2007

    work page 2007

  25. [25]

    The condition number of weighted non- harmonic Fourier matrices with applications to super-resolution

    M. Ferreira Da Costa, “The condition number of weighted non- harmonic Fourier matrices with applications to super-resolution”,hal- 04261330, 2024

    work page 2024

  26. [26]

    Super-resolution of point sources via convex programming

    C. Fernandez-Granda, “Super-resolution of point sources via convex programming”,Information and Inference: A Journal of the IMA, vol. 5, no. 3, pp. 251–303, 2016

    work page 2016

  27. [27]

    Grant and S

    M. Grant and S. Boyd,CVX: Matlab Software for Disciplined Convex Programming, version 2.1, https://cvxr.com/cvx, Mar. 2014

    work page 2014

  28. [28]

    Graph implementations for nonsmooth convex programs

    M. Grant and S. Boyd, “Graph implementations for nonsmooth convex programs”, inRecent Advances in Learning and Control, ser. Lecture Notes in Control and Information Sciences, V . Blon- del, S. Boyd, and H. Kimura, Eds., Springer-Verlag Limited, 2008, pp. 95–110

    work page 2008

  29. [29]

    Boyd and L

    S. Boyd and L. Vandenberghe,Convex optimization. Cambridge university press, 2004

    work page 2004

  30. [30]

    S. M. Kay,Fundamentals of statistical signal processing: estimation theory. Prentice-Hall, Inc., 1993

    work page 1993

  31. [31]

    Statistical resolution limits and the complexified Cram ´er- Rao bound

    S. Smith, “Statistical resolution limits and the complexified Cram ´er- Rao bound”,IEEE Transactions on Signal Processing, vol. 53, no. 5, pp. 1597–1609, May 2005

    work page 2005

  32. [32]

    Mathematical concepts of optical superresolution

    J. Lindberg, “Mathematical concepts of optical superresolution”, Journal of Optics, vol. 14, no. 8, p. 083 001, 2012

    work page 2012

  33. [33]

    Hybrid atomic norm sparse/diffuse channel estimation

    L. Lyu and U. Mitra, “Hybrid atomic norm sparse/diffuse channel estimation”, in2025 61st Allerton Conference on Communication, Control, and Computing Proceedings, Allerton Conference on Com- munication, Control, and Computing, 2025

    work page 2025

  34. [34]

    Cram ´er-rao bounds on sparse-diffuse channel estimation

    L. Lyu, M. Ferreira Da Costa, and U. Mitra, “Cram ´er-rao bounds on sparse-diffuse channel estimation”, 2025

    work page 2025

  35. [35]

    Near Minimax Line Spectral Estimation

    G. Tang, B. N. Bhaskar, and B. Recht, “Near Minimax Line Spectral Estimation”,IEEE Transactions on Information Theory, vol. 61, no. 1, pp. 499–512, 2015

    work page 2015

  36. [36]

    On the inverses of Vandermonde and confluent Van- dermonde matrices. i, ii

    W. Gautschi, “On the inverses of Vandermonde and confluent Van- dermonde matrices. i, ii”,Numer. Math, vol. 4, pp. 117–123, 1962

    work page 1962

  37. [37]

    Some extremal functions in Fourier analysis

    J. D. Vaaler, “Some extremal functions in Fourier analysis”,Bulletin of the American Mathematical Society, vol. 12, no. 2, pp. 183–216, 1985

    work page 1985
