Autonomous Laparoscope Control through Unified Mechanics-Based Representation of Multimodal Intraoperative Information

Xiaojian Li , Jin Fang , Yudong Shi , Xilin Xiao , Kai Yan , Kang Min , Ling Li , Hua Tang
show 1 more author
Hangjie Mo
This is my paper

Pith reviewed 2026-05-08 18:08 UTC · model grok-4.3

classification 💻 cs.RO
keywords laparoscope controlunified mechanics modelingmultimodal fusionequivalent wrenchtask-priority controlremote center of motionautonomous instrument trackingsurgical robotics
0
0 comments X

The pith

A robot unifies position, force and image signals as equivalent wrenches to control a laparoscope while obeying the remote-center constraint.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to map raw position, force/torque and image data into a single equivalent-wrench form in operational space. These wrenches are then projected through a task-priority scheme so that one controller can enforce geometric constraints, permit compliant dragging, and drive visual tracking at the same time. A sympathetic reader would care because mismatched sensor units and separate control loops currently force either manual assistance or brittle switching between modes. If the mappings succeed, the robot can reduce sustained trocar loading while supporting autonomous multi-task behavior during surgery.

Core claim

We design explicit mapping strategies that convert intraoperative position, force/torque and image measurements into equivalent wrenches, then inject the wrenches into task and null spaces via task-priority projection to synthesize unified laparoscope velocity commands that simultaneously satisfy the remote-center-of-motion constraint, enable compliant manipulation, and achieve instrument tracking.

What carries the argument

The equivalent-wrench representation that converts multimodal signals into a common mechanics-based space for task-priority fusion.

If this is right

  • The same wrench framework can enforce the remote-center geometric constraint while lowering contact forces at the trocar site.
  • Compliant laparoscope manipulation and autonomous visual tracking of instruments can run together without separate controllers.
  • All three example wrenches (RCM constraint, manipulation, and tracking) are generated and fused inside one projection step.
  • Phantom and in-vivo porcine trials confirm that multi-task operation is possible while the constraint and force-reduction goals are met.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The wrench unification could serve as a template for other robots that must blend vision, force and position data without custom fusion layers.
  • If the mappings remain stable under larger motion ranges, the method might reduce reliance on explicit sensor-fusion pipelines in physical human-robot interaction.
  • Extending the same priority ordering to additional tasks such as tissue retraction would test how many wrenches one projection can accommodate before conflicts appear.

Load-bearing premise

Mapping each raw sensor stream to an equivalent wrench preserves the essential information and does not create instability or safety violations when the wrenches are used directly in task-priority control.

What would settle it

A controlled experiment in which the unified wrench controller is applied during simultaneous compliant dragging and instrument tracking would falsify the claim if the robot either violates the remote-center constraint or produces sustained high trocar forces.

Figures

Figures reproduced from arXiv: 2605.04408 by Hangjie Mo, Hua Tang, Jin Fang, Kai Yan, Kang Min, Ling Li, Xiaojian Li, Xilin Xiao, Yudong Shi.

Figure 1
Figure 1. Figure 1: Overview of existing robot-held control, human-held manipulation, and the proposed unified mechanics-based laparoscope control framework view at source ↗
Figure 3

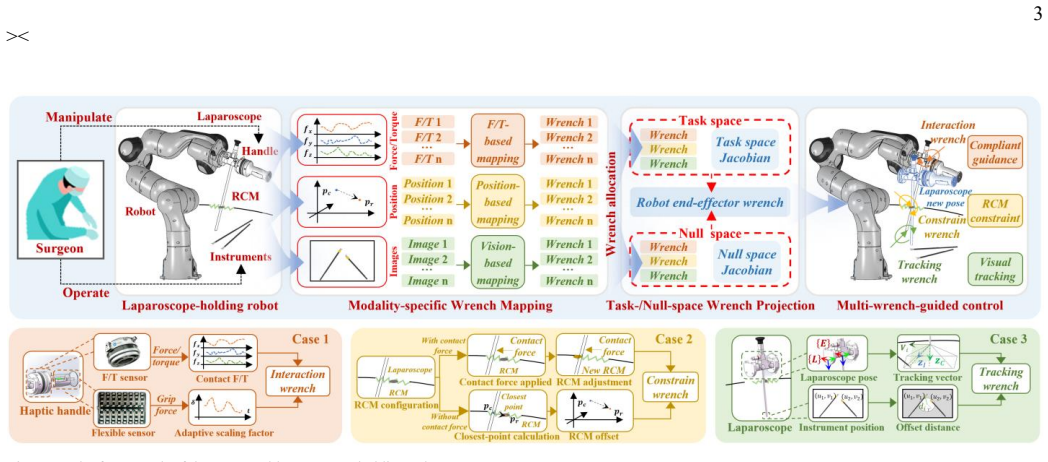

Figure 3. Figure 3: The framework of the proposed laparoscope-holding robot. providing a common physical form for control-oriented multimodal fusion. Based on this representation, a task-priority scheme is developed to inject different wrenches into the task space and null space, thereby synthesizing laparoscope control commands while coordinating multiple objectives within a single framework. As representative examples, we c… view at source ↗
Figure 6
Figure 6. Figure 6: the operator first manipulates the surgical instrument view at source ↗
read the original abstract

Laparoscope-holding robots can provide surgeons with a stable laparoscopic field of view (FOV) and reduce the burden on human assistants. To maintain an ideal intraoperative FOV, the robot must continuously adjust the laparoscope pose according to intraoperative information. However, intraoperative multimodal signals, such as position, force/torque, and images, differ markedly in physical meaning and units, making it difficult to build a unified representation and to generate control commands that can be used directly for laparoscope control. To address this issue, we propose a laparoscope-holding robot control method based on unified mechanics modeling of multimodal information. First, we design mapping strategies for multiple intraoperative sources, including position, force/torque, and images, and unify them into an equivalent-wrench representation in the operational space. Then, using a task-priority scheme, we inject the wrenches into the task space and the null space, respectively, and synthesize laparoscope control commands via task-priority projection, thereby achieving consistent representation and coordinated fusion of multimodal information within a single framework. Finally, taking the intraoperative remote center of motion (RCM) position, force/torque sensor readings, and laparoscopic images as examples, we construct an RCM-constraint wrench to enforce the RCM geometric constraint and reduce the contact force at the trocar site, a laparoscope-manipulation wrench to enable compliant dragging, and an instrument-tracking wrench to achieve autonomous visual tracking of the instruments. Experiments on a surgical phantom and in vivo porcine trials demonstrate that the proposed method supports multi-task operation, including compliant laparoscope manipulation and autonomous instrument tracking, while maintaining the RCM constraint and reducing sustained trocar-site loading.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes a laparoscope-holding robot control method that unifies multimodal intraoperative signals (position for RCM constraint, force/torque for compliance, and laparoscopic images for instrument tracking) by mapping each to an equivalent wrench in operational space. These wrenches are injected into task and null spaces via a task-priority projection scheme to generate robot commands that simultaneously enforce the remote center of motion (RCM) geometric constraint, reduce trocar-site contact forces, enable compliant dragging, and maintain autonomous visual tracking of instruments. Phantom and in-vivo porcine experiments are presented to demonstrate multi-task operation while satisfying the RCM constraint.

Significance. If the central claim holds, the work supplies a coherent, mechanics-grounded framework for fusing heterogeneous sensor modalities into a single operational-space control architecture, which is a practical step beyond ad-hoc weighting schemes common in surgical robotics. The explicit construction of virtual-potential wrenches (RCM geometric wrench from position error, force/torque wrench from sensor readings, image-based wrench from centroid error) together with standard null-space projection equations and quantitative experimental outcomes (RCM violation <2 mm, sustained force reduction) strengthens reproducibility and falsifiability.

major comments (1)
  1. [§4] §4 (Experiments): the reported RCM violation <2 mm and force reduction are presented as single-trial or aggregate values without mean, standard deviation, or number of trials; this leaves the claim of 'consistent' multi-task performance without statistical support and weakens the validation of stability under the unified wrench injection.
minor comments (2)
  1. [§3.1] §3.1: the mapping from raw position error to RCM-constraint wrench is described as a virtual potential whose gradient yields the wrench, but the explicit potential function and its parameters are not written out; adding the equation would make the construction fully reproducible.
  2. [Figure 3] Figure 3: the block diagram of the task-priority projection does not label the null-space injection points for the three wrenches; this reduces clarity when tracing how the image-based wrench is subordinated to the RCM wrench.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and positive overall assessment of our manuscript. We address the single major comment below and will revise the manuscript accordingly to strengthen the experimental validation.

read point-by-point responses

  1. Referee: [§4] §4 (Experiments): the reported RCM violation <2 mm and force reduction are presented as single-trial or aggregate values without mean, standard deviation, or number of trials; this leaves the claim of 'consistent' multi-task performance without statistical support and weakens the validation of stability under the unified wrench injection.

    Authors: We agree that the current reporting of RCM violation and force-reduction results lacks the statistical detail needed to fully substantiate claims of consistent performance. In the revised manuscript we will explicitly state the number of trials conducted in both the phantom and in-vivo porcine experiments and will report the corresponding mean and standard deviation for the RCM violation distance and the sustained trocar-site force. These additions will be placed in §4 and will be accompanied by a brief description of the trial protocol, thereby providing the quantitative support the referee correctly identifies as missing. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper constructs explicit mapping functions from raw position, force/torque, and image data to equivalent wrenches in operational space (RCM geometric wrench from position error, force/torque wrench from sensor readings, image-based wrench from instrument centroid error), then applies standard task-priority null-space projection equations to synthesize control commands. These steps are direct, first-principles constructions from mechanics-based virtual potentials whose gradients yield wrenches; no equation reduces a claimed result to a fitted parameter or self-referential definition by construction. No load-bearing self-citations appear in the central derivation chain, and the mappings are presented as standard operational-space devices rather than predictions derived from the same data they are tested on. Experimental outcomes (RCM violation < 2 mm, force reduction) serve as independent validation outside the derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on standard robotics assumptions about wrench equivalence and task-priority projection; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Task-priority projection can safely combine wrenches from multiple sources without violating geometric constraints such as RCM.
    Invoked when synthesizing control commands from task-space and null-space wrenches.

pith-pipeline@v0.9.0 · 5622 in / 1234 out tokens · 45720 ms · 2026-05-08T18:08:00.344189+00:00 · methodology
