Ancilla-Error-Transparent Controlled Beam Splitter Gate

Iivari Pietik\"ainen , Ond\v{r}ej \v{C}ernot\'ik , Shruti Puri , Radim Filip , S. M. Girvin This is my paper

Pith reviewed 2026-05-24 12:56 UTC · model grok-4.3

classification 🪐 quant-ph
keywords controlled beam splitterKerr-cat qubiterror transparencycircuit QEDcSWAP gatehybrid quantum computationbosonic modesphase-flip bias
0
0 comments X

The pith

Kerr-cat ancilla renders controlled beam-splitter gate transparent to dominant phase-flip errors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes implementing a controlled beam-splitter gate in hybrid circuit QED by using a Kerr-cat qubit to produce a controlled-phase beam-splitter operation, which is then combined with an ordinary beam splitter to yield the desired gate and ultimately a controlled SWAP on two bosonic modes. The central advantage arises because the Kerr-cat possesses a strongly biased error channel in which phase flips greatly outnumber bit flips, making the resulting cSWAP non-destructive and transparent to the dominant error. This construction is claimed to be straightforward and, with present experimental parameters, to reach fidelities comparable to those of standard beam-splitter operations already demonstrated in circuit QED. Such a gate would directly support the swap test for state purity, preparation of non-Gaussian entanglement, and measurement of nonlinear functionals of quantum states.

Core claim

A Kerr-cat qubit is used to generate a controlled-phase beam splitter (cPBS) operation; when combined with an ordinary beam splitter this produces a controlled beam-splitter (cBS) and from it a cSWAP. The strongly biased error channel of the Kerr-cat, in which phase flips dominate over bit flips, makes the cSWAP non-destructive and transparent to the dominant error.

What carries the argument

Kerr-cat qubit used to generate the controlled-phase beam splitter (cPBS) operation that enables the error-transparent cBS gate.

If this is right

  • The resulting cSWAP gate is non-destructive to the bosonic modes.
  • The gate is transparent to the dominant phase-flip errors of the ancilla.
  • Controlled beam-splitter operations reach fidelities comparable to existing ordinary beam-splitter gates.
  • The construction directly enables the swap test, non-Gaussian entanglement preparation, and measurement of nonlinear state functionals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same bias-driven transparency might be exploited in other controlled operations between discrete and continuous-variable systems.
  • Hybrid quantum algorithms that rely on repeated cSWAPs could see reduced error-correction overhead if the phase-flip bias persists across multiple gates.
  • Direct experimental comparison of error rates before and after the cPBS step would test whether the bias is preserved under the proposed drive conditions.

Load-bearing premise

The Kerr-cat qubit maintains a strongly biased error channel in which phase flips dominate over bit flips, and this bias survives the gate construction.

What would settle it

An experimental run of the proposed gate sequence in which bit-flip errors on the Kerr-cat ancilla become comparable in rate to phase-flip errors would remove the claimed transparency benefit.

Figures

Figures reproduced from arXiv: 2112.04375 by Iivari Pietik\"ainen, Ond\v{r}ej \v{C}ernot\'ik, Radim Filip, Shruti Puri, S. M. Girvin.

Figure 1

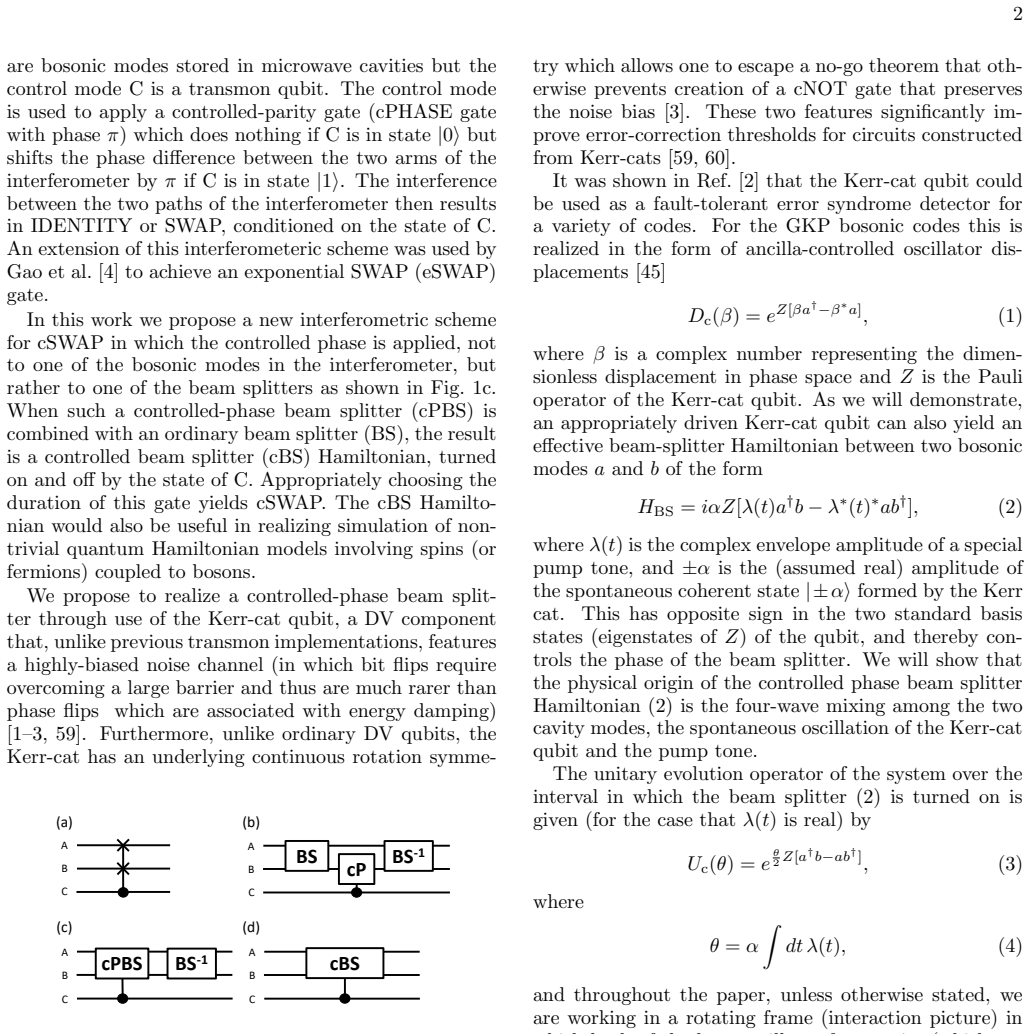

Figure 1. Figure 1: FIG. 1. (a) Standard circuit symbol for the controlled SWAP [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (a) Three-wave mixing process to create the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Illustration of the Bloch sphere. The cat states [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Numerical simulation of the controlled-beam splitter [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. (a) Qubit errors (dephasing [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Cavity photon bunching as a function of the cat size [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Different driving schemes. The drive at frequency [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 9

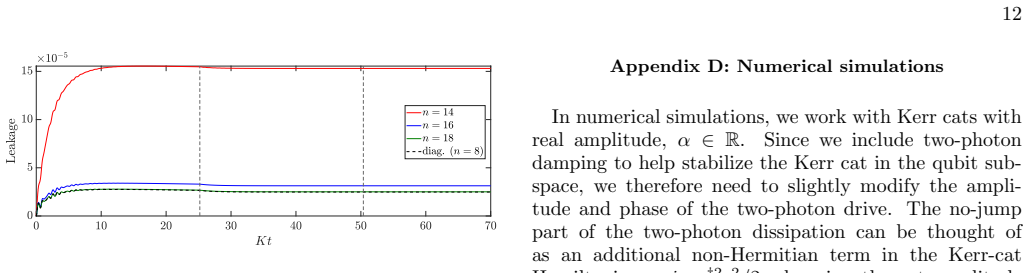

Figure 9. Figure 9: FIG. 9. Leakage convergence of the Kerr cat simulations com [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
read the original abstract

In hybrid circuit QED architectures containing both ancilla qubits and bosonic modes, a controlled beam splitter gate is a powerful resource. It can be used to create (up to a controlled-parity operation) an ancilla-controlled SWAP gate acting on two bosonic modes. This is the essential element required to execute the `swap test' for purity, prepare quantum non-Gaussian entanglement and directly measure nonlinear functionals of quantum states. It also constitutes an important gate for hybrid discrete/continuous-variable quantum computation. We propose a new realization of a hybrid cSWAP utilizing `Kerr-cat' qubits -- anharmonic oscillators subject to strong two-photon driving. The Kerr-cat is used to generate a controlled-phase beam splitter (cPBS) operation. When combined with an ordinary beam splitter one obtains a controlled beam-splitter (cBS) and from this a cSWAP. The strongly biased error channel for the Kerr-cat has phase flips which dominate over bit flips. This yields important benefits for the cSWAP gate which becomes non-destructive and transparent to the dominate error. Our proposal is straightforward to implement and, based on currently existing experimental parameters, should achieve controlled beam-splitter gates with high fidelities comparable to current ordinary beam-splitter operations available in circuit QED.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes a realization of a controlled beam-splitter (cBS) gate in hybrid circuit-QED systems by using a Kerr-cat qubit to implement a controlled-phase beam splitter (cPBS), which is then combined with an ordinary beam splitter to yield the cBS and ultimately a controlled-SWAP (cSWAP) gate. The central claim is that the strongly phase-flip-biased error channel of the Kerr-cat renders the resulting cSWAP non-destructive and transparent to the dominant error, with achievable fidelities comparable to existing beam-splitter operations based on current experimental parameters.

Significance. If the phase-flip bias is shown to survive the gate construction, the proposal would supply a concrete route to an error-transparent cSWAP resource useful for swap tests, non-Gaussian state preparation, and hybrid discrete/continuous-variable computation. The work correctly identifies the potential advantage of biased-noise ancillae for gate transparency.

major comments (1)
  1. [Abstract] Abstract: the claim that the cSWAP 'becomes non-destructive and transparent to the dominate error' because 'phase flips which dominate over bit flips' is load-bearing, yet the manuscript supplies no derivation or Hamiltonian for the cPBS interaction that demonstrates the bias is preserved and does not generate bit-flip processes at comparable rates during the gate.
minor comments (1)
  1. The abstract would be strengthened by a brief statement of the cPBS Hamiltonian or drive sequence and by an explicit (even if approximate) fidelity estimate with the cited experimental parameters.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and for highlighting the importance of explicitly demonstrating error-bias preservation. We agree that this point is central to the proposal and will strengthen the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the cSWAP 'becomes non-destructive and transparent to the dominate error' because 'phase flips which dominate over bit flips' is load-bearing, yet the manuscript supplies no derivation or Hamiltonian for the cPBS interaction that demonstrates the bias is preserved and does not generate bit-flip processes at comparable rates during the gate.

    Authors: We agree that an explicit derivation is needed to substantiate the claim. The manuscript relies on the established phase-flip-biased noise of the Kerr-cat qubit but does not derive the effective cPBS Hamiltonian or analyze error channels during the gate. In the revised version we will add a dedicated section deriving the cPBS interaction from the driven Kerr-cat Hamiltonian, showing the leading-order error processes, and confirming that the dominant error remains phase-flip biased with bit-flip rates suppressed by the same factor as in the idle case. revision: yes

Circularity Check

0 steps flagged

No circularity; proposal relies on external Kerr-cat bias properties

full rationale

The paper presents a gate construction proposal whose central benefit (error transparency of the cSWAP) is predicated on the independently established phase-flip bias of Kerr-cat qubits. No equations, fitted parameters, or self-citations are shown that reduce any claimed fidelity, transparency, or gate property to a quantity defined by the result itself. The derivation chain is forward-looking and self-contained against external benchmarks on the Kerr-cat error channel.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The proposal rests on the domain assumption that Kerr-cat qubits exhibit strongly biased phase-flip noise and that this bias can be preserved through the gate construction; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Kerr-cat qubits have a strongly biased error channel with phase flips dominating over bit flips
    Invoked to obtain the non-destructive and transparent property of the cSWAP.
