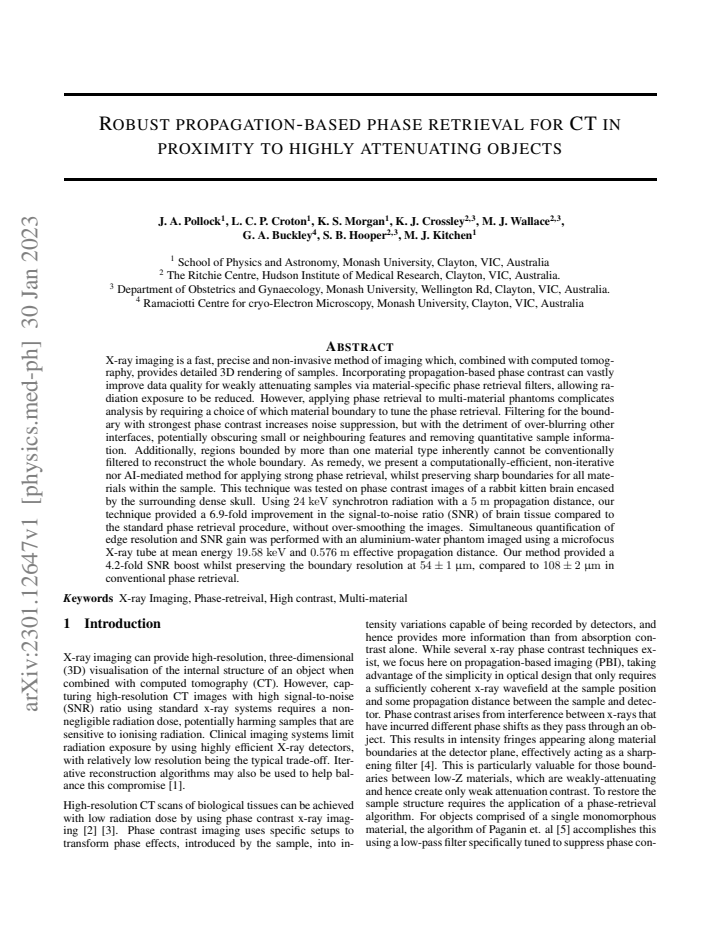

3DMPR -- A robust morphological approach for applying phase retrieval in proximity to highly-attenuating objects in CT

J. A. Pollock , L. C. P. Croton , K. S. Morgan , K. J. Crossley , M. J. Wallace , G. A. Buckley , S. B. Hooper , M. J. Kitchen This is my paper

Pith reviewed 2026-05-24 09:38 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords phase retrievalcomputed tomographymorphological operationsphase contrast imagingmulti-material samplessignal-to-noise ratiopropagation-based imagingsynchrotron CT
0
0 comments X

The pith

3DMPR combines 3D phase retrieval with morphological operations to enable strong noise suppression across all material boundaries in CT without over-blurring.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces 3DMPR as a non-iterative method that applies propagation-based phase retrieval tuned to the strongest-contrast interface while using 3D morphological operations to shield every other material boundary from excessive smoothing. In tests on synchrotron images of a rabbit kitten brain inside its dense skull, this produced a 6.8-fold SNR gain in brain tissue compared with standard phase retrieval, without removing quantitative attenuation values or introducing new artifacts. The approach targets the common problem that conventional phase retrieval cannot be applied safely to regions bounded by more than one material and that choosing one boundary for tuning blurs the rest. If the method works as described, it would allow lower radiation doses for multi-material samples while retaining sharp edges at every interface.

Core claim

3D phase retrieval is combined with morphological operations to prevent over-blurring artefacts from being introduced, while avoiding the potentially long convergence times required by iterative approaches. This technique, entitled 3DMPR, was tested on phase contrast images of a rabbit kitten brain encased by the surrounding dense skull and provided a 6.8-fold improvement in the signal-to-noise ratio of brain tissue over the standard phase retrieval procedure, without over-smoothing the images.

What carries the argument

3DMPR, the integration of 3D phase retrieval with 3D morphological operations that identify and protect material boundaries during strong phase retrieval.

If this is right

  • Phase retrieval can be applied at full strength to samples containing more than two materials.
  • Quantitative attenuation information remains available at every interface after strong phase retrieval.
  • Computation remains non-iterative and does not require training data or long convergence times.
  • Radiation dose can be lowered for the same image quality in multi-material specimens.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same boundary-protection logic could be tested on clinical cone-beam CT systems where skull and brain are imaged together.
  • Extending the morphological mask to time-resolved data might allow dynamic samples with moving dense objects.
  • If the morphological step is replaced by a different edge detector, the SNR gain may change for samples with gradual density transitions.

Load-bearing premise

The morphological operations correctly identify and protect every material boundary in 3D without introducing new artifacts or removing quantitative attenuation information.

What would settle it

Reconstruction of a known multi-material phantom with ground-truth attenuation values shows either residual blurring at non-protected boundaries or deviation from expected quantitative values after 3DMPR processing.

Figures

Figures reproduced from arXiv: 2301.12647 by G. A. Buckley, J. A. Pollock, K. J. Crossley, K. S. Morgan, L. C. P. Croton, M. J. Kitchen, M. J. Wallace, S. B. Hooper.

Figure 1

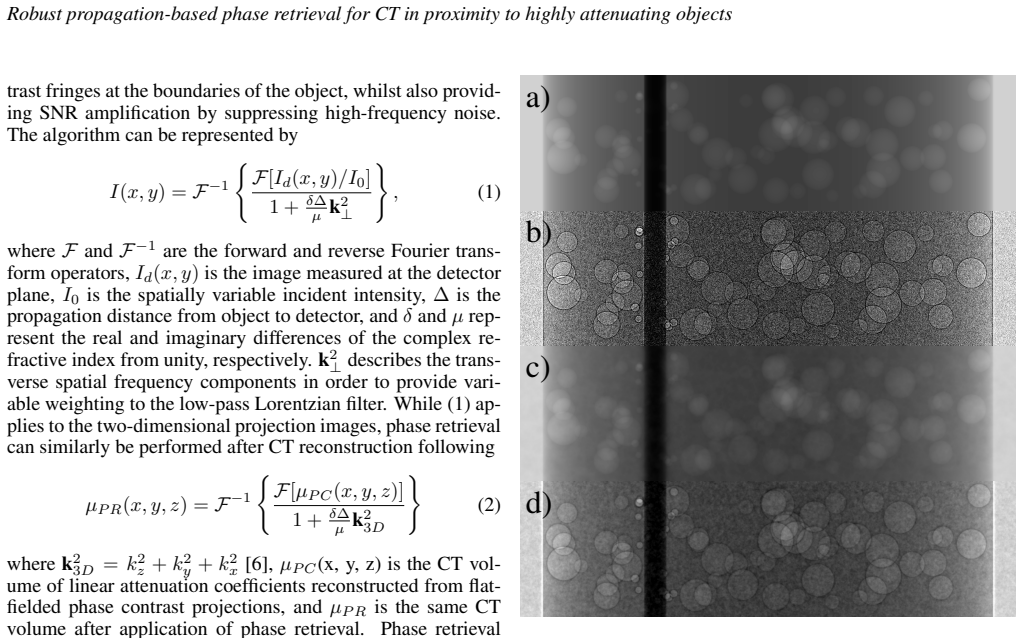

Figure 1. Figure 1: Demonstration of phase-retrieval algorithms applied [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

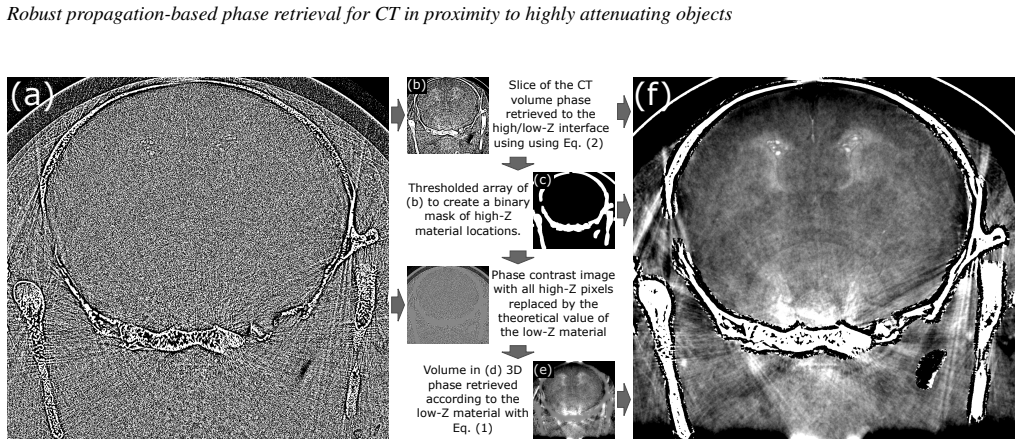

Figure 2. Figure 2: The masking and phase retrieval process, using a rabbit brain cross-section for demonstration. Images are labelled [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

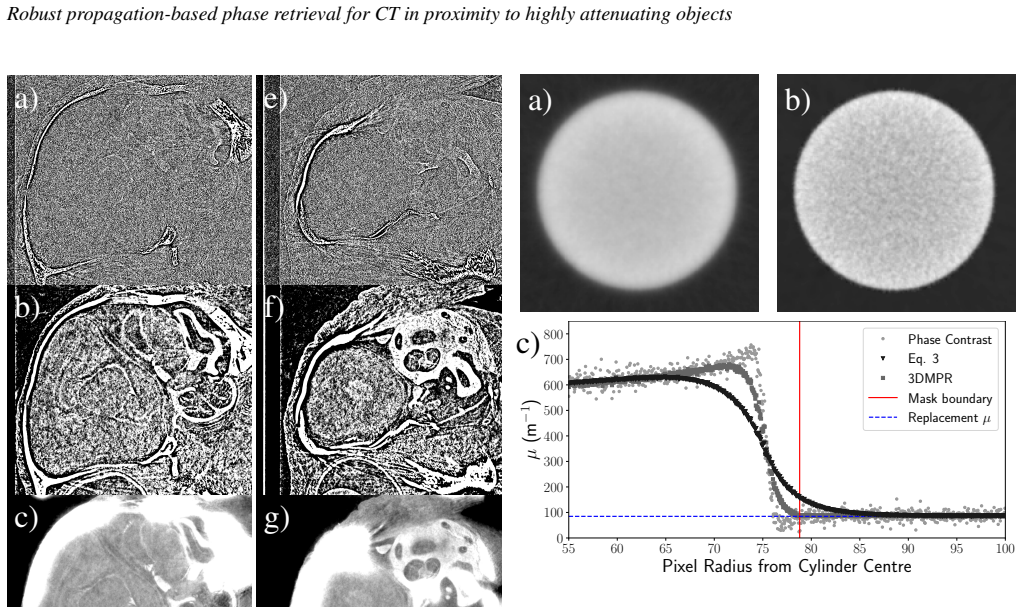

Figure 4. Figure 4: Quantification of edge resolution in a 3 mm thick aluminium rod submerged in water after phase retrieval was applied to material A, water. (a) and (b) show slices through the aluminium cylinder from phase retrievals performed with (3) and 3DMPR, respectively. (c) Plots an azimuthally aver￾aged line profile across the aluminium-water interface, com￾paring the raw phase contrast profile to that of the conven… view at source ↗
Figure 3

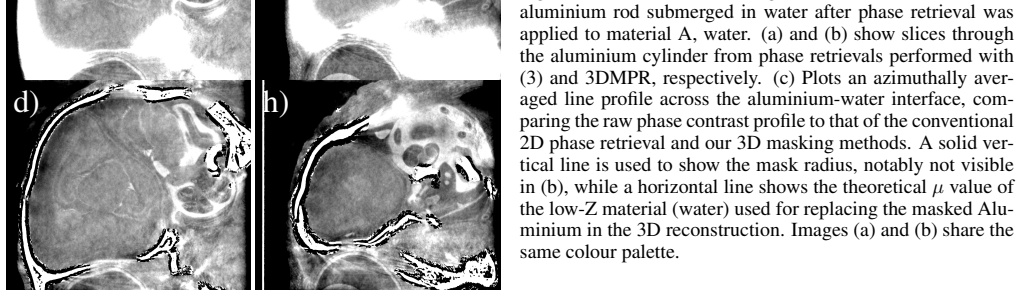

Figure 3. Figure 3: Comparison of our masked phase retrieval method [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5

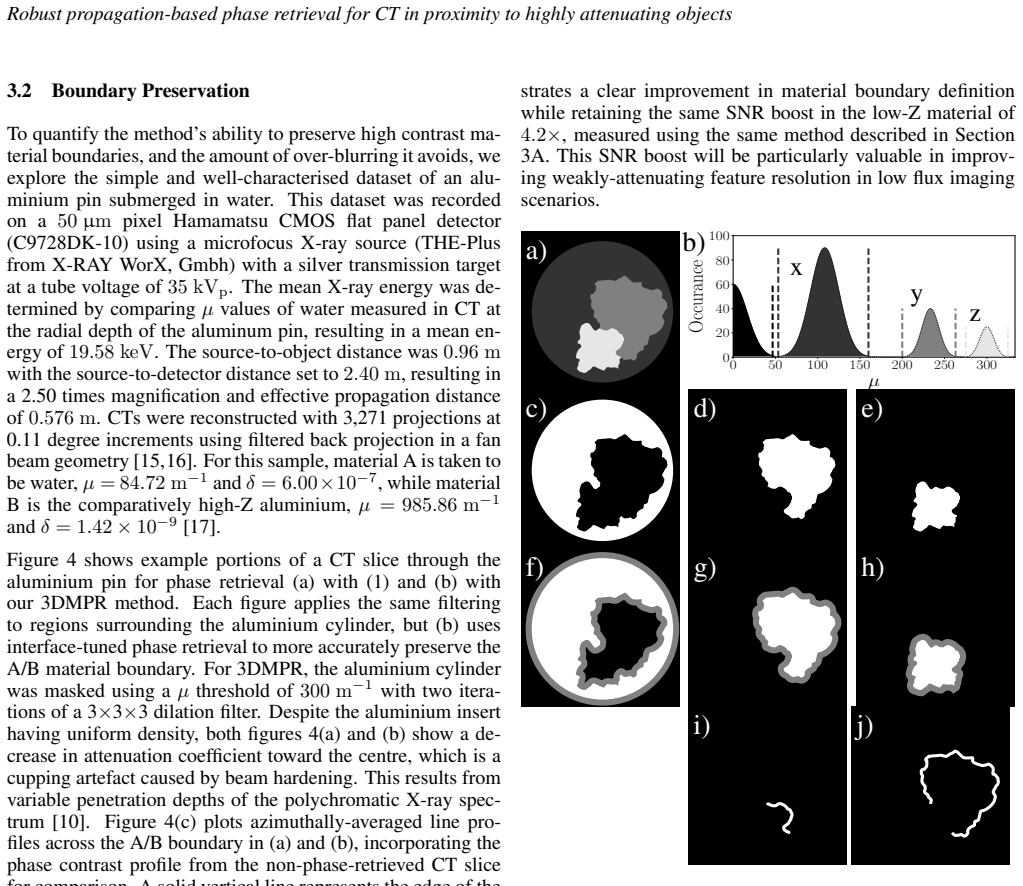

Figure 5. Figure 5: The masking and phase retrieval process conceptu [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
