arxiv: 2304.14121 · v3 · submitted 2023-04-27 · 💻 cs.DM · math.CO

An Overview of Universal Obstructions for Graph Parameters

Christophe Paul , Evangelos Protopapas , Dimitrios M. Thilikos This is my paper

Pith reviewed 2026-05-24 09:03 UTC · model grok-4.3

classification 💻 cs.DM math.CO
keywords graph parametersobstructionsquasi-orderingsgraph minorsstructural graph theoryparameterized complexitybounded expansion
0
0 comments X

The pith

A framework of class, parametric, and universal obstructions classifies the approximate behavior of graph parameters under quasi-orderings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper surveys how many known graph parameters fit into a parametric framework for obstruction characterizations. The framework defines three combinatorial objects that capture how a parameter behaves approximately when graphs are compared under a given quasi-ordering. The authors collect existing results from the literature and supply additional unifying classifications that place parameters into this structure. A reader would care because the approach replaces separate case-by-case analyses with a single set of obstruction concepts that predict the parameter's growth or boundedness.

Core claim

The concepts of class obstruction, parametric obstruction, and universal obstruction determine the approximate behaviour of a graph parameter with respect to a quasi-ordering on graphs. Under this framework the paper surveys existing graph-theoretic results on many known graph parameters and supplies unifying classification results.

What carries the argument

The parametric framework built from class obstructions, parametric obstructions, and universal obstructions, which together encode the approximate scaling of a graph parameter relative to a quasi-ordering.

If this is right

  • Existing obstruction theorems for individual parameters become instances of the same three-object classification.
  • Parameters not yet classified can be placed into the framework by identifying their universal obstruction.
  • The approximate behaviour of a parameter is decided once its universal obstruction is known.
  • Quasi-orderings that admit finite universal obstructions yield boundedness or linear-growth results for the parameter.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the framework holds, algorithmic meta-theorems that rely on obstruction sets may extend uniformly across parameters rather than being proved separately.
  • The same obstruction objects could be used to compare the structural complexity of parameters that currently lack direct comparison.
  • Testing whether a new parameter admits a finite universal obstruction becomes a concrete research task that replaces open-ended case analysis.

Load-bearing premise

The parametric framework from the authors' recent prior work applies without loss of generality to the surveyed graph parameters.

What would settle it

A concrete graph parameter for which no choice of class, parametric, or universal obstruction correctly predicts its approximate behaviour under the relevant quasi-ordering would falsify the claimed generality.

Figures

Figures reproduced from arXiv: 2304.14121 by Christophe Paul, Dimitrios M. Thilikos, Evangelos Protopapas.

Figure 1
Figure 1. Figure 1: The minor-parametric graph A = ⟨A2, A3, A4, A5, A6 . . .⟩ of annulus grids. The next proposition sums up the approximate behaviour of treewidth in terms of universal obstructions, class obstructions, and parametric obstructions. Its proof, being the first of its kind in this work, is presented in full detail. Proposition 3.1. The set {A} consisting of the minor-parametric graph A of annulus grids is a mino… view at source ↗
Figure 2
Figure 2. Figure 2: The minor-parametric graph T = ⟨T1, T2, T3, T4, . . .⟩ of complete ternary trees. Proposition 3.2. The set {T} consisting of the minor-parametric graph T of complete ternary trees is a minor-universal obstruction for pw. Moreover, cobs⩽m (pw) = {Gforest} and pobs⩽m (pw) =  {K3} [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The minor-parametric graph P = ⟨P1, P2, P3, P4, P5, . . .⟩ of paths. Theorem 3.3. The set {P} consisting of the minor-parametric graph P of paths is a minor-universal obstruction for td. Moreover, cobs⩽m (td) = {Glinear forest} and pobs⩽m (td) =  {K3, K1,3} [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4

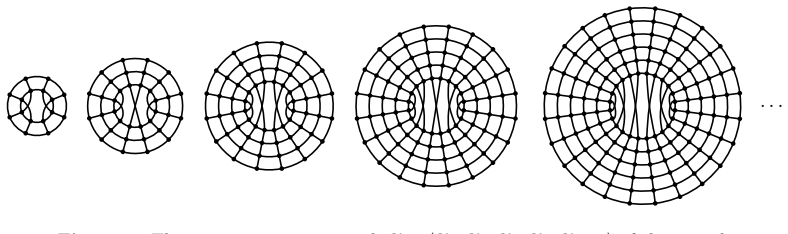

Figure 4. Figure 4: The minor-parametric graph K = ⟨K2, K3, K4, K5, K6 . . .⟩ of clique grids. Let Ek denote the class of graphs embeddable in a surface of Euler genus at most k, for every non-negative integer k. Moreover, given a graph H and a set A ⊆ V (G), we say that H is an A-minor of G if there exists a collection S = {Sv | v ∈ V (H))} of pairwise vertex-disjoint connected8 subsets of V (G), each containing at least one… view at source ↗
Figure 5
Figure 5. Figure 5: The minor-parametric graph S = ⟨S2, S3, S4, S5, S6 . . .⟩ of singly-crossing grids. We define the minor-parametric graph S = ⟨Sk⟩k∈N≥2 where Sk is the singly-crossing grid depicted in [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The Petersen family (image taken from Wikipedia). Proposition 3.7. The set {S} consisting of the minor-parametric graph S of singly-crossing grids is a minor-universal obstruction for sc-tw. Moreover, cobs⩽m (sc-tw) = {Gsingly-crossing} and pobs⩽m (sc-tw) =  Oprojective ∪ Olinkless . 9A graph is linklessly embeddable if it has an embedding in the 3-dimensional space so that no two cycles of this embedding… view at source ↗
Figure 7
Figure 7. Figure 7: The minor-parametric graph of shallow-vortex grids V = ⟨V2, V3, V4, V5, V6 . . .⟩. We define the minor-parameteric graph V := ⟨Vt⟩t∈N≥2 of shallow-vortex grids, where for every t ≥ 2, Vt is the graph obtained from a (t × 4t)-annulus grid by adding a matching M of size 2t in its inner cycle, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The minor-parametric graph D (1,0) = ⟨D (1,0) 2 , D (1,0) 3 , D (1,0) 4 , D (1,0) 5 , D (1,0) 6 . . .⟩ of torus grids. . . [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The minor-parametric graph D (0,1) = ⟨D (0,1) 2 , D (0,1) 3 , D (0,1) 4 , D (0,1) 5 , D (0,1) 6 . . .⟩ of projective grids. It can be seen [127] that D(1,0) = DΣ (1,0) captures the torus Σ (1,0), i.e., the orientable surface homeomorphic to the sphere with the addition of a handle, while D(1,0) = DΣ (0,1) captures the projective plane Σ (0,1), i.e., the non-orientable surface homeomorphic to the sphere wit… view at source ↗
Figure 10

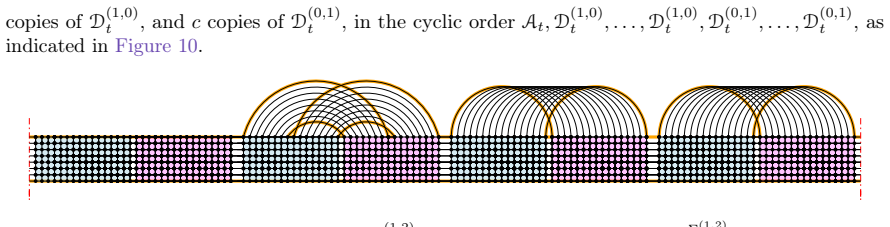

Figure 10. Figure 10: The instance D (1,2) 8 of the minor-parametric graph D Σ(1,2) . The main result of [127] is a minor-universal obstruction for tw∗ Eg which is stated in the following proposition. Proposition 3.9. For every non-negative integer g, the set {DΣ | Σ ∈ Sg} is a minor-universal obstruction for tw∗ Eg . With respect to the vga-lattice, tw∗ Eg corresponds to a parameterization of the GMST, for each possible value… view at source ↗
Figure 11
Figure 11. Figure 11: The graphs P5, K1,4, and Ks 1,3 which are all non-isomorphic trees on four vertices. Moreover, ↓⩽m K(K2,3) is the class whose connected components are minors of K2,3. First of all, observe that K1,4 ̸ m K2,3. Therefore, obs⩽m (↓⩽m K(K2,3) ) = {G ∈ conn({6 · K1}) | K1,4 ̸ m G} ∪ {K1,4, K4, C5, Kde 3 , Kes 3 } where conn({6 · K1}) = {P6, Q2, K1,5, Ks 1,4 , Kds 1,3 , K2s 1,3} which are all non-isomorphic tre… view at source ↗
Figure 12

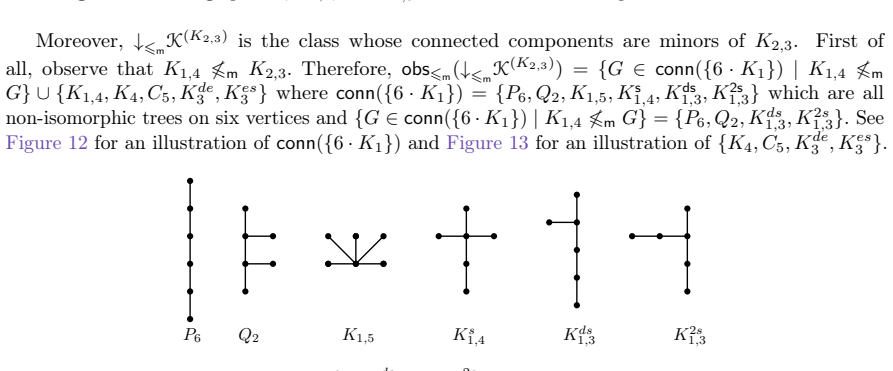

Figure 12. Figure 12: for an illustration of conn({6 · K1}) and [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: Two minor-parametric graphs, corresponding to the two ways triangles can be linearly arranged on a path. On the first row we have P (K3),1 = ⟨P (K3),1 2 , P (K3),1 3 , P (K3),1 4 , P (K3),1 5 , . . .⟩ while on the second row we have P (K3),2 = ⟨P (K3),2 2 , P (K3),2 3 , P (K3),2 4 , P (K3),2 5 , . . .⟩. These two minor-parametric graphs are created by the two different ways to linearly arrange triangles a… view at source ↗
Figure 15
Figure 15. Figure 15: The minor-obstruction set O (1) =  O (1) 1 , O (1) 2 , O (1) 3 [PITH_FULL_IMAGE:figures/full_fig_p029_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: The minor-obstruction set O (2) =  O (2) 1 , O (2) 2 , O (2) 3 , O (2) 4 , O (2) 5 , O (2) 6 [PITH_FULL_IMAGE:figures/full_fig_p029_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: The minor-parametric graph Q = ⟨Q1, Q2, Q3, Q4, Q5, . . .⟩ of ternary caterpillars. (because of K3) or minor-parametric graphs that are equivalent to the minor-parametric graph Q of ternary caterpillars (because of K1,3). Therefore, by applying Theorem 3.22, only the ternary caterpillars survive the ≲-minimization operation and we conclude with the following proposition. Theorem 3.26. The set {Q} is a min… view at source ↗
Figure 18

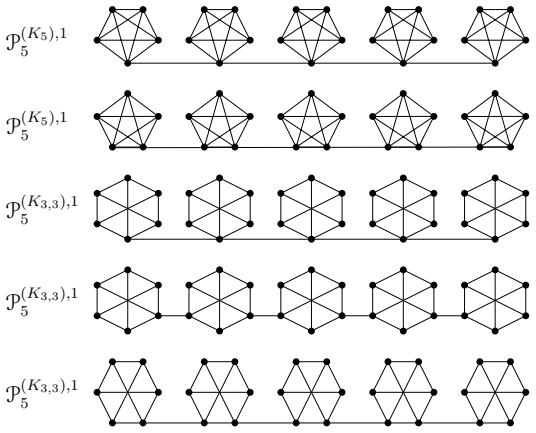

Figure 18. Figure 18: An instance of each of the five minor-parametric graphs obtained from the two non-isomorphic ways to linearly arrange K5 along a path and the three non-isomorphic ways to linearly arrange K3,3 along a path. and the relationship between their minor-parametric obstructions is  {P3} [PITH_FULL_IMAGE:figures/full_fig_p032_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: for an illustration. . . [PITH_FULL_IMAGE:figures/full_fig_p033_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: for an illustration. . . [PITH_FULL_IMAGE:figures/full_fig_p033_20.png] view at source ↗
Figure 21

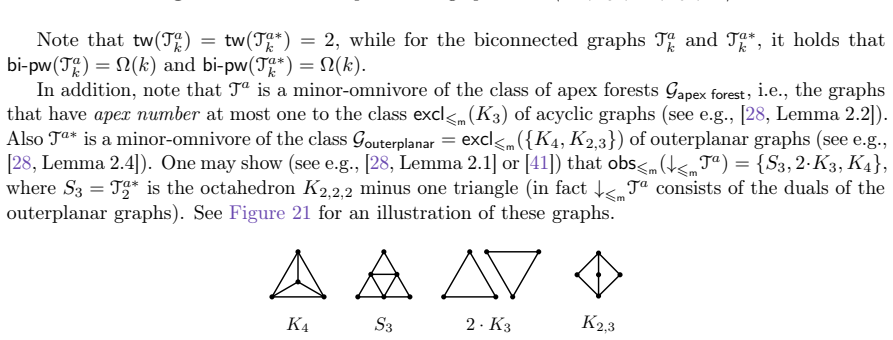

Figure 21. Figure 21: The graphs K4, S3, 2 · K3, K2,3. Dang and Thomas [28] as well as Huynh, Joret, Micek, and Wood [68] independently proved that 33 [PITH_FULL_IMAGE:figures/full_fig_p033_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: The minor-parametric graph L = ⟨L2, L3, L4, L5, . . .⟩ of ladders. According to [67], there exists a function f : N → N such that every graph G where btd(G) ≥ f(k) contains Lk as a minor. Moreover, it is easy to verify that btd(Lk) = Ω(log k). The graph class Gladder minors := ↓⩽m L of minors of ladders naturally arises in different contexts of graph theory. Indeed, it contains all graphs with mixed searc… view at source ↗
Figure 23
Figure 23. Figure 23: The graphs in the minor-obstruction set O L = obs⩽m (Gladder minors). 3.7.3 More on the hierarchy of minor-monotone parameters Observe that biconnected pathwidth is by definition sandwiched between treewidth and pathwidth. tw ⪯ bi-pw ⪯ pw (41) and the corresponding parametric obstructions are ordered as follows  {K3} [PITH_FULL_IMAGE:figures/full_fig_p035_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: The hierarchy of minor-monotone parameters, each accompanied with some minor-universal obstruction of it. 36 [PITH_FULL_IMAGE:figures/full_fig_p036_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: The immersion-parametric graph Θ = ⟨Θ1, Θ2, Θ3, Θ4, Θ5 . . .⟩ of t-pumpkins. We define the immersion-parametric graph Θ := ⟨Θt⟩t∈N, where Θt is the graph on two vertices and t parallel edges, for every t ∈ N. These graphs also known as t-pumpkins are illustrated in [PITH_FULL_IMAGE:figures/full_fig_p037_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: The immersion-parametric graph W = ⟨W3, W4, W5, W6, . . .⟩ of walls. Wollan [130] proved that there exists a function f : N → N such that every graph G with tcw(G) ≥ f(k) contains Wk as an immersion, for every k ≥ 3. It is therefore implied that tcw ⪯ pW. Moreover, it is known that tw ⪯ tcw (see e.g., [130]). As already mentioned, since ∆(Wk) ≤ 3, if a graph contains Wk as an immersion, it also contains i… view at source ↗
Figure 27
Figure 27. Figure 27: The graphs K3,3, K1,4, K2 1,3, P2,2 3 , K3 1,2, Θ4. Suppose now that a graph G does not belong to P (≤3). Then, it either has a vertex of degree larger than three or it is not planar. In the first case, one of K1,4, K2 1,3 , P 2,2 3 , K3 1,2 or Θ4 is an immersion of G. In the second case G contains one of K3,3 or K5 as a topological minor. As a subcubic graph cannot contain K5 as a topological minor, we c… view at source ↗
Figure 28
Figure 28. Figure 28: The immersion-parametric graph K ds = ⟨K ds 1 , K ds 2 , K ds 3 , K ds 4 , . . .⟩ of double-edge stars. We also denote by C DS := ↓⩽iKds. Let us observe that every subdivision of K2 1,k belongs to C DS. To see this, one has to lift pairs of edges that are incident to distinct degree-two vertices. To complete the picture we need to identify the immersion obstruction set of C DS. For this, let Ods be the se… view at source ↗
Figure 29

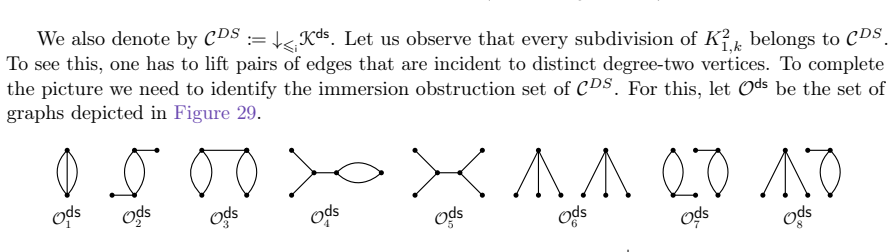

Figure 29. Figure 29: The immersion-obstruction set O ds . Lemma 4.5. obs⩽i (C DS) = Ods . Proof. It is easy to see that for every Ods ∩ CDS = ∅ and moreover that Ods is an immersion-antichain. Let G be a graph such that Ods 1 , Ods 2 , Ods 3 , Ods 4 , Ods 5 , Ods 6 , Ods 7 , Ods 8 ⩽̸i G. Assume that there exist at least two vertices of degree at least three. Let u, v be vertices of degree at least three that are within minimu… view at source ↗
Figure 30

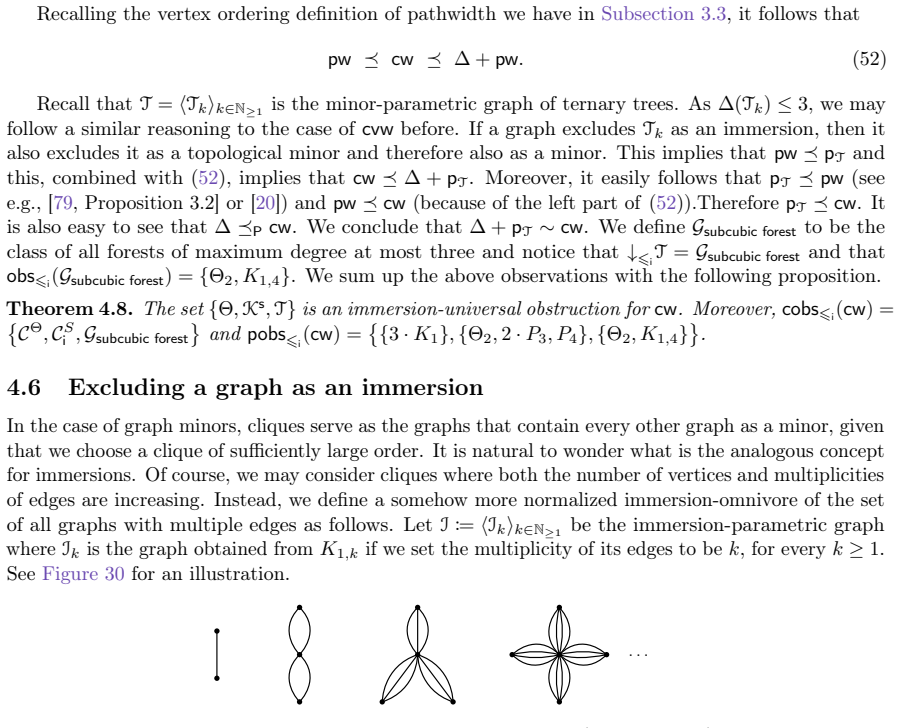

Figure 30. Figure 30: The immersion-parametric graph I = ⟨I1, I2, I3, I4, . . .⟩. Note that the definition of Ik has two “degrees of freedom”, contrary to the definitions of Ks and Kds . Moreover, note that every clique on k vertices is an immersion of Ik. A graph decomposition analogue of pI has been proposed by Wollan [130]. In order to describe it, we use tree-cut decompositions and we need to additionally define the notion… view at source ↗
Figure 31

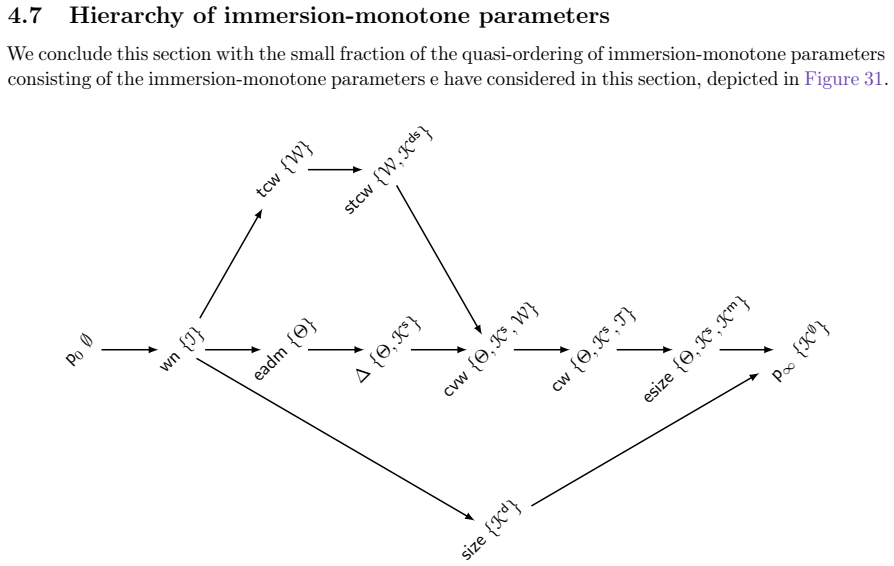

Figure 31. Figure 31: The hierarchy of immersion-monotone parameters. 5 Obstructions of vertex-minor-monotone parameters In this section we turn our focus to the vertex-minor relation and discuss a few key vertex-minor￾monotone parameters and their universal obstructions. Let G be a graph and let v ∈ V (G). The result of a local complementation at a vertex v ∈ V (G) in G is the graph obtained if we remove from G all edges in G… view at source ↗
Figure 32
Figure 32. Figure 32: A graph G and a rank decomposition (T, σ) of G. The partition {σ(L e 1), σ(L e 2)} corresponding to the thick horizontal tree-edge e is {{2, 4}, {1, 5, 3}} and the corresponding matrix MG(e) has rank two. The graph G is a circle graph, as witnessed by its chord diagram on the right. The importance of rankwidth emerged from the fact that it is equivalent to the parameter cliquewidth. Here we avoid giving t… view at source ↗
Figure 33
Figure 33. Figure 33: The (3, 3)-comparability grid and its circle graph representation. Geelen, Kwon, McCarty, and Wollan showed [56] that there exists a function f : N → N so that for every k ∈ N, every graph of rankwidth at least f(k) contains as a vertex-minor the (k×k)-comparability grid G c k . In the same paper, it was observed that every circle graph is a vertex-minor of a comparability grid. As every comparability gri… view at source ↗
Figure 34
Figure 34. Figure 34: The vertex-minor obstruction set of circle graphs [13]. We conclude with the following proposition. Proposition 5.2. The set {G c} is a vertex-minor-universal obstruction for rw. Moreover, cobs⩽v (rw) =  Gcircle and pobs⩽v (rw) =  {W5, W7, W3s 3 } [PITH_FULL_IMAGE:figures/full_fig_p045_34.png] view at source ↗
Figure 35
Figure 35. Figure 35: The vertex-minor obstruction set of paths. We summarize our discussion with the following proposition. Proposition 5.3. The set {P} is a vertex-minor-universal obstruction for rkd. Moreover, cobs⩽v (rkd) =  Gpath vminors and pobs⩽v (rkd) =  {C5, K3p 3 , C2p 4 } [PITH_FULL_IMAGE:figures/full_fig_p046_35.png] view at source ↗
Figure 36
Figure 36. Figure 36: The hierarchy of vertex-minor monotone parameters. We wish to stress that our presentation of vertex-minor-monotone parameters is not exhaustive. There are more vertex-minor-monotone parameters in the literature, for which universal obstructions have been studied. For this we refer the interested reader to [82–84, 101]. 6 Obstructions of other parameters So far, we reviewed parameters that are monotone fo… view at source ↗
Figure 37
Figure 37. Figure 37: Examples of the topological minor-universal obstructions for tree-partition width. Ding and Oporowski [39] proved that there exists a function f : N → N such that every graph G where tpw(G) ≥ f(k) contains as a topological minor one of the graphs Fk, J s k , P ms k , or Wk. This means that the result of [39] can be restated as follows. 49 [PITH_FULL_IMAGE:figures/full_fig_p049_37.png] view at source ↗
Figure 38
Figure 38. Figure 38: The path P3 is a weak-topological-minor of the path P4. The double edge graph Θ2 is a weak￾topological-minor of the cycle C3. It was proved in [93] that etw is monotone under weak-topological-minors. Moreover, [93] gave a weak-topological-minor-universal obstruction for etw with respect to weak topological minors as follows. In Subsection 4.1 we defined Θ = ⟨Θk⟩k∈N, so that Θk is the graph on two vertices… view at source ↗
Figure 39
Figure 39. Figure 39: From left to right, the graphs Θ5, Θ s 5, F s 5, F ss 5 , and Ws 6. 7 Conclusion and open directions Clearly the list of parameters that we examined in this work is far from being complete. We expect that more results are known or will appear that can be stated in terms of the unified framework of universal obstructions. We conclude with some open problems and directions of research on universal obstructi… view at source ↗
read the original abstract

In a recent work, we introduced a parametric framework for obtaining obstruction characterizations of graph parameters with respect to a quasi-ordering $\leqslant$ on graphs. Towards this, we proposed the concepts of class obstruction, parametric obstruction, and universal obstruction as combinatorial objects that determine the approximate behaviour of a graph parameter. In this work, we explore its potential as a unifying framework for classifying graph parameters. Under this framework, we survey existing graph-theoretic results on many known graph parameters. Additionally, we provide some unifying results on their classification.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper surveys existing results on graph parameters under a parametric framework (introduced in the authors' recent prior work) that uses class obstructions, parametric obstructions, and universal obstructions to characterize the approximate behavior of a parameter with respect to a quasi-ordering on graphs. It applies this framework to many known parameters and provides some unifying classification results.

Significance. If the underlying framework holds, the overview offers a systematic lens for connecting disparate obstruction results across structural graph theory, potentially aiding classification of parameters such as treewidth, chromatic number, and others. The compilation of surveyed results and the attempt at unification are explicit strengths of the manuscript.

minor comments (3)
  1. [Abstract and §1] The abstract and introduction should explicitly distinguish which definitions and theorems are restated from the prior framework paper versus newly applied or unified here, to improve self-containment for readers.
  2. [Throughout] Notation for the quasi-ordering ≤ and the obstruction concepts should be checked for consistency across sections where multiple parameters are discussed.
  3. [Survey sections] A brief table or diagram summarizing the surveyed parameters, their orderings, and the type of obstruction identified would enhance readability.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, the recognition of its unifying framework and surveyed results, and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

This paper is explicitly an overview/survey applying the parametric framework (class/parametric/universal obstructions) introduced in the authors' prior work to existing results on graph parameters. The central claim that these concepts determine approximate behaviour w.r.t. a quasi-ordering originates entirely from the referenced prior work, which lies outside this document. No internal equations, predictions, or unifying results in the manuscript reduce by construction to quantities fitted or defined within this paper; the survey nature means all load-bearing content is external and independently established in the cited source.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a survey paper whose claims rest on the validity of the framework defined in the authors' recent prior work and on the accuracy of the surveyed literature. No new free parameters, axioms, or invented entities are introduced in the present document.
