arxiv: 2305.06709 · v4 · submitted 2023-05-11 · 💻 cs.LG · cs.MS· stat.ML

NUBO: A Transparent Python Package for Bayesian Optimization

Mike Diessner , Kevin J. Wilson , Richard D. Whalley This is my paper

Pith reviewed 2026-05-24 08:40 UTC · model grok-4.3

classification 💻 cs.LG cs.MSstat.ML
keywords Bayesian optimizationPython packageblack-box optimizationGaussian processesacquisition functionsconstrained optimizationmixed variablesopen source software
0
0 comments X

The pith

NUBO is a Python package that lets users write their own Bayesian optimization loops with modular, tested components for black-box functions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents NUBO as a framework for optimizing expensive-to-evaluate black-box functions such as physical experiments and computer simulators. It uses Gaussian process surrogate models and acquisition functions but centers on transparency through clean code and documentation plus a modular design that lets users assemble the optimization loop themselves. The package handles sequential single-point, parallel multi-point, and asynchronous runs over bounded, constrained, or mixed discrete-continuous input spaces while restricting itself to a compact set of extensively validated algorithms. This structure aims to give researchers from any discipline access to Bayesian optimization without needing deep Python expertise. If the approach holds, practitioners could adapt the method directly to their own simulators or experiments rather than relying on opaque black-box tools.

Core claim

NUBO supplies a set of building blocks for Bayesian optimization so that users can construct and control the full sequential or parallel procedure themselves, including support for constraints and mixed variable types, while the library stays small by including only algorithms that have been extensively tested and validated.

What carries the argument

Modular building blocks that users combine to write a custom optimization loop around Gaussian process surrogates and acquisition functions.

If this is right

  • Researchers can adapt the optimization procedure to the exact constraints and variable types of their own problem instead of using a fixed pipeline.
  • The same code base supports both single-point sequential runs and parallel or asynchronous evaluations without separate packages.
  • Users avoid an overwhelming choice of algorithms because only validated options are included.
  • The open-source release under BSD 3-Clause allows inspection and modification of every step.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The modular design could be extended by users to incorporate new acquisition functions or surrogate models while preserving the transparency guarantee.
  • Asynchronous support may prove especially useful for experiments where evaluation times vary unpredictably.
  • Clean references in the code could lower the barrier for reproducing or citing specific algorithmic choices in published work.

Load-bearing premise

That restricting the package to a small number of extensively tested algorithms will deliver both reliable performance and simplicity for users across disciplines.

What would settle it

A controlled test in which domain scientists with no prior Python optimization experience attempt to optimize a real simulator or experiment using only the NUBO documentation and report whether they reach a valid optimum without external code assistance.

Figures

Figures reproduced from arXiv: 2305.06709 by Kevin J. Wilson, Mike Diessner, Richard D. Whalley.

Figure 1

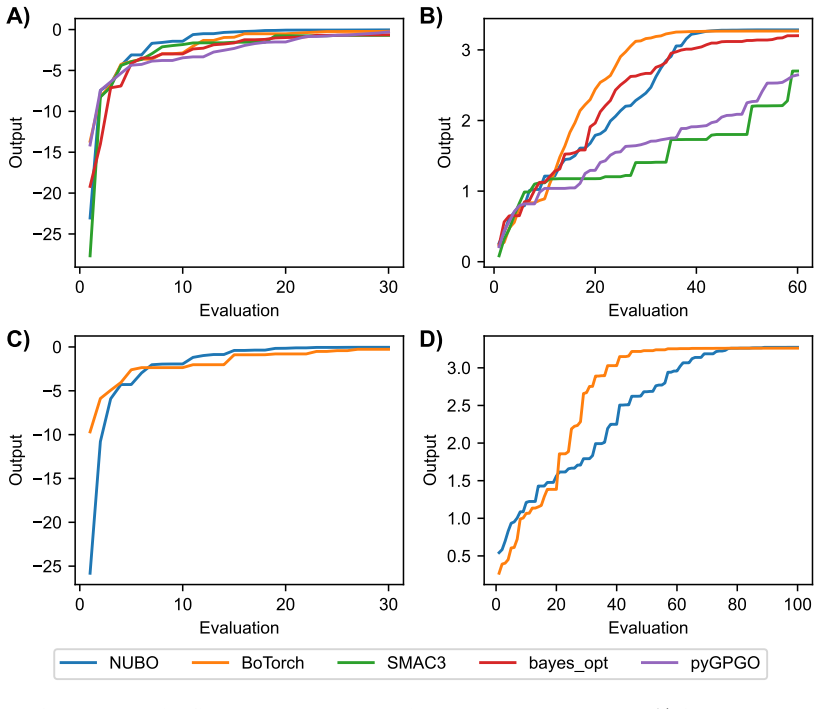

Figure 1. Figure 1: Comparison of different Python packages for Bayesian optimization. A) Sequential single-point optimization on the 2D Levy function; B) Sequential single-point optimization on the 6D Hartmann function; C) Parallel multi-point optimization with a batch size of four on the 2D Levy function; D) Parallel multi-point optimization with a batch size of four on the 6D Hartmann function. Besides implementations in P… view at source ↗
Figure 2

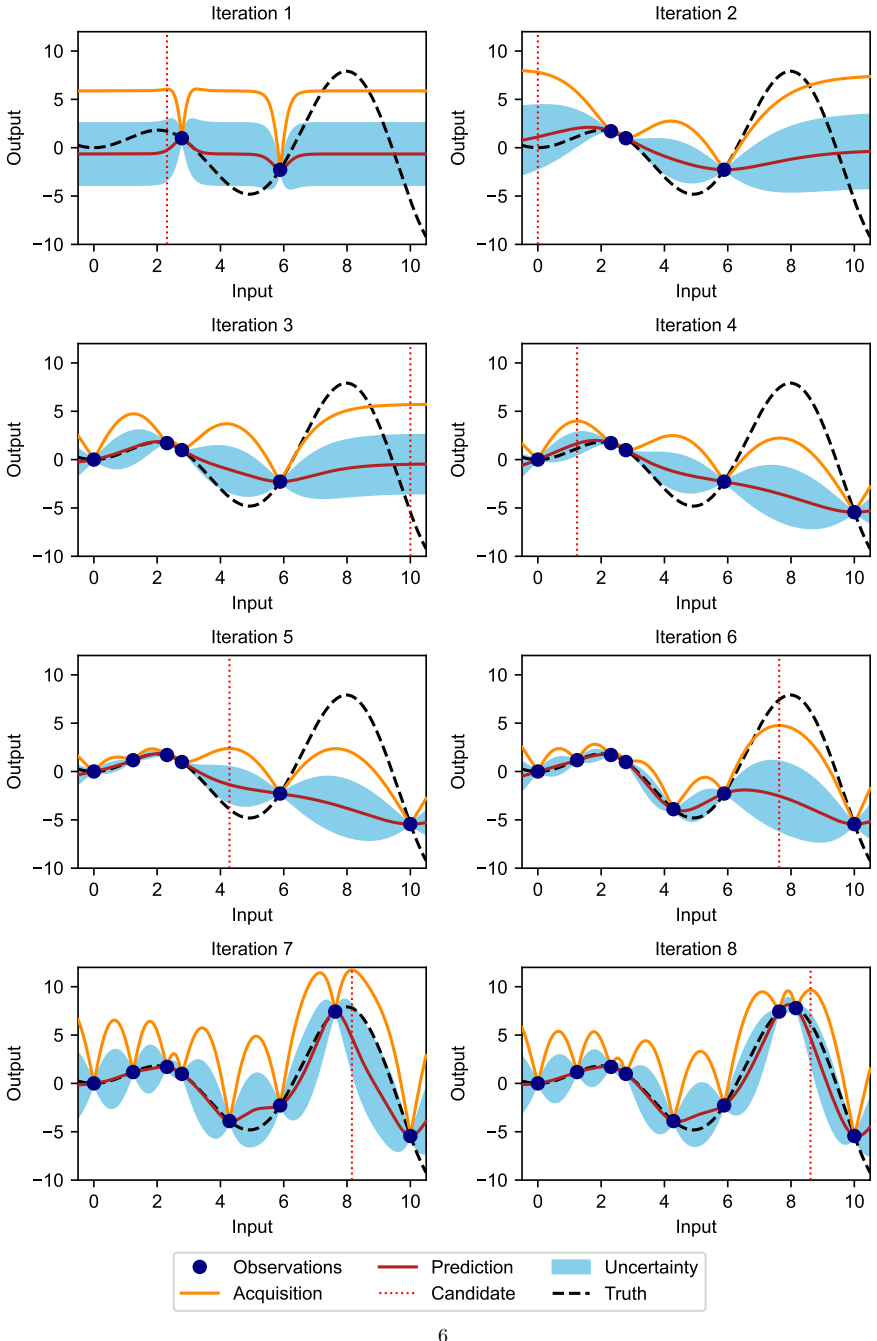

Figure 2. Figure 2: Bayesian optimization applied to a 1-dimensional function with one local and one global maximum. 6 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

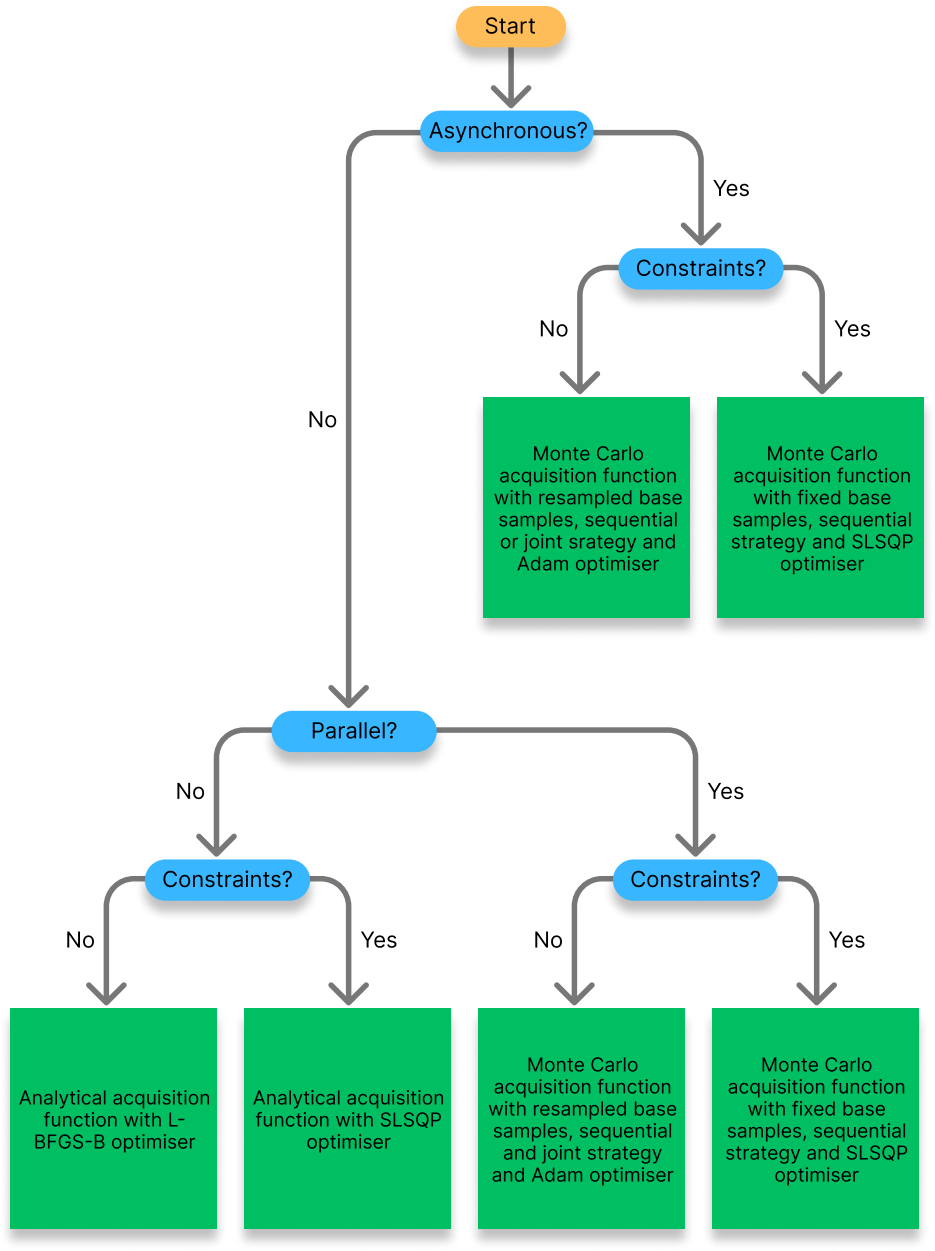

Figure 3. Figure 3: NUBO flowchart. Overview of the recommended algorithms for specific problems. Start in yellow, decisions in blue, and recommended algorithm in green. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

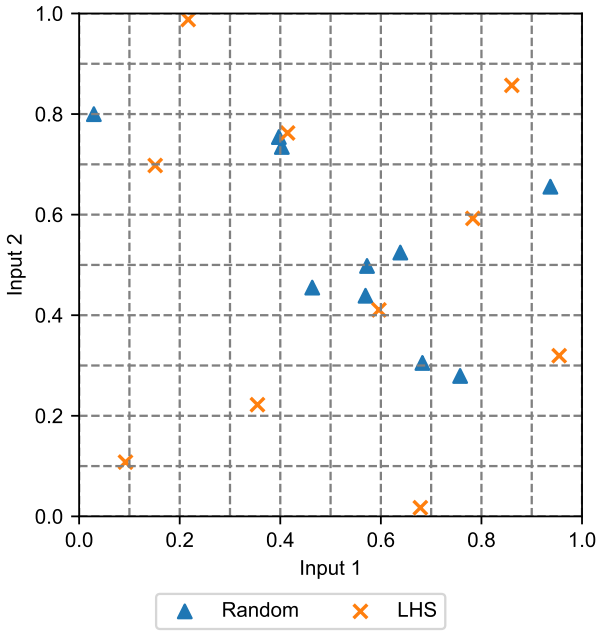

Figure 4. Figure 4: Latin hypercube sampling compared to random sampling. [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5

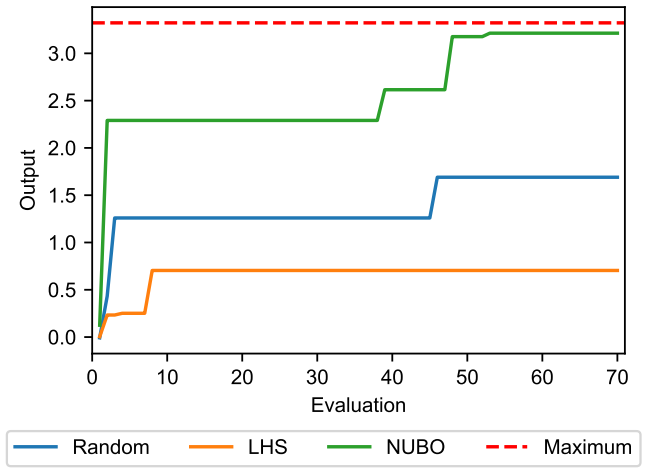

Figure 5. Figure 5: Results of the Bayesian optimization algorithm implemented with [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
read the original abstract

NUBO, short for Newcastle University Bayesian Optimisation, is a Bayesian optimization framework for the optimization of expensive-to-evaluate black-box functions, such as physical experiments and computer simulators. Bayesian optimization is a costefficient optimization strategy that uses surrogate modelling via Gaussian processes to represent an objective function and acquisition functions to guide the selection of candidate points to approximate the global optimum of the objective function. NUBO itself focuses on transparency and user experience to make Bayesian optimization easily accessible to researchers from all disciplines. Clean and understandable code, precise references, and thorough documentation ensure transparency, while user experience is ensured by a modular and flexible design, easy-to-write syntax, and careful selection of Bayesian optimization algorithms. NUBO allows users to tailor Bayesian optimization to their specific problem by writing the optimization loop themselves using the provided building blocks. It supports sequential single-point, parallel multi-point, and asynchronous optimization of bounded, constrained, and/or mixed (discrete and continuous) parameter input spaces. Only algorithms and methods that are extensively tested and validated to perform well are included in NUBO. This ensures that the package remains compact and does not overwhelm the user with an unnecessarily large number of options. The package is written in Python but does not require expert knowledge of Python to optimize your simulators and experiments. NUBO is distributed as open-source software under the BSD 3-Clause license.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript presents NUBO, a Python package for Bayesian optimization of expensive black-box functions. It emphasizes transparency through clean code and documentation, modularity allowing users to construct custom optimization loops, and support for sequential single-point, parallel multi-point, and asynchronous optimization over bounded, constrained, and mixed (discrete/continuous) input spaces. The design rationale includes restricting the included algorithms to those that are 'extensively tested and validated to perform well' in order to keep the package compact.

Significance. If the transparency, modularity, and selection of reliable methods are delivered as described, NUBO could serve as a practical, accessible tool for researchers in machine learning and experimental sciences who need Bayesian optimization without requiring deep expertise in the underlying methods. The open-source BSD license and focus on user-written loops are positive features for reproducibility and customization.

major comments (1)
  1. [Abstract] Abstract: The central design claim that 'Only algorithms and methods that are extensively tested and validated to perform well are included in NUBO' is presented without any supporting citations, benchmark results, or references to validation studies for the chosen acquisition functions, GP variants, or other components. This premise directly supports both the compactness justification and the assertion of reliable performance, yet no evidence is supplied in the manuscript.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive report and positive assessment of NUBO. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central design claim that 'Only algorithms and methods that are extensively tested and validated to perform well are included in NUBO' is presented without any supporting citations, benchmark results, or references to validation studies for the chosen acquisition functions, GP variants, or other components. This premise directly supports both the compactness justification and the assertion of reliable performance, yet no evidence is supplied in the manuscript.

    Authors: We agree that the design claim would benefit from explicit supporting references. The included methods (e.g., expected improvement, upper confidence bound, standard Gaussian process regression) were selected because they are supported by extensive prior validation in the Bayesian optimization literature. In the revised manuscript we will add citations to key validation studies and review papers (such as Jones et al. 1998 for EI, Srinivas et al. 2010 for UCB, and Rasmussen & Williams 2006 for GPs) that demonstrate reliable performance of these components. This addition will substantiate the compactness rationale without altering the package scope or introducing new methods. revision: yes

Circularity Check

0 steps flagged

No circularity: software description paper with no derivations

full rationale

This is a software package announcement paper. It contains no equations, no predictions of quantities, no fitted parameters, and no derivation chain. The design statement that only 'extensively tested' algorithms are included is a selection criterion, not a mathematical claim that reduces to its own inputs by construction. No self-citation load-bearing steps or ansatz smuggling occur. The paper is self-contained as a description of code and features.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper introduces no mathematical content, free parameters, axioms, or invented entities; it is a description of a software implementation of existing methods.

pith-pipeline@v0.9.0 · 5784 in / 1048 out tokens · 20761 ms · 2026-05-24T08:40:58.664821+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

41 extracted references · 41 canonical work pages · 2 internal anchors
