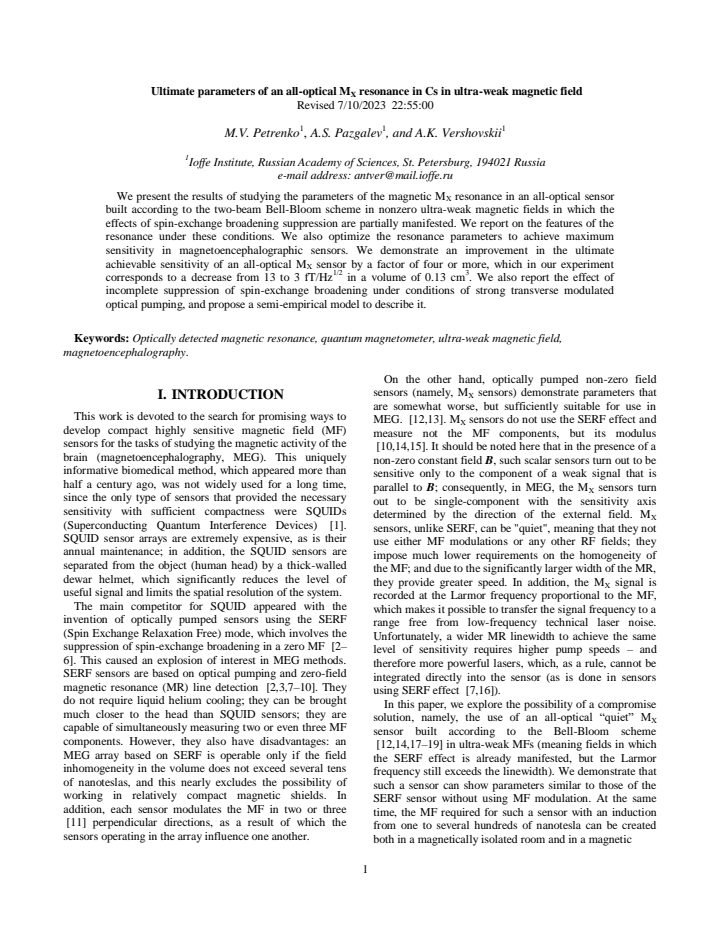

Ultimate parameters of an all-optical MX resonance in Cs in ultra-weak magnetic field

M.V. Petrenko , A.S. Pazgalev , A.K. Vershovskii This is my paper

Pith reviewed 2026-05-24 08:16 UTC · model grok-4.3

classification ⚛️ physics.optics physics.atom-phphysics.med-ph
keywords MX resonanceall-optical sensorspin-exchange broadeningBell-Bloom schemecesiumultra-weak magnetic fieldmagnetoencephalographyoptical pumping
0
0 comments X

The pith

Optimizing the MX resonance in an all-optical cesium sensor improves sensitivity by a factor of four or more to 3 fT/Hz^{1/2} in ultra-weak fields.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors study the magnetic MX resonance in a two-beam Bell-Bloom all-optical sensor operating in ultra-weak nonzero magnetic fields. In these conditions, spin-exchange broadening suppression effects appear only partially. They optimize the resonance parameters specifically for use in magnetoencephalographic sensors. This optimization yields a sensitivity of 3 fT/Hz^{1/2} in a volume of 0.13 cm³, an improvement by a factor of four or more. They also describe incomplete suppression under strong transverse modulated optical pumping with a semi-empirical model.

Core claim

The MX resonance in the all-optical sensor shows partial manifestation of spin-exchange broadening suppression in ultra-weak magnetic fields. Optimization of its parameters achieves a sensitivity improvement by a factor of four or more, reaching 3 fT/Hz^{1/2} in 0.13 cm³ volume. A semi-empirical model accounts for the observed incomplete suppression of spin-exchange broadening under strong transverse modulated optical pumping.

What carries the argument

The MX resonance in the two-beam Bell-Bloom scheme under strong transverse modulated optical pumping, described by a semi-empirical model for incomplete spin-exchange broadening suppression.

If this is right

  • Magnetoencephalographic sensors can achieve higher sensitivity with the optimized resonance.
  • The sensitivity limit improves from 13 to 3 fT/Hz^{1/2} in the given volume.
  • Resonance features in ultra-weak fields enable better performance than in stronger fields.
  • The model allows prediction of resonance behavior for parameter tuning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The semi-empirical model may apply to similar all-optical sensors using other atomic species.
  • Further refinement of pumping conditions could yield additional sensitivity gains beyond the reported value.
  • The partial suppression effect suggests limits on how far sensitivity can improve in this configuration.

Load-bearing premise

The semi-empirical model accurately captures the incomplete suppression of spin-exchange broadening under strong transverse modulated optical pumping without requiring additional unaccounted physical effects or post-hoc adjustments.

What would settle it

Measuring a sensitivity no better than 13 fT/Hz^{1/2} when using the optimized resonance parameters in the same 0.13 cm³ volume would falsify the claimed improvement.

read the original abstract

We present the results of studying the parameters of the magnetic MX resonance in an all-optical sensor built according to the two-beam Bell-Bloom scheme in nonzero ultra-weak magnetic fields in which the effects of spin-exchange broadening suppression are partially manifested. We report on the features of the resonance under these conditions. We also optimize the resonance parameters to achieve maximum sensitivity in magnetoencephalographic sensors. We demonstrate an improvement in the ultimate achievable sensitivity of an all-optical MX sensor by a factor of four or more, which in our experiment corresponds to a decrease from 13 to 3 fT/Hz1/2 in a volume of 0.13 cm3. We also report the effect of incomplete suppression of spin-exchange broadening under conditions of strong transverse modulated optical pumping, and propose a semi-empirical model to describe it.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports an experimental investigation of the magnetic MX resonance in an all-optical cesium sensor using the two-beam Bell-Bloom scheme in ultra-weak nonzero magnetic fields, where spin-exchange broadening suppression is only partially manifested. It describes resonance features under these conditions, optimizes parameters to maximize sensitivity for magnetoencephalographic applications, claims a sensitivity improvement by a factor of four or more (from 13 to 3 fT/Hz^{1/2} in a 0.13 cm^{3} volume), and proposes a semi-empirical model to account for incomplete suppression of spin-exchange broadening under strong transverse modulated optical pumping.

Significance. If the experimental optimization and semi-empirical model hold after detailed validation, the reported factor-of-four sensitivity gain in a compact volume would represent a meaningful advance for all-optical magnetometry in biomedical sensing, particularly for magnetoencephalography where higher sensitivity in small sensors is desirable.

major comments (1)
  1. [Abstract] Abstract: The central claim of a factor-of-four sensitivity improvement (13 to 3 fT/Hz^{1/2}) is load-bearing on the semi-empirical model for incomplete spin-exchange suppression under strong transverse modulated pumping. The provided text states the model is proposed but supplies no detailed experimental datasets, error analysis, raw resonance curves, or quantitative validation against the model predictions, preventing independent assessment of whether unaccounted physical effects are present.
minor comments (2)
  1. The manuscript would benefit from explicit statements of the experimental methods, including cell parameters, laser powers, modulation frequencies, and the precise fitting procedure used to extract linewidth and amplitude.
  2. Notation for the sensitivity figure (fT/Hz1/2) should be standardized to fT/Hz^{1/2} throughout for clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the need for stronger validation of the semi-empirical model. We address the major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of a factor-of-four sensitivity improvement (13 to 3 fT/Hz^{1/2}) is load-bearing on the semi-empirical model for incomplete spin-exchange suppression under strong transverse modulated pumping. The provided text states the model is proposed but supplies no detailed experimental datasets, error analysis, raw resonance curves, or quantitative validation against the model predictions, preventing independent assessment of whether unaccounted physical effects are present.

    Authors: The sensitivity values (13 fT/Hz^{1/2} before optimization and 3 fT/Hz^{1/2} after) are obtained directly from measured resonance amplitudes and noise floors in the experiment; they do not rely on the model. The semi-empirical model is proposed only to account for the observed incomplete spin-exchange suppression under strong transverse modulated pumping, as seen in the resonance linewidth behavior. We agree that the manuscript would be strengthened by explicit quantitative validation. In revision we will add raw resonance curves, fitting procedures with uncertainties, and direct comparisons of model predictions to the experimental data. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental results self-contained

full rationale

The paper reports direct experimental measurements of resonance parameters and sensitivity (13 to 3 fT/Hz^{1/2}) in an all-optical MX sensor. The semi-empirical model is explicitly proposed to describe an observed effect (incomplete spin-exchange suppression) rather than serving as a load-bearing derivation that reduces the sensitivity claim to a fit or self-citation by construction. No equations or steps are shown to equate predictions to inputs tautologically; the central claims rest on measured data in a 0.13 cm^{3} volume.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on the validity of the Bell-Bloom scheme implementation and the accuracy of the semi-empirical model for spin-exchange effects; the model introduces fitted parameters whose values are not specified in the abstract.

free parameters (1)
  • semi-empirical model parameters
    The model for incomplete spin-exchange suppression under strong pumping requires fitted coefficients to match observed resonance widths.
axioms (1)
  • domain assumption The two-beam Bell-Bloom scheme produces the expected MX resonance lineshape in the described regime
    The optimization and sensitivity claims rest on the standard operation of this pumping-probing configuration.

pith-pipeline@v0.9.0 · 5685 in / 1239 out tokens · 47009 ms · 2026-05-24T08:16:19.024298+00:00 · methodology
