Steering nonlocality in high-speed telecommunication system without detection loophole
Pith reviewed 2026-05-24 02:10 UTC · model grok-4.3
The pith
A chip-fiber telecommunication system demonstrates the first detection-loophole-free steering nonlocality with time-bin entangled photons at 1.25 GHz switching rate.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors establish the first demonstration of detection-loophole-free steering nonlocality with time-bin entangled states in a fully integrated chip-fiber telecommunication system. By employing phase-encoding measurements and a low-loss silicon chip for entanglement generation, combined with an asymmetric setup that mimics active measurements at the steering party, they achieve the necessary detection efficiencies for conclusive steering with multiple switched settings at 1.25 GHz. This overcomes previous limitations in applicability due to loopholes and losses.
What carries the argument
The phase-encoding measurement scheme adapted to time-bin entanglement combined with an asymmetric configuration that bypasses phase modulation loss while maintaining high detection efficiency.
If this is right
- The system provides an immediate platform for applications based on steering nonlocality in quantum communication.
- High-speed operation at 1.25 GHz becomes feasible in fiber-optic networks.
- Chip-based sources can support loophole-free nonlocality demonstrations in telecom wavelengths.
- Multiple measurement settings can be actively switched without compromising the detection efficiency.
Where Pith is reading between the lines
- Extending this to longer fiber distances could test steering over metropolitan networks.
- Integration with standard telecom components might allow hybrid classical-quantum systems.
- The method could be adapted to other entanglement types like polarization for broader compatibility.
Load-bearing premise
The asymmetric configuration actually replicates the required active measurements with sufficient detection efficiency and accurate phase encoding to close the detection loophole.
What would settle it
Observing a detection efficiency below the threshold needed for the steering inequality or finding that the phase modulations do not correspond to the intended measurement bases would disprove the loophole-free demonstration.

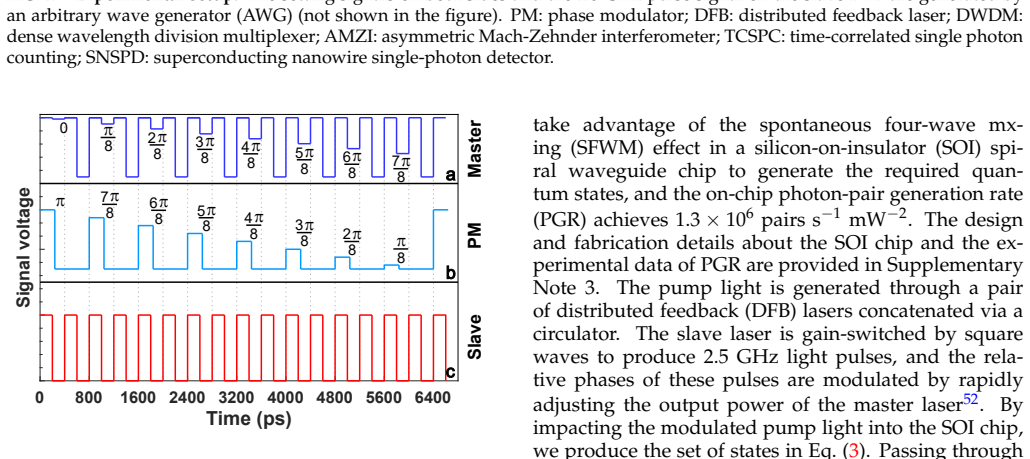

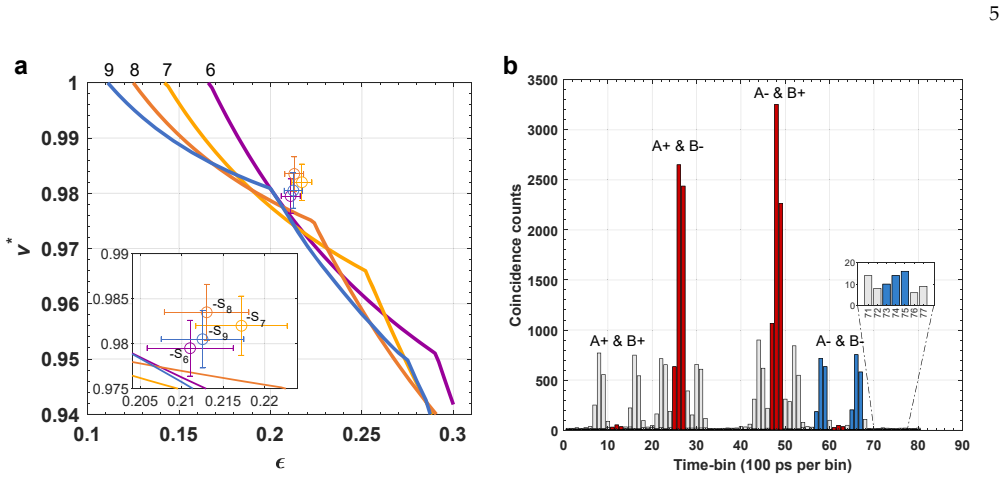

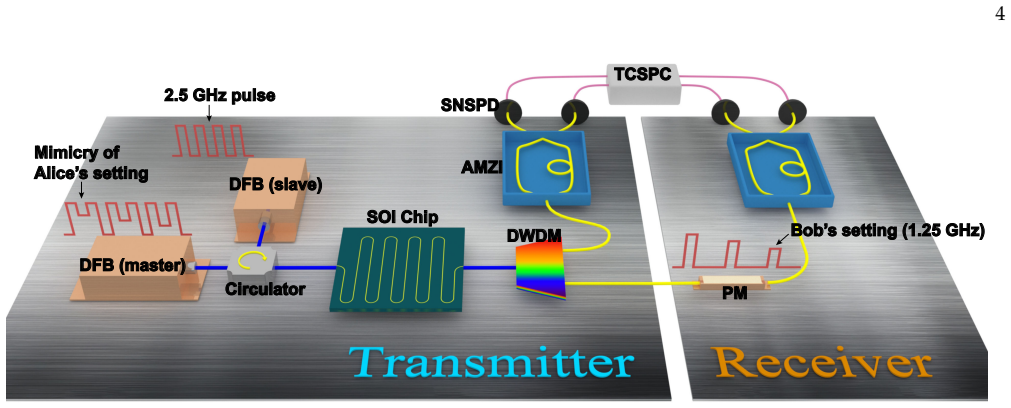

Figures
read the original abstract
Nonlocal correlation represents the key feature of quantum mechanics, and is an exploitable resource in quantum information processing. However, the loophole issues and the associated applicability compromises hamper the practical applications. We report the first time-bin entangled detection-loophole-free steering nonlocality demonstration in a fully chip-fiber telecommunication system, with an ultra-fast measurement switching rate (1.25~GHz). In this endeavor, we propose the phase-encoding measurement scheme to adapt the system to time-bin degree of freedom, and design and fabricate a low-loss silicon chip for efficient entanglement generation. An asymmetric configuration is introduced to mimic the active measurement implementation at the steering party thus bypassing the phase modulation loss. Consequently, we build a fiber-optic setup that can overcome the detection efficiency required by conclusive quantum steering with multiple actively switched measurement settings. Our setup presents an immediate platform for exploring applications based on steering nonlocality, especially for quantum communication.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports the first experimental demonstration of detection-loophole-free steering nonlocality using time-bin entangled photons generated on a low-loss silicon chip and distributed via fiber in a telecommunication-wavelength system. It achieves an ultra-fast 1.25 GHz measurement switching rate through a phase-encoding scheme and introduces an asymmetric configuration at the steering party to avoid phase-modulator losses while claiming the overall detection efficiency meets the threshold for conclusive steering with multiple actively switched settings.
Significance. If the efficiency threshold is rigorously shown to be exceeded, the result would provide a practical, high-speed platform for steering-based quantum protocols in existing telecom infrastructure, removing the fair-sampling assumption that has limited prior demonstrations.
major comments (1)
- [Setup description and efficiency analysis (results/methods)] The loophole-free claim is load-bearing on the steered party's net detection efficiency (fiber + chip + detector losses) exceeding the critical bound for the specific steering inequality and number of measurement settings. The asymmetric configuration is introduced precisely to bypass phase-modulation loss, yet the manuscript must supply the explicit numerical efficiency value, all loss contributions, and the calculated threshold (with reference to the inequality) to confirm the bound is surpassed; without this comparison the demonstration reduces to a fair-sampling assumption.
minor comments (1)
- [Abstract] The abstract states the setup 'can overcome the detection efficiency required' but does not quote the achieved efficiency or the number of settings; adding these numbers would improve clarity.
Simulated Author's Rebuttal
We thank the referee for their detailed review and for identifying the need for explicit efficiency documentation to support the loophole-free claim. We address the major comment below and will incorporate the requested details in a revised manuscript.
read point-by-point responses
-
Referee: [Setup description and efficiency analysis (results/methods)] The loophole-free claim is load-bearing on the steered party's net detection efficiency (fiber + chip + detector losses) exceeding the critical bound for the specific steering inequality and number of measurement settings. The asymmetric configuration is introduced precisely to bypass phase-modulation loss, yet the manuscript must supply the explicit numerical efficiency value, all loss contributions, and the calculated threshold (with reference to the inequality) to confirm the bound is surpassed; without this comparison the demonstration reduces to a fair-sampling assumption.
Authors: We agree that the manuscript must provide an explicit, quantitative comparison rather than a qualitative claim. In the revised version we will add a dedicated paragraph (and accompanying table) in the Methods/Results section that lists every loss term in the steered party's path (fiber transmission, chip coupling, detector efficiency, and any other contributions), states the measured net detection efficiency, identifies the precise steering inequality and number of settings used, and shows the calculated critical efficiency threshold with the relevant reference. This addition will demonstrate that the bound is exceeded and remove any reliance on fair sampling. revision: yes
Circularity Check
No circularity: experimental demonstration with independent setup validation
full rationale
The paper reports an experimental realization of time-bin entangled steering nonlocality in a chip-fiber system, claiming detection-loophole-free operation at 1.25 GHz switching. No derivation chain, first-principles prediction, or fitted parameter is present that reduces to its own inputs. The asymmetric configuration is a physical design choice to avoid modulator loss at one party; its efficacy is asserted via measured efficiencies and the steering inequality, not by redefining the target quantity. Self-citations (if any) are not load-bearing for the central experimental claim. The result is self-contained against external benchmarks of detection efficiency and switching rate.
Axiom & Free-Parameter Ledger
axioms (1)
- standard math Standard quantum mechanics and the formal definition of quantum steering
Reference graph
Works this paper leans on
-
[1]
author author H. M. \ Wiseman , author S. J. \ Jones , \ and\ author A. C. \ Doherty ,\ title title Steering, Entanglement , Nonlocality , and the Einstein-Podolsky-Rosen Paradox , \ 10.1103/PhysRevLett.98.140402 journal journal Phys. Rev. Lett. \ volume 98 ,\ pages 140402 ( year 2007 ) NoStop
-
[2]
author author R. Uola , author A. C. S. \ Costa , author H. C. \ Nguyen , \ and\ author O. G \"u hne ,\ title title Quantum steering , \ 10.1103/RevModPhys.92.015001 journal journal Rev. Mod. Phys. \ volume 92 ,\ pages 015001 ( year 2020 ) NoStop
-
[3]
author author B. Hensen , author H. Bernien , author A. E. \ Dr \'e au , author A. Reiserer , author N. Kalb , author M. S. \ Blok , author J. Ruitenberg , author R. F. L. \ Vermeulen , author R. N. \ Schouten , author C. Abell \'a n , author W. Amaya , author V. Pruneri , author M. W. \ Mitchell , author M. Markham , author D. J. \ Twitchen , author D. E...
-
[4]
author author L. K. \ Shalm , author E. Meyer-Scott , author B. G. \ Christensen , author P. Bierhorst , author M. A. \ Wayne , author M. J. \ Stevens , author T. Gerrits , author S. Glancy , author D. R. \ Hamel , author M. S. \ Allman , author K. J. \ Coakley , author S. D. \ Dyer , author C. Hodge , author A. E. \ Lita , author V. B. \ Verma , author C...
-
[5]
author author M. Giustina , author M. A. M. \ Versteegh , author S. Wengerowsky , author J. Handsteiner , author A. Hochrainer , author K. Phelan , author F. Steinlechner , author J. Kofler , author J.- . \ Larsson , author C. Abell \'a n , author W. Amaya , author V. Pruneri , author M. W. \ Mitchell , author J. Beyer , author T. Gerrits , author A. E. \...
-
[6]
a r , author A. Kulikov , author P. Magnard , author P. Kurpiers , author J. L \
author author S. Storz , author J. Sch \"a r , author A. Kulikov , author P. Magnard , author P. Kurpiers , author J. L \"u tolf , author T. Walter , author A. Copetudo , author K. Reuer , author A. Akin , author J.-C. \ Besse , author M. Gabureac , author G. J. \ Norris , author A. Rosario , author F. Martin , author J. Martinez , author W. Amaya , autho...
-
[7]
author author N. Brunner , author D. Cavalcanti , author S. Pironio , author V. Scarani , \ and\ author S. Wehner ,\ title title Bell nonlocality , \ 10.1103/RevModPhys.86.419 journal journal Rev. Mod. Phys. \ volume 86 ,\ pages 419--478 ( year 2014 ) NoStop
-
[8]
author author R. Horodecki , author P. Horodecki , author M. Horodecki , \ and\ author K. Horodecki ,\ title title Quantum entanglement , \ 10.1103/RevModPhys.81.865 journal journal Rev. Mod. Phys. \ volume 81 ,\ pages 865--942 ( year 2009 ) NoStop
-
[9]
author author S. Jones , author H. Wiseman , \ and\ author A. Doherty ,\ title title Entanglement, Einstein-Podolsky-Rosen correlations, Bell nonlocality, and steering , \ 10.1103/PhysRevA.76.052116 journal journal Phys. Rev. A \ volume 76 ,\ pages 052116 ( year 2007 ) NoStop
-
[10]
author author D. J. \ Saunders , author S. J. \ Jones , author H. M. \ Wiseman , \ and\ author G. J. \ Pryde ,\ title title Experimental EPR-steering using Bell-local states , \ 10.1038/nphys1766 journal journal Nat. Phys. \ volume 6 ,\ pages 845--849 ( year 2010 ) NoStop
-
[11]
author author M. Reid ,\ title title Demonstration of the Einstein-Podolsky-Rosen paradox using nondegenerate parametric amplification , \ 10.1103/PhysRevA.40.913 journal journal Phys. Rev. A \ volume 40 ,\ pages 913--923 ( year 1989 ) NoStop
-
[12]
author author E. Cavalcanti , author S. Jones , author H. Wiseman , \ and\ author M. Reid ,\ title title Experimental criteria for steering and the Einstein-Podolsky-Rosen paradox , \ 10.1103/PhysRevA.80.032112 journal journal Phys. Rev. A \ volume 80 ,\ pages 032112 ( year 2009 ) NoStop
-
[13]
author author Q. Y. \ He \ and\ author M. D. \ Reid ,\ title title Genuine Multipartite Einstein-Podolsky-Rosen Steering , \ 10.1103/PhysRevLett.111.250403 journal journal Phys. Rev. Lett. \ volume 111 ,\ pages 250403 ( year 2013 ) NoStop
-
[14]
author author I. Kogias , author A. R. \ Lee , author S. Ragy , \ and\ author G. Adesso ,\ title title Quantification of Gaussian Quantum Steering , \ 10.1103/PhysRevLett.114.060403 journal journal Phys. Rev. Lett. \ volume 114 ,\ pages 060403 ( year 2015 ) NoStop
-
[15]
author author C. de Gois , author M. Pl \'a vala , author R. Schwonnek , \ and\ author O. G \"u hne ,\ title title Complete Hierarchy for High-Dimensional Steering Certification , \ 10.1103/PhysRevLett.131.010201 journal journal Phys. Rev. Lett. \ volume 131 ,\ pages 010201 ( year 2023 ) NoStop
-
[16]
author author Q. Zeng , author J. Shang , author H. C. \ Nguyen , \ and\ author X. Zhang ,\ title title Reliable experimental certification of one-way einstein-podolsky-rosen steering , \ 10.1103/PhysRevResearch.4.013151 journal journal Phys. Rev. Res. \ volume 4 ,\ pages 013151 ( year 2022 ) NoStop
-
[17]
author author N. Tischler , author F. Ghafari , author T. J. \ Baker , author S. Slussarenko , author R. B. \ Patel , author M. M. \ Weston , author S. Wollmann , author L. K. \ Shalm , author V. B. \ Verma , author S. W. \ Nam , author H. C. \ Nguyen , author H. M. \ Wiseman , \ and\ author G. J. \ Pryde ,\ title title Conclusive Experimental Demonstrati...
-
[18]
author author S. Kocsis , author M. J. W. \ Hall , author A. J. \ Bennet , author D. J. \ Saunders , \ and\ author G. J. \ Pryde ,\ title title Experimental measurement-device-independent verification of quantum steering , \ 10.1038/ncomms6886 journal journal Nat. Commun. \ volume 6 ,\ pages 5886 ( year 2015 ) NoStop
-
[19]
author author Q. Zeng , author B. Wang , author P. Li , \ and\ author X. Zhang ,\ title title Experimental High-Dimensional Einstein-Podolsky-Rosen Steering , \ 10.1103/PhysRevLett.120.030401 journal journal Phys. Rev. Lett. \ volume 120 ,\ pages 030401 ( year 2018 ) NoStop
-
[20]
author author R. Qu , author Y. Wang , author M. An , author F. Wang , author Q. Quan , author H. Li , author H. Gao , author F. Li , \ and\ author P. Zhang ,\ title title Retrieving High-Dimensional Quantum Steering from a Noisy Environment with N Measurement Settings , \ 10.1103/PhysRevLett.128.240402 journal journal Phys. Rev. Lett. \ volume 128 ,\ pag...
-
[21]
author author V. Srivastav , author N. H. \ Valencia , author W. McCutcheon , author S. Leedumrongwatthanakun , author S. Designolle , author R. Uola , author N. Brunner , \ and\ author M. Malik ,\ title title Quick Quantum Steering : Overcoming Loss and Noise with Qudits , \ 10.1103/PhysRevX.12.041023 journal journal Phys. Rev. X \ volume 12 ,\ pages 041...
-
[22]
author author S. Slussarenko , author D. J. \ Joch , author N. Tischler , author F. Ghafari , author L. K. \ Shalm , author V. B. \ Verma , author S. W. \ Nam , \ and\ author G. J. \ Pryde ,\ title title Quantum steering with vector vortex photon states with the detection loophole closed , \ 10.1038/s41534-022-00531-5 journal journal npj Quantum Inf. \ vo...
-
[23]
author author V. H \"a ndchen , author T. Eberle , author S. Steinlechner , author A. Samblowski , author T. Franz , author R. F. \ Werner , \ and\ author R. Schnabel ,\ title title Observation of one-way Einstein Podolsky Rosen steering , \ 10.1038/nphoton.2012.202 journal journal Nat. Photon. \ volume 6 ,\ pages 596--599 ( year 2012 ) NoStop
-
[24]
author author S. Armstrong , author M. Wang , author R. Y. \ Teh , author Q. Gong , author Q. He , author J. Janousek , author H.-A. \ Bachor , author M. D. \ Reid , \ and\ author P. K. \ Lam ,\ title title Multipartite Einstein Podolsky Rosen steering and genuine tripartite entanglement with optical networks , \ 10.1038/nphys3202 journal journal Nat. Phy...
-
[25]
author author M. M. \ Weston , author S. Slussarenko , author H. M. \ Chrzanowski , author S. Wollmann , author L. K. \ Shalm , author V. B. \ Verma , author M. S. \ Allman , author S. W. \ Nam , \ and\ author G. J. \ Pryde ,\ title title Heralded quantum steering over a high-loss channel , \ 10.1126/sciadv.1701230 journal journal Sci. Adv. \ volume 4 ,\ ...
-
[26]
author author Y.-Y. \ Zhao , author C. Zhang , author S. Cheng , author X. Li , author Y. Guo , author B.-H. \ Liu , author H.-Y. \ Ku , author S.-L. \ Chen , author Q. Wen , author Y.-F. \ Huang , author G.-Y. \ Xiang , author C.-F. \ Li , \ and\ author G.-C. \ Guo ,\ title title Device-independent verification of Einstein Podolsky Rosen steering , \ 10....
-
[27]
author author C. Branciard , author E. G. \ Cavalcanti , author S. P. \ Walborn , author V. Scarani , \ and\ author H. M. \ Wiseman ,\ title title One-sided device-independent quantum key distribution: Security , feasibility, and the connection with steering , \ 10.1103/PhysRevA.85.010301 journal journal Phys. Rev. A \ volume 85 ,\ pages 010301(R) ( year ...
-
[28]
author author M. Reid ,\ title title Signifying quantum benchmarks for qubit teleportation and secure quantum communication using Einstein-Podolsky-Rosen steering inequalities , \ 10.1103/PhysRevA.88.062338 journal journal Phys. Rev. A \ volume 88 ,\ pages 062338 ( year 2013 ) NoStop
-
[29]
author author Y. Xiang , author I. Kogias , author G. Adesso , \ and\ author Q. He ,\ title title Multipartite Gaussian steering: Monogamy constraints and quantum cryptography applications , \ 10.1103/PhysRevA.95.010101 journal journal Phys. Rev. A \ volume 95 ,\ pages 010101(R) ( year 2017 ) NoStop
-
[30]
author author P. Skrzypczyk \ and\ author D. Cavalcanti ,\ title title Maximal randomness generation from steering inequality violations using qudits , \ 10.1103/PhysRevLett.120.260401 journal journal Phys. Rev. Lett. \ volume 120 ,\ pages 260401 ( year 2018 ) NoStop
-
[31]
author author Y. Guo , author S. Cheng , author X. Hu , author B.-H. \ Liu , author E.-M. \ Huang , author Y.-F. \ Huang , author C.-F. \ Li , author G.-C. \ Guo , \ and\ author E. G. \ Cavalcanti ,\ title title Experimental Measurement-Device-Independent Quantum Steering and Randomness Generation Beyond Qubits , \ 10.1103/PhysRevLett.123.170402 journal j...
-
[32]
author author M. Piani \ and\ author J. Watrous ,\ title title All Entangled States are Useful for Channel Discrimination , \ 10.1103/PhysRevLett.102.250501 journal journal Phys. Rev. Lett. \ volume 102 ,\ pages 250501 ( year 2009 ) NoStop
-
[33]
author author S. Pironio , author A. Ac \'i n , author N. Brunner , author N. Gisin , author S. Massar , \ and\ author V. Scarani ,\ title title Device-independent quantum key distribution secure against collective attacks , \ 10.1088/1367-2630/11/4/045021 journal journal New J. Phys. \ volume 11 ,\ pages 045021 ( year 2009 ) NoStop
-
[34]
author author B. Wittmann , author S. Ramelow , author F. Steinlechner , author N. K. \ Langford , author N. Brunner , author H. M. \ Wiseman , author R. Ursin , \ and\ author A. Zeilinger ,\ title title Loophole-free Einstein Podolsky Rosen experiment via quantum steering , \ 10.1088/1367-2630/14/5/053030 journal journal New J. Phys. \ volume 14 ,\ pages...
-
[35]
author author N. Gisin \ and\ author B. Gisin ,\ title title A local hidden variable model of quantum correlation exploiting the detection loophole , \ 10.1016/S0375-9601(99)00519-8 journal journal Phys. Lett. A \ volume 260 ,\ pages 323--327 ( year 1999 ) NoStop
-
[36]
author author A. J. \ Bennet , author D. A. \ Evans , author D. J. \ Saunders , author C. Branciard , author E. G. \ Cavalcanti , author H. M. \ Wiseman , \ and\ author G. J. \ Pryde ,\ title title Arbitrarily Loss-Tolerant Einstein-Podolsky-Rosen Steering Allowing a Demonstration over 1 km of Optical Fiber with No Detection Loophole , \ 10.1103/PhysRevX....
-
[37]
author author D. H. \ Smith , author G. Gillett , author M. P. \ de Almeida , author C. Branciard , author A. Fedrizzi , author T. J. \ Weinhold , author A. Lita , author B. Calkins , author T. Gerrits , author H. M. \ Wiseman , author S. W. \ Nam , \ and\ author A. G. \ White ,\ title title Conclusive quantum steering with superconducting transition-edge...
-
[38]
author author J. S. \ Bell ,\ title title On the Einstein Podolsky Rosen paradox , \ 10.1103/PhysicsPhysiqueFizika.1.195 journal journal Physics Physique Fizika \ volume 1 ,\ pages 195--200 ( year 1964 ) NoStop
-
[40]
author author D. A. \ Evans \ and\ author H. M. \ Wiseman ,\ title title Optimal measurements for tests of Einstein-Podolsky-Rosen steering with no detection loophole using two-qubit Werner states , \ 10.1103/PhysRevA.90.012114 journal journal Phys. Rev. A \ volume 90 ,\ pages 012114 ( year 2014 ) NoStop
-
[41]
author author Q. Zeng ,\ title title One-way Einstein-Podolsky-Rosen steering beyond qubits , \ 10.1103/PhysRevA.106.032202 journal journal Phys. Rev. A \ volume 106 ,\ pages 032202 ( year 2022 ) NoStop
-
[42]
author author P. Skrzypczyk , author M. Navascu \'e s , \ and\ author D. Cavalcanti ,\ title title Quantifying Einstein-Podolsky-Rosen Steering , \ 10.1103/PhysRevLett.112.180404 journal journal Phys. Rev. Lett. \ volume 112 ,\ pages 180404 ( year 2014 ) NoStop
-
[43]
author author P. Skrzypczyk \ and\ author D. Cavalcanti ,\ title title Loss-tolerant Einstein-Podolsky-Rosen steering for arbitrary-dimensional states: Joint measurability and unbounded violations under losses , \ 10.1103/PhysRevA.92.022354 journal journal Phys. Rev. A \ volume 92 ,\ pages 022354 ( year 2015 ) NoStop
-
[44]
author author Z. L. \ Yuan , author B. Fr \"o hlich , author M. Lucamarini , author G. L. \ Roberts , author J. F. \ Dynes , \ and\ author A. J. \ Shields ,\ title title Directly Phase-Modulated Light Source , \ 10.1103/PhysRevX.6.031044 journal journal Phys. Rev. X \ volume 6 ,\ pages 031044 ( year 2016 ) NoStop
-
[45]
author author E. Meyer-Scott , author N. Montaut , author J. Tiedau , author L. Sansoni , author H. Herrmann , author T. J. \ Bartley , \ and\ author C. Silberhorn ,\ title title Limits on the heralding efficiencies and spectral purities of spectrally filtered single photons from photon-pair sources , \ 10.1103/PhysRevA.95.061803 journal journal Phys. Rev...
-
[46]
author author M. Grant \ and\ author S. Boyd ,\ @noop title CVX : Matlab software for disciplined convex programming, version 2.1 , \ howpublished http://cvxr.com/cvx ( year 2014 ) NoStop
work page 2014
-
[47]
author author M. Grant \ and\ author S. Boyd ,\ title title Graph implementations for nonsmooth convex programs , \ in\ @noop booktitle Recent Advances in Learning and Control ,\ series and number Lecture Notes in Control and Information Sciences ,\ editor edited by\ editor V. Blondel , editor S. Boyd , \ and\ editor H. Kimura \ ( publisher Springer-Verla...
work page 2008
-
[48]
author author D. N. \ Klyshko ,\ title title Use of two-photon light for absolute calibration of photoelectric detectors , \ 10.1070/QE1980v010n09ABEH010660 journal journal Sov. J. Quantum Electron. \ volume 10 ,\ pages 1112--1117 ( year 1980 ) NoStop
-
[49]
author author D. A. \ Evans , author E. G. \ Cavalcanti ,\ and\ author H. M. \ Wiseman ,\ title title Loss-tolerant tests of Einstein-Podolsky-Rosen steering ,\ https://doi.org/10.1103/PhysRevA.88.022106 journal journal Phys. Rev. A \ volume 88 ,\ pages 022106 ( year 2013 ) NoStop
