arxiv: 2408.09369 · v3 · submitted 2024-08-18 · 📡 eess.IV · cs.CV

Flemme: A Flexible and Modular Learning Platform for Medical Images

Guoqing Zhang , Jingyun Yang , Yang Li This is my paper

Pith reviewed 2026-05-23 21:50 UTC · model grok-4.3

classification 📡 eess.IV cs.CV
keywords medical imagingimage segmentationimage reconstructionmodular architectureencoder-decoderpyramid lossdeep learning platform
0
0 comments X

The pith

Separating encoders from architectures in a modular platform yields average gains of 5.6% Dice and 5.57% PSNR on medical image tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Flemme as a platform that decouples encoders from task architectures to let practitioners combine different building blocks without rebuilding models from scratch. Encoders are assembled from convolution, transformer, and state-space model blocks that handle both 2D and 3D patches. A base encoder-decoder style is extended to segmentation, reconstruction, and generation, with an added hierarchical variant that applies pyramid loss across scales. Experiments report consistent metric lifts when models are assembled this way. The same platform is used to compare encoder types for speed and accuracy on the same tasks.

Core claim

Flemme separates encoders from model architectures so that different models are built via combinations of supported encoders and derived encoder-decoder styles. Encoders process 2D and 3D patches using convolution, transformer, and SSM blocks. A general hierarchical architecture adds a pyramid loss to optimize and fuse vertical features. This construction produces average improvements of 5.60% Dice and 7.81% mIoU for segmentation models together with 5.57% PSNR and 8.22% SSIM for reconstruction models.

What carries the argument

Modular separation of encoders (built from convolution, transformer, and SSM blocks) from base encoder-decoder architectures, plus a pyramid loss for hierarchical vertical feature fusion.

If this is right

  • Segmentation models reach higher Dice and mIoU scores across datasets.
  • Reconstruction models achieve higher PSNR and SSIM values.
  • Different encoder families can be swapped and ranked for effectiveness and efficiency on the same task.
  • Practitioners avoid repeated manual construction of combined backbones and heads.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The separation principle could shorten the time needed to prototype new medical imaging pipelines.
  • New encoder designs could be inserted and benchmarked without rewriting the downstream task heads.
  • The same modular pattern might apply to classification or detection tasks if the encoder blocks remain compatible.

Load-bearing premise

The measured performance gains arise mainly from the encoder-architecture separation and pyramid loss rather than from dataset tuning or baseline selection.

What would settle it

Re-running the reported experiments with a single integrated model that uses the identical best encoder-architecture pair but removes the explicit modular interface would erase the reported metric improvements.

Figures

Figures reproduced from arXiv: 2408.09369 by Guoqing Zhang, Jingyun Yang, Yang Li.

Figure 1

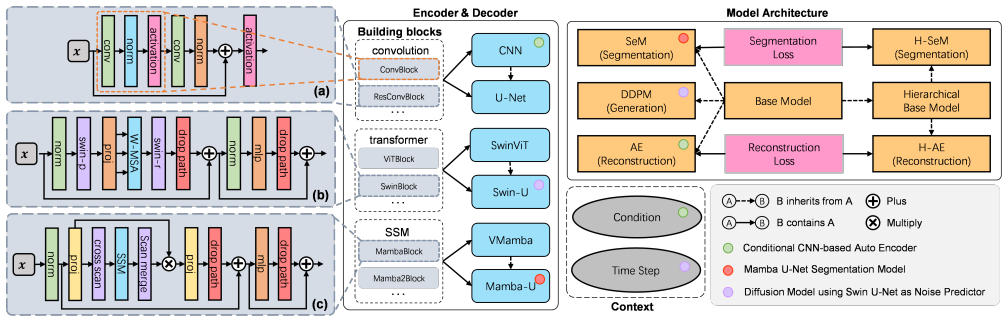

Figure 1. Figure 1: A semantic overview of Flemme. The left box gives 3 examples of building blocks based on convolution, transformer, and SSM. Encoders and [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Pipelines of encoder and decoder. Components enclosed in dotted [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of supported architectures: (a) SeM, (b) AE, (d) DDPM. The dashed lines indicate optional paths. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: A segmentation model constructed with Hierarchical SeM (H-SeM) [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Quantitative results of segmentation models. The top four rows show segmentation results for 2D image datasets: CVC-ClinicDB, Echonet, ISIC, and [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Quantitative results of reconstruction and generation models for FastMRI dataset. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

As the rapid development of computer vision and the emergence of powerful network backbones and architectures, the application of deep learning in medical imaging has become increasingly significant. Unlike natural images, medical images lack huge volumes of data but feature more modalities, making it difficult to train a general model that has satisfactory performance across various datasets. In practice, practitioners often suffer from manually creating and testing models combining independent backbones and architectures, which is a laborious and time-consuming process. We propose Flemme, a FLExible and Modular learning platform for MEdical images. Our platform separates encoders from the model architectures so that different models can be constructed via various combinations of supported encoders and architectures. We construct encoders using building blocks based on convolution, transformer, and state-space model (SSM) to process both 2D and 3D image patches. A base architecture is implemented following an encoder-decoder style, with several derived architectures for image segmentation, reconstruction, and generation tasks. In addition, we propose a general hierarchical architecture incorporating a pyramid loss to optimize and fuse vertical features. Experiments demonstrate that this simple design leads to an average improvement of 5.60% in Dice score and 7.81% in mean interaction of units (mIoU) for segmentation models, as well as an enhancement of 5.57% in peak signal-to-noise ratio (PSNR) and 8.22% in structural similarity (SSIM) for reconstruction models. We further utilize Flemme as an analytical tool to assess the effectiveness and efficiency of various encoders across different tasks. Code is available at https://github.com/wlsdzyzl/flemme.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces Flemme, a flexible modular platform for medical images that decouples encoders (constructed from convolution, transformer, and state-space model blocks supporting 2D/3D patches) from task-specific architectures (base encoder-decoder with derived variants for segmentation, reconstruction, and generation). It adds a hierarchical pyramid loss for vertical feature optimization and reports average empirical gains of 5.60% Dice / 7.81% mIoU on segmentation tasks and 5.57% PSNR / 8.22% SSIM on reconstruction tasks, while positioning the platform as an analytical tool for encoder evaluation. Code is released at a GitHub repository.

Significance. If the reported gains can be attributed to the modular encoder-architecture separation and pyramid loss under controlled conditions, the platform would address a genuine practical bottleneck in medical imaging by reducing manual model assembly effort and enabling systematic encoder comparisons across modalities. The open-source release strengthens reproducibility. However, the current evidence does not yet establish this attribution, limiting the immediate impact.

major comments (3)
  1. [Abstract and Experiments] Abstract and Experiments section: The headline improvements (5.60% Dice, 7.81% mIoU, 5.57% PSNR, 8.22% SSIM) are stated as resulting from the modular design, yet no information is given on whether baseline models received identical optimizer schedules, augmentation pipelines, early-stopping criteria, or encoder pre-training. Without these controls the attribution to encoder-architecture decoupling plus pyramid loss cannot be verified.
  2. [Experiments] Experiments section: No ablation studies are described that isolate the contribution of the encoder-architecture separation from the pyramid loss, or from possible differences in hyperparameter search effort between the proposed models and the baselines.
  3. [Experiments] Experiments section: The manuscript provides no details on the number of datasets or models averaged to obtain the reported percentages, nor any statistical significance tests, standard deviations across runs, or exclusion criteria for the quantitative results.
minor comments (2)
  1. [Method] The description of the pyramid loss could be clarified with a diagram or explicit equation showing how vertical features are fused across scales.
  2. [Platform description] A summary table listing all supported encoders and derived architectures would improve readability and help readers quickly assess the platform's scope.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the need for clearer experimental controls and statistical reporting. We address each major comment below and will incorporate revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and Experiments] Abstract and Experiments section: The headline improvements (5.60% Dice, 7.81% mIoU, 5.57% PSNR, 8.22% SSIM) are stated as resulting from the modular design, yet no information is given on whether baseline models received identical optimizer schedules, augmentation pipelines, early-stopping criteria, or encoder pre-training. Without these controls the attribution to encoder-architecture decoupling plus pyramid loss cannot be verified.

    Authors: We agree that the current manuscript does not explicitly document the training configurations applied to the baseline models. In the revised version, we will add a dedicated experimental setup subsection (and associated table) that details identical optimizer schedules, augmentation pipelines, early-stopping criteria, and any encoder pre-training used across all compared models. This will enable direct verification that performance differences are attributable to the modular encoder-architecture separation and pyramid loss. revision: yes

  2. Referee: [Experiments] Experiments section: No ablation studies are described that isolate the contribution of the encoder-architecture separation from the pyramid loss, or from possible differences in hyperparameter search effort between the proposed models and the baselines.

    Authors: We acknowledge the lack of targeted ablations. The original experiments were designed to demonstrate the platform's overall utility rather than isolate individual components. In the revision we will include new ablation studies that (i) compare the full platform against versions without the pyramid loss and (ii) report results under matched hyperparameter search budgets to separate the effects of the modular design from tuning effort. revision: yes

  3. Referee: [Experiments] Experiments section: The manuscript provides no details on the number of datasets or models averaged to obtain the reported percentages, nor any statistical significance tests, standard deviations across runs, or exclusion criteria for the quantitative results.

    Authors: The manuscript indeed omits these quantitative details. We will revise the Experiments section to state the exact number of datasets and models included in the averages, report standard deviations across multiple random seeds, include statistical significance tests (e.g., paired t-tests), and explicitly list any exclusion criteria applied to the reported results. revision: yes

Circularity Check

0 steps flagged

No circularity; claims rest on direct empirical measurements, not derivations that reduce to inputs

full rationale

The paper introduces a modular platform separating encoders from architectures and reports measured performance gains (Dice, mIoU, PSNR, SSIM) from experiments on segmentation and reconstruction tasks. No equations, fitted parameters, or predictions are presented that reduce the reported improvements to quantities defined by the platform itself or by self-citations. The central results are empirical comparisons, not self-definitional or fitted-input predictions. No load-bearing self-citations, uniqueness theorems, or ansatzes are invoked in the provided text. This is a standard non-circular empirical engineering paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

This is an engineering platform paper whose contribution is software modularity and empirical benchmarking rather than new theoretical constructs; it relies on standard deep-learning assumptions without introducing free parameters, axioms, or invented entities beyond those already common in the field.

axioms (1)
  • domain assumption Standard deep-learning optimization, loss functions, and encoder-decoder structures transfer to medical image tasks.
    The platform is built directly on existing DL practices without stating or proving new background results.
