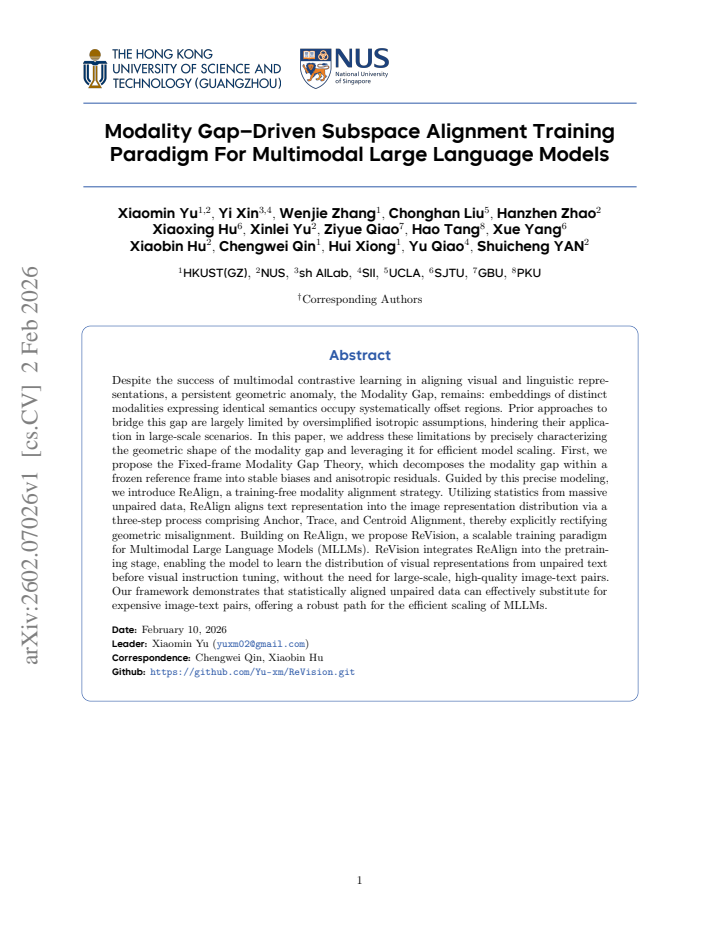

Modality Gap-Driven Subspace Alignment Training Paradigm For Multimodal Large Language Models

Chengwei Qin; Chen Liu; Chonghan Liu; Hanzhen Zhao; Hao Tang; Hui Xiong; Shuicheng Yan; Wenjie Zhang; Xiaobin Hu; Xiaomin Yu

arxiv: 2602.07026 · v3 · pith:GCGY5GYLnew · submitted 2026-02-02 · 💻 cs.CV · cs.AI· cs.MM

Modality Gap-Driven Subspace Alignment Training Paradigm For Multimodal Large Language Models

Xiaomin Yu , Yi Xin , Yuhui Zhang , Wenjie Zhang , Chonghan Liu , Hanzhen Zhao , Chen Liu , Xiaoxing Hu

show 7 more authors

Ziyue Qiao Hao Tang Xiaobin Hu Chengwei Qin Hui Xiong Yu Qiao Shuicheng Yan

This is my paper

Pith reviewed 2026-05-16 08:15 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.MM

keywords modality gapsubspace alignmentmultimodal large language modelsunpaired datapretraininggeometric misalignmentReAlignReVision

0 comments

The pith

ReAlign aligns text embeddings to image distributions via a training-free three-step process using unpaired data, letting MLLMs pretrain without paired image-text examples.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that image and text embeddings for the same meaning sit in systematically offset regions, and this offset can be broken into fixed biases plus direction-dependent residuals inside a locked reference frame. From that breakdown the authors derive ReAlign, which shifts text points into the image cloud by computing three adjustments—anchor point, trace direction, and centroid offset—from large amounts of unpaired text and image statistics. Once aligned, the text alone supplies the visual distribution the model needs during pretraining, after which ordinary instruction tuning finishes the job. If the claim holds, the expensive step of collecting matched image-text pairs can be replaced by abundant separate text corpora, lowering the data cost of scaling multimodal models.

Core claim

The modality gap decomposes inside a frozen reference frame into stable biases and anisotropic residuals; ReAlign then uses massive unpaired statistics to perform Anchor, Trace, and Centroid Alignment, moving text representations into the image distribution so that unpaired text can replace paired image-text data during MLLM pretraining.

What carries the argument

The Fixed-frame Modality Gap Theory, which splits the gap into stable biases and anisotropic residuals, and the three-step ReAlign procedure (Anchor, Trace, Centroid Alignment) that applies those statistics to shift text embeddings.

Load-bearing premise

Statistics drawn from unpaired text and image sets accurately capture the target image distribution once the reference frame is held fixed.

What would settle it

Train two otherwise identical MLLMs—one with ReAlign on unpaired text, one with standard paired data—then compare zero-shot visual reasoning accuracy; a large and consistent gap in favor of the paired version would falsify the substitution claim.

read the original abstract

Despite the success of multimodal contrastive learning in aligning visual and linguistic representations, a persistent geometric anomaly, the Modality Gap, remains: embeddings of distinct modalities expressing identical semantics occupy systematically offset regions. Prior approaches to bridge this gap are largely limited by oversimplified isotropic assumptions, hindering their application in large-scale scenarios. In this paper, we address these limitations by precisely characterizing the geometric shape of the modality gap and leveraging it for efficient model scaling. First, we propose the Fixed-frame Modality Gap Theory, which decomposes the modality gap within a frozen reference frame into stable biases and anisotropic residuals. Guided by this precise modeling, we introduce ReAlign, a training-free modality alignment strategy. Utilizing statistics from massive unpaired data, ReAlign aligns text representation into the image representation distribution via a three-step process comprising Anchor, Trace, and Centroid Alignment, thereby explicitly rectifying geometric misalignment. Building on ReAlign, we propose ReVision, a scalable training paradigm for Multimodal Large Language Models~(MLLMs). ReVision integrates ReAlign into the pretraining stage, enabling the model to learn the distribution of visual representations from unpaired text before visual instruction tuning, without the need for large-scale, high-quality image-text pairs. Our framework demonstrates that statistically aligned unpaired data can effectively substitute for expensive image-text pairs, offering a robust path for the efficient scaling of MLLMs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper decomposes the modality gap into fixed biases plus anisotropic residuals and offers a training-free ReAlign procedure to align unpaired text to image space for cheaper MLLM pretraining.

read the letter

The main point is that by decomposing the modality gap into stable biases and anisotropic residuals inside a frozen reference frame, the authors propose ReAlign, a three-step training-free alignment using statistics from unpaired data to map text representations into the image distribution. This underpins ReVision, their paradigm for pretraining MLLMs without large paired datasets. The novelty lies in moving beyond isotropic assumptions to this more precise geometric model and the concrete Anchor, Trace, and Centroid Alignment steps. The paper does well to connect this directly to the scaling bottleneck of paired data, making a clear case for why this could enable larger experiments. The soft spots are around the validity of the unpaired statistics as a proxy. If the unpaired text does not match the image distribution in coverage or higher-order statistics, the alignment transform may not land text embeddings where they should. I'd want to see sensitivity tests to different unpaired corpora and confirmation that the stats are not leaking task information. The circularity concern is minor but worth addressing with held-out validation. This paper is for researchers working on efficient multimodal model training who want geometric tools to reduce data costs. A reader looking for new alignment techniques would get value from the method description. It deserves a serious referee because the claim is testable and addresses a high-impact problem, even if revisions will likely focus on strengthening the empirical validation.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that the Fixed-frame Modality Gap Theory decomposes the modality gap in a frozen reference frame into stable biases plus anisotropic residuals; this decomposition guides ReAlign, a training-free three-step procedure (Anchor, Trace, Centroid Alignment) that uses first- and second-order statistics from massive unpaired corpora to map text embeddings onto the image distribution. ReAlign is then embedded in the ReVision pretraining paradigm, allowing MLLMs to learn visual representations from unpaired text before instruction tuning and thereby substituting for large-scale paired image-text data.

Significance. If the geometric modeling and substitution claim hold, the work would be significant for efficient MLLM scaling: it offers a concrete mechanism to leverage abundant unpaired text in place of expensive paired data, potentially lowering pretraining costs while preserving alignment quality. The shift from isotropic to anisotropic residual modeling could also inform subsequent embedding-alignment research.

major comments (2)

[§3] §3 (Fixed-frame Modality Gap Theory): the central substitution claim—that unpaired-text moments accurately proxy the target image distribution inside the frozen frame—receives no quantitative validation, ablation, or held-out benchmark; without such evidence the three-step transform may map text outside the true image manifold when semantic coverage or marginals differ.
[§4] §4 (ReAlign procedure): the Anchor/Trace/Centroid steps are defined using statistics computed from the same unpaired corpora later used for training; the manuscript supplies no external validation set or independence test to demonstrate that these statistics remain unbiased with respect to the downstream MLLM task.

minor comments (2)

[§4] Notation for the three alignment steps should be accompanied by explicit equations showing how the bias vector, residual covariance, and centroid shift are computed from the unpaired statistics.
[Abstract] The abstract states the method but reports no quantitative results, ablation tables, or error analysis; adding these in the experimental section would strengthen readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The concerns about empirical validation of the substitution claim and statistical independence are important, and we address them point by point below. We commit to adding the requested quantitative evidence and tests in the revised manuscript.

read point-by-point responses

Referee: [§3] §3 (Fixed-frame Modality Gap Theory): the central substitution claim—that unpaired-text moments accurately proxy the target image distribution inside the frozen frame—receives no quantitative validation, ablation, or held-out benchmark; without such evidence the three-step transform may map text outside the true image manifold when semantic coverage or marginals differ.

Authors: We acknowledge that the manuscript lacks direct quantitative validation of the proxy assumption. While Section 5 reports downstream MLLM performance gains when substituting paired data with ReAlign-aligned unpaired text, we agree this does not explicitly measure manifold adherence or distribution fidelity. In the revision we will add a dedicated ablation subsection using held-out image-text pairs, reporting metrics such as Wasserstein distance and maximum mean discrepancy between aligned text and image embeddings, plus coverage tests that vary semantic marginals to verify the three-step transform remains inside the image manifold. revision: yes
Referee: [§4] §4 (ReAlign procedure): the Anchor/Trace/Centroid steps are defined using statistics computed from the same unpaired corpora later used for training; the manuscript supplies no external validation set or independence test to demonstrate that these statistics remain unbiased with respect to the downstream MLLM task.

Authors: We clarify that the statistics are computed from large-scale, general-purpose unpaired corpora that are disjoint from the specific instruction-tuning datasets used in downstream tasks. Nevertheless, we agree an explicit independence test is absent. In the revision we will introduce an external validation protocol: moments will be recomputed on a held-out disjoint subset of the corpora, and we will report the resulting change (or lack thereof) in downstream MLLM task performance to demonstrate that the Anchor/Trace/Centroid statistics remain unbiased. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper's claimed chain introduces the Fixed-frame Modality Gap Theory as an explicit decomposition of the gap into stable biases plus anisotropic residuals inside a frozen reference frame, then defines ReAlign as a three-step (Anchor/Trace/Centroid) procedure that computes alignment transforms from unpaired-data moments, and finally integrates the result into ReVision pretraining. None of these steps reduces by construction to its inputs: the decomposition is presented as a modeling choice, the alignment statistics are computed externally from unpaired corpora, and the substitution claim is a downstream consequence rather than a definitional identity. No self-citations, fitted parameters renamed as predictions, or ansatzes smuggled via prior work appear in the provided derivation. The central result therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the unproven assumption that the modality gap admits a stable bias-plus-anisotropic-residual decomposition inside any frozen reference frame and that unpaired statistics suffice to recover the target image distribution without additional parameters.

axioms (1)

domain assumption The modality gap can be decomposed into stable biases and anisotropic residuals within a frozen reference frame.
Invoked in the Fixed-frame Modality Gap Theory section of the abstract.
