arxiv: 2604.06616 · v2 · submitted 2026-04-08 · 💻 cs.DB · cs.AI· cs.IR

CubeGraph: Efficient Retrieval-Augmented Generation for Spatial and Temporal Data

Mingyu Yang , Wentao Li , Wei Wang This is my paper

Pith reviewed 2026-05-10 17:28 UTC · model grok-4.3

classification 💻 cs.DB cs.AIcs.IR
keywords CubeGraphhybrid vector-spatial queriesdynamic graph stitchingretrieval-augmented generationspatial indexingnearest neighbor searchgrid partitioning
0
0 comments X

The pith

CubeGraph partitions space into grid cells and stitches their vector graphs on the fly to support unified nearest-neighbor search under arbitrary spatial filters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses hybrid queries that mix high-dimensional vector similarity with spatio-temporal constraints in retrieval-augmented generation systems. Existing methods nest vector indexes inside spatial trees, which splits the vector space into disjoint pieces and forces repeated index calls per query. CubeGraph instead divides space into a hierarchy of grid cells, each holding its own vector graph, then connects neighboring graphs dynamically only for cells that overlap the query region. This produces one connected structure for a single traversal pass. If the approach holds, hybrid workloads become faster and avoid the fragmentation penalty of nested designs.

Core claim

CubeGraph partitions the spatial domain using a hierarchical grid, maintaining modular vector graphs within each cell. During query execution, CubeGraph dynamically stitches together adjacent cube-level indices on the fly whenever their spatial cells intersect with the query filter. This dynamic graph integration restores global connectivity, enabling a unified, single-pass nearest-neighbor traversal that eliminates the overhead of fragmented sub-index invocations.

What carries the argument

Dynamic on-the-fly stitching of adjacent cube-level vector graphs to restore global connectivity for single-pass traversal across query-overlapping cells.

If this is right

  • Hybrid queries execute in one traversal instead of multiple disjoint index calls.
  • Arbitrary spatial boundaries no longer require pre-built composite indexes.
  • Scalability improves because each cell's graph stays small and independent until query time.
  • The same grid can support both spatial and temporal filters by treating time as an extra dimension.
  • Query planners gain flexibility to choose stitching granularity without rebuilding the entire index.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same stitching idea might reduce latency in other settings where data is naturally partitioned, such as distributed vector stores.
  • If cell size is chosen poorly, stitching cost could grow with query complexity, suggesting a need for adaptive cell sizing.
  • Temporal data could reuse the grid without changing the core stitching logic, unifying space-time queries under one mechanism.
  • The approach implies that tree-based nesting may be fundamentally less suited to vector graphs than explicit grid partitions.

Load-bearing premise

That stitching graphs from neighboring cells can always restore full connectivity and keep overhead low even when query boundaries are irregular or cross many cells.

What would settle it

Measure traversal time and result completeness for queries whose spatial filter crosses cell boundaries in a non-rectangular way on a dataset larger than the index cache, then compare against a nested R-tree baseline.

Figures

Figures reproduced from arXiv: 2604.06616 by Mingyu Yang, Wei Wang, Wentao Li.

Figure 1
Figure 1. Figure 1: Motivating examples for hybrid vector similarity search [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Framework of CubeGraph. The hierarchical grid partitions the metadata space into multiple levels of cubes. At each level, data points are assigned to their containing cubes and local graph indexes are built. During query processing, cubes intersecting the filter are identified, and their local graphs are merged on-the-fly via cross-cube connections (dashed lines), forming a unified search graph. Note, we o… view at source ↗
Figure 3
Figure 3. Figure 3: Memory layout of CubeGraph. Each node in CubeGraph uti￾lizes an identical memory layout. Unlike standard implementations such as hnswlib, our vector data is managed separately because the total number of nodes scales by a factor of 𝐿 across 𝐿 layers. Within any specific layer, a node maintains both intra-cube neighbors and cross-cube neighbors, the latter being determined by the metadata dimensionality. Ad… view at source ↗
Figure 4

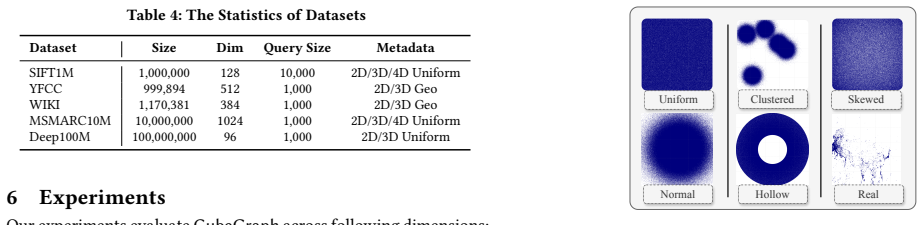

Figure 4. Figure 4: Distribution of Metadata Attributes Across Datasets. [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

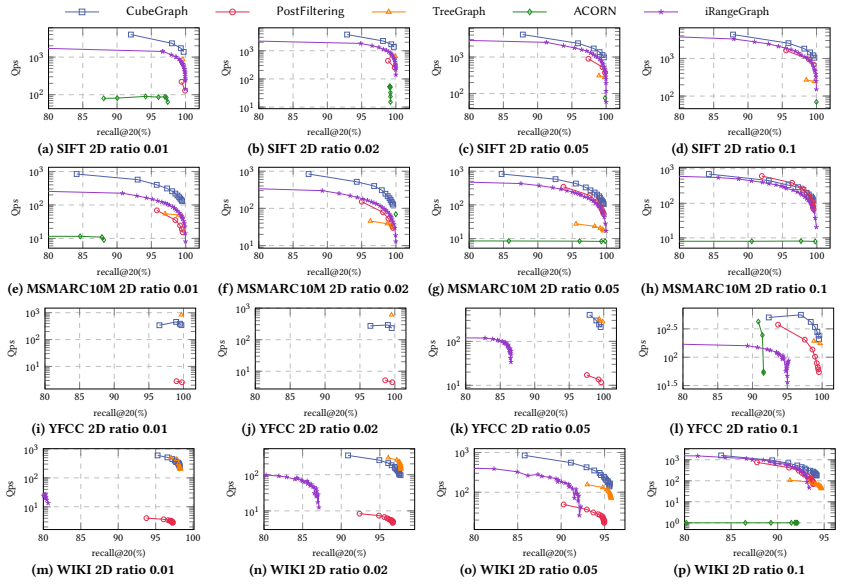

Figure 5. Figure 5: Search efficiency comparison across different datasets with Bounding Boxes Filter (recall@20 vs. Qps). [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

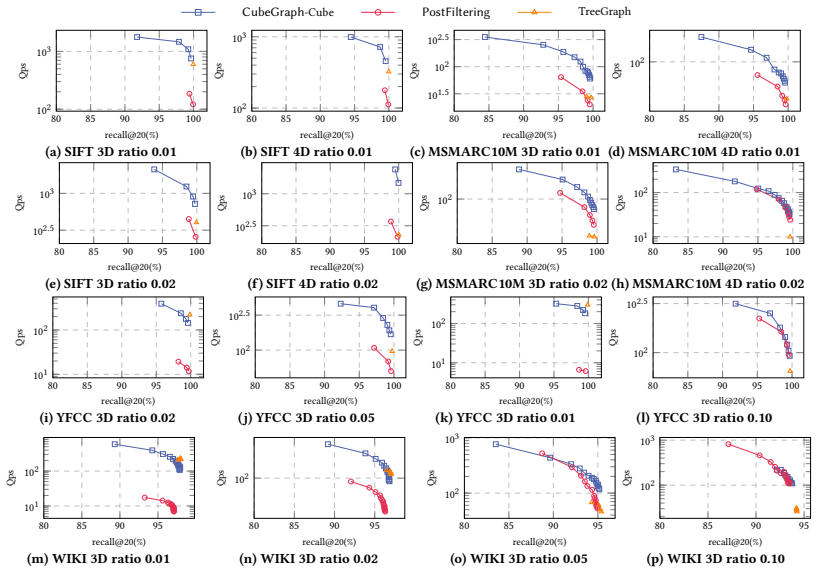

Figure 6. Figure 6: Search efficiency comparison across different dimensions (3D/4D) with Bounding Boxes filter (recall@20 vs. Qps). [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7

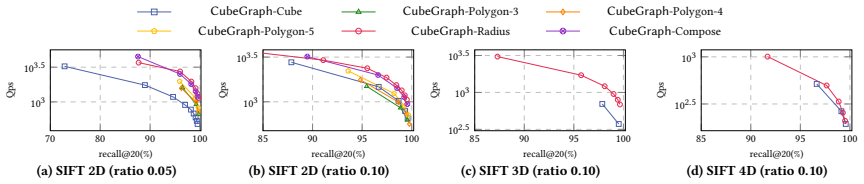

Figure 7. Figure 7: Comparison of Polygon and Radius filters vs Cube filter on SIFT (recall@20 vs. Qps). [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Dynamic update time comparison on (a) SIFT and (b) YFCC. [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Recall vs Qps comparison on SIFT dataset ( [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Scalability on Deep100M dataset (100M vectors). Despite [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Impact of filter aspect ratio on CubeGraph search effi [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Recall vs Qps comparison on SIFT dataset ( [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
read the original abstract

Hybrid queries combining high-dimensional vector similarity search with spatio-temporal filters are increasingly critical for modern retrieval-augmented generation (RAG) systems. Existing systems typically handle these workloads by nesting vector indices within low-dimensional spatial structures, such as R-trees. However, this decoupled architecture fragments the vector space, forcing the query engine to invoke multiple disjoint sub-indices per query. This fragmentation destroys graph routing connectivity, incurs severe traversal overhead, and struggles to optimize for complex spatial boundaries. In this paper, we propose CubeGraph, a novel indexing framework designed to natively integrate vector search with arbitrary spatial constraints. CubeGraph partitions the spatial domain using a hierarchical grid, maintaining modular vector graphs within each cell. During query execution, CubeGraph dynamically stitches together adjacent cube-level indices on the fly whenever their spatial cells intersect with the query filter. This dynamic graph integration restores global connectivity, enabling a unified, single-pass nearest-neighbor traversal that eliminates the overhead of fragmented sub-index invocations. Extensive evaluations on real-world datasets demonstrate that CubeGraph significantly outperforms state-of-the-art baselines, offering superior query execution performance, scalability, and flexibility for complex hybrid workloads.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes CubeGraph, a novel indexing framework for hybrid vector similarity search combined with arbitrary spatio-temporal filters in RAG systems. It partitions the spatial domain into a hierarchical grid, maintains independent modular vector graphs within each cell, and dynamically stitches adjacent cube-level graphs on the fly during query execution whenever cells intersect the query filter. This is claimed to restore global connectivity, enabling a single-pass nearest-neighbor traversal that avoids the fragmentation and overhead of nested R-tree plus vector-index baselines. Extensive evaluations on real-world datasets are said to show superior query performance, scalability, and flexibility for complex hybrid workloads.

Significance. If the dynamic stitching mechanism preserves nearest-neighbor paths across cell boundaries without introducing substantial per-query overhead or connectivity gaps for irregular regions, the approach could offer a more integrated and efficient alternative to decoupled indexing structures, with potential benefits for large-scale spatio-temporal RAG applications.

major comments (3)
  1. [Query Execution] The description of the stitching algorithm (how cross-cell edges or virtual links are identified and materialized at query time, and whether it uses boundary-point matching or k-NN links) is insufficient to evaluate whether global connectivity is restored for arbitrary (non-rectangular) query regions without missing paths or repeated stitching steps.
  2. [Query Execution] No analysis is provided of typical numbers of cells stitched per query, resulting graph diameter changes, or overhead measurements relative to the savings from avoiding multiple sub-index calls; this is load-bearing for the claimed performance advantage over nested baselines.
  3. [Evaluation] The abstract and evaluation sections assert superior performance and scalability on real-world datasets but supply no quantitative metrics, error bars, dataset sizes, or direct comparisons to specific baselines (e.g., R-tree + HNSW), preventing independent assessment of the central claims.
minor comments (2)
  1. [System Overview] Notation for the hierarchical grid partitioning and cell adjacency could be clarified with an additional diagram in the system overview.
  2. [Query Execution] The paper would benefit from explicit pseudocode or a small example walk-through of the stitching process for a sample polygonal query.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and constructive suggestions. We address each of the major comments below and outline the revisions we intend to incorporate in the updated manuscript.

read point-by-point responses

  1. Referee: [Query Execution] The description of the stitching algorithm (how cross-cell edges or virtual links are identified and materialized at query time, and whether it uses boundary-point matching or k-NN links) is insufficient to evaluate whether global connectivity is restored for arbitrary (non-rectangular) query regions without missing paths or repeated stitching steps.

    Authors: We agree that a more detailed exposition of the stitching algorithm is necessary for full reproducibility and evaluation. In the revised manuscript, we will provide pseudocode and a step-by-step explanation of how cross-cell virtual links are identified using boundary-point matching combined with k-NN searches between adjacent cells. We will also analyze how this mechanism ensures no missing paths for non-rectangular regions by dynamically including all intersecting cells and their connections, avoiding repeated stitching through caching of stitched subgraphs where possible. revision: yes

  2. Referee: [Query Execution] No analysis is provided of typical numbers of cells stitched per query, resulting graph diameter changes, or overhead measurements relative to the savings from avoiding multiple sub-index calls; this is load-bearing for the claimed performance advantage over nested baselines.

    Authors: The current manuscript focuses on overall query performance but lacks a dedicated breakdown of stitching costs. We will add this analysis in the evaluation section, including empirical data on the average number of cells stitched per query across different spatial filter complexities, measured changes in effective graph diameter, and a cost-benefit comparison showing how the single-pass traversal overhead is offset by avoiding multiple index invocations compared to nested R-tree plus vector index approaches. revision: yes

  3. Referee: [Evaluation] The abstract and evaluation sections assert superior performance and scalability on real-world datasets but supply no quantitative metrics, error bars, dataset sizes, or direct comparisons to specific baselines (e.g., R-tree + HNSW), preventing independent assessment of the central claims.

    Authors: We acknowledge the need for more explicit quantitative reporting. We will revise the abstract to highlight key performance numbers and ensure the evaluation section provides dataset sizes, error bars from multiple runs, and direct comparisons against baselines such as R-tree combined with HNSW. This will allow for better independent assessment of the scalability and performance advantages. revision: yes

Circularity Check

0 steps flagged

No circularity: engineering system design with no derivations, predictions, or self-referential fits

full rationale

The paper presents CubeGraph as a hierarchical grid partitioning scheme with per-cell vector graphs and on-the-fly stitching for hybrid queries. No equations, fitted parameters, or first-principles derivations are claimed. The central mechanism (dynamic stitching to restore connectivity) is described as an algorithmic choice, not derived from prior results or self-citations. Evaluations are empirical on real-world datasets, with no 'predictions' that reduce to inputs by construction. Self-citation is absent from the provided text. This matches the default expectation of no significant circularity for a system-design contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract provides no explicit free parameters, axioms, or invented entities beyond the high-level system description; the CubeGraph framework itself is the proposed artifact.
