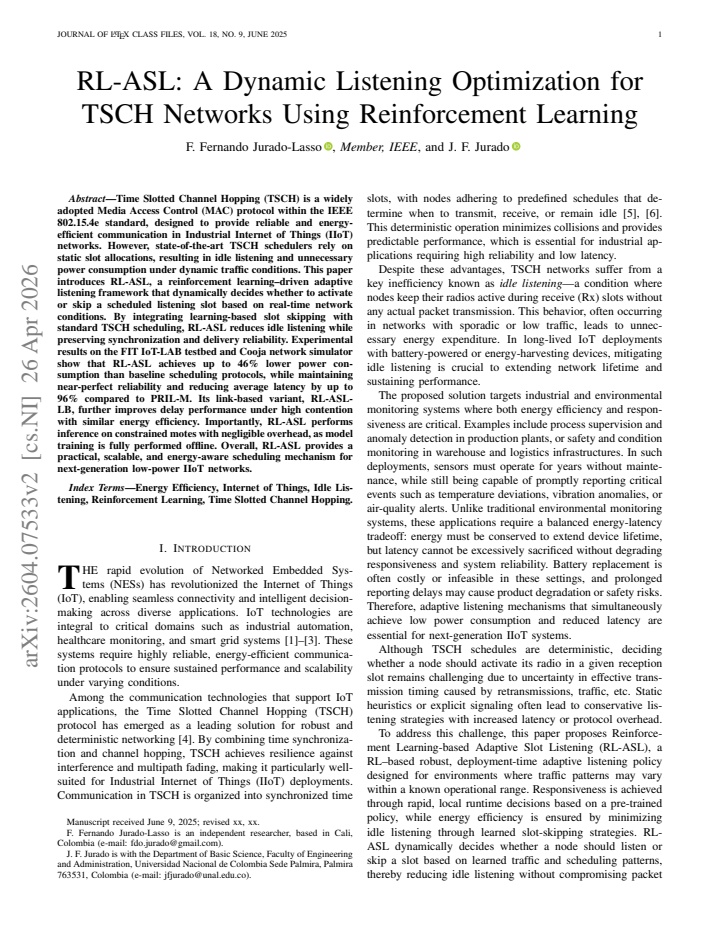

RL-ASL: A Dynamic Listening Optimization for TSCH Networks Using Reinforcement Learning
Pith reviewed 2026-05-10 16:54 UTC · model grok-4.3
The pith
Reinforcement learning decides when to skip listening slots in TSCH networks, cutting power use by up to 46 percent while holding reliability near 100 percent.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
RL-ASL trains a reinforcement learning policy offline to output per-slot decisions that activate or skip listening opportunities inside a standard TSCH schedule; the policy uses only local observations and runs inference directly on the constrained nodes, yielding measured reductions of up to 46 percent in power consumption and up to 96 percent in latency relative to PRIL-M while preserving near-perfect packet delivery and network synchronization.
What carries the argument
RL-ASL, the reinforcement learning policy that maps current network observations to binary activate-or-skip decisions for each scheduled listening slot.
If this is right
- Battery-powered industrial sensors can run longer between replacements or harvests.
- The link-based variant reduces queuing delay when many nodes contend for the same slots.
- Because training is performed once and inference is lightweight, the scheme scales to large networks without online learning overhead.
- Standard TSCH schedulers can be left unchanged while the listening decision layer is added on top.
Where Pith is reading between the lines
- The same offline-training-plus-light-inference pattern could be applied to other scheduled MAC layers that suffer from idle listening.
- If generalization proves fragile in the field, a small amount of online fine-tuning on the devices might be needed without violating the energy budget.
- Long-term operation data collected after deployment could be used to retrain and redeploy improved policies periodically.
Load-bearing premise
An offline-trained reinforcement learning policy will make correct skip-or-listen choices for traffic patterns and radio conditions it never saw during training, without causing loss of TSCH synchronization or unacceptable drops in reliability.
What would settle it
Run the same motes and traffic traces used in the paper but replace the training distribution with a new set of bursty flows and interference levels; if either synchronization is lost, end-to-end reliability falls below 99 percent, or power savings drop below 30 percent, the central claim does not hold.
Figures
read the original abstract
Time Slotted Channel Hopping (TSCH) is a widely adopted Media Access Control (MAC) protocol within the IEEE 802.15.4e standard, designed to provide reliable and energy-efficient communication in Industrial Internet of Things (IIoT) networks. However, state-of-the-art TSCH schedulers rely on static slot allocations, resulting in idle listening and unnecessary power consumption under dynamic traffic conditions. This paper introduces RL-ASL, a reinforcement learning-driven adaptive listening framework that dynamically decides whether to activate or skip a scheduled listening slot based on real-time network conditions. By integrating learning-based slot skipping with standard TSCH scheduling, RL-ASL reduces idle listening while preserving synchronization and delivery reliability. Experimental results on the FIT IoT-LAB testbed and Cooja network simulator show that RL-ASL achieves up to 46% lower power consumption than baseline scheduling protocols, while maintaining near-perfect reliability and reducing average latency by up to 96% compared to PRIL-M. Its link-based variant, RL-ASL-LB, further improves delay performance under high contention with similar energy efficiency. Importantly, RL-ASL performs inference on constrained motes with negligible overhead, as model training is fully performed offline. Overall, RL-ASL provides a practical, scalable, and energy-aware scheduling mechanism for next-generation low-power IIoT networks.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces RL-ASL, a reinforcement learning framework for dynamic slot listening optimization in TSCH networks. It trains an RL policy offline to decide whether to skip listening slots based on network conditions, aiming to reduce power consumption from idle listening while preserving TSCH synchronization and packet delivery reliability. The approach is evaluated on the FIT IoT-LAB testbed and Cooja simulator, reporting up to 46% power reduction, 96% latency improvement over PRIL-M, and near-perfect reliability, with a link-based variant RL-ASL-LB for high contention scenarios. Inference is performed on constrained devices with negligible overhead.
Significance. If the generalization claims hold, this work offers a practical advancement for energy-efficient IIoT networks by integrating RL with TSCH scheduling. The offline training and online inference design is particularly valuable for resource-constrained motes, potentially enabling adaptive MAC protocols without online learning overhead. The quantitative gains in power and latency could influence standards and deployments in industrial wireless sensor networks.
major comments (2)
- [§5 (Experimental Evaluation)] §5 (Experimental Evaluation): The generalization of the offline-trained RL policy to unseen traffic patterns and link conditions is insufficiently supported. No details are provided on training scenario diversity, state-feature coverage, or explicit out-of-distribution test cases (e.g., traffic loads or channel realizations absent from training), which is load-bearing for the reliability and synchronization claims since excessive skipping risks desynchronization on motes.
- [§4 (RL-ASL Design) and §5] §4 (RL-ASL Design) and §5: The paper reports headline gains (46% power, 96% latency) but lacks statistical tests, confidence intervals, or raw data summaries for the testbed/simulator runs, making it impossible to rule out selection effects or confirm robustness across runs.
minor comments (2)
- [Abstract and §3] The abstract and §3 should explicitly name the RL algorithm (e.g., Q-learning, DQN) and state-action space definition for reproducibility.

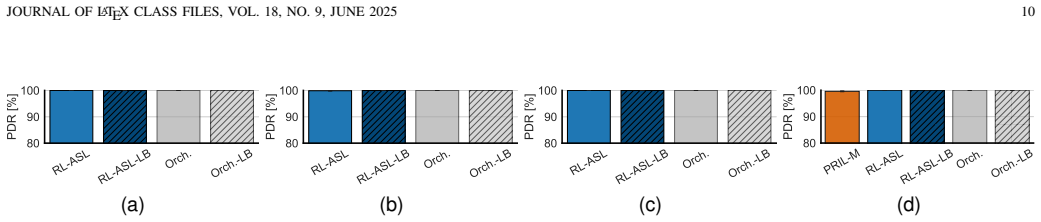

- [§5] Figures in §5 lack error bars or variance reporting, reducing clarity on the consistency of the reported improvements.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback on our manuscript. We address each major comment point by point below, agreeing where revisions are needed to strengthen the presentation and evidence.
read point-by-point responses
-
Referee: [§5 (Experimental Evaluation)] §5 (Experimental Evaluation): The generalization of the offline-trained RL policy to unseen traffic patterns and link conditions is insufficiently supported. No details are provided on training scenario diversity, state-feature coverage, or explicit out-of-distribution test cases (e.g., traffic loads or channel realizations absent from training), which is load-bearing for the reliability and synchronization claims since excessive skipping risks desynchronization on motes.
Authors: We appreciate the referee highlighting the importance of demonstrating generalization for the reliability and synchronization claims. The evaluation in §5 reports results from the FIT IoT-LAB testbed and Cooja simulator under multiple topologies, node counts, and traffic patterns (including periodic and event-driven loads). Training data were collected from preliminary runs covering a range of link qualities and contention levels. However, we agree that explicit details on scenario diversity, state-feature coverage, and dedicated out-of-distribution (OOD) testing were not elaborated sufficiently. In the revised manuscript we will add a new subsection in §5 that: (i) describes the full set of training scenarios and state features, (ii) presents explicit OOD test cases (e.g., traffic loads and channel conditions withheld from training), and (iii) shows that synchronization remains intact and packet delivery ratio stays near 100 % in those cases. These additions will directly address the concern about desynchronization risk. revision: yes
-
Referee: [§4 (RL-ASL Design) and §5] §4 (RL-ASL Design) and §5: The paper reports headline gains (46% power, 96% latency) but lacks statistical tests, confidence intervals, or raw data summaries for the testbed/simulator runs, making it impossible to rule out selection effects or confirm robustness across runs.
Authors: We agree that the current presentation of quantitative results would benefit from greater statistical transparency. The headline figures are averages computed over repeated independent runs on both the testbed and simulator. In the revised version we will: (i) add 95 % confidence intervals (or error bars) to all bar and line plots in §5, (ii) report standard deviations alongside the mean values, (iii) include the results of appropriate statistical tests (paired t-tests or Wilcoxon signed-rank tests, as applicable) comparing RL-ASL against the baselines, and (iv) provide a summary table of per-run raw metrics (or make the full dataset available as supplementary material). These changes will allow readers to assess robustness and rule out selection effects. revision: yes
Circularity Check
No circularity: empirical RL evaluation stands on independent testbed/simulator runs
full rationale
The paper's central claims rest on offline RL training followed by inference on constrained motes, with all headline metrics (46% power reduction, 96% latency drop, near-perfect reliability) presented as direct outcomes of experimental runs on the FIT IoT-LAB testbed and Cooja simulator. No equations, derivations, or fitted-parameter predictions are described that would reduce these results to the training inputs by construction. The framework integrates standard TSCH scheduling with learned slot-skipping decisions, but the evaluation remains externally falsifiable on separate platforms and does not invoke self-citations, uniqueness theorems, or ansatzes as load-bearing steps. This is the expected non-finding for an applied RL systems paper whose value is in measured performance rather than closed-form derivation.
Axiom & Free-Parameter Ledger
