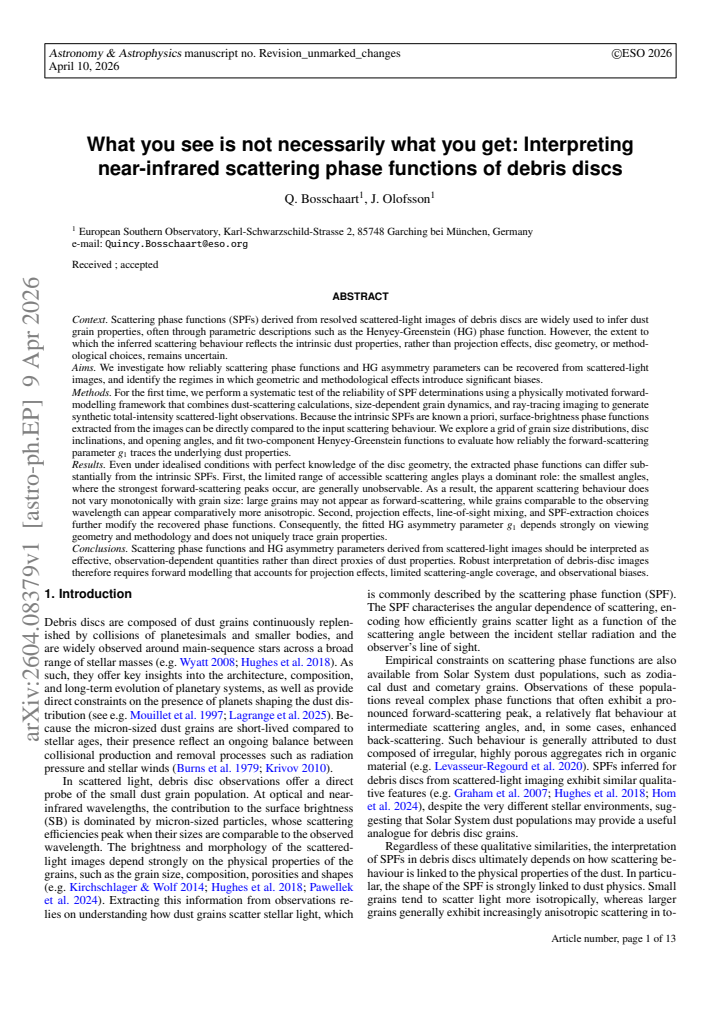

What you see is not necessarily what you get: Interpreting near-infrared scattering phase functions of debris discs

Quincy Bosschaart , Johan Olofsson This is my paper

Pith reviewed 2026-05-10 17:56 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.GAastro-ph.SR
keywords debris discsscattering phase functionsHenyey-Greenstein phase functiondust grain propertiesscattered light imagingforward modellinginclination effectsprojection effects
0
0 comments X

The pith

Scattering phase functions from debris disc images are shaped more by viewing geometry than by intrinsic dust grain properties.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how reliably scattering phase functions and Henyey-Greenstein parameters can be extracted from scattered-light images of debris discs. Using synthetic images generated from a forward model with known input scattering behavior, the authors compare recovered phase functions to the true ones. Limited scattering-angle coverage, especially the unobservable strong forward-scattering peak, emerges as the main source of deviation, producing non-monotonic trends in apparent anisotropy with grain size. Projection effects, line-of-sight mixing, and extraction methods add further biases that depend on disc inclination and opening angle. The result is that these derived quantities function as effective, observation-dependent measures rather than direct readouts of dust properties.

Core claim

Even with perfect knowledge of disc geometry, phase functions recovered from total-intensity images differ substantially from the intrinsic scattering phase functions because strong forward peaks at small angles are typically missed. Projection and line-of-sight effects further modify the extracted functions, so that two-component Henyey-Greenstein fits yield a forward-scattering parameter g1 that varies strongly with viewing geometry and methodology rather than tracing grain size distributions in a monotonic way.

What carries the argument

Forward-modelling pipeline that creates synthetic total-intensity images from known grain size distributions, dust-scattering calculations, grain dynamics, and ray-tracing, then compares extracted phase functions directly to the known input scattering behaviour.

If this is right

  • Recovered phase functions differ substantially from intrinsic ones even under idealised conditions with perfect geometry knowledge.
  • Strong forward-scattering peaks at small angles remain unobservable in most disc geometries.
  • Apparent anisotropy trends with grain size become non-monotonic instead of the expected monotonic behaviour.
  • The fitted forward-scattering parameter g1 depends strongly on disc inclination, opening angle, and SPF-extraction choices.
  • SPFs and HG parameters must be treated as effective, observation-dependent quantities rather than direct proxies for dust properties.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Observers may need to select or weight data toward favourable inclinations that maximise scattering-angle coverage to reduce bias.
  • Combining scattered-light data with thermal-emission or polarimetric measurements could provide cross-checks that help separate geometric effects from true grain properties.
  • Models that aim to infer grain sizes from current near-infrared images should incorporate geometry-dependent correction factors derived from similar forward simulations.

Load-bearing premise

The forward-modelling framework, including its dust-scattering calculations and grain dynamics, accurately represents the physics of real debris discs within the explored ranges of grain sizes, inclinations, and opening angles.

What would settle it

A debris disc with independently known grain properties whose image-derived phase function, obtained over a sufficiently wide scattering-angle range, matches the intrinsic function predicted by those grains would falsify the claim of systematic observational biases.

read the original abstract

Scattering phase functions (SPFs) derived from resolved scattered-light images of debris discs are widely used to infer dust grain properties, often via parametric forms such as the Henyey-Greenstein (HG) phase function. However, it remains unclear to what extent the inferred scattering behaviour reflects intrinsic dust properties rather than projection effects, disc geometry, or methodological choices. We test how reliably SPFs and HG asymmetry parameters can be recovered from scattered-light images and identify regimes where geometric and observational effects introduce significant biases. We use a physically motivated forward-modelling framework combining dust-scattering calculations, grain dynamics, and ray-tracing to generate synthetic total-intensity images. Since the intrinsic SPFs are known a priori, phase functions extracted from the images can be directly compared to the input scattering behaviour. We explore a grid of grain size distributions, disc inclinations, and opening angles, and fit two-component HG functions to evaluate how well the forward-scattering parameter $g_{1}$ traces grain properties. Even under idealised conditions with perfect knowledge of disc geometry, the recovered phase functions can differ substantially from the intrinsic SPFs. Limited scattering-angle coverage is the dominant effect: strong forward-scattering peaks at small angles are typically unobservable, leading to non-monotonic trends of apparent anisotropy with grain size. Projection effects, line-of-sight mixing, and SPF-extraction choices further modify the recovered phase functions, causing the fitted $g_{1}$ to depend strongly on viewing geometry and methodology. We conclude that SPFs and HG parameters derived from scattered-light images should be interpreted as effective, observation-dependent quantities rather than direct proxies for dust properties.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The manuscript uses a forward-modeling framework that combines dust-scattering calculations, grain dynamics, and ray-tracing to generate synthetic total-intensity images of debris discs with a priori known intrinsic scattering phase functions (SPFs). By extracting SPFs and fitting two-component Henyey-Greenstein (HG) functions from these images across a grid of grain size distributions, inclinations, and opening angles, the authors compare recovered quantities to the inputs. They find that limited scattering-angle coverage, projection effects, and line-of-sight integration cause substantial deviations, leading to the conclusion that derived SPFs and HG asymmetry parameters (particularly g1) are effective, observation-dependent quantities rather than direct proxies for dust properties.

Significance. If the results hold, the work provides a clear demonstration that biases in SPF recovery are systematic and geometry-dependent, which has direct implications for how near-infrared scattered-light data from debris discs are interpreted in terms of grain properties. The controlled setup with known inputs is a methodological strength that avoids circularity and offers a falsifiable test of extraction reliability. This could encourage more cautious use of parametric fits in the field and motivate improved techniques that marginalize over viewing geometry.

major comments (1)
  1. Abstract: the claim that limited scattering-angle coverage is the dominant bias is presented without quantitative metrics (e.g., fractional contribution to g1 deviation or comparison across the explored grid) showing its impact relative to projection or line-of-sight effects; this weakens the ability to assess which effect drives the non-monotonic trends with grain size.
minor comments (3)
  1. The two-component HG parameterization (g1, g2) and the fitting procedure should be defined with explicit equations in the methods section to allow readers to reproduce the asymmetry parameter extraction.
  2. Figures comparing intrinsic and recovered SPFs would benefit from consistent axis scaling and explicit indication of the observable scattering-angle range for each inclination to highlight the coverage limitation.
  3. The paper should include a brief sensitivity test or reference to how variations in the assumed dust-scattering model (e.g., refractive index or size distribution slope) affect the recovered g1 trends.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive feedback and positive overall assessment of the manuscript. We address the single major comment below and will incorporate revisions to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [—] Abstract: the claim that limited scattering-angle coverage is the dominant bias is presented without quantitative metrics (e.g., fractional contribution to g1 deviation or comparison across the explored grid) showing its impact relative to projection or line-of-sight effects; this weakens the ability to assess which effect drives the non-monotonic trends with grain size.

    Authors: We agree that the abstract's brevity limits the inclusion of detailed quantitative comparisons. The manuscript body (Sections 3 and 4) presents these through systematic comparisons across the full grid of grain size distributions, inclinations, and opening angles, showing via direct input-output differences that limited scattering-angle coverage produces the largest and most systematic deviations in recovered g1 (driving the non-monotonic trends), while projection and line-of-sight effects contribute smaller, more geometry-dependent variations. To address the referee's point directly, we will revise the abstract to include a concise quantitative qualifier on relative impacts (e.g., referencing the dominant contribution of angle coverage to g1 deviations across the explored parameter space). This is a minor change that improves clarity without altering the conclusions or requiring new analysis. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central result follows from an explicit forward-modelling pipeline in which intrinsic SPFs are supplied as known inputs, synthetic images are generated via ray-tracing, and extracted SPFs/HG parameters are compared directly to those inputs. This comparison isolates geometric and observational biases across a grid of grain sizes, inclinations, and opening angles without any step in which a fitted quantity is redefined as a prediction or in which the conclusion reduces to the input assumptions by construction. No self-citations, uniqueness theorems, or ansatzes are invoked as load-bearing elements; the argument remains self-contained because the discrepancies are measured quantities produced by the simulation rather than tautological re-expressions of the model inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on the accuracy of the synthetic image generation process and the assumption that explored parameter ranges cover relevant real-world cases; no new entities are postulated.

free parameters (1)
  • Henyey-Greenstein asymmetry parameters g1 and g2
    Fitted to phase functions extracted from the synthetic images to evaluate recovery of grain properties.
axioms (1)
  • domain assumption Dust-scattering calculations and grain dynamics in the forward model correctly represent physical processes in debris discs.
    Invoked when generating synthetic total-intensity images for comparison to intrinsic SPFs.
