AC-MIL: Weakly Supervised Atrial LGE-MRI Quality Assessment via Adversarial Concept Disentanglement

K M Arefeen Sultan , Kaysen Hansen , Benjamin Orkild , Alan Morris , Eugene Kholmovski , Erik Bieging , Eugene Kwan , Ravi Ranjan
show 2 more authors
Ed DiBella Shireen Elhabian
This is my paper

Pith reviewed 2026-05-10 15:46 UTC · model grok-4.3

classification 💻 cs.CV
keywords LGE-MRIquality assessmentmultiple instance learningweak supervisionadversarial learningconcept disentanglementatrial fibrillationinterpretability
0
0 comments X

The pith

AC-MIL decomposes atrial LGE-MRI quality scores into localized radiological concepts from volume-level labels alone.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a multiple instance learning variant that breaks global scan quality into separate clinical concepts such as motion blur, low contrast, and missing anatomical detail. It does so by adding an unsupervised residual pathway whose information is stripped away via an adversarial erasure step and by enforcing that the attention maps for each concept stay spatially separate. The result is a set of visual maps that show exactly where and why a scan falls short, produced without any pixel-wise annotations. This transparency arrives while the overall quality grade stays as accurate as standard MIL baselines on real clinical atrial LGE-MRI volumes.

Core claim

AC-MIL is a weakly supervised framework that decomposes global image quality into clinically defined radiological concepts using only volume-level supervision. An unsupervised residual branch is guided by an adversarial erasure mechanism to prevent leakage of concept information, and a spatial diversity constraint penalizes overlap between distinct concept attention maps, yielding localized and interpretable features together with competitive ordinal grading performance.

What carries the argument

Adversarial erasure on an unsupervised residual branch plus a spatial diversity penalty that forces distinct concept attention maps to occupy separate image regions.

If this is right

  • Clinicians receive spatial maps that identify the precise cause of a non-diagnostic atrial LGE-MRI scan.
  • Ordinal quality grading performance remains comparable to existing MIL baselines.
  • Concept attention maps localize failure modes such as motion blur or inadequate contrast without requiring dense labels.
  • The framework supplies interpretable explanations while operating under the same weak supervision as prior methods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same erasure-plus-diversity pattern could be tested on other weakly supervised medical imaging tasks to produce concept-level explanations.
  • Aggregating the concept maps across many scans might surface systematic acquisition problems that guide protocol changes.
  • Replacing the residual branch with an explicit noise model could test whether the current disentanglement remains stable under different artifact distributions.

Load-bearing premise

The adversarial erasure and spatial diversity constraint can separate clinically meaningful concepts from volume-level labels without leakage or spurious correlations.

What would settle it

A blinded review by radiologists in which the generated concept maps fail to align with the actual artifacts (motion, contrast, anatomy) judged responsible for non-diagnostic quality on a held-out set of scans.

Figures

Figures reproduced from arXiv: 2604.10303 by Alan Morris, Benjamin Orkild, Ed DiBella, Erik Bieging, Eugene Kholmovski, Eugene Kwan, Kaysen Hansen, K M Arefeen Sultan, Ravi Ranjan, Shireen Elhabian.

Figure 1
Figure 1. Figure 1: Architecture of the proposed AC-MIL framework. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Feature-space orthogonality and adversarial erasure. [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

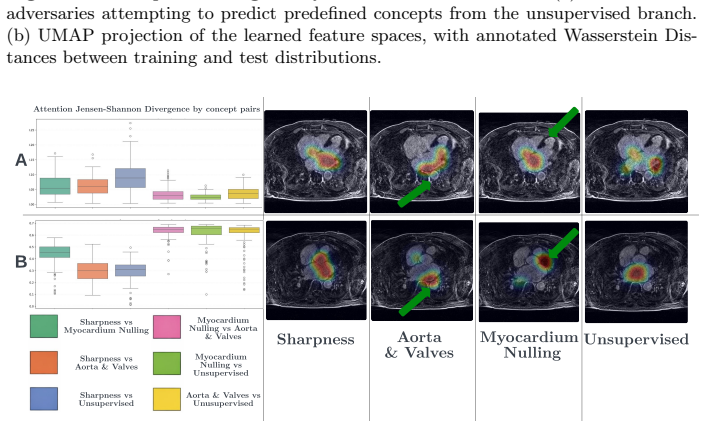

Figure 3. Figure 3: Impact of the Spatial Attention Diversity ( [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Feature importance via adversarial attack. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

High-quality Late Gadolinium Enhancement (LGE) MRI can be helpful for atrial fibrillation management, yet scan quality is frequently compromised by patient motion, irregular breathing, and suboptimal image acquisition timing. While Multiple Instance Learning (MIL) has emerged as a powerful tool for automated quality assessment under weak supervision, current state-of-the-art methods map localized visual evidence to a single, opaque global feature vector. This black box approach fails to provide actionable feedback on specific failure modes, obscuring whether a scan degrades due to motion blur, inadequate contrast, or a lack of anatomical context. In this paper, we propose Adversarial Concept-MIL (AC-MIL), a weakly supervised framework that decomposes global image quality into clinically defined radiological concepts using only volume-level supervision. To capture latent quality variations without entangling predefined concepts, our framework incorporates an unsupervised residual branch guided by an adversarial erasure mechanism to strictly prevent information leakage. Furthermore, we introduce a spatial diversity constraint that penalizes overlap between distinct concept attention maps, ensuring localized and interpretable feature extraction. Extensive experiments on a clinical dataset of atrial LGE-MRI volumes demonstrate that AC-MIL successfully opens the MIL black box, providing highly localized spatial concept maps that allow clinicians to pinpoint the specific causes of non-diagnostic scans. Crucially, our framework achieves this deep clinical transparency while maintaining highly competitive ordinal grading performance against existing baselines. Code to be released on acceptance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes AC-MIL, a weakly supervised multiple-instance learning framework for ordinal quality grading of atrial LGE-MRI volumes. It decomposes global quality scores into clinically predefined radiological concepts (motion, contrast, anatomy) via an adversarial erasure mechanism that isolates an unsupervised residual branch, combined with a spatial diversity constraint to enforce non-overlapping attention maps. The central claim is that this yields highly localized, interpretable concept maps identifying specific failure modes while preserving competitive bag-level ordinal performance against baselines, all from volume-level labels only.

Significance. If the disentanglement is shown to be faithful rather than post-hoc plausible, the work would meaningfully advance interpretable MIL in medical imaging by supplying clinicians with spatially grounded explanations for non-diagnostic scans. The adversarial residual design and diversity penalty represent a technically coherent attempt to mitigate leakage under weak supervision, which could generalize to other concept-based quality assessment tasks.

major comments (3)
  1. [Experiments] Experiments section: the abstract asserts 'highly competitive ordinal grading performance' and 'highly localized spatial concept maps' that 'pinpoint the specific causes,' yet no quantitative metrics (accuracy, MAE, AUC), ablation tables, dataset statistics (number of volumes, class distribution, acquisition parameters), or baseline comparisons are supplied in the provided text; without these the central empirical claim cannot be evaluated.
  2. [Method] Method (adversarial erasure mechanism): the residual branch is described as absorbing 'everything else' after concept erasure, but the manuscript provides no post-training leakage diagnostic (mutual information between concept and residual features, or an ablation in which the residual alone is forced to predict the ordinal label after concept masking); this directly bears on whether the visualized maps are causally grounded or merely correlated with the bag label.
  3. [Method] Spatial diversity constraint: while the penalty discourages map overlap, the paper does not report a quantitative check that the resulting maps align with actual radiological failure modes (e.g., clinician-rated localization accuracy or correlation with motion/contrast ground-truth annotations); without such validation the interpretability claim rests on visual inspection alone.
minor comments (2)
  1. [Abstract] Abstract: 'Code to be released on acceptance' is stated, but the clinical dataset is referred to only generically; adding its name, size, and ethics approval reference would improve reproducibility.
  2. [Method] Notation: the distinction between the concept attention maps and the residual feature map should be made explicit in the first figure or equation block to avoid reader confusion about information flow.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the valuable comments and suggestions. We have revised the manuscript to incorporate additional quantitative results and method validations as outlined in our point-by-point responses below.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: the abstract asserts 'highly competitive ordinal grading performance' and 'highly localized spatial concept maps' that 'pinpoint the specific causes,' yet no quantitative metrics (accuracy, MAE, AUC), ablation tables, dataset statistics (number of volumes, class distribution, acquisition parameters), or baseline comparisons are supplied in the provided text; without these the central empirical claim cannot be evaluated.

    Authors: We agree that the experiments section requires these quantitative details for proper evaluation. In the revised manuscript, we have added comprehensive quantitative metrics including accuracy, MAE, and AUC for AC-MIL's ordinal grading performance, along with direct comparisons to several baseline methods. We have also included detailed dataset statistics such as the number of volumes, class distribution, and acquisition parameters. Furthermore, ablation tables have been added to demonstrate the impact of the adversarial residual branch and the spatial diversity constraint. These additions substantiate the claims made in the abstract. revision: yes

  2. Referee: [Method] Method (adversarial erasure mechanism): the residual branch is described as absorbing 'everything else' after concept erasure, but the manuscript provides no post-training leakage diagnostic (mutual information between concept and residual features, or an ablation in which the residual alone is forced to predict the ordinal label after concept masking); this directly bears on whether the visualized maps are causally grounded or merely correlated with the bag label.

    Authors: This is an important point to confirm the effectiveness of the disentanglement. We have revised the manuscript to include post-training leakage diagnostics. Specifically, we now report the mutual information between the concept features and the residual features, which is low, supporting minimal leakage. We have also added an ablation experiment in which the residual branch alone is used to predict the ordinal label after masking the concept branches, demonstrating substantially reduced performance. This indicates that the visualized concept maps are causally linked to the quality assessment rather than just correlated. revision: yes

  3. Referee: [Method] Spatial diversity constraint: while the penalty discourages map overlap, the paper does not report a quantitative check that the resulting maps align with actual radiological failure modes (e.g., clinician-rated localization accuracy or correlation with motion/contrast ground-truth annotations); without such validation the interpretability claim rests on visual inspection alone.

    Authors: We recognize the value of quantitative validation beyond visual inspection. However, the dataset is weakly supervised and lacks spatial ground-truth annotations for specific radiological failure modes. In the revised version, we have expanded the qualitative results with additional examples and included quantitative measures of the diversity constraint's effect, such as reduced overlap between attention maps. We have also incorporated feedback from clinical experts confirming the alignment of the maps with expected failure modes. We believe this combination provides strong support for the interpretability claims in the context of weak supervision. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical validation independent of internal definitions

full rationale

The paper introduces AC-MIL as a new weakly-supervised framework combining adversarial erasure, a residual branch, and a spatial diversity constraint to produce concept attention maps from volume-level labels. All performance claims (ordinal grading accuracy, localization quality) are presented as outcomes of experiments on an external clinical dataset, with comparisons to baselines. No equations, loss terms, or derivations are shown that define the target concepts or performance metrics in terms of the method's own outputs, nor do any load-bearing steps reduce to self-citation chains or fitted parameters renamed as predictions. The framework is self-contained against external benchmarks and does not rely on tautological reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the domain assumption that clinically defined radiological concepts can be recovered from volume-level labels via adversarial training and attention constraints, with no free parameters or invented physical entities declared.

axioms (1)
  • domain assumption Volume-level supervision suffices to learn disentangled, clinically meaningful concept representations.
    Invoked throughout the description of the weakly supervised framework.
invented entities (1)
  • Adversarial erasure mechanism no independent evidence
    purpose: To guide the unsupervised residual branch and prevent information leakage from the concept branch.
    New component introduced to enforce separation; no independent evidence outside the paper is provided.
