Ladder-like Structural Architecture of Layered Magnetic A_(2.4)Cr₈Te₁₄ (A = Rb, Cs) Compounds by Self-flux Synthesis

Kai D. R\"oseler , Felix Eder , Fabian O. von Rohr This is my paper

Pith reviewed 2026-05-10 16:39 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords alkali chromium telluridesladder-like structuresflux synthesishybrid frameworksantiferromagnetismferrimagnetismlayered magnetic materialssingle-crystal growth
0
0 comments X

The pith

Subtle alkali-tellurium flux adjustments synthesize new A_{2.4}Cr_8Te_{14} compounds whose ladder-like structures combine delafossite-like layers and hollandite-like tunnels, producing antiferromagnetic order in the rubidium variant and fer

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that varying the composition of alkali-tellurium fluxes produces single crystals of Rb_{2.4}Cr_8Te_{14} and Cs_{2.4}Cr_8Te_{14}. These compounds form a previously unseen hybrid framework in which two-dimensional delafossite-like sheets are integrated with tunnel motifs from hollandite-like phases. Magnetization measurements on oriented crystals then reveal that the rubidium member orders antiferromagnetically below 114.5 K while the cesium member orders ferrimagnetically below 125 K. The work therefore positions flux-composition tuning as a route to low-dimensional magnetic materials whose structures sit between established families.

Core claim

By adjusting the alkali-to-tellurium ratio in self-flux reactions, the authors obtain A_{2.4}Cr_8Te_{14} (A = Rb, Cs) phases whose crystal structures interleave the layered motif of ACrTe_2 delafossites with the tunnel motif of A_xCr_5Te_8 hollandites, creating a new ladder-like hybrid. Direction-dependent magnetization data establish that Rb_{2.4}Cr_8Te_{14} undergoes antiferromagnetic ordering at T_N = 114.5 K, whereas Cs_{2.4}Cr_8Te_{14} undergoes ferrimagnetic ordering at T_C = 125.0 K.

What carries the argument

The ladder-like hybrid framework that merges two-dimensional delafossite-like sheets with hollandite-like tunnels into a single structural motif.

If this is right

  • The hybrid ladder motif supports strongly anisotropic magnetic responses that differ between the rubidium and cesium members.
  • Flux-composition control provides a direct synthetic handle for accessing intergrowth structures between known chromium telluride families.
  • The distinct magnetic ground states arise from the specific alkali ion within the same structural framework.
  • Single-crystal growth enables orientation-dependent measurements that reveal the directional character of the magnetic order.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same flux-tuning strategy may be applied to other transition-metal chalcogenides to generate additional hybrid motifs with tunable exchange pathways.
  • The structural intergrowth could host competing magnetic interactions that produce field-induced transitions or metamagnetic behavior not yet reported.
  • Because the compounds form as oriented single crystals, they offer a platform for probing low-dimensional spin dynamics or possible topological magnon features along the ladder direction.

Load-bearing premise

The measured magnetic transition temperatures and structural refinements reflect intrinsic properties of the pure A_{2.4}Cr_8Te_{14} phases rather than minor impurity or defect contributions from the flux-grown crystals.

What would settle it

High-resolution single-crystal diffraction or magnetization data collected on samples grown by a non-flux route that either reproduce the same transition temperatures without secondary phases or show markedly different ordering behavior.

Figures

Figures reproduced from arXiv: 2604.11153 by Fabian O. von Rohr, Felix Eder, Kai D. R\"oseler.

Figure 1
Figure 1. Figure 1: Adjusted temperature program used for the self-flux syn￾thesis of larger single-crystals of CsCr5Te8 compared to two-step synthesis heating up to 1000 °C with 30 °C/h and subsequent cool￾ing to 750 °C over 96 h. Axes not to scale. Powder X-ray diffraction (PXRD) Capillary PXRD data of Rb2.4Cr8Te14 and Cs2.4Cr8Te14 were collected on a Bruker D8 Discover diffractometer equipped with a LynxeyeXE detector usin… view at source ↗
Figure 2

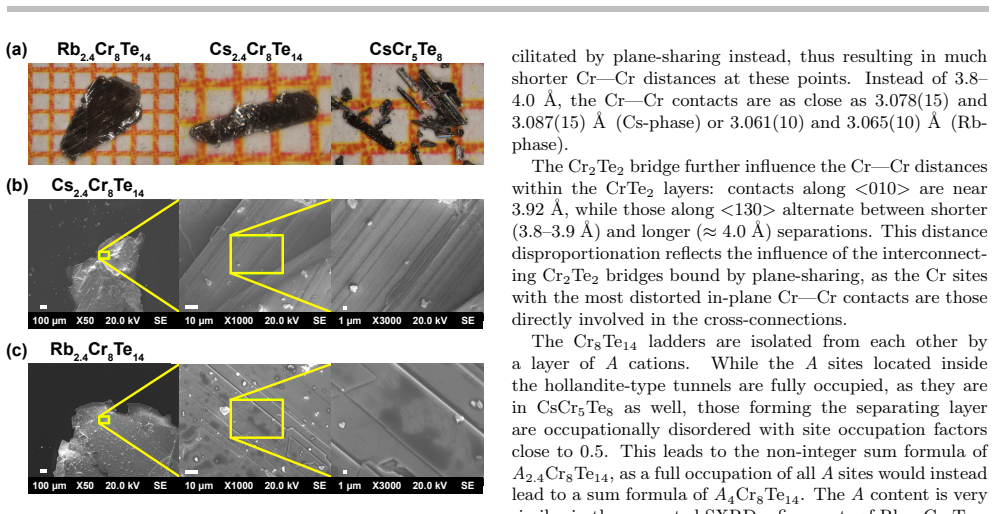

Figure 2. Figure 2: (a) Photographs of obtained crystals of Rb2.4Cr8Te14, Cs2.4Cr8Te14, and CsCr5Te8 taken on millimeter-sized graph paper. (b,c) SEM, SE (Secondary electron) images of (b) Cs2.4Cr8Te14 and (c) Rb2.4Cr8Te14. Yellow frames indicate the frame of the respec￾tive image with increased magnification of ×50, ×1000, and ×3000 taken perpendicular to the crystal’s surface. the same space group Cm and the same basic stru… view at source ↗
Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

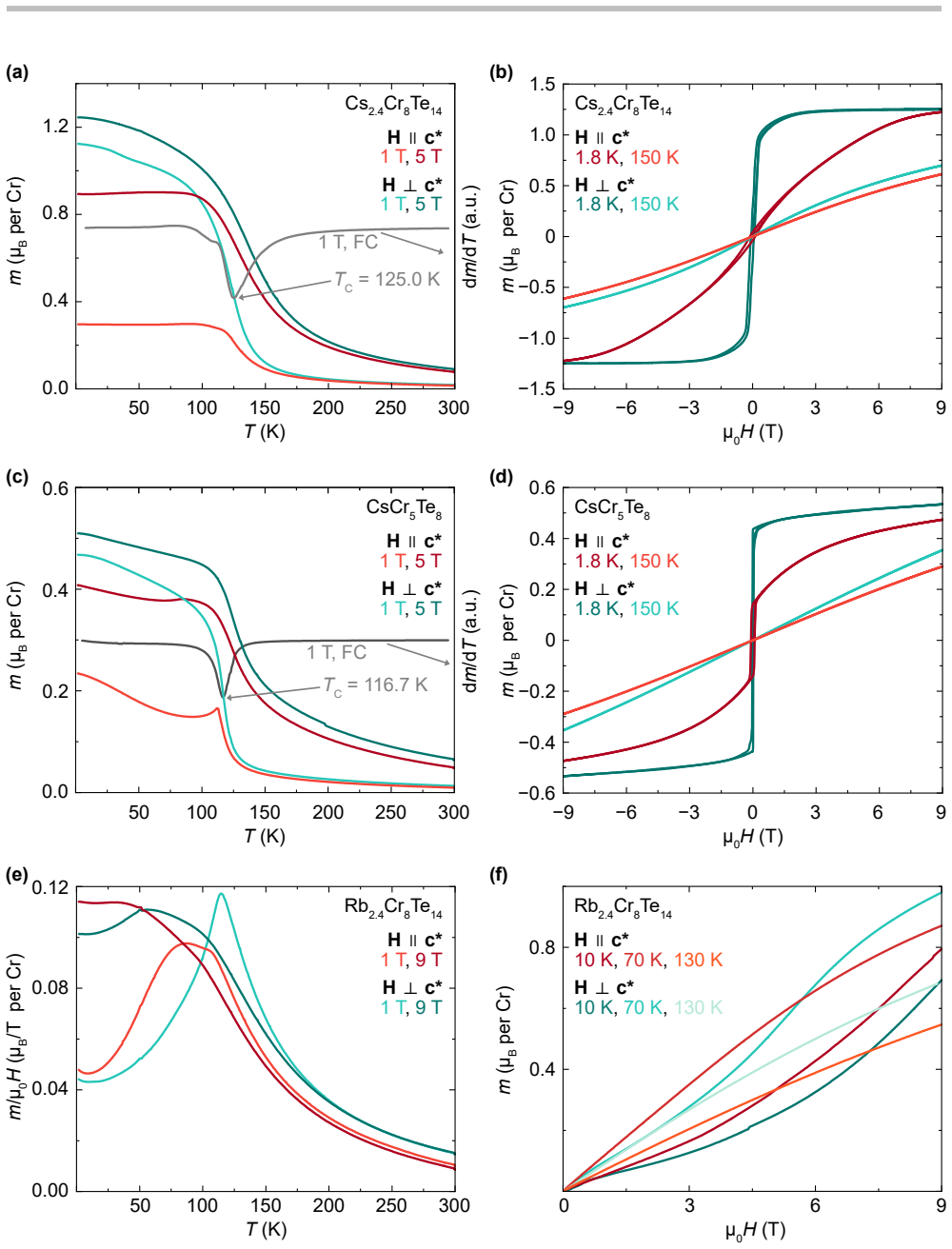

Figure 4. Figure 4: Temperature-dependent and field-dependent magnetic moment of Cs2.4Cr8Te14, CsCr5Te8 , and Rb2.4Cr8Te14. Field orientations are indicated by color: Parallel to c* axis are in red and perpendicular to it in cyan. (a,c,e) Field-cooled data between 1.8 K and 300 K. (a) Cs2.4Cr8Te14 at 1 T (+ derivative) and 5 T. (c) CsCr5Te8 at 1 T (+ derivative) and 5 T. (e) Rb2.4Cr8Te14 at 1 T and 9 T. (b,d,f) Field-dependen… view at source ↗
read the original abstract

The discovery and control of intergrowth structures represent an important avenue for the targeted synthesis of new, more complex structure types. When including magnetic framework metal atoms, this enhanced complexity can transfer to rich magnetic ground states. Here, we show that the subtle adjustment of the composition of alkali-tellurium fluxes enables the synthesis of a new family of alkali chromium tellurides, $A_{2.4}$Cr$_8$Te$_{14}$ ($A$ = Rb, Cs). Their ladder-like crystal structures integrate the two-dimensional character of delafossite-like $A$CrTe$_2$ with the tunnel motifs of hollandite-like $A_{x}$Cr$_5$Te$_8$ phases. This results in a previously unobserved unique hybrid framework. Direction-dependent magnetization measurements on oriented single crystals reveal distinct magnetic ground states: Rb$_{2.4}$Cr$_8$Te$_{14}$ is antiferromagnetic with $T_{\rm N}$ = 114.5 K, while Cs$_{2.4}$Cr$_8$Te$_{14}$ is ferrimagnetic with $T_{\rm C}$ = 125.0 K. This work underscores the simplicity and effectiveness of flux growth as a design strategy for discovering low-dimensional materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the self-flux synthesis of a new family of layered alkali chromium tellurides, A_{2.4}Cr_8Te_{14} (A = Rb, Cs), whose crystal structures feature a ladder-like hybrid architecture combining two-dimensional delafossite-like ACrTe_2 motifs with tunnel-like hollandite-like A_xCr_5Te_8 motifs. Direction-dependent magnetization measurements on oriented single crystals show that the Rb compound orders antiferromagnetically at T_N = 114.5 K, while the Cs compound orders ferrimagnetically at T_C = 125.0 K.

Significance. If the reported structures are confirmed as a new hybrid type and the magnetic transitions are intrinsic to the bulk phases, this work highlights the utility of flux composition tuning for accessing complex low-dimensional magnetic materials, adding to the understanding of structure-magnetism relationships in chromium tellurides.

major comments (2)
  1. [Abstract and magnetic characterization] Abstract and magnetic characterization: The central claim of distinct magnetic ground states depends on the transitions being intrinsic to A_{2.4}Cr_8Te_{14}. However, no details are provided on phase purity verification (e.g., via Rietveld refinement of powder XRD, specific heat measurements, or EDS on multiple crystals), despite the common occurrence of magnetic secondary phases like Cr_5Te_8 variants in self-flux grown chalcogenides with ordering temperatures overlapping the reported 114-125 K range.
  2. [Structural analysis] Structural analysis: The assertion of a 'previously unobserved unique hybrid framework' integrating delafossite and hollandite motifs requires more rigorous substantiation, such as detailed structural refinement parameters, bond valence sums, or explicit comparison showing no overlap with known intergrowth structures in the literature.
minor comments (2)
  1. [Abstract] The transition temperatures are reported without associated uncertainties or error bars, which would improve the precision of the claims.
  2. [General] The manuscript would benefit from including raw data or additional figures for the magnetization measurements to allow readers to assess the quality of the transitions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight important aspects for strengthening the manuscript. We address each major comment below and will revise the manuscript to incorporate additional data and clarifications where possible.

read point-by-point responses

  1. Referee: [Abstract and magnetic characterization] Abstract and magnetic characterization: The central claim of distinct magnetic ground states depends on the transitions being intrinsic to A_{2.4}Cr_8Te_{14}. However, no details are provided on phase purity verification (e.g., via Rietveld refinement of powder XRD, specific heat measurements, or EDS on multiple crystals), despite the common occurrence of magnetic secondary phases like Cr_5Te_8 variants in self-flux grown chalcogenides with ordering temperatures overlapping the reported 114-125 K range.

    Authors: We agree that rigorous phase purity verification is essential to confirm the intrinsic nature of the observed magnetic transitions. The original submission emphasized single-crystal XRD and magnetization data, but we recognize the value of bulk characterization. In the revised manuscript, we will add powder XRD patterns with Rietveld refinements to demonstrate phase purity of the bulk material. We will also include EDS analyses performed on multiple crystals from different batches, showing consistent A:Cr:Te ratios. Specific heat data were not collected in this study owing to sample size constraints, which we will explicitly note as a limitation; however, the transitions appear reproducibly in oriented single-crystal measurements across independent syntheses and are distinct from reported Cr5Te8 ordering temperatures. These additions will be placed in the main text and SI. revision: yes

  2. Referee: [Structural analysis] Structural analysis: The assertion of a 'previously unobserved unique hybrid framework' integrating delafossite and hollandite motifs requires more rigorous substantiation, such as detailed structural refinement parameters, bond valence sums, or explicit comparison showing no overlap with known intergrowth structures in the literature.

    Authors: We accept that the structural novelty claim benefits from additional quantitative support. The structures were solved and refined from single-crystal XRD data; the revised manuscript will include complete refinement statistics (R1, wR2, goodness-of-fit), atomic coordinates, displacement parameters, and selected bond lengths/distances in the main text or SI. Bond valence sum calculations will be added to validate the Cr and Te oxidation states. We will also expand the discussion with a side-by-side structural comparison table and figures contrasting the new ladder-like intergrowth against pure delafossite ACrTe2, hollandite AxCr5Te8, and any previously reported hybrid or intergrowth chromium tellurides, demonstrating the absence of direct overlap with known motifs. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental synthesis, structure, and magnetization study

full rationale

This is an experimental materials discovery paper reporting flux synthesis of A_{2.4}Cr_8Te_{14} phases, single-crystal XRD structure determination, and direction-dependent magnetization measurements. The magnetic ordering temperatures (T_N = 114.5 K, T_C = 125.0 K) are directly measured quantities on oriented crystals, not outputs of any equation, fit, or model defined in the paper. The structural description of the ladder-like hybrid motif is obtained from diffraction refinement and is independent of the magnetic data. No derivations, self-referential predictions, fitted parameters renamed as predictions, or load-bearing self-citation chains appear in the reported claims. The work is self-contained against external benchmarks of synthesis and characterization.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard experimental methods in solid-state chemistry; no new theoretical entities, fitted parameters, or ad-hoc axioms are introduced in the abstract.

axioms (1)
  • domain assumption Standard single-crystal X-ray diffraction and SQUID magnetometry reliably determine crystal structures and magnetic ordering temperatures in chalcogenide compounds.
    Invoked implicitly when reporting refined structures and transition temperatures from measurements.
