REVIEW 2 major objections 2 minor 52 references
Rings Around Non-Spherical Worlds: Sub-mm Dust Retention Around Triaxial Small Bodies in the Solar System
T0 review · 2 major / 2 minor · reviewed 2026-05-10 · grok-4.3
Pith's one-line read Triaxial shapes of small Solar System bodies stabilize their narrow rings by suppressing radiation pressure effects through rapid apsidal precession.
desk verdict Triaxial precession stabilizes sub-mm rings in the simulations but the unmodeled collisions and PR drag leave the retention claim provisional. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The non-axisymmetric gravitational field of the rotating triaxial central body, which drives rapid apsidal precession to counteract solar radiation pressure effects on ring particle orbits.
What would settle it
Observing stable narrow rings with particle sizes below 7 micrometers around these bodies, or finding that ring loss occurs at rates predicted by spherical models rather than triaxial ones.
Extended reading notes
Core claim
In contrast to spherical-body models where solar radiation pressure leads to eccentricity growth and particle loss, the inclusion of the triaxial shape induces rapid apsidal precession that suppresses RP-driven eccentricity growth and prevents material loss from the ring over the simulated interval.
Load-bearing premise
The assumption that particle collisions, Poynting-Robertson drag, and other unmodeled forces are negligible, treating particles as non-interacting test particles over millennial timescales.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper investigates the millennial-scale evolution of narrow rings around the triaxial small bodies Chiron, Chariklo, Quaoar, and Haumea using GPU-accelerated 8th-order Hermite integrations. It models the combined effects of solar radiation pressure (RP), shadowing, heliocentric motion, and the rotating triaxial gravitational field, comparing these to spherical-body cases for both coplanar and inclined rings. The central claim is that triaxial gravity induces rapid apsidal precession that suppresses RP-driven eccentricity excitation and prevents particle loss over the simulated interval (in contrast to spherical models), allowing retention of particles larger than ~7-40 μm with estimated radial widths of ~10 km (Chiron/Chariklo) or 40-70 km (Quaoar/Haumea) and vertical thicknesses of hundreds of meters to ~1 km. The work concludes that such rings can plausibly retain sub-mm dust on timescales shorter than Poynting-Robertson drag.
Significance. If the results hold, the manuscript offers a dynamical mechanism explaining the stability of observed narrow rings around non-spherical small bodies, emphasizing the role of non-axisymmetric gravity in mitigating radiation pressure effects. The direct spherical-vs-triaxial comparisons, inclusion of shadowing and heliocentric terms, and focus on sub-mm particle retention provide concrete, falsifiable predictions for ring dimensions and size thresholds that can be tested against observations.
major comments (2)
- [Abstract and Results] Abstract and Results: The retention conclusion for sub-mm particles rests on test-particle integrations that include RP but omit Poynting-Robertson drag and collisions. Although the abstract states the simulated retention occurs on timescales shorter than PR drag, no quantitative comparison of PR inspiral times (for the 7-40 μm particles) to the millennial integration length is provided, leaving open whether the precession suppression survives when PR is restored.
- [Methods and Results] Methods and Results: The assumption that particle collisions remain negligible is load-bearing for the retention claim, yet no estimate of collision frequency (via optical depth or velocity dispersion) is given to confirm this holds over the simulated interval for the stated particle sizes and ring widths.
minor comments (2)
- [Abstract] The radiation pressure parameter and its mapping to particle size/composition could be defined more explicitly early in the text to aid readers.
- [Results] Figure captions or the text describing eccentricity evolution would benefit from noting the number of particles integrated and any convergence tests performed.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive comments, which help clarify the scope and limitations of our test-particle integrations. We address each major point below and have revised the manuscript accordingly to include the requested quantitative estimates.
read point-by-point responses
-
Referee: [Abstract and Results] Abstract and Results: The retention conclusion for sub-mm particles rests on test-particle integrations that include RP but omit Poynting-Robertson drag and collisions. Although the abstract states the simulated retention occurs on timescales shorter than PR drag, no quantitative comparison of PR inspiral times (for the 7-40 μm particles) to the millennial integration length is provided, leaving open whether the precession suppression survives when PR is restored.
Authors: We agree that an explicit comparison strengthens the claim. In the revised manuscript we add a dedicated paragraph (new Section 4.3) that computes the Poynting-Robertson inspiral timescale for 7–40 μm particles of both icy and silicate composition using the standard formula τ_PR ≈ (c r^2 / (3 G M_⊙ β)) with β evaluated at each body’s heliocentric distance. For the smallest particles considered, τ_PR ranges from ~3×10^4 yr (Chiron) to ~2×10^5 yr (Haumea), all substantially longer than the 1,000 yr integration window. We also note that the rapid apsidal precession induced by the triaxial field operates on timescales of only a few years, so the eccentricity-suppression mechanism remains active well before PR drag can appreciably alter the orbits. These numbers are now quoted in the abstract and results section. revision: yes
-
Referee: [Methods and Results] Methods and Results: The assumption that particle collisions remain negligible is load-bearing for the retention claim, yet no estimate of collision frequency (via optical depth or velocity dispersion) is given to confirm this holds over the simulated interval for the stated particle sizes and ring widths.
Authors: We accept that a quantitative justification is required. In the revised Methods section we now estimate the collision timescale using the standard expression τ_coll ≈ (1 / (n σ v_rel)) where n is the number density derived from the adopted surface density, σ the geometric cross-section for the particle sizes, and v_rel the velocity dispersion obtained from the vertical thickness and radial width of the simulated rings. For the reported ring widths (10–70 km) and vertical thicknesses (hundreds of meters to 1 km), τ_coll exceeds 10^4–10^5 yr for the 7–40 μm particles, comfortably longer than the integration length. We also note that the low optical depths implied by the narrow rings further reduce collision rates. These estimates are presented in a new paragraph and referenced in the discussion of model assumptions. revision: yes
Circularity Check
No significant circularity; results emerge from direct numerical integration
full rationale
The paper derives its central claims about apsidal precession suppressing RP-driven eccentricity growth (and thus enabling retention in triaxial cases) from GPU-accelerated 8th-order Hermite integrations that solve the equations of motion under the explicitly listed forces. No parameters are fitted to data and then relabeled as predictions, no self-definitional loops appear in the model setup, and no load-bearing uniqueness theorems or ansatzes are imported via self-citation. The contrast between spherical and triaxial outcomes is an emergent dynamical result within the stated assumptions, making the derivation self-contained.
Assumptions & free parameters
free parameters (2)
- radiation pressure parameter
- particle size thresholds
assumptions (2)
- standard math 8th-order Hermite integrator with GPU acceleration accurately captures the combined gravitational, radiative, and shadowing effects over millennial timescales
- domain assumption Particle-particle collisions and Poynting-Robertson drag can be neglected for the simulated interval
Cite this review
Pith. "Pith review of Rings Around Non-Spherical Worlds: Sub-mm Dust Retention Around Triaxial Small Bodies in the Solar System." pith.science (2026). https://pith.science/paper/2604.13234
@misc{pith2026260413234,
author = {Pith},
title = {Pith review of: Rings Around Non-Spherical Worlds: Sub-mm Dust Retention Around Triaxial Small Bodies in the Solar System},
year = {2026},
howpublished = {\url{https://pith.science/paper/2604.13234}},
note = {Machine review of arXiv:2604.13234}
}

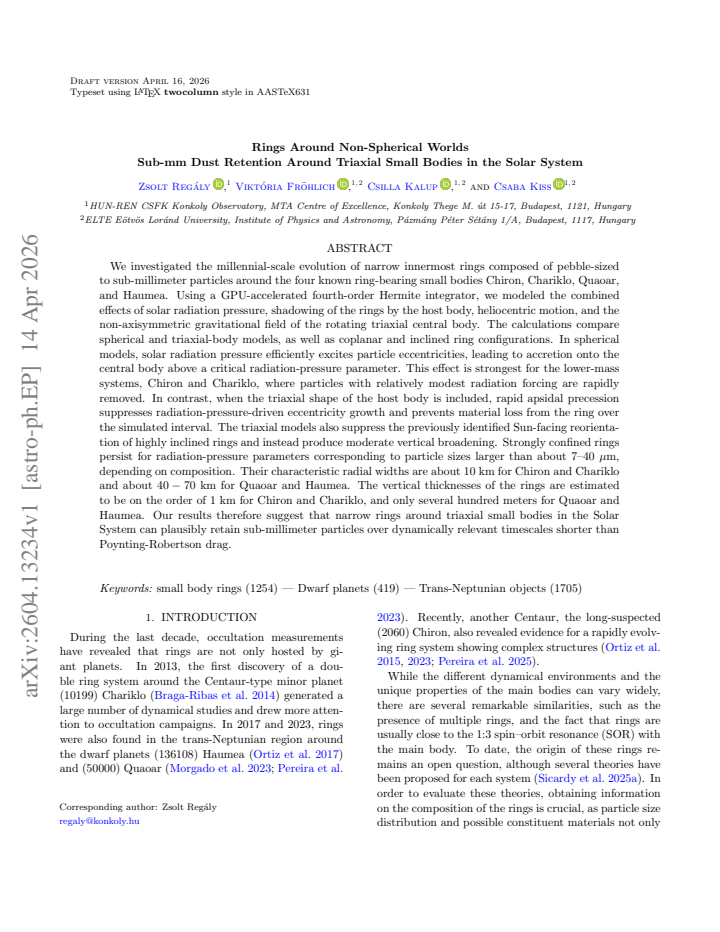

read the original abstract
We investigated the millennial-scale evolution of narrow innermost rings composed of pebble-sized to sub-millimeter particles around the four known ring-bearing small bodies Chiron, Chariklo, Quaoar, and Haumea. Using a GPU-accelerated 8th-order Hermite integrator, we modeled the combined effects of solar radiation pressure (RP), shadowing of the rings by the host body, heliocentric motion, and the non-axisymmetric gravitational field of the rotating triaxial central body. The calculations compare spherical and triaxial-body models, as well as coplanar and inclined ring configurations. In spherical models, solar RP excites particle eccentricities, leading to accretion onto the central body above a critical RP parameter. This effect is strongest for the lower-mass systems, Chiron and Chariklo, where particles with relatively modest radiation forcing are rapidly removed. In contrast, when the triaxial shape of the host body is included, rapid apsidal precession suppresses RP-driven eccentricity growth and prevents material loss from the ring over the simulated interval. The triaxial models also suppress the previously identified Sun-facing reorientation of highly inclined rings and instead produce moderate vertical broadening. Strongly confined rings persist for RP parameters corresponding to particle sizes larger than about 7-40 micrometers, depending on composition. Their characteristic radial widths are about 10 km for Chiron and Chariklo and about 40-70 km for Quaoar and Haumea. The vertical thicknesses of the rings are estimated to be on the order of 1 km for Chiron and Chariklo, and only several hundred meters for Quaoar and Haumea. Our results suggest that narrow rings around triaxial small bodies in the Solar System can plausibly retain sub-millimeter particles over dynamically relevant timescales shorter than Poynting-Robertson drag.
