A Generalized Method for Spatial Operations on Physical Properties of Matter

Hongjin Xiong , Teng Ma This is my paper

Pith reviewed 2026-05-10 13:31 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.optics
keywords spatial operationscoefficient matricescrystal symmetrynonlinear opticselastic mechanicselectromagnetismtransformation matricesICO method
0
0 comments X

The pith

A generalized input-coefficient-output method constructs spatial operation matrices for any physical property coefficient matrix.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a generalized input-coefficient-output (ICO) approach that builds transformation matrices for applying spatial operations such as rotation or inversion to coefficient matrices of physical properties. This matters because diverse systems like nonlinear optics, elasticity, and electromagnetism use different matrix types that resist simple multiplication or standard tensor rules, leading to cumbersome notation and high costs as sizes increase. A sympathetic reader cares because the method supplies concise, intuitive notation while shifting computation to tools, allowing easier exploration of how crystal symmetries shape material responses across fields.

Core claim

We present a generalized input-coefficient-output (ICO) approach for constructing spatial operation matrices applicable to coefficient matrices across diverse physical systems, including but not limited to high-order nonlinear optics, elastic mechanics, electricity and magnetism. Our approach offers a concise formalism that enables intuitive reasoning about spatial transformations while delegating intensive computations to computational tools.

What carries the argument

The input-coefficient-output (ICO) construction, which assembles a spatial operation matrix from separate input, coefficient, and output components to perform transformations on arbitrary coefficient matrices.

If this is right

  • The method scales to larger coefficient matrices where conventional approaches become inadequate.
  • It supplies intuitive interpretation of spatial effects on material properties, analogous to the role of diagrams in physics.
  • The same formalism applies without modification to coefficient matrices in nonlinear optics, elasticity, and electromagnetism.
  • It supports both theoretical analysis and experimental design by clarifying how operations act on physical responses.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may allow general-purpose software to handle symmetry operations on any tensor-derived matrix without custom code per property type.
  • Researchers could use it to scan how previously intractable high-order tensors respond to mirror or inversion operations in new materials.
  • If the construction holds, it would reduce the need for separate derivations of transformation rules in each subfield of materials physics.
  • Extension to time-dependent or non-crystalline systems would be a natural next test of the method's claimed generality.

Load-bearing premise

The ICO construction produces correct transformation matrices for arbitrary coefficient types without hidden restrictions or loss of information relative to established tensor rules.

What would settle it

Apply the ICO method and standard tensor transformation rules to the same elasticity tensor under a specific rotation, such as 90 degrees, and verify whether the resulting matrices are identical.

Figures

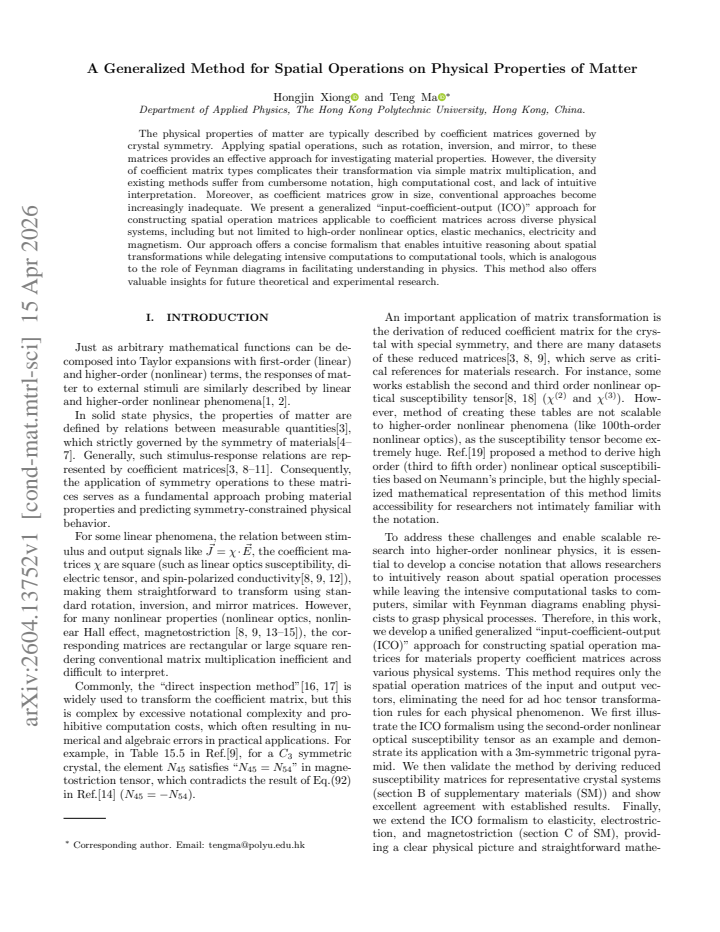

Figures reproduced from arXiv: 2604.13752 by Hongjin Xiong, Teng Ma.

Figure 1
Figure 1. Figure 1: FIG. 1. The Physical picture of the “input-coefficient-output” ⃗ ⃗ [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Trigonal pyramid. (a) A trigonal pyramid. (b) Top [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Mirror operation of an trigonal pyramid about plane [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
read the original abstract

The physical properties of matter are typically described by coefficient matrices governed by crystal symmetry. Applying spatial operations, such as rotation, inversion, and mirror, to these matrices provides an effective approach for investigating material properties. However, the diversity of coefficient matrix types complicates their transformation via simple matrix multiplication, and existing methods suffer from cumbersome notation, high computational cost, and lack of intuitive interpretation. Moreover, as coefficient matrices grow in size, conventional approaches become increasingly inadequate. We present a generalized ``input-coefficient-output (ICO)" approach for constructing spatial operation matrices applicable to coefficient matrices across diverse physical systems, including but not limited to high-order nonlinear optics, elastic mechanics, electricity and magnetism. Our approach offers a concise formalism that enables intuitive reasoning about spatial transformations while delegating intensive computations to computational tools, which is analogous to the role of Feynman diagrams in facilitating understanding in physics. This method also offers valuable insights for future theoretical and experimental research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes a generalized 'input-coefficient-output (ICO)' construction for building spatial operation matrices that act on coefficient matrices describing physical properties of matter under crystal symmetry. The approach is claimed to apply across diverse systems including high-order nonlinear optics, elastic mechanics, electricity and magnetism, addressing limitations of existing methods in notation, computational cost, and scalability while providing intuitive reasoning and delegating calculations to tools, analogous to Feynman diagrams.

Significance. If the ICO method can be shown to reproduce standard tensor transformation rules without loss of information or hidden restrictions for arbitrary coefficient types, it would constitute a useful notational and computational convenience in materials science. It could lower barriers to applying spatial operations (rotations, inversions, mirrors) to tensors of varying rank and symmetry, potentially aiding both theoretical analysis and experimental design in crystal physics.

minor comments (3)
  1. The abstract asserts generality across 'diverse physical systems' and 'arbitrary coefficient types' but provides no explicit statement of the mathematical scope, input/output dimensions, or any restrictions on the coefficient matrices to which the construction applies.
  2. No concrete example, derivation, or pseudocode of the ICO construction is supplied, preventing verification that the resulting operation matrices match known transformation laws for standard tensors such as the elasticity tensor or third-rank nonlinear optical susceptibilities.
  3. The manuscript does not include any benchmark against conventional methods (e.g., direct application of rotation matrices to Voigt or full tensor representations) to substantiate claims of reduced computational cost or improved intuitiveness.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and for recognizing the potential utility of the generalized ICO method if it faithfully reproduces standard tensor transformations. We address this central point below.

read point-by-point responses

  1. Referee: If the ICO method can be shown to reproduce standard tensor transformation rules without loss of information or hidden restrictions for arbitrary coefficient types, it would constitute a useful notational and computational convenience in materials science.

    Authors: The ICO construction is derived directly from the standard tensor transformation law under crystal symmetry operations, ensuring equivalence by design. The manuscript provides explicit derivations and side-by-side comparisons for tensors of varying rank and symmetry (including high-order nonlinear optical, elastic, and electromagnetic coefficients), demonstrating that ICO matrices produce identical results to conventional element-wise or Voigt-notation transformations with no information loss or added restrictions. The method simply reorganizes the same underlying rules into a matrix form that scales better for large coefficient matrices and enables intuitive reasoning, without altering the physics. revision: no

Circularity Check

0 steps flagged

No significant circularity detected in ICO construction

full rationale

The paper introduces a generalized input-coefficient-output (ICO) approach for constructing spatial operation matrices on coefficient matrices of various physical properties. The provided abstract and description frame this as a notational and computational convenience that delegates work to tools while preserving standard tensor transformation behavior across domains like nonlinear optics and elasticity. No load-bearing steps reduce by construction to fitted inputs, self-definitions, or self-citation chains; the central claim relies on independent tensor rules rather than re-expressing its own outputs as predictions. The derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The approach rests on standard rules of tensor transformation under crystal symmetry operations; the ICO formalism itself is the novel element introduced without independent verification in the abstract.

axioms (1)
  • domain assumption Coefficient matrices for physical properties transform under spatial operations according to their rank and the symmetry of the crystal.
    Invoked implicitly as the foundation for applying rotations, inversions, and mirrors to the matrices.
invented entities (1)
  • ICO (input-coefficient-output) construction no independent evidence
    purpose: To generate spatial operation matrices uniformly for any coefficient matrix type
    New formalism presented in the paper to replace case-by-case transformations.

pith-pipeline@v0.9.0 · 5454 in / 1320 out tokens · 41842 ms · 2026-05-10T13:31:20.590672+00:00 · methodology
