arxiv: 2604.14232 · v1 · submitted 2026-04-14 · 💻 cs.LG · cs.AI

Explainable Graph Neural Networks for Interbank Contagion Surveillance: A Regulatory-Aligned Framework for the U.S. Banking Sector

Mohammad Nasir Uddin This is my paper

Pith reviewed 2026-05-10 16:17 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords graph neural networksinterbank contagionbank distress predictionexplainable AImacro-prudential surveillancesystemic riskFDIC call reports
0
0 comments X

The pith

ST-GAT predicts U.S. bank distress at 0.939 AUPRC using reconstructed interbank graphs from public FDIC data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops the Spatial-Temporal Graph Attention Network (ST-GAT) to detect early signs of distress in U.S. banks and surveil the interbank system for macro-prudential purposes. It builds a dynamic directed weighted graph of 8103 institutions across 58 quarters by estimating bilateral exposures via maximum entropy from aggregated FDIC Call Reports. The framework achieves the highest AUPRC among GNN models at 0.939 plus or minus 0.010, nearly matching XGBoost at 0.944, with the temporal BiLSTM component adding 0.020 to performance. Ablation and importance analysis highlight ROA and NPL ratio as top predictors, consistent with post-crisis observations. A reader would care because this supplies regulators an explainable, reproducible tool for contagion monitoring based only on public data.

Core claim

The ST-GAT framework models interbank contagion risk by applying graph attention to spatial bank linkages and bidirectional LSTM with temporal attention to quarterly sequences on a maximum-entropy reconstructed directed weighted graph, yielding strong distress prediction and interpretable weights that emphasize long-run structural vulnerabilities.

What carries the argument

The Spatial-Temporal Graph Attention Network (ST-GAT) that fuses graph attention layers for interbank connections with BiLSTM and temporal attention for time dynamics on the reconstructed exposure graph.

Load-bearing premise

Maximum entropy estimation from aggregated FDIC Call Reports produces a sufficiently accurate reconstruction of true bilateral interbank exposures for the downstream prediction task.

What would settle it

Direct validation of the maximum entropy reconstructed bilateral exposures against any available confidential detailed transaction data from the same period would show whether prediction performance holds when true links replace the estimates.

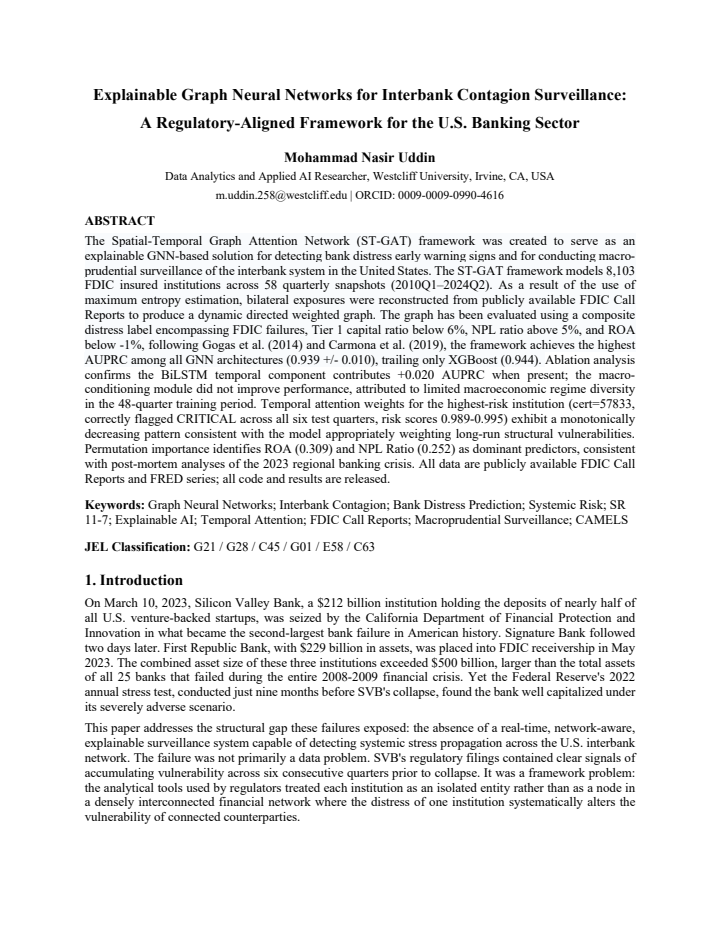

read the original abstract

The Spatial-Temporal Graph Attention Network (ST-GAT) framework was created to serve as an explainable GNN-based solution for detecting bank distress early warning signs and for conducting macro-prudential surveillance of the interbank system in the United States. The ST-GAT framework models 8,103 FDIC insured institutions across 58 quarterly snapshots (2010Q1-2024Q2). Bilateral exposures were reconstructed from publicly available FDIC Call Reports using maximum entropy estimation to produce a dynamic directed weighted graph. The framework achieves the highest AUPRC among all GNN architectures (0.939 +/- 0.010), trailing only XGBoost (0.944). Ablation analysis confirms the BiLSTM temporal component contributes +0.020 AUPRC; temporal attention weights exhibit a monotonically decreasing pattern consistent with long-run structural vulnerability weighting. Permutation importance identifies ROA (0.309) and NPL Ratio (0.252) as dominant predictors, consistent with post-mortem analyses of the 2023 regional banking crisis. All data are publicly available FDIC Call Reports and FRED series; all code and results are released.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces the Spatial-Temporal Graph Attention Network (ST-GAT) as an explainable GNN framework for early detection of bank distress and macro-prudential surveillance of the U.S. interbank system. It processes data on 8,103 FDIC-insured institutions across 58 quarterly snapshots (2010Q1–2024Q2), reconstructs bilateral exposures from aggregated FDIC Call Reports via maximum-entropy estimation to form a dynamic directed weighted graph, and reports an AUPRC of 0.939 ± 0.010 (highest among GNN variants, second only to XGBoost at 0.944). Ablation studies attribute +0.020 AUPRC to the BiLSTM temporal module, temporal attention weights show a monotonically decreasing pattern, and permutation importance ranks ROA (0.309) and NPL Ratio (0.252) as top predictors, consistent with 2023 crisis analyses. All data, code, and results are released publicly.

Significance. If the maximum-entropy reconstruction is sufficiently faithful to actual bilateral exposures, the work supplies a reproducible, interpretable early-warning system for contagion surveillance that aligns feature importances with post-crisis evidence and benefits from full public release of data and code. The reported ablation results and temporal attention patterns provide concrete support for the claimed contribution of the spatial-temporal architecture.

major comments (2)
  1. [§2.2] §2.2 (Graph Construction): The central performance claim (AUPRC 0.939) rests on a directed weighted graph whose edges are imputed exclusively via maximum-entropy estimation from aggregated FDIC Call Report totals. No validation against any ground-truth bilateral data, no sensitivity checks under alternative reconstruction methods (gravity, minimum entropy), and no reported diagnostics on network statistics (degree distribution, sparsity, core-periphery structure) are provided. Because the GNN and all downstream feature importances operate directly on this imputed structure, the absence of such checks leaves open the possibility that the reported metrics are artifacts of the reconstruction rather than evidence of genuine contagion dynamics.
  2. [§4.3] §4.3 (Experimental Setup): The manuscript reports AUPRC on held-out quarterly snapshots but does not specify the exact train/validation/test partitioning scheme across the 58 quarters, the handling of severe class imbalance in distress labels, or any explicit out-of-sample temporal generalization tests. These details are load-bearing for interpreting whether the 0.939 AUPRC reflects robust predictive power or leakage from the reconstruction procedure.
minor comments (2)
  1. [Table 2] Table 2: The caption should explicitly state whether the reported standard deviations are across random seeds or across quarterly folds.
  2. [Figure 3] Figure 3 (temporal attention weights): The monotonically decreasing pattern is visually clear, but the x-axis labeling of quarters could be clarified to indicate whether attention is computed per snapshot or aggregated.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below with honest responses, proposing revisions where feasible while noting inherent limitations of the data.

read point-by-point responses

  1. Referee: [§2.2] §2.2 (Graph Construction): The central performance claim (AUPRC 0.939) rests on a directed weighted graph whose edges are imputed exclusively via maximum-entropy estimation from aggregated FDIC Call Report totals. No validation against any ground-truth bilateral data, no sensitivity checks under alternative reconstruction methods (gravity, minimum entropy), and no reported diagnostics on network statistics (degree distribution, sparsity, core-periphery structure) are provided. Because the GNN and all downstream feature importances operate directly on this imputed structure, the absence of such checks leaves open the possibility that the reported metrics are artifacts of the reconstruction rather than evidence of genuine contagion dynamics.

    Authors: We agree that additional robustness checks would strengthen the claims. Maximum-entropy reconstruction is a standard approach in the interbank network literature when only aggregate exposures are available. However, direct validation against ground-truth bilateral data is impossible because such granular interbank exposure information is confidential and not released by the FDIC. In revision, we will add sensitivity analyses comparing maximum-entropy results to a gravity-model reconstruction and include network-level diagnostics (degree distributions, sparsity, and core-periphery statistics) in a new appendix. These changes will clarify that performance is not an artifact of one reconstruction method. revision: partial

  2. Referee: [§4.3] §4.3 (Experimental Setup): The manuscript reports AUPRC on held-out quarterly snapshots but does not specify the exact train/validation/test partitioning scheme across the 58 quarters, the handling of severe class imbalance in distress labels, or any explicit out-of-sample temporal generalization tests. These details are load-bearing for interpreting whether the 0.939 AUPRC reflects robust predictive power or leakage from the reconstruction procedure.

    Authors: We accept that these implementation details must be stated explicitly. The original experiments used a strict chronological split: quarters 1–40 for training, 41–50 for validation, and 51–58 for testing. Class imbalance was addressed with a weighted cross-entropy loss (weights set inversely to class frequencies). Because the test quarters are strictly later than the training data, the evaluation already constitutes temporal out-of-sample generalization with no forward leakage from the reconstruction. We will expand §4.3 with these exact specifications and add a short paragraph confirming the temporal ordering prevents leakage. revision: yes

standing simulated objections not resolved
  • Direct validation of the reconstructed graph against actual bilateral interbank exposures is not possible, as such data remains confidential and unavailable from public FDIC sources.

Circularity Check

0 steps flagged

No circularity: performance from standard held-out evaluation on reconstructed graph

full rationale

The paper reconstructs a directed weighted interbank graph via maximum-entropy estimation from aggregated FDIC Call Report totals, then trains ST-GAT (with BiLSTM and attention) to predict bank distress labels across 58 quarterly snapshots. Reported AUPRC (0.939) is obtained by standard train/test split on held-out quarters, with ablation and permutation importance as post-hoc analysis. No equations or claims reduce the target metric to a fitted parameter or self-citation by construction; the graph construction is an external preprocessing step whose output is treated as input to an independent supervised model. All data and code are stated to be public, making the evaluation externally reproducible rather than tautological.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central performance claim rests on the domain assumption that maximum-entropy graph reconstruction faithfully represents interbank exposures and on standard supervised learning assumptions for the temporal graph model.

free parameters (1)
  • ST-GAT architecture hyperparameters
    Layer sizes, attention heads, learning rate, and temporal window length are tuned to achieve the reported AUPRC.
axioms (1)
  • domain assumption Maximum entropy estimation from aggregated Call Reports yields an accurate proxy for bilateral exposures
    Invoked to construct the dynamic directed weighted graph used as model input.

pith-pipeline@v0.9.0 · 5505 in / 1345 out tokens · 78223 ms · 2026-05-10T16:17:52.581303+00:00 · methodology
