arxiv: 2605.02126 · v1 · submitted 2026-05-04 · 💻 cs.CV · cs.LG

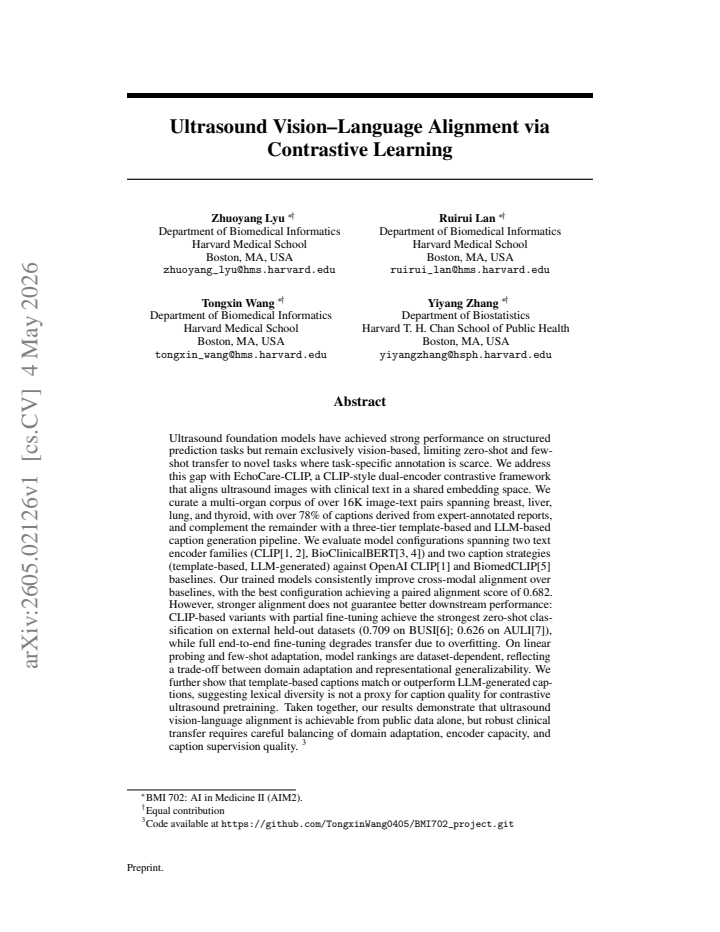

Ultrasound Vision-Language Alignment via Contrastive Learning

Zhuoyang Lyu , Yiyang Zhang , Tongxin Wang , Ruirui Lan This is my paper

Pith reviewed 2026-05-09 17:02 UTC · model grok-4.3

classification 💻 cs.CV cs.LG
keywords ultrasoundvision-language alignmentcontrastive learningCLIPmedical imagingzero-shot classificationimage-text pairsdomain adaptation
0
0 comments X

The pith

Ultrasound images align with clinical text reports via contrastive learning on public data alone, though full fine-tuning harms transfer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a dual-encoder contrastive model can map ultrasound images from breast, liver, lung, and thyroid to matching clinical text in a shared space, using a corpus of over 16,000 pairs drawn entirely from public sources. This matters for medical imaging because most ultrasound foundation models today are vision-only and cannot handle new tasks without fresh labeled data. The authors demonstrate higher alignment scores than OpenAI CLIP and BiomedCLIP baselines, yet also find that stronger alignment does not reliably improve zero-shot classification on external datasets and that simpler template captions work as well as LLM-generated ones.

Core claim

EchoCare-CLIP is a CLIP-style dual-encoder trained with contrastive loss on a multi-organ ultrasound corpus of more than 16K image-text pairs, over 78 percent drawn from expert-annotated reports. The model lifts paired alignment to 0.682, outperforming baselines, but zero-shot classification on held-out BUSI and AULI datasets peaks at 0.709 and 0.626 respectively only with partial fine-tuning of CLIP-based text encoders; full end-to-end training degrades results through overfitting. Template-based captions prove equal or superior to LLM-generated ones, indicating that lexical diversity is not required for effective supervision.

What carries the argument

The dual-encoder contrastive framework that pulls matched ultrasound-image and text embeddings together while repelling unmatched pairs in a shared space.

If this is right

  • Partial fine-tuning of CLIP-based text encoders delivers the strongest zero-shot performance on external breast and lung ultrasound sets.
  • Template-generated captions support alignment and transfer at least as well as LLM-generated captions.
  • Full end-to-end fine-tuning causes overfitting that reduces generalization on held-out clinical data.
  • Alignment scores and downstream transfer performance are imperfectly correlated, with rankings varying by dataset on linear probing and few-shot tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Simpler captions may better preserve precise medical terminology than more varied LLM text, reducing noise in supervision.
  • The same contrastive alignment recipe could be tested on other public medical imaging modalities that already have report text.
  • Balancing domain adaptation against encoder capacity may become a standard hyper-parameter choice when building medical vision-language models.

Load-bearing premise

The 16K public image-text pairs and the two specific external test sets capture enough real-world clinical variability in scanners, protocols, and reporting styles for the observed trade-offs to hold more broadly.

What would settle it

Zero-shot classification accuracy on a fresh ultrasound dataset collected at a different hospital or with different equipment falls well below the 0.626–0.709 range reported on BUSI and AULI.

Figures

Figures reproduced from arXiv: 2605.02126 by Ruirui Lan, Tongxin Wang, Yiyang Zhang, Zhuoyang Lyu.

Figure 1
Figure 1. Figure 1: Zero-shot classification accuracy across anatomical domains on the internal held-out test view at source ↗
Figure 2
Figure 2. Figure 2: Qualitative comparison of zero-shot predictions from EchoCare-CLIP (BioClinicalBERT view at source ↗
Figure 3
Figure 3. Figure 3: Zero-shot classification accuracy on the BUSI (a) and AULI (b) held-out test sets, with all view at source ↗
Figure 4
Figure 4. Figure 4: Zero-shot classification accuracy on the BUSI (a) and AULI (b) held-out test sets, grouped view at source ↗
read the original abstract

Ultrasound foundation models have achieved strong performance on structured prediction tasks but remain exclusively vision-based, limiting zero-shot and few-shot transfer to novel tasks where task-specific annotation is scarce. We address this gap with EchoCare-CLIP, a CLIP-style dual-encoder contrastive framework that aligns ultrasound images with clinical text in a shared embedding space. We curate a multi-organ corpus of over 16K image-text pairs spanning breast, liver, lung, and thyroid, with over 78% of captions derived from expert-annotated reports, and complement the remainder with a three-tier template-based and LLM-based caption generation pipeline. We evaluate model configurations spanning two text encoder families (CLIP, BioClinicalBERT) and two caption strategies (template-based, LLM-generated) against OpenAI CLIP and BiomedCLIP baselines. Our trained models consistently improve cross-modal alignment over baselines, with the best configuration achieving a paired alignment score of 0.682. However, stronger alignment does not guarantee better downstream performance: CLIP-based variants with partial fine-tuning achieve the strongest zero-shot classification on external held-out datasets (0.709 on BUSI; 0.626 on AULI), while full end-to-end fine-tuning degrades transfer due to overfitting. On linear probing and few-shot adaptation, model rankings are dataset-dependent, reflecting a trade-off between domain adaptation and representational generalizability. We further show that template-based captions match or outperform LLM-generated captions, suggesting lexical diversity is not a proxy for caption quality. Taken together, our results demonstrate that ultrasound vision-language alignment is achievable from public data alone, but robust clinical transfer requires careful balancing of domain adaptation, encoder capacity, and caption supervision quality.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript describes EchoCare-CLIP, a CLIP-style dual-encoder contrastive learning framework designed to align ultrasound images with corresponding clinical text descriptions. The authors curate a dataset of over 16,000 multi-organ (breast, liver, lung, thyroid) image-text pairs, where 78% are from expert reports and the rest generated via templates and LLMs. They experiment with different text encoders (CLIP and BioClinicalBERT) and caption strategies, evaluating against OpenAI CLIP and BiomedCLIP. Key findings include improved alignment scores (up to 0.682), but a decoupling from downstream performance where partial fine-tuning yields best zero-shot results on BUSI (0.709) and AULI (0.626), full fine-tuning causes overfitting, and template captions perform on par with LLM-generated ones. The work concludes that ultrasound vision-language alignment can be achieved with public data, yet robust transfer necessitates balancing domain adaptation, model capacity, and supervision quality.

Significance. If these empirical results hold under broader validation, the paper makes a meaningful contribution by establishing the feasibility of vision-language pretraining for ultrasound using readily available public data. It provides concrete evidence of trade-offs between alignment strength and transferability, which is valuable for practitioners building clinical AI systems with limited labeled data. The evaluation on independent external datasets (BUSI, AULI) and the systematic comparison of multiple model configurations add credibility. Additionally, the observation that lexical diversity from LLMs does not necessarily improve caption quality for this task is a useful negative result. This could guide the development of more reliable multimodal models in medical imaging domains.

major comments (2)
  1. [Results and Discussion] The central observation that stronger cross-modal alignment (0.682) does not guarantee superior zero-shot transfer (comparing to 0.709 BUSI and 0.626 AULI) is key to the balancing claim. However, these metrics appear to be from single runs without reported standard deviations or statistical significance tests across multiple seeds, which could affect the reliability of the ranking between configurations.
  2. [Dataset Curation and Limitations] The recommendation for balancing domain adaptation, encoder capacity, and caption quality to achieve robust clinical transfer assumes that the 16K-pair corpus and the BUSI/AULI held-out sets adequately represent clinical variability. The manuscript would benefit from a dedicated limitations paragraph quantifying potential shifts (e.g., scanner types, patient populations) or including sensitivity analysis to support generalizability of the trade-offs.
minor comments (3)
  1. [Abstract] Please define the 'paired alignment score' explicitly, including the formula or retrieval protocol used to compute the 0.682 value.
  2. [Methods] The description of the three-tier caption generation pipeline lacks sufficient detail for exact reproduction; consider adding an algorithm box or pseudocode.
  3. [Experiments] Ensure that all baseline implementations (OpenAI CLIP, BiomedCLIP) are described with the same fine-tuning protocols as the proposed models for fair comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and insightful comments, which help clarify the contributions and limitations of our work. We address each major comment below and indicate planned revisions to the manuscript.

read point-by-point responses

  1. Referee: [Results and Discussion] The central observation that stronger cross-modal alignment (0.682) does not guarantee superior zero-shot transfer (comparing to 0.709 BUSI and 0.626 AULI) is key to the balancing claim. However, these metrics appear to be from single runs without reported standard deviations or statistical significance tests across multiple seeds, which could affect the reliability of the ranking between configurations.

    Authors: We agree that reporting variability is essential to substantiate the central claim regarding the decoupling of alignment strength and transfer performance. In the revised manuscript, we will rerun key experiments across multiple random seeds (at least three) and report mean values with standard deviations for both the paired alignment score and zero-shot classification accuracies on BUSI and AULI. We will also include appropriate statistical significance tests (e.g., paired t-tests with p-values) to support the observed rankings and trade-offs between configurations such as partial versus full fine-tuning. revision: yes

  2. Referee: [Dataset Curation and Limitations] The recommendation for balancing domain adaptation, encoder capacity, and caption quality to achieve robust clinical transfer assumes that the 16K-pair corpus and the BUSI/AULI held-out sets adequately represent clinical variability. The manuscript would benefit from a dedicated limitations paragraph quantifying potential shifts (e.g., scanner types, patient populations) or including sensitivity analysis to support generalizability of the trade-offs.

    Authors: We appreciate the emphasis on generalizability. We will add a dedicated Limitations section that quantifies known aspects of our 16K-pair corpus (organ distribution, proportion of expert reports versus templates/LLMs) and the external datasets (BUSI, AULI), while explicitly discussing potential domain shifts in scanner types, imaging protocols, and patient populations based on available metadata. We will note that a full sensitivity analysis across all possible clinical variabilities is not feasible with the current data but will frame our balancing recommendations within these acknowledged constraints and suggest it as future work. revision: partial

Circularity Check

0 steps flagged

No circularity; empirical training and held-out evaluation are independent

full rationale

The paper trains a standard CLIP-style contrastive model on a curated 16K multi-organ image-text corpus and reports alignment scores plus downstream metrics on two external held-out datasets (BUSI, AULI). No equations or claims reduce reported alignment, zero-shot, linear-probing, or few-shot numbers to quantities fitted on the same data used for the central claim. Baselines are external (OpenAI CLIP, BiomedCLIP); caption generation is described as a pipeline but not used to tautologically define success. No self-citation chains, uniqueness theorems, or ansatzes imported from the authors' prior work appear as load-bearing steps. The derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, axioms, or invented entities are introduced beyond standard contrastive learning assumptions and the use of pre-trained encoders. The work relies on the standard InfoNCE-style loss and the assumption that image-text pairs from public sources are sufficient for alignment.
