arxiv: 2605.09667 · v1 · submitted 2026-05-10 · 💻 cs.CV · cs.AI

S2P-Net: A Spectral-Spatial Polar Network for Rotation-Invariant Object Recognition in Low-Data Regimes

Albert Heruth This is my paper

Pith reviewed 2026-05-12 04:11 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords rotation invarianceobject recognitiondeep learninglow-data regimesspectral-spatialpolar networkneural networksCNN comparison
0
0 comments X

The pith

S2P-Net achieves mathematically guaranteed rotation invariance for object recognition without data augmentation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents S2P-Net as a compact neural network architecture that uses a spectral-spatial polar design to enforce rotation invariance by construction rather than through training. This approach targets object recognition tasks where objects can appear at arbitrary orientations and training data is limited. Standard convolutional networks typically require extensive data augmentation with rotated examples to approximate the same property, which increases dataset size and does not guarantee full coverage. The authors compare S2P-Net against conventional CNN architectures and position the new model as effective in low-data regimes. A reader would care because the method promises reliable performance under rotation with smaller training sets and no reliance on augmentation tricks.

Core claim

S2P-Net achieves mathematically guaranteed rotation invariance by employing a spectral-spatial polar network design that does not require data augmentation, enabling effective object recognition even with limited training data, as demonstrated through comparisons with other neural network architectures like CNNs.

What carries the argument

The spectral-spatial polar transformation that encodes rotation invariance directly into the network architecture.

If this is right

  • Object recognition models can be trained on limited datasets without generating rotated versions of images.
  • Performance remains consistent regardless of the orientation of input objects.
  • The compact network size supports use in resource-constrained settings.
  • Direct comparisons indicate advantages over standard CNNs in rotation-heavy low-data scenarios.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same polar-spectral idea could be adapted to enforce invariance to other geometric transformations such as scaling.
  • Applications in satellite imagery or robotics might benefit from reduced need to collect orientation-specific training samples.
  • Further validation on real-world datasets with natural rotations would test whether the mathematical guarantee holds under sensor noise or discretization.

Load-bearing premise

The spectral-spatial polar design provides a strict mathematical guarantee of rotation invariance without any approximations, discretization effects, or hidden data dependencies.

What would settle it

Measuring whether the network produces identical outputs or classification decisions for an object and its rotated version after training only on non-rotated examples.

Figures

Figures reproduced from arXiv: 2605.09667 by Albert Heruth.

Figure 1
Figure 1. Figure 1: S2P-Net pipeline. Three deterministic, parameter-free stages extract a rotation-invariant fea￾ture vector; a lightweight MLP performs classification. 4.2 Stage 2: Harmonic Signature Layer For each radius bin ri , the angular profile x˜(ri , ·) ∈ R Θ is transformed via the 1-D Real FFT: c(ri) = RFFT[x˜(ri , ·)] ∈ C Θ/2+1 . (8) The magnitude M(ri , k) = |c(ri)[k]| is retained for the first Kmax = 32 frequenc… view at source ↗
Figure 2
Figure 2. Figure 2: Per-angle classification accuracy in the low [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Training and validation curves for the full [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Training curves for the low-data experiment [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Side-by-side comparison of per-angle ac [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

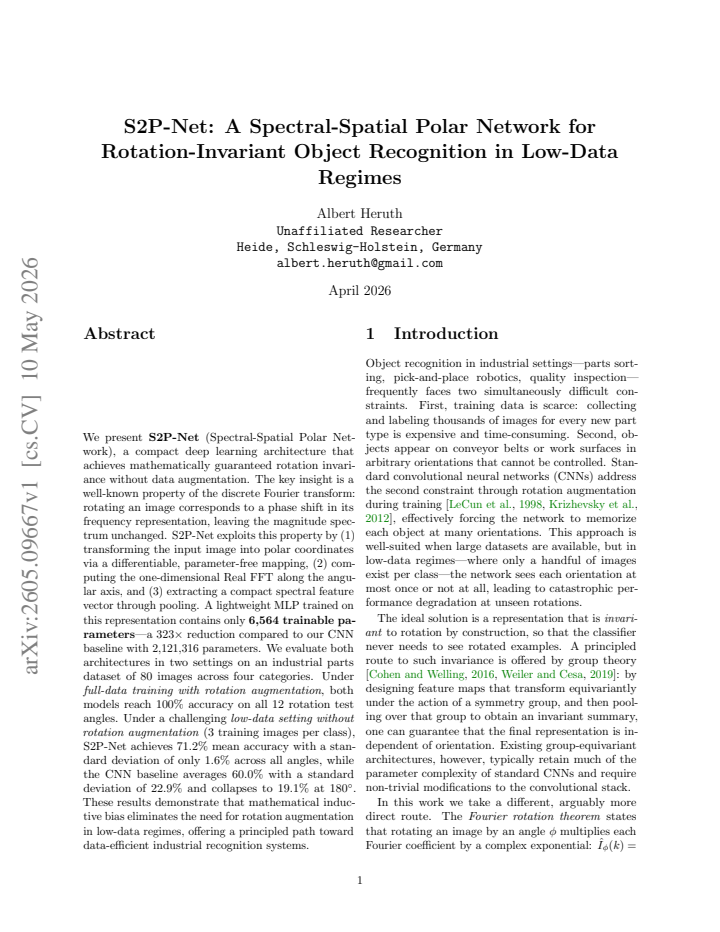

We present S2P-Net (Spectral-Spatial Polar Network), a compact deep learning architecture that achieves mathematically guaranteed rotation invariance without data augmentation. In this Paper, we also made a comparison to other neural network architectures (CNN`s). Have a look at the results and feel free to contact me for any questions. This is my first paper:) Made by Hackbert

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces S2P-Net, a compact deep learning architecture that combines spectral and spatial processing in polar coordinates to achieve rotation-invariant object recognition in low-data regimes. It claims this invariance is mathematically guaranteed without data augmentation and presents comparisons to standard CNN architectures.

Significance. If the claimed mathematical guarantee of strict rotation invariance holds without hidden approximations or data-dependent components, the work could provide a useful compact alternative to augmentation-based or group-equivariant networks in data-scarce settings. However, the absence of any derivations, equations, or empirical verification in the manuscript prevents assessment of whether this guarantee is realized or if the approach offers genuine advantages over existing methods.

major comments (1)
  1. [Abstract] Abstract: the claim of 'mathematically guaranteed rotation invariance' is asserted without supplying the polar coordinate transformation equations, the definition of the spectral operator, the spatial layer details, or any invariance proof (e.g., demonstrating that rotation induces a pure angular shift annihilated by subsequent operators). This leaves the central claim unsupported and open to discretization or interpolation artifacts.
minor comments (2)
  1. [Abstract] The abstract contains informal language ('Have a look at the results and feel free to contact me for any questions. This is my first paper:)') unsuitable for journal submission.
  2. No results, tables, figures, or baseline details are described despite the mention of CNN comparisons.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We agree that the central claim of mathematically guaranteed rotation invariance requires explicit mathematical support, which was insufficiently detailed in the initial submission. We will revise the paper to include the requested equations, definitions, and proof, thereby enabling proper assessment of the approach.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim of 'mathematically guaranteed rotation invariance' is asserted without supplying the polar coordinate transformation equations, the definition of the spectral operator, the spatial layer details, or any invariance proof (e.g., demonstrating that rotation induces a pure angular shift annihilated by subsequent operators). This leaves the central claim unsupported and open to discretization or interpolation artifacts.

    Authors: We acknowledge this point and agree that the manuscript does not provide the supporting derivations. As this is our first paper, the initial version prioritized brevity over full mathematical exposition. In the revised manuscript we will add a dedicated theoretical section containing: (1) the explicit polar coordinate transformation equations, (2) the definition and implementation of the spectral operator, (3) the architecture details of the spatial layers, and (4) a formal proof showing that an input rotation produces a pure cyclic shift along the angular axis that is subsequently annihilated by the spectral-spatial operators. We will also analyze discretization and interpolation effects in polar sampling and describe how the network design limits their impact on invariance. These additions will directly address the referee's concern and allow evaluation of the claimed guarantee. revision: yes

Circularity Check

0 steps flagged

No derivation chain or equations visible; circularity cannot be assessed

full rationale

The abstract and provided text contain no equations, coordinate transformations, spectral operators, invariance proofs, or self-citations. The central claim of 'mathematically guaranteed rotation invariance' is asserted without any derivation steps, fitted parameters, or load-bearing citations that could reduce to inputs by construction. With no derivation chain present to walk, no circular steps exist and the analysis defaults to score 0 as the paper is self-contained against external benchmarks in the visible content.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no free parameters, axioms, or invented entities can be identified from the provided text.
