arxiv: 1907.11443 · v1 · pith:57VA55JAnew · submitted 2019-07-26 · 🌌 astro-ph.HE

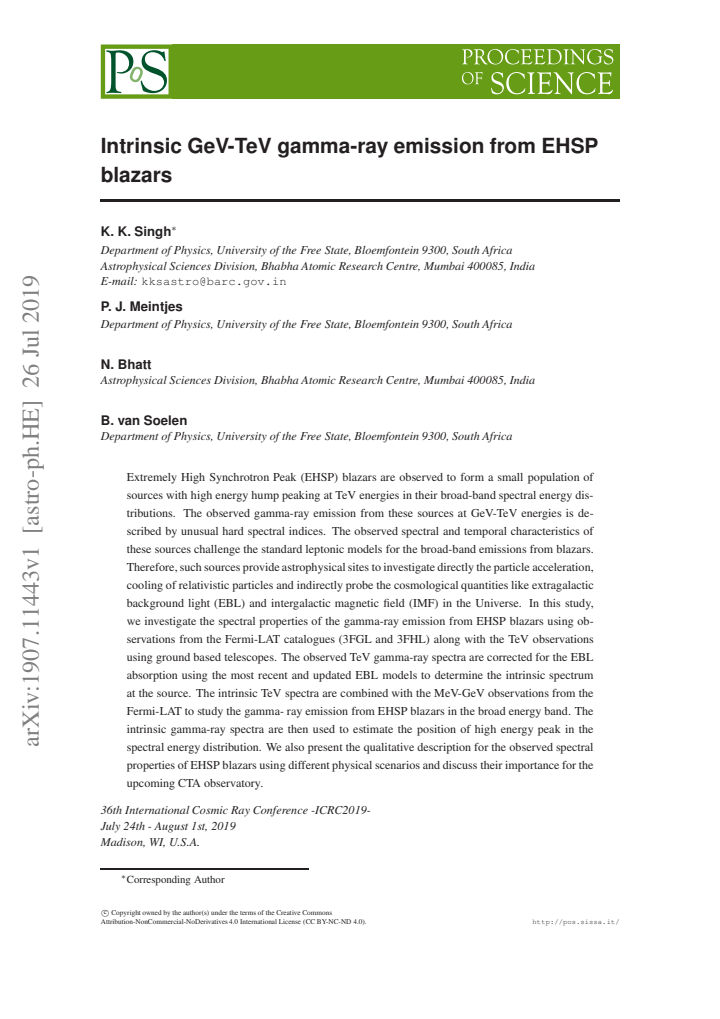

Intrinsic GeV-TeV gamma-ray emission from EHSP blazars

K. K. Singh , P. J. Meintjes , N. Bhatt , B. van Soelen This is my paper

Pith reviewed 2026-05-24 15:30 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords EHSP blazarsgamma-ray emissionEBL absorptionFermi-LATTeV spectraspectral energy distributionparticle accelerationCTA observatory
0
0 comments X

The pith

EBL-corrected TeV spectra combined with Fermi data locate the high-energy peak position in EHSP blazar SEDs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper corrects observed TeV spectra of extremely high synchrotron peak blazars for absorption by the extragalactic background light using recent models, then combines the resulting intrinsic spectra with MeV-GeV observations from the Fermi-LAT 3FGL and 3FHL catalogs. This produces broad-band intrinsic gamma-ray spectra that are used to estimate where the high-energy hump peaks in the overall spectral energy distribution. The approach also supplies a qualitative account of the hard observed spectra through various physical scenarios and notes relevance for future CTA observations.

Core claim

The intrinsic gamma-ray spectra of EHSP blazars, after EBL correction, are combined with Fermi-LAT data to study emission over the broad GeV-TeV band and to estimate the position of the high-energy peak in the spectral energy distribution, while different physical scenarios are invoked to describe the hard spectral indices.

What carries the argument

Correction of observed TeV spectra for EBL absorption using recent models, then direct combination with Fermi-LAT MeV-GeV fluxes to construct intrinsic broad-band spectra for peak estimation.

If this is right

  • The location of the high-energy SED peak can be estimated directly from the intrinsic spectra.
  • The hard spectral properties challenge standard leptonic emission models for blazars.
  • The sources can serve as direct probes of extragalactic background light and intergalactic magnetic field.
  • The spectral description informs expectations for observations with the upcoming CTA observatory.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If many EHSP peaks sit well above 1 TeV, jet acceleration models may need higher maximum particle energies than currently assumed.
  • The same correction-plus-combination method could be applied to additional sources once CTA delivers higher-quality TeV spectra.
  • Improved peak locations would tighten indirect constraints on cosmological quantities such as EBL intensity.

Load-bearing premise

Recent EBL models remove absorption from the TeV spectra without large systematic errors and the chosen sources from the catalogs stand for the full EHSP population.

What would settle it

A larger sample of EHSP blazars observed by CTA that yields high-energy peak positions inconsistent with those derived from the current EBL-corrected plus Fermi-LAT spectra would falsify the estimates.

Figures

Figures reproduced from arXiv: 1907.11443 by B. van Soelen, K. K. Singh, N. Bhatt, P. J. Meintjes.

Figure 1

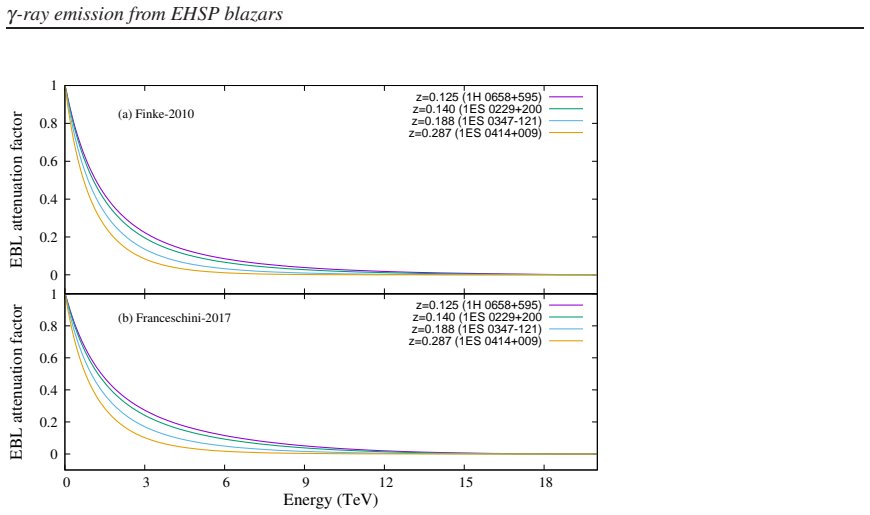

Figure 1. Figure 1: Attenuation of γ-ray photons due to EBL absorption for sources at various redshifts using two different EBL models proposed by (a) Finke et al. (2010) and (b) Franceschini et al. (2017). -1 -0.5 0 0.5 1 1.5 2 0.1 0.15 0.2 0.25 0.3 [b] Franceschini (2017) Spectral break Redshift (z) TeV-observed EBL corrected TeV-3FGL EBL corrected TeV-3FHL -1 -0.5 0 0.5 1 1.5 2 2.5 [a] Finke (2010) Spectral break TeV-obser… view at source ↗
Figure 2
Figure 2. Figure 2: Spectral Break between Γint and ΓTeV , Γ3FGL & Γ3FHL for EHSP candidate blazars using (a) Finke et al. (2010) and (b) Franceschini et al. (2017) models. photon density is described in [23]. The VHE γ-ray spectrum of a source observed by the ground based instruments is modified with respect to the intrinsic spectrum and both are related as:  dN dE  obs =  dN dE  int e −τ(E,z) (4.1) where the term e−τ(E,… view at source ↗
Figure 3
Figure 3. Figure 3: GeV-TeV spectral energy distribution of EHSP blazars. et al. (2010) [24] and Franceschini et al. (2017) [25] respectively. We observe that the attenuation due to EBL for both the models is negligible up to 100 GeV for all sources considered in the present study. However, TeV γ-ray photons above 100 GeV suffer large EBL absorption. This can lead to the significant softening of the intrinsic VHE spectra emit… view at source ↗
read the original abstract

Extremely High Synchrotron Peak (EHSP) blazars are observed to form a small population of sources with high energy hump peaking at TeV energies in their broad-band spectral energy distributions. The observed gamma-ray emission from these sources at GeV-TeV energies is described by unusual hard spectral indices. The observed spectral and temporal characteristics of these sources challenge the standard leptonic models for the broad-band emissions from blazars. Therefore, such sources provide astrophysical sites to investigate directly the particle acceleration, cooling of relativistic particles and indirectly probe the cosmological quantities like extragalactic background light (EBL) and intergalactic magnetic field (IMF) in the Universe. In this study, we investigate the spectral properties of the gamma-ray emission from EHSP blazars using observations from the Fermi-LAT catalogues (3FGL and 3FHL) along with the TeV observations using ground based telescopes. The observed TeV gamma-ray spectra are corrected for the EBL absorption using the most recent and updated EBL models to determine the intrinsic spectrum at the source. The intrinsic TeV spectra are combined with the MeV-GeV observations from the Fermi-LAT to study the gamma-ray emission from EHSP blazars in the broad energy band. The intrinsic gamma-ray spectra are then used to estimate the position of high energy peak in the spectral energy distribution. We also present the qualitative description for the observed spectral properties of EHSP blazars using different physical scenarios and discuss their importance for the upcoming CTA observatory.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper analyzes the intrinsic GeV-TeV gamma-ray spectra of Extremely High Synchrotron Peak (EHSP) blazars by combining Fermi-LAT catalog data from 3FGL and 3FHL with TeV observations from ground-based telescopes. Observed TeV spectra are corrected for EBL absorption using recent published models to derive intrinsic spectra, which are then joined to the MeV-GeV points to study the broad-band gamma-ray emission and estimate the location of the high-energy SED peak; the work also offers a qualitative discussion of physical scenarios and implications for CTA.

Significance. If the results on unusually hard intrinsic spectra and robust peak positions survive a full treatment of EBL systematics, the study would add to the sample of EHSP sources with broad-band coverage and could inform leptonic emission models and EBL constraints. The use of public catalogs and independently published EBL models is a strength in terms of reproducibility, but the absence of quantified model-to-model variations reduces the immediate impact.

major comments (2)
  1. [Abstract] Abstract: the central claim that the intrinsic spectra are 'unusually hard' and that the high-energy peak position can be robustly estimated rests on the assumption that the chosen EBL model introduces negligible systematic error. Optical-depth differences between common EBL models reach 0.2–0.4 at 1–10 TeV for the redshifts of the sample; this changes the intrinsic photon index by ~0.2–0.5 and can shift the inferred peak energy by a factor of several. No sensitivity test to alternative EBL models is described.
  2. [Abstract] Abstract (data-analysis pipeline): the manuscript outlines the use of 3FGL/3FHL catalogs and TeV data but provides no details on source selection criteria, the functional form or fitting procedure used to join the de-absorbed TeV spectra to the Fermi-LAT points, or the method for locating the high-energy SED peak (including error propagation or treatment of upper limits). These omissions prevent evaluation of whether the reported peak positions are statistically meaningful.
minor comments (1)
  1. [Abstract] The abstract refers to 'IMF' in the context of intergalactic quantities; this is presumably intended as IGMF (intergalactic magnetic field) and should be clarified or expanded in the main text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments, which help improve the clarity and robustness of the manuscript. We address the two major comments point by point below and will revise the paper accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that the intrinsic spectra are 'unusually hard' and that the high-energy peak position can be robustly estimated rests on the assumption that the chosen EBL model introduces negligible systematic error. Optical-depth differences between common EBL models reach 0.2–0.4 at 1–10 TeV for the redshifts of the sample; this changes the intrinsic photon index by ~0.2–0.5 and can shift the inferred peak energy by a factor of several. No sensitivity test to alternative EBL models is described.

    Authors: We agree that a quantitative assessment of EBL model dependence is necessary to support the claims of unusually hard intrinsic spectra and robust peak positions. The manuscript employed recent EBL models but did not include a systematic comparison across alternatives. In the revised manuscript we will add an explicit sensitivity analysis using at least two additional published EBL models, reporting the resulting ranges in intrinsic photon indices and high-energy peak energies for the sample. This will directly address the quoted optical-depth variations and allow readers to evaluate the robustness of the results. revision: yes

  2. Referee: [Abstract] Abstract (data-analysis pipeline): the manuscript outlines the use of 3FGL/3FHL catalogs and TeV data but provides no details on source selection criteria, the functional form or fitting procedure used to join the de-absorbed TeV spectra to the Fermi-LAT points, or the method for locating the high-energy SED peak (including error propagation or treatment of upper limits). These omissions prevent evaluation of whether the reported peak positions are statistically meaningful.

    Authors: The referee is correct that the current text lacks explicit methodological details on these steps. We will expand the methods section (and, if space permits, the abstract) to specify: the precise EHSP selection criteria applied to the 3FGL/3FHL catalogs, the functional form and fitting procedure used to join the EBL-corrected TeV spectra with the Fermi-LAT points, the algorithm for locating the high-energy SED peak, and the treatment of statistical errors and upper limits. These additions will make the analysis fully reproducible and permit an assessment of the statistical significance of the reported peak locations. revision: yes

Circularity Check

0 steps flagged

No circularity: analysis uses external catalogs and independently published EBL models

full rationale

The paper's central procedure takes observed TeV spectra from ground-based telescopes, applies absorption corrections drawn from independently published EBL models, joins the resulting intrinsic spectra to public Fermi-LAT catalog points (3FGL and 3FHL), and locates the high-energy SED peak. No step reduces by construction to a self-defined quantity, a fitted parameter relabeled as a prediction, or a self-citation chain; all load-bearing inputs are external data products whose validity can be checked outside the present work.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The analysis rests on the accuracy of external EBL models and the assumption that catalog sources adequately sample the EHSP population; no free parameters or new entities are introduced in the abstract.

axioms (2)
  • domain assumption EBL models accurately represent absorption at TeV energies for the redshift range of the sources
    Invoked when correcting observed TeV spectra to intrinsic spectra (abstract).
  • domain assumption Fermi-LAT catalog data and TeV telescope measurements are free of major unaccounted systematics for the selected EHSP sources
    Required to combine datasets and estimate high-energy peaks (abstract).

pith-pipeline@v0.9.0 · 5824 in / 1388 out tokens · 42503 ms · 2026-05-24T15:30:26.682686+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

25 extracted references · 25 canonical work pages · 24 internal anchors

  1. [1]

    Active Galactic Nuclei: what's in a name?

    P . Padovani et al., Active galactic nuclei: what’s in a name ? , A&ARv 25 (2017) 2 [arXiv:1707.07134]

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  2. [2]

    Extreme synchrotron BL Lac objects

    L. Costamante et al., Extreme synchrotron BL Lac objects. Stretching the blazar s equence, A&A 371 (2001) 512 [astro-ph/0103343]

    work page internal anchor Pith review Pith/arXiv arXiv 2001

  3. [3]

    A. A. Abdo et al., The Spectral Energy Distribution of Fermi Bright Blazars , ApJ 716 (2010) 30 [arXiv:0912.2040]

    work page internal anchor Pith review Pith/arXiv arXiv 2010

  4. [4]

    Modeling the Emission Processes in Blazars

    M. Böttcher, Modeling the emission processes in blazars , Ap&SS 309 (2007) 95 [astro-ph/0608713]

    work page internal anchor Pith review Pith/arXiv arXiv 2007

  5. [5]

    I. Agudo et al., On the Location of the γ-Ray Outburst Emission in the BL Lacertae Object AO 0235+164 Through Observations Across the Electromagnetic Spectrum, ApJL 735 (2011) 10 [arXiv:1105.0549] 6 γ-ray emission from EHSP blazars

    work page internal anchor Pith review Pith/arXiv arXiv 2011

  6. [6]

    F. A. Aharonian, Proton-synchrotron radiation of large-scale jets in activ e galactic nuclei , MNRAS 332 (2002) 215 [ astro-ph/0106037]

    work page internal anchor Pith review Pith/arXiv arXiv 2002

  7. [7]

    Leptonic and Hadronic Modeling of Fermi-Detected Blazars

    M. Böttcher et al., Leptonic and Hadronic Modeling of Fermi-detected Blazars , ApJ 768 (2013) 54 [arXiv:1304.0605]

    work page internal anchor Pith review Pith/arXiv arXiv 2013

  8. [8]

    Variable VHE gamma-ray emission from Markarian 501

    J. Albert et al., V ariable V ery High Energyγ-Ray Emission from Markarian 501 , ApJ 669 (2007) 862 [astro-ph/0702008]

    work page internal anchor Pith review Pith/arXiv arXiv 2007

  9. [9]

    K. K. Singh et al., Study of short term enhanced T eV γ- ray emission from Mrk 421 observed with TACTIC on December 28, 2014 APh 103 (2018) 122 [arXiv:808.02670 ]

    work page 2014

  10. [10]

    K. K. Singh et al., Extremely High energy peaked BL Lac nature of the T eV blazar M rk 501, NewA 73 (2019) 101278 [ arXiv:1906.04486]

    work page internal anchor Pith review Pith/arXiv arXiv 2019

  11. [11]

    The NuSTAR view on Hard-TeV BL Lacs

    L. Costamante et al., The NuSTAR view on hard-T eV BL Lacs, MNRAS 477 (2018) 4257 [arXiv:1711.06282]

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  12. [12]

    Formation of hard very-high energy spectra of blazars in leptonic models

    E. Lefa et al., F ormation of V ery Hard Gamma-Ray Spectra of Blazars in Leptonic Models, ApJ 740 (2011) 64 [ arXiv:1106.4201]

    work page internal anchor Pith review Pith/arXiv arXiv 2011

  13. [13]

    M. Böttcher et al., The Hard VHE γ-Ray Emission in High-Redshift T eV Blazars: Comptonization of Cosmic Microwave Background Radiation in an Extended Jet ? , ApJL 679 (2008) 9 [arXiv:0804.3515]

    work page internal anchor Pith review Pith/arXiv arXiv 2008

  14. [14]

    F. A. Aharonian et al., F ormation of hard very high energy gamma-ray spectra of blazars due to internal photon-photon absorption , MNRAS 387 (2008) 1206 [ arXiv:0801.3198]

    work page internal anchor Pith review Pith/arXiv arXiv 2008

  15. [15]

    A hadronic origin for ultra-high-frequency-peaked BL Lac objects

    M. Cerruti et al., A hadronic origin for ultra-high-frequency-peaked BL Lac o bjects, MNRAS 448 (2015) 910 [arXiv:1411.5968]

    work page internal anchor Pith review Pith/arXiv arXiv 2015

  16. [16]

    W . Essey et al., Role of Line-of-sight Cosmic-ray Interactions in F orming the Spectra of Distant Blazars in T eV Gamma Rays and High-energy Neutrinos, ApJ 731 (2011) 51 [ arXiv:1011.6340]

    work page internal anchor Pith review Pith/arXiv arXiv 2011

  17. [17]

    Fermi Large Area Telescope Third Source Catalog

    F. Acero et al., Fermi Large Area T elescope Third Source Catalog, ApJS 218 (2015) 23 [arXiv:1501.02003]

    work page internal anchor Pith review Pith/arXiv arXiv 2015

  18. [18]

    3FHL: The Third Catalog of Hard Fermi-LAT Sources

    M. Ajello et al., 3FHL: The Third Catalog of Hard Fermi-LAT Sources , ApJS 232 (2017) 18 [arXiv:1702.00664]

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  19. [19]

    V . A. Acciari et al., The Discovery of γ-Ray Emission from the Blazar RGB J0710+591 , ApJL 715 (2010) 49 [ arXiv:1005.0041]

    work page internal anchor Pith review Pith/arXiv arXiv 2010

  20. [20]

    A Three-Year Multi-Wavelength Study of the Very High Energy Gamma-ray Blazar 1ES 0229+200

    E. Aliu et al., A Three-year Multi-wavelength Study of the V ery-high-energy γ-Ray Blazar 1ES 0229+200, ApJ 782 (2014) 13 [ arXiv:1312.6592]

    work page internal anchor Pith review Pith/arXiv arXiv 2014

  21. [21]

    F. A. Aharonian et al., Discovery of VHE γ-rays from the distant BL Lacertae 1ES 0347-121 , A&A 473 (2007) 25 [ arXiv:0708.3021]

    work page internal anchor Pith review Pith/arXiv arXiv 2007

  22. [22]

    Multiwavelength observations of the AGN 1ES 0414+009 with VERITAS, Fermi-LAT, Swift-XRT, and MDM

    E. Aliu et al., Multiwavelength Observations of the AGN 1ES 0414+009 with V ERITAS, Fermi-LAT, Swift-XRT, and MDM, ApJ 755 (2012) 118 [arXiv:1206.4080]

    work page internal anchor Pith review Pith/arXiv arXiv 2012

  23. [23]

    K. K. Singh et al., Intrinsic VHE gamma-ray spectra of blazars as a probe for ext ragalactic background light, NewA 27 (2014) 34 [ arXiv:1310.8386]

    work page internal anchor Pith review Pith/arXiv arXiv 2014

  24. [24]

    J. D. Finke et al., Modeling the Extragalactic Background Light from Stars and Dust, ApJ 712 (2010) 238 [arXiv:0905.1115]

    work page internal anchor Pith review Pith/arXiv arXiv 2010

  25. [25]

    The extragalactic background light revisited and the cosmic photon-photon opacity

    A. Franceschini et al., The extragalactic background light revisited and the cosmi c photon-photon opacity, A&A 603 (2017) 34 [ arXiv:1705.10256] 7

    work page internal anchor Pith review Pith/arXiv arXiv 2017
