Flavor-physics benchmarks for tracker-based particle identification at the FCC-ee

Anja Beck , Eluned Smith This is my paper

Pith reviewed 2026-05-21 18:00 UTC · model grok-4.3

classification ✦ hep-ex
keywords particle identificationFCC-eeb-flavor taggingtime-of-flightenergy depositcluster countingrare decaysjet tagging
0
0 comments X

The pith

Silicon trackers using time-of-flight and energy deposits suppress backgrounds for low-momentum hadrons in b-flavor tagging at the FCC-ee.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper benchmarks particle identification performance from tracker subsystems alone in the proposed CLD and IDEA detectors for the FCC-ee. Time-of-flight and energy-deposit measurements yield significant background suppression at high signal efficiency for the low-momentum hadrons used in same-side b-flavor tagging. For rare b to s transitions involving medium-momentum particles, only timing resolutions of 30 picoseconds or better produce an order-of-magnitude reduction in contamination beyond what kinematic criteria achieve by themselves. Light-quark jet tagging at very high momenta requires access to cluster counting in a drift chamber, as proposed for IDEA, to reach useful suppression levels, and this can be strengthened further with 30-50 picosecond timing in some cases.

Core claim

The central claim is that tracker-based particle identification via time-of-flight, energy-deposit measurements, and cluster counting delivers substantial background suppression with high signal efficiency for flavor-physics measurements at the FCC-ee, particularly for low-momentum hadrons in b-tagging and for high-momentum particles when drift-chamber cluster information is available, while medium-momentum rare decays require timing resolution of 30 ps or better to surpass kinematic methods by an order of magnitude.

What carries the argument

Tracker-derived particle identification through time-of-flight, dE/dx energy deposits, and cluster counting in silicon and drift-chamber subsystems.

If this is right

  • For same-side b-flavor tagging, tracker PID information improves signal efficiency while reducing contamination for low-momentum hadrons.
  • In rare b to s decays, timing resolution at or below 30 ps is needed to achieve contamination an order of magnitude below kinematic-only levels.
  • For s-jet tagging, drift-chamber cluster counting is required because time-of-flight and energy deposits cannot identify particles at the high momenta involved.
  • The overall PID performance depends only weakly on the precise cluster-counting efficiency.
  • Dedicated PID detectors may offer further gains but remain outside the scope of the current tracker-only study.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Detector design choices between CLD and IDEA could be weighted more toward flavor-physics reach if cluster counting proves decisive for jet tagging.
  • Similar tracker PID techniques might be tested at other proposed lepton colliders to assess portability of the suppression factors.
  • Combining the reported PID variables with existing kinematic discriminants could produce additive gains beyond those shown for each method alone.
  • Prototype timing measurements at 30 ps would directly test whether the projected order-of-magnitude improvement holds in real conditions.

Load-bearing premise

Fully simulated events accurately reproduce the real detector responses and misidentification rates for the CLD and IDEA setups, including cluster counting efficiency and timing resolution.

What would settle it

Direct comparison of the simulated misidentification rates for low- and medium-momentum hadrons against data collected in a test beam or prototype run of a silicon tracker with 30 ps timing and the proposed cluster-counting algorithm.

Figures

Figures reproduced from arXiv: 2511.17447 by Anja Beck, Eluned Smith.

Figure 1
Figure 1. Figure 1: FIG. 1. Input quantities for particle identification using CLD [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Input quantities for particle identification using IDEA [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

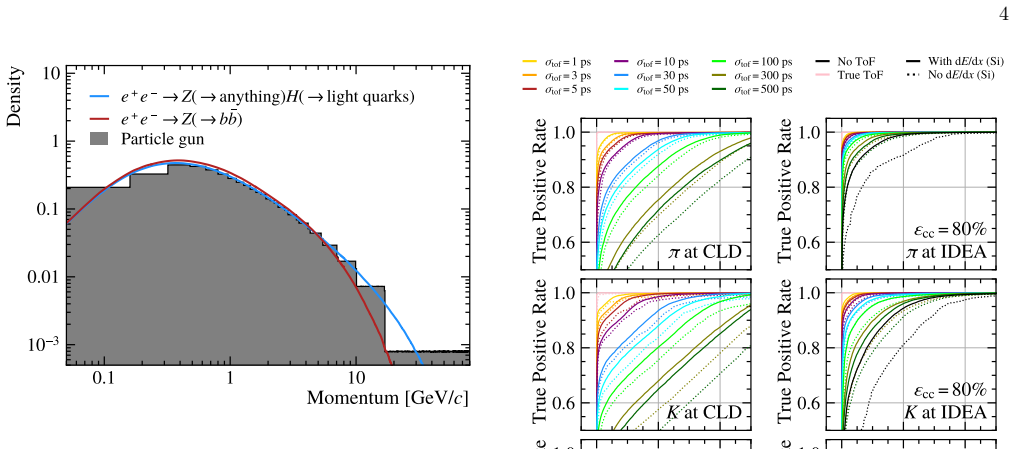

Figure 3
Figure 3. Figure 3: FIG. 3. Generator-level distributions of the charged-hadron [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

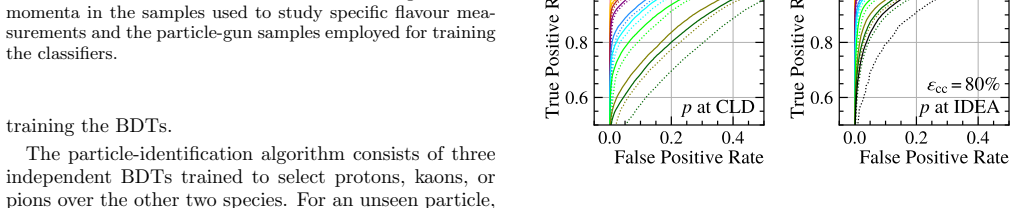

Figure 4
Figure 4. Figure 4: FIG. 4. (Left/right) ROC for the (top) pion, (middle) kaon, [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

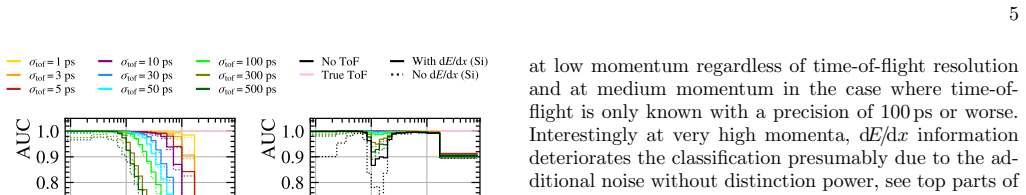

Figure 1
Figure 1. Figure 1: Note that 10 000 particles per species are consid [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. (Left/right) AUC in different momentum ranges for [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

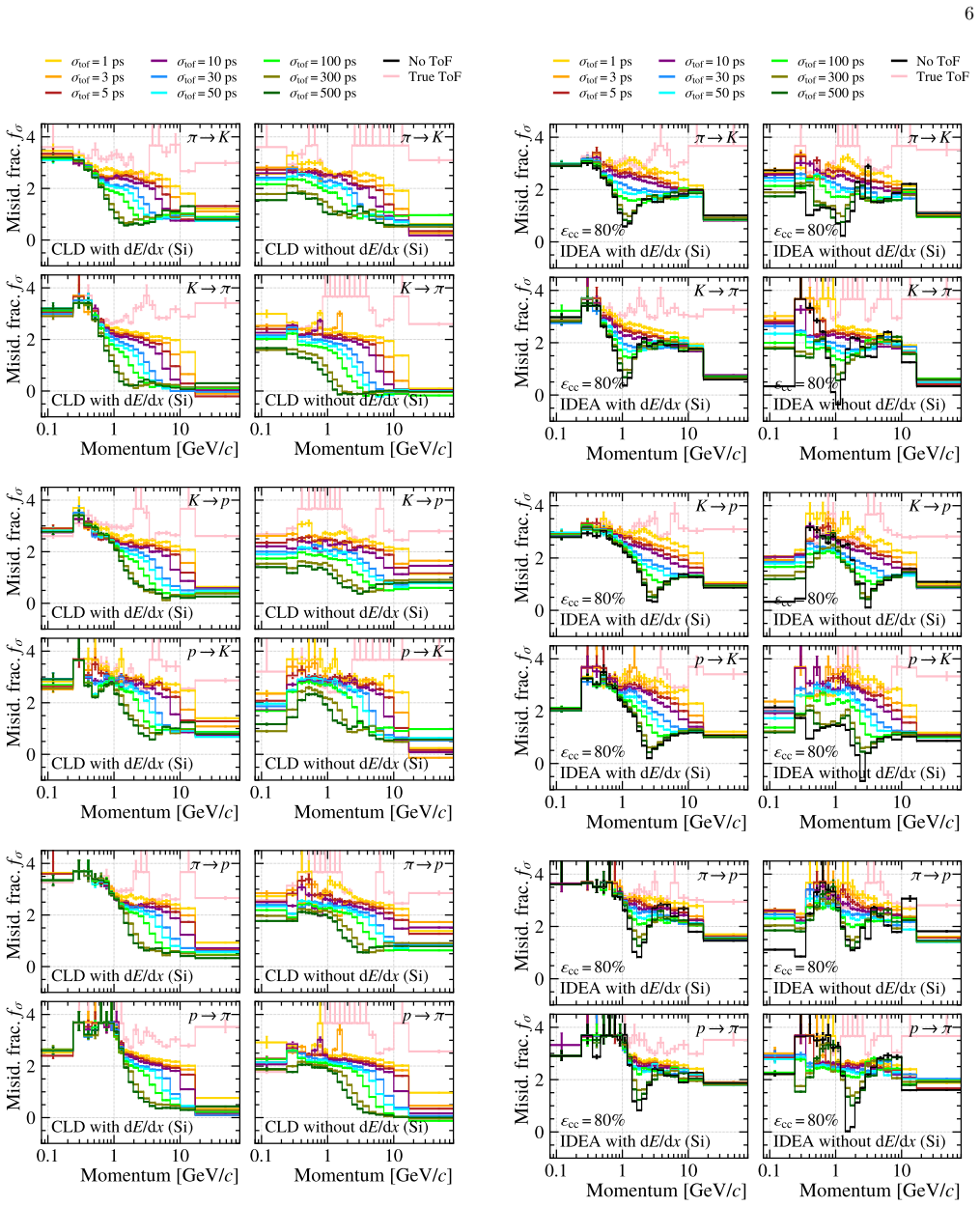

Figure 6
Figure 6. Figure 6: FIG. 6. Fraction of misidentified particles [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Momentum distributions of the charged hadrons con [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Efficiency of (mis)tagging [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

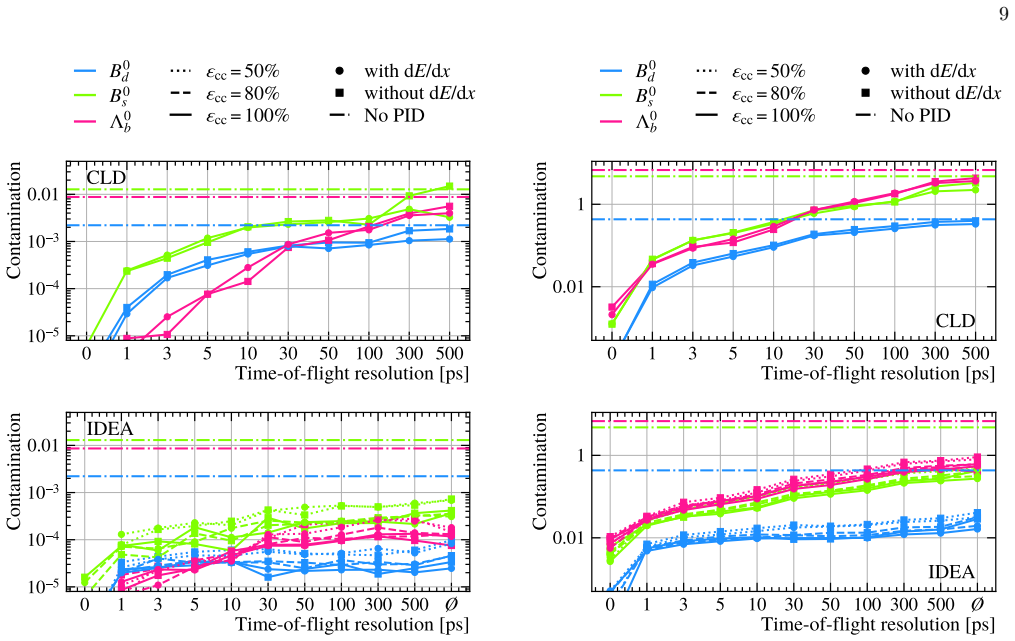

Figure 10
Figure 10. Figure 10: FIG. 10. Level of contamination for the three rare decays [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: shows the efficiency of selecting events based on whether the particle with the highest momentum was a kaon. Note that the efficiency is calculated relative to the 46% (80%) of the H → ss (H → uu/dd) events where the highest momentum particle was a kaon (pion). Due to the very high momenta shown in [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. (Left/right) AUC in different momentum ranges [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. Fraction of misidentified particles [PITH_FULL_IMAGE:figures/full_fig_p013_15.png] view at source ↗

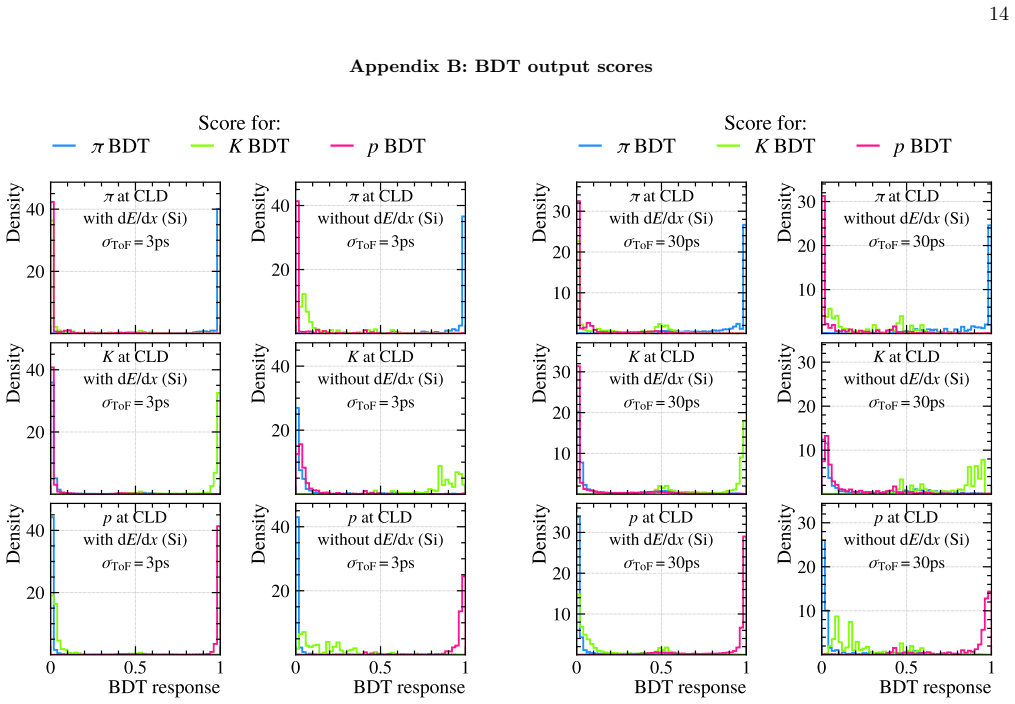

Figure 17
Figure 17. Figure 17: FIG. 17. (Left/right) Distribution of the BDT scores for [PITH_FULL_IMAGE:figures/full_fig_p014_17.png] view at source ↗
Figure 20
Figure 20. Figure 20: FIG. 20. (Left/right) Distribution of the BDT scores for a [PITH_FULL_IMAGE:figures/full_fig_p015_20.png] view at source ↗

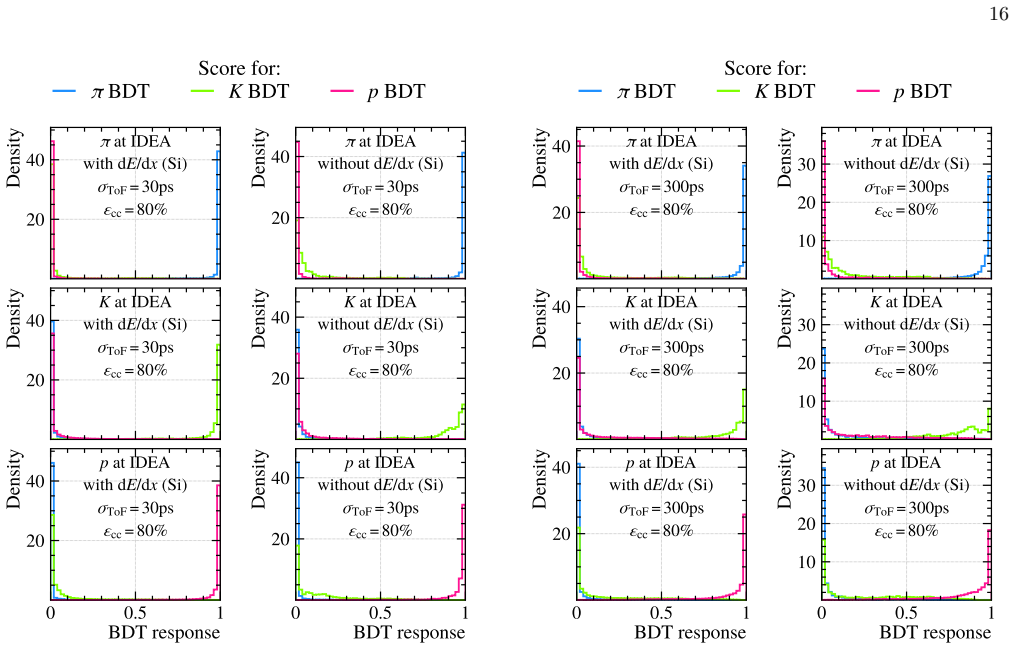

Figure 22
Figure 22. Figure 22: FIG. 22. (Left/right) Distribution of the BDT scores for a [PITH_FULL_IMAGE:figures/full_fig_p016_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: FIG. 23. Spread of the four-body invariant-mass for different hadron momenta in the case of correctly identified hadrons (red [PITH_FULL_IMAGE:figures/full_fig_p017_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: FIG. 24. Level of contamination for the three rare decays [PITH_FULL_IMAGE:figures/full_fig_p018_24.png] view at source ↗
Figure 26
Figure 26. Figure 26: FIG. 26. Level of contamination across the dimuon invariant-mass squared assuming uniform [PITH_FULL_IMAGE:figures/full_fig_p019_26.png] view at source ↗
read the original abstract

The correct identification of charged hadrons plays a crucial role in flavor-physics measurements. The final detector configurations at the proposed Future Circular Collider are yet to be determined and this study aims to contribute to this discussion by benchmarking the particle-identification (PID) performance of the proposed CLD and IDEA detectors using fully simulated events. At present, neither detector proposal includes dedicated PID systems, relying instead on information from the tracking subsystems. We estimate the expected level of contamination due to misidentified charged hadrons for $b$-flavor tagging, rare $b\to s$ transitions, and $s$-jet tagging. The PID information provided by silicon trackers, namely time-of-flight and energy-deposit measurements, leads to significant background suppression with high signal efficiency for the low-momentum hadrons considered for same-side $b$-flavor tagging. In order to improve the contamination in rare decays where momenta are in the medium range, only good timing resolution of 30ps and below can yield an improvement of one order of magnitude below the level achieved by kinematic criteria alone. Light-quark jet-flavor tagging requires identification of particles with very large momentum, which is not possible using only time-of-flight or energy-deposit information in silicon. Access to the number of clusters in a drift-chamber setup, as proposed for the IDEA detector however, results in strong background suppression in every case. This suppression can be further improved in some scenarios by time-of-flight resolution of 30-50ps or better. The PID quality generally exhibits only a small dependence on the cluster-counting efficiency. Whether dedicated PID detectors could further enhance flavor-physics sensitivity should be the subject of future study.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript benchmarks the particle-identification performance of the proposed CLD and IDEA detector concepts at the FCC-ee using fully simulated events. It focuses on tracker-derived information (time-of-flight, energy deposit, and cluster counting) for suppressing misidentified charged hadrons in three flavor-physics contexts: same-side b-flavor tagging at low momentum, rare b to s transitions at medium momentum, and s-jet tagging at high momentum. The central claims are that tracker PID yields significant background suppression with high signal efficiency for low-momentum hadrons, that a timing resolution of 30 ps or better is required to achieve an order-of-magnitude improvement over kinematic criteria alone in the medium-momentum regime, and that cluster counting in the IDEA drift chamber provides strong suppression for high-momentum particles where ToF and dE/dx are ineffective.

Significance. If the simulation results hold, the work provides concrete quantitative benchmarks that can inform the final tracker and timing specifications for the FCC-ee detectors, particularly by identifying the 30 ps timing target and the value of cluster counting for flavor-physics reach. The use of fully simulated events for two distinct detector geometries and the direct comparison against kinematic baselines are positive features that make the estimates reproducible and falsifiable within the simulation framework.

major comments (2)
  1. [Simulation and reconstruction section] Simulation and reconstruction section: the misidentification matrices and contamination levels for medium-momentum hadrons rest entirely on Monte Carlo modeling of ToF, dE/dx, and cluster-counting response for the CLD and IDEA geometries; because no test-beam or prototype calibration data are referenced for the tails of these distributions, the precise 30 ps timing threshold required for an order-of-magnitude improvement over kinematics alone carries unquantified systematic uncertainty.
  2. [Results for rare b to s transitions] Results for rare b to s transitions: the quoted improvement factors and the statement that only timing resolutions of 30 ps and below yield the desired suppression are presented without propagated uncertainties from variations in cluster-counting efficiency or timing resolution modeling; this makes the central performance claim sensitive to the unvalidated simulation assumptions highlighted in the skeptic note.
minor comments (3)
  1. [Abstract] The abstract states that cluster counting 'results in strong background suppression in every case' but does not quantify the residual contamination levels or the kinematic baseline values for direct comparison.
  2. [Figures and captions] Figure captions and text should explicitly state the assumed timing resolution values (e.g., 30 ps, 50 ps) used to generate each performance curve rather than leaving them implicit.
  3. [Methods] A short discussion of how the kinematic selection criteria were defined and optimized would help readers assess whether the reported PID gains are measured against a competitive baseline.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the positive assessment of our work and for the constructive major comments. We respond to each point below and indicate the revisions we plan to make.

read point-by-point responses

  1. Referee: [Simulation and reconstruction section] Simulation and reconstruction section: the misidentification matrices and contamination levels for medium-momentum hadrons rest entirely on Monte Carlo modeling of ToF, dE/dx, and cluster-counting response for the CLD and IDEA geometries; because no test-beam or prototype calibration data are referenced for the tails of these distributions, the precise 30 ps timing threshold required for an order-of-magnitude improvement over kinematics alone carries unquantified systematic uncertainty.

    Authors: We fully agree that the PID performance estimates rely on Monte Carlo modeling without reference to test-beam or prototype data for the tails of the distributions. As this is a benchmark study for proposed future detectors, such data do not yet exist. In the revised version, we will expand the simulation and reconstruction section to include a discussion of the modeling assumptions, the expected range of systematic uncertainties, and the need for future validation with prototypes. We will also qualify the 30 ps threshold as a simulation-derived target. revision: partial

  2. Referee: [Results for rare b to s transitions] Results for rare b to s transitions: the quoted improvement factors and the statement that only timing resolutions of 30 ps and below yield the desired suppression are presented without propagated uncertainties from variations in cluster-counting efficiency or timing resolution modeling; this makes the central performance claim sensitive to the unvalidated simulation assumptions highlighted in the skeptic note.

    Authors: We accept this criticism. The current manuscript presents central values without explicit uncertainty propagation or sensitivity studies. We will revise the results section for rare b to s transitions to include sensitivity plots or tables showing how the improvement factors vary with timing resolution and cluster-counting efficiency. This will better illustrate the robustness of the performance claims under variations in the simulation parameters. revision: yes

standing simulated objections not resolved
  • The absence of test-beam or prototype calibration data for validating the tails of the ToF, dE/dx, and cluster-counting distributions, which is not feasible at this stage for the proposed FCC-ee detector concepts.

Circularity Check

0 steps flagged

No circularity: results derived from independent Monte Carlo simulation

full rationale

The paper obtains its quantitative claims on background suppression, misidentification rates, and the 30 ps timing threshold directly from fully simulated detector response for the CLD and IDEA geometries. No equation or performance metric is shown to equal its own input by construction, no fitted parameter is relabeled as a prediction, and no uniqueness theorem or ansatz is imported via self-citation to force the conclusions. The comparison against kinematic criteria alone is an external benchmark computed within the same simulation framework, rendering the derivation self-contained rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard assumptions about Monte Carlo event generation and detector response modeling rather than new free parameters or invented entities. No explicit free parameters are introduced in the abstract; the timing resolutions (30 ps, 30-50 ps) are treated as target performance values rather than fitted quantities.

axioms (1)
  • domain assumption Fully simulated events accurately model the real detector response for time-of-flight, energy deposits, and cluster counting in the proposed CLD and IDEA trackers.
    Invoked throughout the benchmarking of misidentification rates for the three flavor channels.

pith-pipeline@v0.9.0 · 5831 in / 1557 out tokens · 41288 ms · 2026-05-21T18:00:31.788028+00:00 · methodology
