arxiv: 2605.20763 · v1 · pith:6XHSE5AQnew · submitted 2026-05-20 · 💻 cs.LG

ShapeBench: A Scalable Benchmark and Diagnostic Suite for Standardized Evaluation in Aerodynamic Shape Optimization

Shaghayegh Fazliani , Krissh Chawla , Jack Guo , Yiren Shen , Matthias Ihme , Madeleine Udell This is my paper

Pith reviewed 2026-05-21 06:29 UTC · model grok-4.3

classification 💻 cs.LG
keywords aerodynamic shape optimizationbenchmarkoptimizer evaluationsurrogate modelsevolutionary algorithmsLLM-driven optimizationshape categoriesfidelity gap
0
0 comments X

The pith

A new benchmark for aerodynamic shape optimization reveals that optimizer performance rankings change dramatically across different shape categories and problem types.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces ShapeBench to address the lack of standardized evaluation in aerodynamic shape optimization. It provides a unified set of 103 tasks across eight shape categories with validated surrogates for efficient testing and options for high-fidelity checks. By including consistent baselines and a new LLM-based method, the benchmark shows that optimizer effectiveness does not transfer well between tasks. This matters because relying on results from single problems can lead to misleading conclusions about which methods work best in real applications. Researchers can now compare approaches more reliably and identify where general solutions are still needed.

Core claim

ShapeBench is an open-source benchmark with a unified API for 103 aerodynamic shape optimization tasks spanning eight shape categories and multiple regimes. Each task comes with a validated surrogate model for fast optimization and, where possible, a CFD pipeline for verification. Using a consistent budget metric, comparisons of classical optimizers and LLM-driven methods, including the new ShapeEvolve baseline, show substantial variance in rankings with a mean pairwise Spearman correlation of only 0.013. This indicates that single-task results do not generalize reliably across problem classes, and classical methods are not broadly applicable.

What carries the argument

ShapeBench, a scalable benchmark suite that standardizes tasks, provides surrogates for search, and uses a matched-budget protocol to enable fair comparisons across optimizers and shape classes.

Load-bearing premise

The surrogates used in the benchmark are accurate enough representations of the true optimization landscapes to make search results meaningful.

What would settle it

If a broad set of optimizers shows consistently similar ranking orders when evaluated across all eight shape categories using the same budget, that would contradict the observed variance.

Figures

Figures reproduced from arXiv: 2605.20763 by Jack Guo, Krissh Chawla, Madeleine Udell, Matthias Ihme, Shaghayegh Fazliani, Yiren Shen.

Figure 1

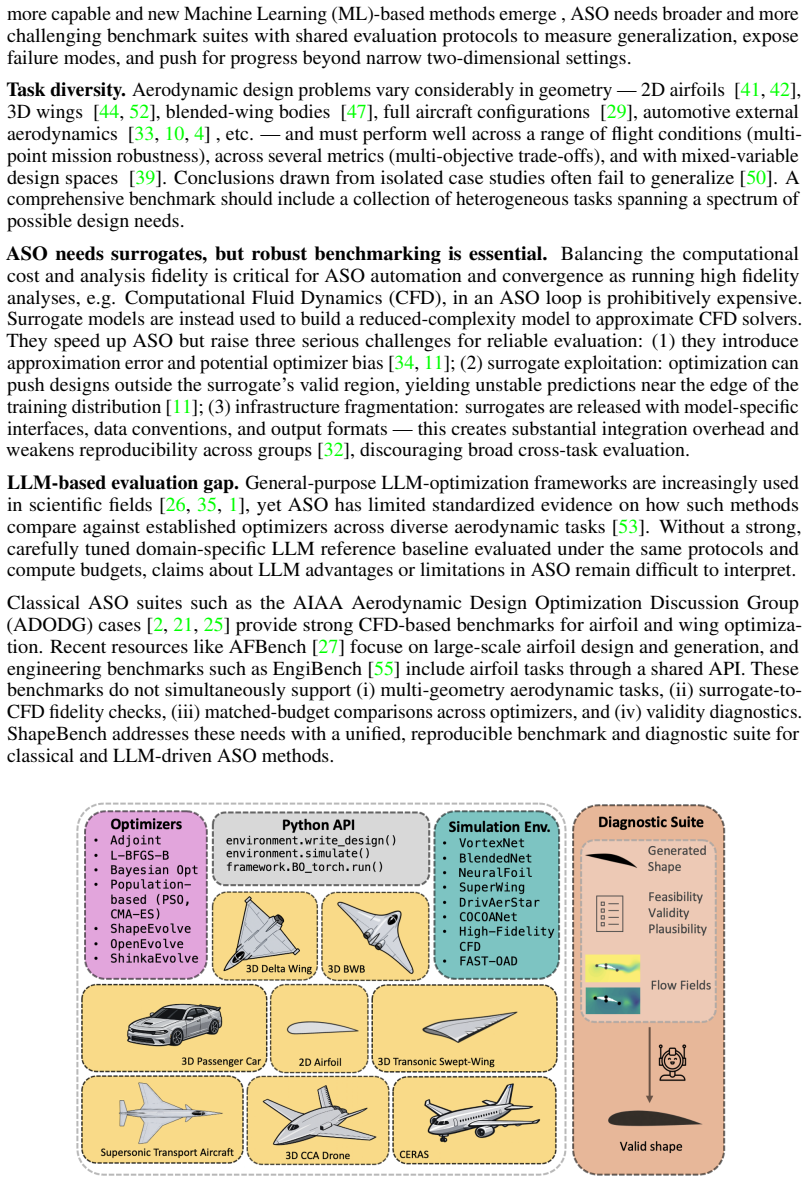

Figure 1. Figure 1: An overview of ShapeBench: covered geometries, optimizers, simulation environments, an [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

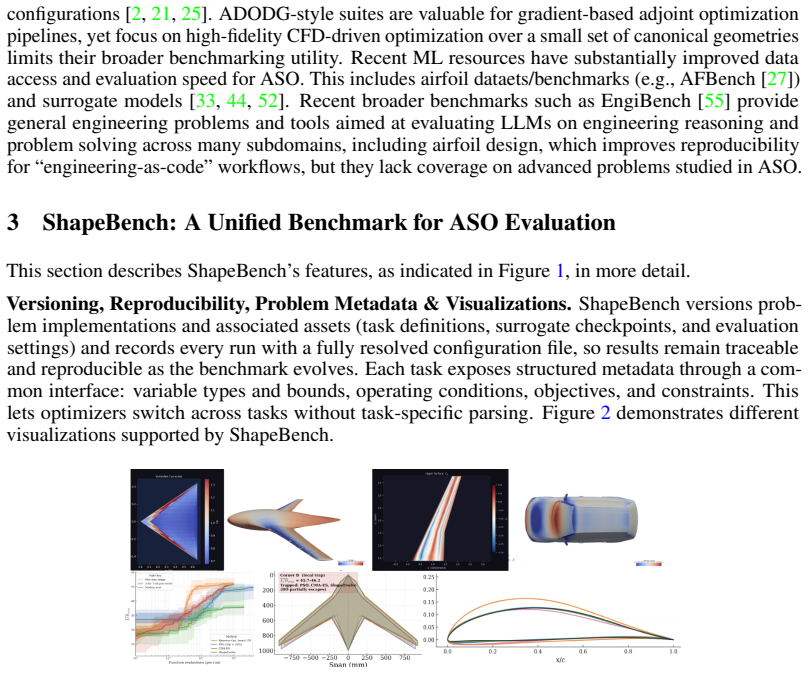

Figure 2. Figure 2: ShapeBench generates design- and run-level visuals (e.g., geometry/field plots and opti [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Overview of the ShapeEvolve pipeline. and benchmarked against all baselines. Figure 4a shows evaluation across diverse shape categories and task setups can surface optimizer behaviors that are not visible in single-task studies — that is, performance is strongly task-dependent. For instance, Bayesian optimization and PSO perform best on the CERAS and delta-wing tasks, but rank among the weakest methods on … view at source ↗
Figure 4
Figure 4. Figure 4: (a) Final median objective values for each task per optimizer. Colors are column-wise [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: shows a representative CCA experiment and illustrates ShapeBench’s cross-optimizer visualization tools. Panel 5(b) also compares the best designs from each optimizer against the reference geometry produced by nTop[31]. Optimizers behave differently on this task than on many others from Figure 4a: ShapeEvolve converges to the best L/D, significantly outperforming classical methods. The source of this distin… view at source ↗
Figure 6
Figure 6. Figure 6: (a) Convergence plot (objective vs. evaluations) plot for the 2D airfoil multi-point drag [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

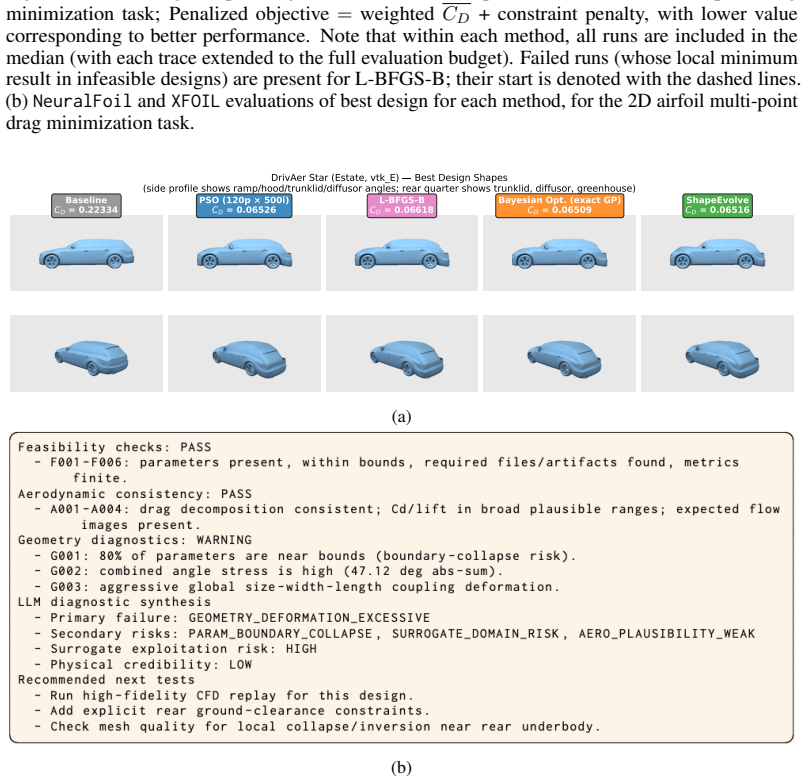

Figure 7. Figure 7: (a) Best designs for the baseline and for each method (2D side views and 3D isometric [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Median normalized rank trajectory of each optimizer over relative evaluation budget across [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Schematic of the proposed VortexNet graph neural network (GNN) architecture. Colors indicate different network blocks. A black arrow indicates represents direct message passing between blocks, and a blue arrow denotes a skip connection to the receiving block. The figure also presents snapshots of the graph at each computational step, showing nodes, edges, and their associated feature arrays. Figure is from… view at source ↗
Figure 10
Figure 10. Figure 10: The HF surface pressure coefficient obtained from CFD for a wing with [PITH_FULL_IMAGE:figures/full_fig_p028_10.png] view at source ↗
Figure 11

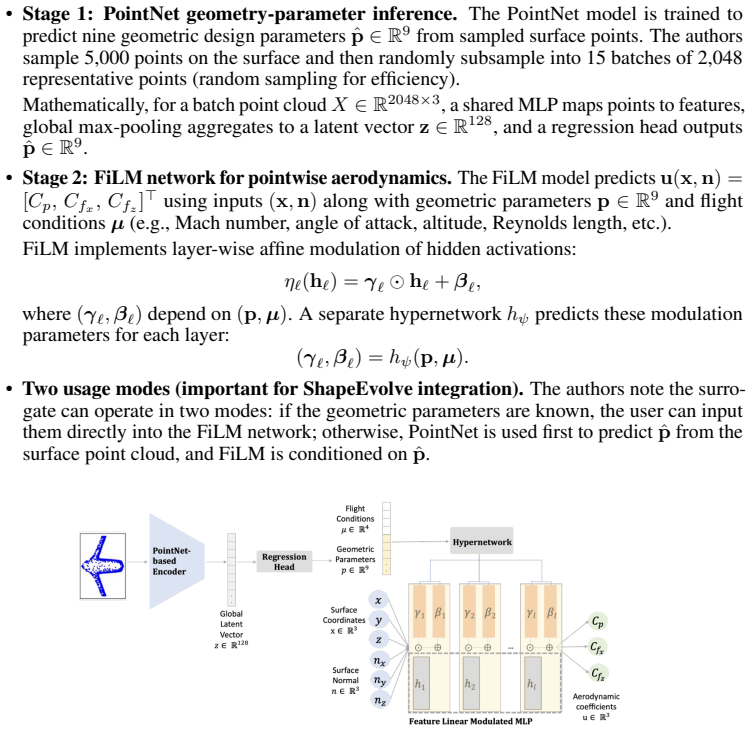

Figure 11. Figure 11: Overall architecture of the surrogate model. The network consists of two main components: [PITH_FULL_IMAGE:figures/full_fig_p029_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Illustration of the blended wing body (BWB) planform parameterization, showing key [PITH_FULL_IMAGE:figures/full_fig_p030_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Three-view diagram of a typical kink wing. Figure is from [ [PITH_FULL_IMAGE:figures/full_fig_p031_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: correlation of predicted aerodynamic coefficient CL and CD against VLM data for [PITH_FULL_IMAGE:figures/full_fig_p032_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: CCA: Collaborative Combat Aircraft Parameter Lower Bound Upper Bound Dihedral angle (deg) 0.25 15 Max Wing Blend (mm) 25 1000 Inlet Angle 1 (deg) 0 45 Inlet Angle 2 (deg) 0 10 Wing Position 0.22 0.51 Rear Point (mm) (4500, 0, 0) (7500, 0, 0) . . . . . . . . . Inlet Location 0.2 0.6 NACA 4-digit code {1412, 0012, 2408, 4412} Fore Top Angle (deg) 0 10 Aft Top Angle (deg) 12 32.5 Top Height Aft (mm) 36 220 B… view at source ↗
Figure 16

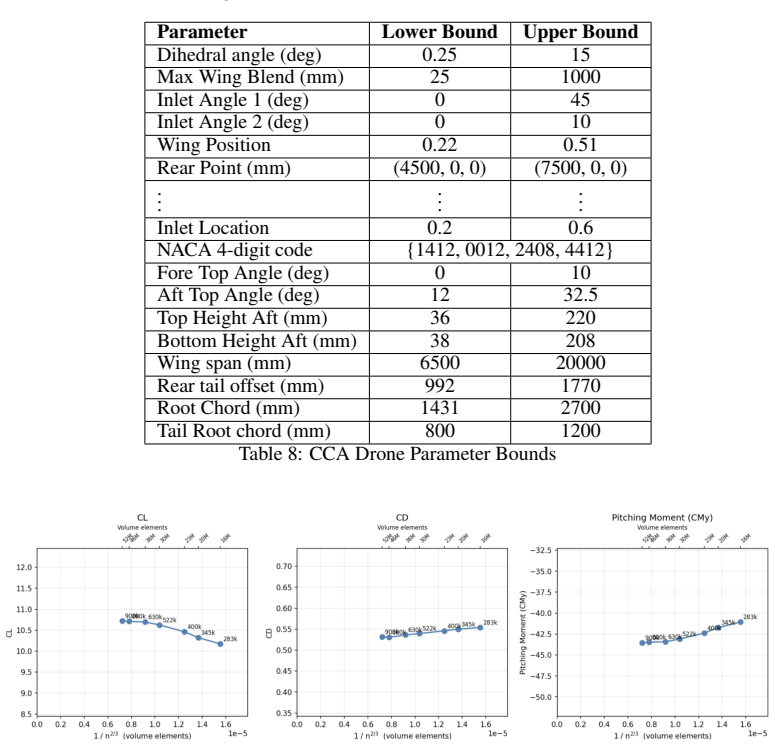

Figure 16. Figure 16: Grid convergence [PITH_FULL_IMAGE:figures/full_fig_p033_16.png] view at source ↗
Figure 17

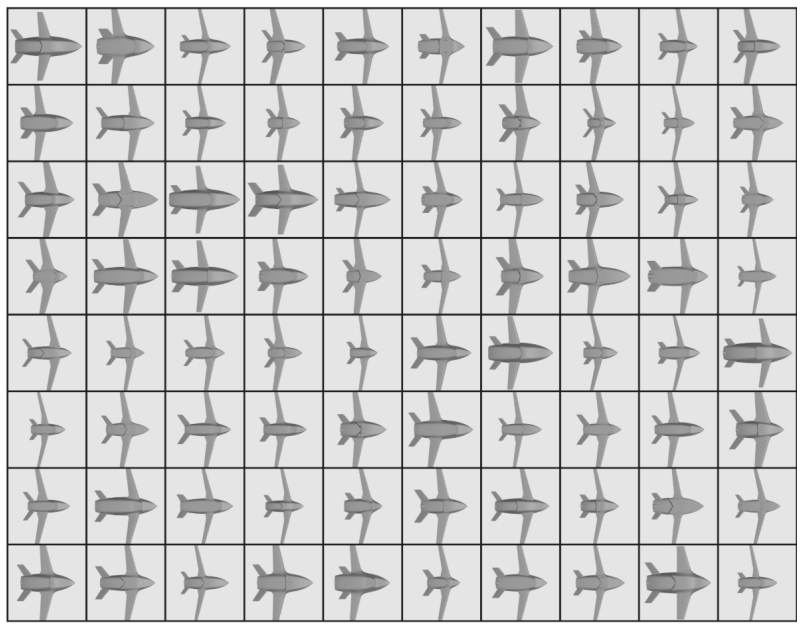

Figure 17. Figure 17: Sampled CCA designs representative of geometries in [PITH_FULL_IMAGE:figures/full_fig_p034_17.png] view at source ↗
Figure 18

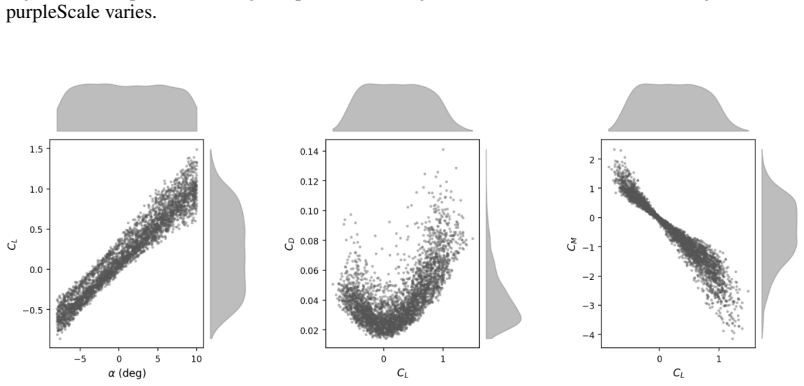

Figure 18. Figure 18: COCOANet CCA surrogate data characteristics [PITH_FULL_IMAGE:figures/full_fig_p034_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: correlation of predicted aerodynamic coefficient CL and CD against CFD data [PITH_FULL_IMAGE:figures/full_fig_p035_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Single point lift-to-drag optimization results [PITH_FULL_IMAGE:figures/full_fig_p037_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Best shape per method for lift-to-drag delta wing task [PITH_FULL_IMAGE:figures/full_fig_p037_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Convergence trajectories for optimizers for two point Vortnet task [PITH_FULL_IMAGE:figures/full_fig_p038_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: Best Design Overlay of Delta Wingdesign for two point objective [PITH_FULL_IMAGE:figures/full_fig_p038_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Objectives vs. evaluations plot for 3D BWB Design multipoint tasks. As given in [PITH_FULL_IMAGE:figures/full_fig_p042_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: Best designs, 2D planform and 3D isometric views, for the min- [PITH_FULL_IMAGE:figures/full_fig_p043_25.png] view at source ↗
Figure 26

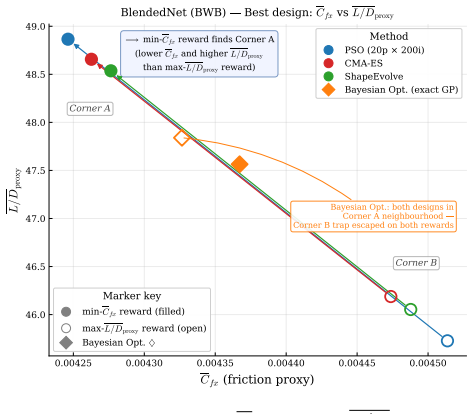

Figure 26. Figure 26: Cross-objective scatter plot for the min- [PITH_FULL_IMAGE:figures/full_fig_p044_26.png] view at source ↗
Figure 27
Figure 27. Figure 27: Objectives vs. evaluations plot for max- [PITH_FULL_IMAGE:figures/full_fig_p045_27.png] view at source ↗
Figure 28
Figure 28. Figure 28: Best designs, 2D planform and 3D isometric views, max- [PITH_FULL_IMAGE:figures/full_fig_p045_28.png] view at source ↗
Figure 29
Figure 29. Figure 29: Best designs, 2D planform overlay comparisons across both objectives. Left-hand side [PITH_FULL_IMAGE:figures/full_fig_p046_29.png] view at source ↗
Figure 30
Figure 30. Figure 30: 3D BWB experiment with different initializations; (a) reward vs. evaluations & (b) BWB [PITH_FULL_IMAGE:figures/full_fig_p047_30.png] view at source ↗
Figure 31
Figure 31. Figure 31: Three-stage optimization pipeline for the 2D airfoil single-point maximum lift-to-drag task. [PITH_FULL_IMAGE:figures/full_fig_p050_31.png] view at source ↗
Figure 32
Figure 32. Figure 32: Stage 1 convergence plot (objective vs. evaluations) of the four optimization methods for [PITH_FULL_IMAGE:figures/full_fig_p051_32.png] view at source ↗
Figure 33
Figure 33. Figure 33: Overlay of best IPOPT-refined airfoil profiles (with [PITH_FULL_IMAGE:figures/full_fig_p051_33.png] view at source ↗
Figure 34
Figure 34. Figure 34: Convergence plot (objective vs. evaluations) plot for the 2D airfoil multi-point drag [PITH_FULL_IMAGE:figures/full_fig_p052_34.png] view at source ↗
Figure 35
Figure 35. Figure 35: Airfoil design profiles (y/c vs. x/c) for best-performing designs from all five methods, for the 2D airfoil multi-point drag minimization task. Adjoint (IPOPT) ShapeEvolve PSO (120p×500i) L-BFGS-B Bayes. Opt. (exact GP) 0.0775 0.0800 0.0825 0.0850 0.0875 0.0900 0.0925 0.0950 0.0975 W eig hte d CD (lo w e r is b ette r) Best-design XFOIL vs NeuralFoil evaluation multipoint CL targets (CL 2 © 0:8; 1:0; 1:2;… view at source ↗
Figure 36
Figure 36. Figure 36: NeuralFoil and XFOIL evaluations of best design for each method, for the 2D airfoil multi-point drag minimization task. • thin airfoil height, relative to that of the 2D airfoil single-point maximum lift-to-drag task seen in figure 33 • moderate camber (maximum camber value of y/c ≃ 0.12 near x/c ≃ 0.35) The Bayesian optimization design is over-cambered and thicker overall, with a correspondingly larger C… view at source ↗
Figure 37

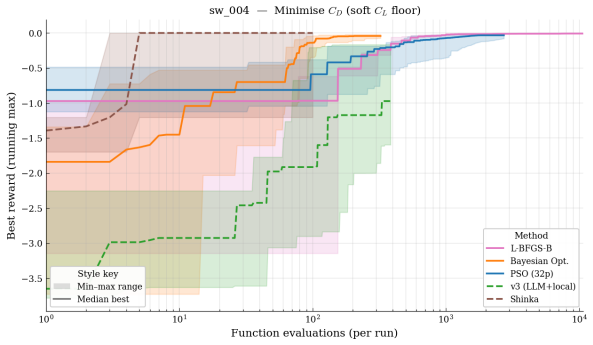

Figure 37. Figure 37: Single Objective SuperWing case: minimize CD with CL constraint [PITH_FULL_IMAGE:figures/full_fig_p055_37.png] view at source ↗
Figure 38
Figure 38. Figure 38: SuperWing best design overlay per method for single objective drag minimization Operating points M0 ∈ {0.75, 0.80, 0.86, 0.90} Objective min x f(x) = min x 1 K X k∈K   −Mk CL(x; α (k) 0 , Mk) CD(x; α (k) 0 , Mk) λ [PITH_FULL_IMAGE:figures/full_fig_p055_38.png] view at source ↗
Figure 39
Figure 39. Figure 39: Optimizer trajectories for Multi point range maximization problem for [PITH_FULL_IMAGE:figures/full_fig_p056_39.png] view at source ↗
Figure 40

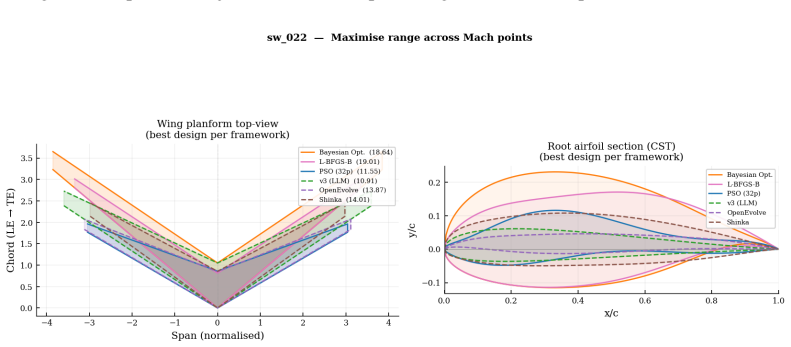

Figure 40. Figure 40: Optimum bets design per method for SuperWing multi-point range maximization problem Objective min x f(x) = min x X j wj   −M0 CL(x; α (j) 0 , M0) CD(x; α (j) 0 , M0) λ [PITH_FULL_IMAGE:figures/full_fig_p056_40.png] view at source ↗
Figure 41
Figure 41. Figure 41: ShapeBench SuperWing problem 30: optimization methods and results [PITH_FULL_IMAGE:figures/full_fig_p057_41.png] view at source ↗
Figure 42
Figure 42. Figure 42: ShapeBench SuperWing problem 30: best design overlay [PITH_FULL_IMAGE:figures/full_fig_p057_42.png] view at source ↗
Figure 43
Figure 43. Figure 43: Enter Caption D.5 3D Collaborative Combat Aircraft (CCA) Design Design variables We use the following 3D single-duct drone parametrization from nTop [31]. 57 [PITH_FULL_IMAGE:figures/full_fig_p057_43.png] view at source ↗
Figure 44
Figure 44. Figure 44: CCA evaluation for optimization of lift-to-drag ratio. (a) optimization method performance [PITH_FULL_IMAGE:figures/full_fig_p059_44.png] view at source ↗
Figure 45
Figure 45. Figure 45: Convergence plot (objective vs. evaluations) for minimized [PITH_FULL_IMAGE:figures/full_fig_p060_45.png] view at source ↗
Figure 46
Figure 46. Figure 46: Best designs for the baseline and for each method (2D side views and 3D isometric views) [PITH_FULL_IMAGE:figures/full_fig_p060_46.png] view at source ↗
Figure 47

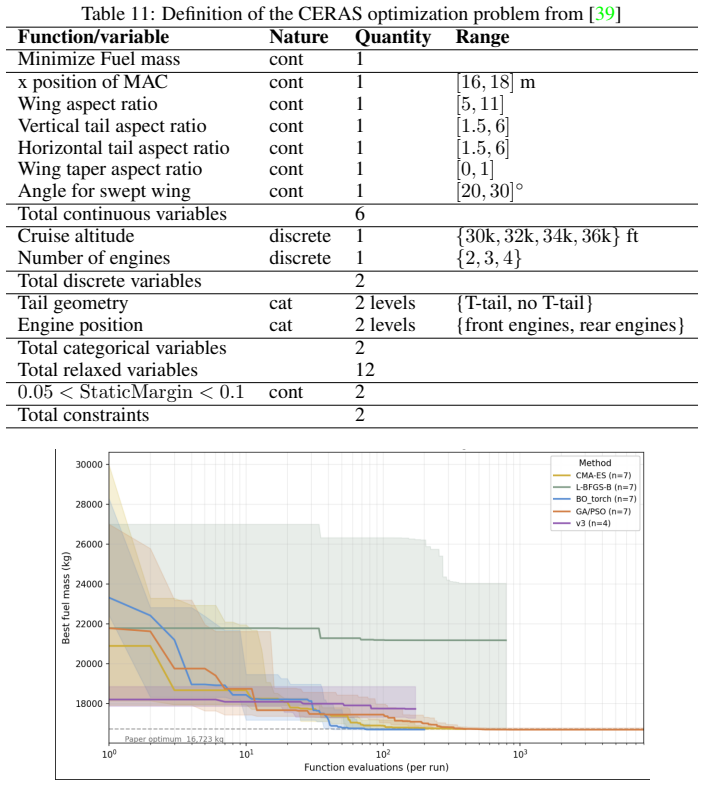

Figure 47. Figure 47: CERAS fuelmass objective optimization results [PITH_FULL_IMAGE:figures/full_fig_p062_47.png] view at source ↗
Figure 48
Figure 48. Figure 48: Best designs per method overlayed for CERAS fuelmass case [PITH_FULL_IMAGE:figures/full_fig_p063_48.png] view at source ↗
read the original abstract

Rapid progress in aerodynamic shape optimization (ASO) has outpaced currently-available standardized evaluation frameworks. Fair comparison requires a unified benchmark spanning diverse shape classes, objective formulations, and matched-budget state-of-the-art baselines. We introduce ShapeBench, an open-source ASO benchmark with a unified API spanning 103 tasks across eight shape categories and multiple optimization regimes. Each ShapeBench task includes a validated surrogate for fast search; when feasible, a high-fidelity Computational Fluid Dynamics (CFD) pipeline for final verification is available, enabling systematic fidelity-gap analysis. ShapeBench provides a reproducible protocol with well-configured baselines to compare fairly using a consistent budget metric, allowing for comparison among both classical and LLM-driven methods, including general-purpose optimizers and a new domain-specialized evolutionary LLM baseline, ShapeEvolve. Results on ShapeBench demonstrate substantial variance in optimizer rankings across shape categories and problem formulations, with mean pairwise Spearman $\rho = 0.013$, so single-task conclusions do not reliably generalize across problem classes. The benchmark is also far from saturation; classical methods are rarely applicable across all shape categories and tasks, further highlighting the need for more general-purpose approaches.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript introduces ShapeBench, an open-source benchmark for aerodynamic shape optimization (ASO) with a unified API spanning 103 tasks across eight shape categories and multiple optimization regimes. Each task supplies a validated surrogate for fast search and, when feasible, a high-fidelity CFD pipeline for verification and fidelity-gap analysis. The benchmark supplies reproducible protocols and matched-budget baselines that include both classical optimizers and LLM-driven methods, notably a new domain-specialized evolutionary LLM baseline (ShapeEvolve). The central empirical result is substantial variance in optimizer rankings across shape categories and problem formulations, quantified by a mean pairwise Spearman ρ of 0.013, from which the authors conclude that single-task conclusions do not reliably generalize.

Significance. If the surrogates are demonstrated to preserve relative optimizer rankings that would be obtained under high-fidelity CFD, ShapeBench would provide a much-needed standardized, scalable evaluation framework for ASO that enables fair comparison of classical and emerging LLM-based approaches. The public release, consistent budget metric, and explicit support for fidelity-gap studies are clear strengths. The reported low cross-task correlation usefully challenges the common practice of drawing broad conclusions from single-task experiments. The overall significance remains moderate until quantitative surrogate validation is supplied.

major comments (1)
  1. [Abstract] Abstract (paragraph on task structure and baselines): The central claim that observed ranking variance (mean pairwise Spearman ρ = 0.013) demonstrates failure of single-task conclusions to generalize rests on the assumption that surrogate error does not distort relative optimizer performance. The abstract states that surrogates are “validated” and that a CFD pipeline enables “systematic fidelity-gap analysis,” yet no quantitative validation statistics—RMSE, rank correlation with CFD on optimized designs, or per-category fidelity-gap tables—are reported. Without these, it remains possible that non-uniform approximation error across shape categories inflates the reported variance.
minor comments (1)
  1. [Abstract] Abstract: The phrase “mean pairwise Spearman ρ = 0.013” would benefit from an explicit statement of the exact set of optimizer pairs and tasks over which the mean is taken, and whether the value is computed on final performance or on the entire optimization trajectory.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed and constructive feedback. The concern about surrogate validation and its potential effect on the reported ranking variance is a substantive point that merits direct response. We address it below and outline planned revisions.

read point-by-point responses

  1. Referee: The central claim that observed ranking variance (mean pairwise Spearman ρ = 0.013) demonstrates failure of single-task conclusions to generalize rests on the assumption that surrogate error does not distort relative optimizer performance. The abstract states that surrogates are “validated” and that a CFD pipeline enables “systematic fidelity-gap analysis,” yet no quantitative validation statistics—RMSE, rank correlation with CFD on optimized designs, or per-category fidelity-gap tables—are reported. Without these, it remains possible that non-uniform approximation error across shape categories inflates the reported variance.

    Authors: We agree that the interpretation of the low mean pairwise Spearman ρ = 0.013 as evidence against generalizing from single tasks implicitly assumes that surrogate approximation error does not systematically alter relative optimizer rankings across categories. Each surrogate is trained on CFD-generated data and the benchmark supplies a high-fidelity CFD pipeline for verification on feasible tasks, but the current manuscript does not report explicit quantitative metrics (RMSE on held-out CFD points, rank correlation of final designs, or per-category fidelity-gap tables) that would directly test preservation of optimizer orderings. In the revised manuscript we will add a dedicated validation subsection containing these statistics on a representative subset of tasks, together with an updated abstract that references the new results. This addition will allow readers to evaluate the possible contribution of non-uniform surrogate error to the observed variance. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces ShapeBench as an open benchmark with 103 tasks and reports an empirical finding of low mean pairwise Spearman ρ = 0.013 in optimizer rankings across categories. This statistic is obtained by running the listed baselines on the defined tasks and surrogates; it is a direct measurement rather than a quantity derived from prior inputs by construction, fitted parameter, or self-citation chain. No equations, uniqueness theorems, or ansatzes are invoked that reduce the central claim to the benchmark definition itself. The result is therefore self-contained as an observation on a publicly released resource.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on the assumption that the 103 tasks and surrogates form a representative and validated testbed for comparing optimizers across regimes.

axioms (1)
  • domain assumption Surrogates are validated and sufficiently accurate for optimization search; high-fidelity CFD is available for verification when feasible.
    Stated in the abstract description of each task.
