Using binary decision diagrams for constraint handling in combinatorial interaction testing
Pith reviewed 2026-05-25 10:16 UTC · model grok-4.3
The pith
BDD-based constraint handling outperforms SAT, MFT, and CSP methods for combinatorial interaction testing.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper establishes that Binary Decision Diagrams can be used for efficient constraint checks in combinatorial interaction testing, with the new construction of a BDD over all constraint-satisfying partial test cases allowing direct traversal and yielding the strongest performance gains compared to SAT, MFT, and CSP handlers.
What carries the argument
Binary Decision Diagrams representing Boolean functions over test parameters, used either via AND operations on full valid assignments or via a dedicated BDD over partial assignments that supports direct path traversal for satisfaction checks.
If this is right
- Constraint-check time becomes the dominant factor in overall test-suite generation cost when many partial assignments must be examined.
- The traversal-based BDD allows the check to be performed without repeated Boolean operations during generation.
- Both BDD variants reduce total runtime relative to SAT, MFT, and CSP handlers on the evaluated instances.
- The new partial-assignment BDD construction yields the lowest observed runtimes among the five techniques.
Where Pith is reading between the lines
- The same BDD representation could be reused across multiple test-generation algorithms beyond IPOG.
- Instances with denser or more numerous constraints may amplify the relative advantage of the traversal method.
- Hybrid schemes that switch between BDD and SAT checks depending on partial-assignment density remain unexplored in the work.
Load-bearing premise
The 62 selected problem instances are representative of the constraint structures and sizes that occur in real combinatorial interaction testing applications.
What would settle it
Repeating the head-to-head timing comparison on a fresh collection of instances whose constraint patterns differ markedly in size or structure and finding that the BDD methods no longer produce the lowest generation times would falsify the reported outperformance.

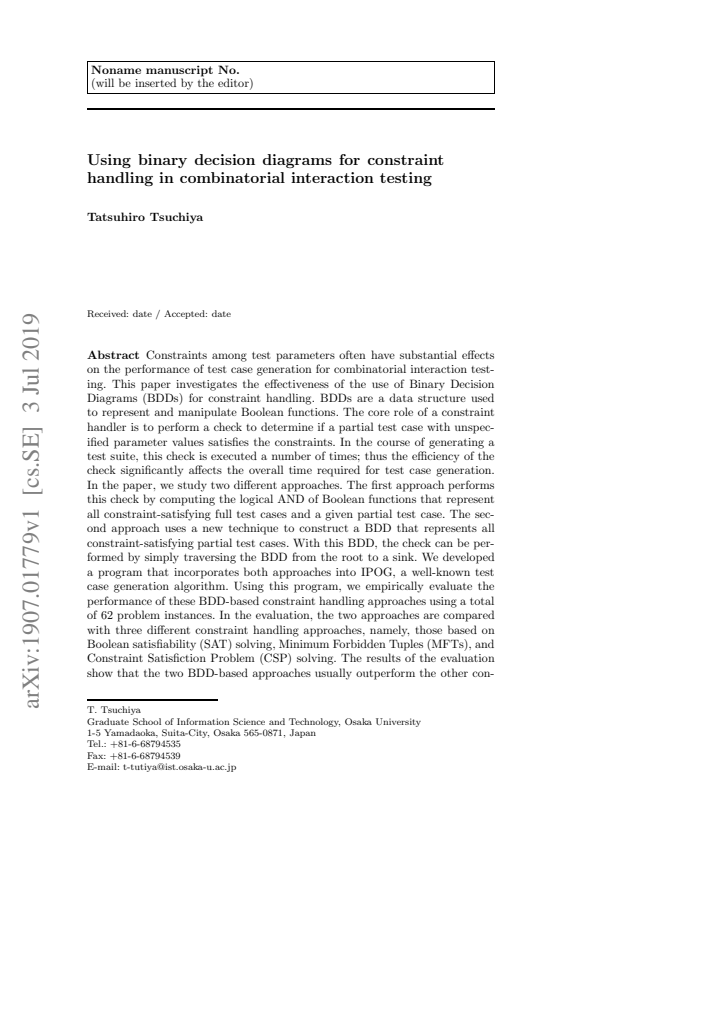

read the original abstract
Constraints among test parameters often have substantial effects on the performance of test case generation for combinatorial interaction testing. This paper investigates the effectiveness of the use of Binary Decision Diagrams (BDDs) for constraint handling. BDDs are a data structure used to represent and manipulate Boolean functions. The core role of a constraint handler is to perform a check to determine if a partial test case with unspecified parameter values satisfies the constraints. In the course of generating a test suite, this check is executed a number of times; thus the efficiency of the check significantly affects the overall time required for test case generation. In the paper, we study two different approaches. The first approach performs this check by computing the logical AND of Boolean functions that represent all constraint-satisfying full test cases and a given partial test case. The second approach uses a new technique to construct a BDD that represents all constraint-satisfying partial test cases. With this BDD, the check can be performed by simply traversing the BDD from the root to a sink. We developed a program that incorporates both approaches into IPOG, a well-known test case generation algorithm. Using this program, we empirically evaluate the performance of these BDD-based constraint handling approaches using a total of 62 problem instances. In the evaluation, the two approaches are compared with three different constraint handling approaches, namely, those based on Boolean satisfiability (SAT) solving, Minimum Forbidden Tuples (MFTs), and Constraint Satisfiction Problem (CSP) solving. The results of the evaluation show that the two BDD-based approaches usually outperform the other constraint handling techniques and that the BDD-based approach using the new technique exhibits best performance.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents two Binary Decision Diagram (BDD)-based methods for handling constraints in combinatorial interaction testing (CIT) within the IPOG algorithm. The first computes the logical AND of BDDs representing constraint-satisfying test cases with partial assignments. The second constructs a BDD for all constraint-satisfying partial test cases to allow direct traversal for checks. These are empirically compared to SAT, MFT, and CSP solvers on 62 instances, with the claim that BDD approaches usually outperform the others and the new technique performs best.
Significance. Should the empirical results prove robust, the work offers a practical contribution to CIT by highlighting BDDs as an efficient alternative for repeated constraint checks during test generation, potentially reducing overall generation time in constrained CIT problems.
major comments (2)
- [Evaluation section] Evaluation section: The central claim that the two BDD-based approaches 'usually outperform' the SAT/MFT/CSP baselines rests on results from 62 instances but provides no statistical significance testing, implementation fairness details across solvers, or sensitivity analysis to instance selection, leaving the performance ordering only moderately supported.
- [Problem instances section] Problem instances section: No selection criteria, diversity metrics, sourcing from industrial cases, or justification of representativeness for the 62 instances are referenced, which is load-bearing for the generalizability of the 'usually outperform' result and the recommendation of the new BDD technique.
minor comments (1)
- [Abstract] Abstract: 'Constraint Satisfiction Problem' is a typographical error and should be 'Constraint Satisfaction Problem'.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback. The two major comments highlight areas where the empirical support can be strengthened. We respond point by point and indicate planned revisions.
read point-by-point responses
-
Referee: [Evaluation section] Evaluation section: The central claim that the two BDD-based approaches 'usually outperform' the SAT/MFT/CSP baselines rests on results from 62 instances but provides no statistical significance testing, implementation fairness details across solvers, or sensitivity analysis to instance selection, leaving the performance ordering only moderately supported.
Authors: We acknowledge that formal statistical significance testing is absent from the original evaluation, which weakens the strength of the 'usually outperform' phrasing. The manuscript reports raw wall-clock times for every instance in tables, with the new partial-test BDD technique fastest on the large majority. In revision we will add non-parametric paired tests (Wilcoxon signed-rank) between each pair of methods and report p-values and effect sizes. Implementation details will be expanded to clarify that SAT/MFT/CSP solvers were called through their standard public APIs with default parameters, while the BDD handlers share the same IPOG driver and the same underlying BDD library; this ensures the comparison isolates the constraint-handling mechanism. Sensitivity analysis by instance subsets (e.g., by constraint density) can be added as supplementary tables, though a full leave-one-out study would require a substantially larger benchmark set. revision: partial
-
Referee: [Problem instances section] Problem instances section: No selection criteria, diversity metrics, sourcing from industrial cases, or justification of representativeness for the 62 instances are referenced, which is load-bearing for the generalizability of the 'usually outperform' result and the recommendation of the new BDD technique.
Authors: The 62 instances were taken from the standard CIT benchmark collections used in earlier constrained-generation papers. We will revise the 'Problem instances' section to list the exact sources (with citations), tabulate key diversity metrics (parameter count, domain sizes, constraint count and type), and explicitly note that while only a minority originate from industrial artifacts, the constraint patterns (mutex, implications, cardinality) mirror those reported in real testing scenarios. This addition will directly address representativeness without altering the experimental results. revision: yes
Circularity Check
No circularity: purely empirical runtime comparison
full rationale
The paper proposes two BDD-based constraint handlers for IPOG, implements them, and reports runtime results on 62 fixed instances against SAT/MFT/CSP baselines. No equations, derivations, fitted parameters, or predictions are present; performance ordering is measured directly rather than derived from any self-referential construction or self-citation chain. The representativeness of the 62 instances is an external-validity question, not a circularity issue within the reported results.
