Pulse-Driven Reconfiguration of Fractional Polar Topology in Zr-Substituted Barium Titanate

Florian Mayer

arxiv: 2605.21368 · v1 · pith:BUFKXNXMnew · submitted 2026-05-20 · ❄️ cond-mat.mtrl-sci · cond-mat.mes-hall

Pulse-Driven Reconfiguration of Fractional Polar Topology in Zr-Substituted Barium Titanate

Florian Mayer This is my paper

Pith reviewed 2026-05-21 03:09 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall

keywords ferroelectricstopological texturesskyrmionsantiskyrmionsbarium titanateelectric field pulsesnanodomainstopological charges

0 comments

The pith

Picosecond electric pulses on six vortex cores reconfigure fractional topological charges into 64 distinct metastable states inside a ferroelectric nanodomain.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses effective-Hamiltonian molecular-dynamics simulations to show that ordered zirconium substitution in barium titanate stabilizes a nanodomain texture whose topological charge splits into six -1/3 and six +2/3 localized contributions separated by singular conversion regions. Picosecond local electric-field pulses applied selectively to the six vortex-core columns can drive the internal dipolar arrangement into new arrangements. Every one of the 64 possible binary pulse combinations produces a unique relaxed configuration that remains stable for at least one nanosecond after the pulses end. These states differ visibly in both their sector-resolved topological fingerprints and their real-space polarization patterns. The work therefore supplies a computational demonstration that fractional polar topology can act as a multistate configurational degree of freedom under idealized low-temperature conditions.

Core claim

Chemical doubling along the polar axis in 12.5 percent Zr-substituted BaTiO3 produces a coupled nanodomain consisting of alternating Q = -2 antiskyrmionic and Q = +4 skyrmionic slices whose local topological charge fragments into six -1/3 and six +2/3 contributions called topological quarks. Picosecond pulses applied to selected vortex-core columns, following a binary mask protocol on all six cores, drive the system to 64 distinct relaxed metastable configurations that are distinguishable by sector-resolved topological fingerprints and by their real-space polarization fields; the states remain stable over at least 1 ns of field-free evolution in the cryogenic simulation protocol.

What carries the argument

The binary pulse-mask protocol applied to the six vortex cores, which locally excites and relaxes the fractional topological texture inside the 2.6 nm nanodomain.

If this is right

All 64 binary masks applied to the six vortex cores produce unique relaxed metastable states.
The resulting states remain distinguishable through both sector-resolved topological charge distributions and real-space polarization vectors.
Each reconfigured state persists without external fields for at least one nanosecond on the simulation timescale.
Fractional polar topology thereby functions as a multistate configurational degree of freedom in the idealized low-temperature setting.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the same pulse protocol works in real samples at higher temperature, the number of accessible states per nanodomain could enable dense multistate memory elements.
The six-core addressing scheme might be extended to larger arrays of vortex cores to increase the number of reachable configurations.
Similar reconfiguration could be tested in other ferroelectric compositions that support vortex or skyrmion textures.
Direct imaging of polarization after targeted pulses would provide an experimental test of whether the fractional charges remain localized during switching.

Load-bearing premise

The effective-Hamiltonian molecular-dynamics model together with the specific cryogenic temperature protocol correctly captures the real-material stability and dynamics of the fractional topological textures over nanosecond timescales.

What would settle it

Apply the same binary pulse sequences to the six vortex cores in an actual Zr-substituted BaTiO3 sample at cryogenic temperature and determine whether the resulting polarization maps and topological charge distributions collapse to fewer than 64 distinct, long-lived states or match the full set predicted by the simulation.

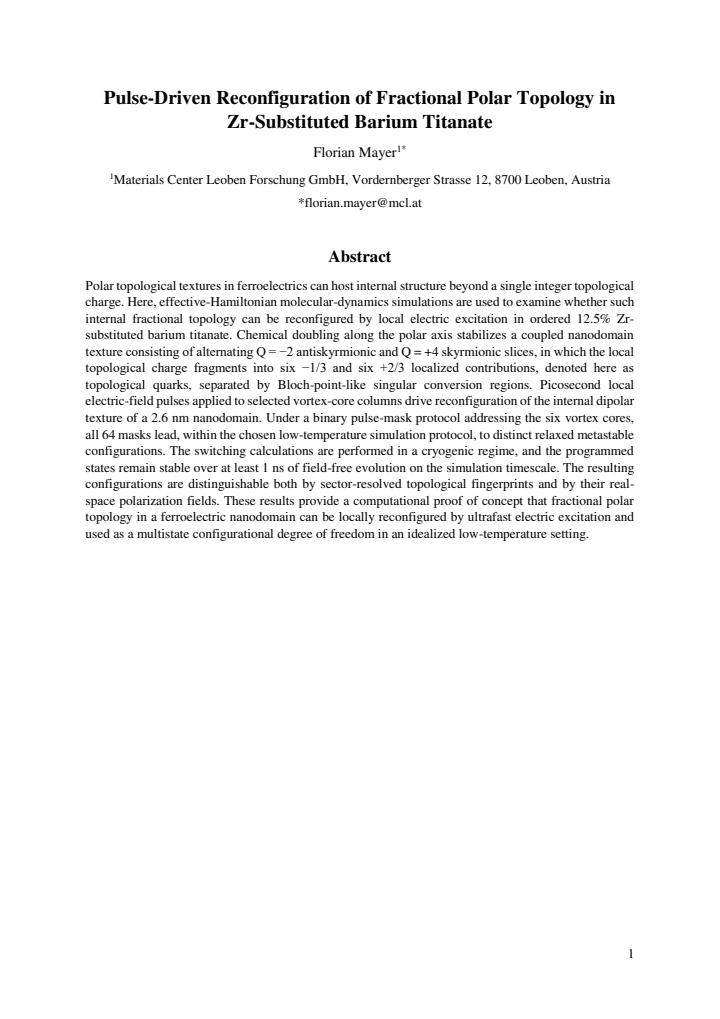

read the original abstract

Polar topological textures in ferroelectrics can host internal structure beyond a single integer topological charge. Here, effective-Hamiltonian molecular-dynamics simulations are used to examine whether such internal fractional topology can be reconfigured by local electric excitation in ordered 12.5% Zr-substituted barium titanate. Chemical doubling along the polar axis stabilizes a coupled nanodomain texture consisting of alternating Q = -2 antiskyrmionic and Q = +4 skyrmionic slices, in which the local topological charge fragments into six -1/3 and six +2/3 localized contributions, denoted here as topological quarks, separated by Bloch-point-like singular conversion regions. Picosecond local electric-field pulses applied to selected vortex-core columns drive reconfiguration of the internal dipolar texture of a 2.6 nm nanodomain. Under a binary pulse-mask protocol addressing the six vortex cores, all 64 masks lead, within the chosen low-temperature simulation protocol, to distinct relaxed metastable configurations. The switching calculations are performed in a cryogenic regime, and the programmed states remain stable over at least 1 ns of field-free evolution on the simulation timescale. The resulting configurations are distinguishable both by sector-resolved topological fingerprints and by their real-space polarization fields. These results provide a computational proof of concept that fractional polar topology in a ferroelectric nanodomain can be locally reconfigured by ultrafast electric excitation and used as a multistate configurational degree of freedom in an idealized low-temperature setting.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The simulations map all 64 binary pulse masks on the six vortex cores to distinct metastable fractional configurations in this Zr-substituted BaTiO3 model, but the effective-Hamiltonian treatment of the Bloch-point regions is the part that needs the most scrutiny.

read the letter

The central result is that every one of the 64 pulse combinations applied to the six vortex-core columns produces a different relaxed state whose internal texture can be told apart by both the sector-resolved topological charges and the real-space polarization map. Those states stay put for at least a nanosecond once the field is turned off, all within the low-temperature runs they report. That concrete mapping from external pulses to internal fractional topology is the piece that feels new relative to the skyrmion and antiskyrmion literature they cite. The setup itself is laid out clearly: the chemical ordering along the polar axis creates the coupled antiskyrmion-skyrmion slices, the local pulses reconfigure the dipolar texture inside the 2.6 nm domain, and the resulting configurations are tracked through the MD trajectories. That part of the work is straightforward and reproducible from the description given. The soft spot is the model. Effective-Hamiltonian molecular dynamics is a coarse lattice description, and the fractional charges rely on Bloch-point-like singular regions whose energetics may not be captured accurately without finer-scale checks. The abstract gives no error bars, no convergence tests against a different Hamiltonian, and no atomistic benchmark, so it is hard to know how many of those 64 states would survive a more detailed treatment or a higher temperature. The paper calls the whole thing a proof of concept, which is the right framing, but it also means the multistate claim is still tied to the specific cryogenic protocol and the chosen effective model. This is the sort of computational exploration that people working on polar topological textures and possible multistate ferroelectric elements would want to see. A reader who follows nanodomain simulations would get a clear protocol and a specific count of addressable states to think about. The work shows enough internal consistency and a fresh angle that it deserves a serious referee rather than a desk reject, though any review will have to press on whether the singularities are handled reliably. I would send it out for review and ask the authors for at least one cross-check against a higher-resolution method.

Referee Report

2 major / 2 minor

Summary. The manuscript uses effective-Hamiltonian molecular-dynamics simulations to study 12.5% Zr-substituted BaTiO3, where chemical ordering stabilizes a nanodomain texture with alternating Q=-2 antiskyrmionic and Q=+4 skyrmionic slices. Local topological charge fragments into six -1/3 and six +2/3 contributions separated by Bloch-point-like singular regions. Picosecond electric-field pulses applied via binary masks to the six vortex cores are shown to produce 64 distinct relaxed metastable configurations, distinguishable by sector-resolved topological fingerprints and real-space polarization fields, that remain stable for at least 1 ns in field-free evolution under a cryogenic simulation protocol. The work is framed as a computational proof of concept for multistate configurational degrees of freedom based on fractional polar topology.

Significance. If the reported reconfiguration and distinguishability of the 64 states hold under more rigorous validation, the results would demonstrate a route to accessing a large number of metastable states in a ferroelectric nanodomain via local electric excitation, with potential implications for multistate logic or memory devices. The explicit mapping from 6 binary inputs to 64 outputs and the use of a concrete material system with Zr substitution are concrete strengths. The cryogenic regime and coarse-grained model, however, constrain immediate experimental translation.

major comments (2)

Abstract, switching calculations paragraph: The central claim that all 64 binary pulse masks produce distinct relaxed metastable configurations rests on trajectories generated by the effective-Hamiltonian MD model. No quantitative metrics (e.g., distances between sector-resolved topological fingerprints), error bars, or convergence tests with respect to simulation length or ensemble averaging are reported, making it impossible to verify that the 64 states remain robustly distinguishable rather than partially overlapping or protocol-dependent.
Abstract, paragraph on fractional topology: The fragmentation into six -1/3 and six +2/3 charges separated by Bloch-point-like singular conversion regions is a load-bearing feature for the reconfiguration claim. The effective-Hamiltonian lattice model with its Landau-type expansion and short-range interactions is not guaranteed to reproduce the correct energetics or stability of these atomic-scale singularities; lattice smoothing or artifacts could collapse distinctions among configurations. An atomistic benchmark or explicit test of singularity resolution is required.

minor comments (2)

The term 'topological quarks' is introduced for the fractional charges without a precise definition or comparison to prior literature on fractional topology in ferroelectrics; this should be clarified in the main text.
No information is provided on code or trajectory availability, which would aid reproducibility of the 64-mask protocol and stability runs.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the thorough review and valuable suggestions regarding our manuscript on pulse-driven reconfiguration of fractional polar topology in Zr-substituted BaTiO3. We address each major comment below, indicating where revisions will be made and providing substantive responses on the points raised.

read point-by-point responses

Referee: Abstract, switching calculations paragraph: The central claim that all 64 binary pulse masks produce distinct relaxed metastable configurations rests on trajectories generated by the effective-Hamiltonian MD model. No quantitative metrics (e.g., distances between sector-resolved topological fingerprints), error bars, or convergence tests with respect to simulation length or ensemble averaging are reported, making it impossible to verify that the 64 states remain robustly distinguishable rather than partially overlapping or protocol-dependent.

Authors: We agree that the absence of quantitative metrics limits the strength of the distinguishability claim. In the revised manuscript we will add pairwise distance calculations between the sector-resolved topological fingerprints of all 64 configurations, together with standard deviations obtained from an ensemble of independent trajectories. We will also report convergence tests with respect to simulation length to confirm that the observed distinctions are robust and independent of the specific protocol details. revision: yes
Referee: Abstract, paragraph on fractional topology: The fragmentation into six -1/3 and six +2/3 charges separated by Bloch-point-like singular conversion regions is a load-bearing feature for the reconfiguration claim. The effective-Hamiltonian lattice model with its Landau-type expansion and short-range interactions is not guaranteed to reproduce the correct energetics or stability of these atomic-scale singularities; lattice smoothing or artifacts could collapse distinctions among configurations. An atomistic benchmark or explicit test of singularity resolution is required.

Authors: The effective-Hamiltonian model has been validated in the literature for capturing the formation and stability of polar skyrmions and antiskyrmions in perovskites. The fractional fragmentation arises directly from the symmetry imposed by the Zr chemical ordering within the nanodomain. We will expand the discussion section to explicitly address the coarse-grained nature of the model and its limitations for atomic-scale singularities. However, a full atomistic benchmark lies outside the present scope and computational resources. revision: partial

standing simulated objections not resolved

Requirement for an atomistic benchmark or explicit test of singularity resolution, which cannot be performed within the current effective-Hamiltonian framework and available resources.

Circularity Check

0 steps flagged

No circularity: results obtained directly from MD simulation trajectories

full rationale

The paper reports outcomes of effective-Hamiltonian molecular-dynamics runs in which binary pulse masks are applied to vortex cores and the system is allowed to relax under a fixed low-temperature protocol. The 64 distinct configurations are identified by inspecting the resulting polarization fields and sector-resolved topological charges after relaxation; these quantities are computed outputs of the trajectories rather than inputs that have been redefined or fitted to match themselves. No self-definitional loop, fitted-input-as-prediction, or load-bearing self-citation chain appears in the derivation. The work is therefore a self-contained computational exploration whose central claim does not reduce to its own assumptions by construction.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 2 invented entities

The central claim depends on the validity of the effective-Hamiltonian approximation for Zr-substituted BaTiO3, the assumption that the chosen low-temperature MD protocol prevents rapid relaxation, and the introduction of the 'topological quark' labeling without independent experimental signature.

free parameters (2)

Zr substitution concentration
Fixed at 12.5% to stabilize the alternating Q=-2 and Q=+4 slices; value chosen to produce the desired chemical doubling along the polar axis.
Simulation temperature
Set to cryogenic regime to ensure 1 ns stability of the programmed states; exact value not stated but described as low-temperature protocol.

axioms (2)

domain assumption Effective-Hamiltonian model parameters for BaTiO3 with Zr substitution accurately reproduce the dipolar energetics and topological textures.
Invoked throughout the simulation setup to justify the observed nanodomain texture and pulse response.
domain assumption The 1 ns field-free evolution timescale is sufficient to establish metastability of the reconfigured states.
Used to claim that the 64 configurations remain distinct and stable.

invented entities (2)

topological quarks no independent evidence
purpose: Label for the six -1/3 and six +2/3 localized fractional topological charge contributions within each nanodomain.
New descriptive term introduced to characterize the fragmentation of integer skyrmion and antiskyrmion charges.
Bloch-point-like singular conversion regions no independent evidence
purpose: Describe the boundaries separating the fractional charge regions.
Postulated singular structures that enable the internal fragmentation of topological charge.

pith-pipeline@v0.9.0 · 5792 in / 1743 out tokens · 42581 ms · 2026-05-21T03:09:01.718611+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

effective-Hamiltonian molecular-dynamics simulations... fractional topology... six -1/3 and six +2/3 localized contributions... Bloch-point-like singular conversion regions... binary pulse-mask protocol... all 64 masks lead... distinct relaxed metastable configurations

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
