arxiv: 2511.00158 · v2 · pith:C6YQTKBInew · submitted 2025-10-31 · 🌌 astro-ph.GA

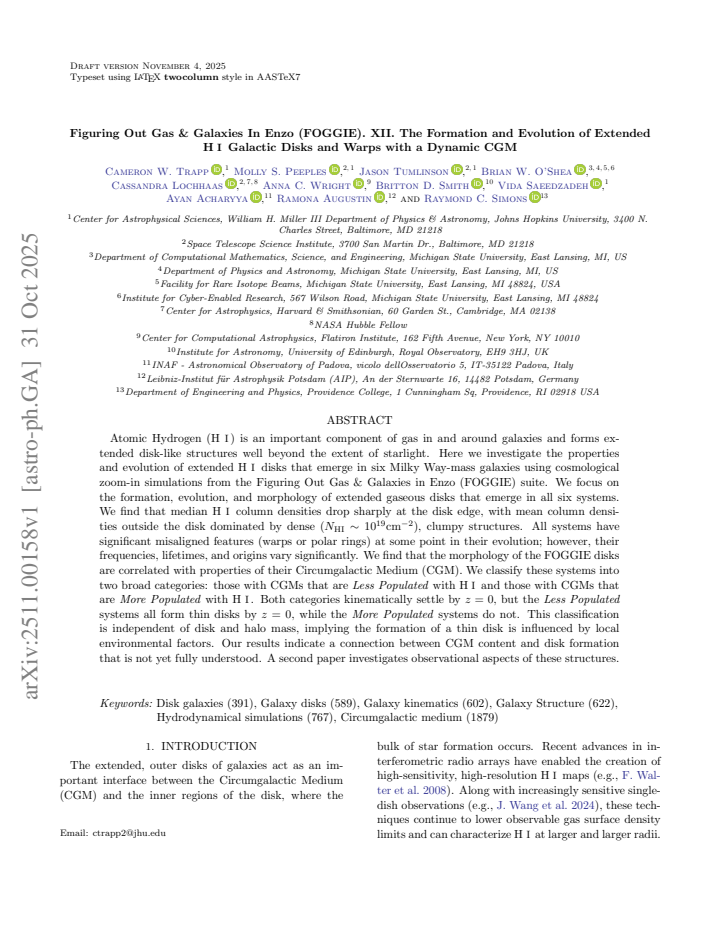

FOGGIE: Figuring Out Gas & Galaxies In Enzo XII. The Formation and Evolution of Extended HI Galactic Disks and Warps with a Dynamic Circumgalactic medium

Cameron W. Trapp , Molly S. Peeples , Jason Tumlinson , Brian W. O'Shea , Cassandra Lochhaas , Anna C. Wright , Britton D. Smith , Vida Saeedzadeh
show 3 more authors
Ayan Acharyya Ramona Augustin Raymond C. Simons
This is my paper

Pith reviewed 2026-05-22 11:47 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords extended HI diskscircumgalactic mediumgalactic warpsdisk morphologycosmological simulationsMilky Way-mass galaxiesgas evolutionenvironmental factors
0
0 comments X

The pith

Extended HI galactic disks form thin coherent structures when their circumgalactic medium has less neutral hydrogen.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines six cosmological zoom-in simulations of Milky Way-mass galaxies to track the formation and evolution of their extended atomic hydrogen disks. It shows that disk morphologies vary systematically with the relative amount of HI present in the surrounding circumgalactic medium, sorting the systems along a continuum. Galaxies with less populated CGMs develop thin, extended, coherently rotating disks, while those with more HI in the CGM exhibit more irregular or disturbed structures. This pattern holds independent of disk or halo mass and instead points to local environmental conditions. All six systems develop warps or polar rings at some stage yet reach similar kinematic settling by the present day.

Core claim

The morphologies of the FOGGIE disks are correlated with properties of their Circumgalactic Medium (CGM). We place these systems along a continuum based on how populated their CGMs are with HI relative to their central disk. The less populated systems tend to form coherently rotating, thin, extended disks while the more populated systems do not. Location on this continuum is independent of disk and halo mass. All systems have significant misaligned features (warps or polar rings) at some point in their evolution; however, their frequencies, lifetimes, and origins vary significantly. All systems kinematically settle similarly by z=0.

What carries the argument

A continuum of CGM HI population relative to the central disk that sorts galaxies by whether they form thin coherent extended disks or disturbed morphologies.

If this is right

  • Disk morphology can be predicted from local CGM HI content rather than from galaxy mass.
  • Warps and misaligned gas features arise commonly but with lifetimes and origins that depend on CGM population level.
  • Kinematic settling of the HI disk occurs by z=0 in all cases regardless of CGM density.
  • Local environmental factors control extended disk structure more strongly than global mass does.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Measuring CGM HI content around observed galaxies could help interpret the coherence of their outer disks.
  • The continuum may reflect differences in accretion or feedback history that could be tested with varied initial conditions.
  • This sorting suggests environmental density influences gas disk stability in ways worth checking against larger observed samples.

Load-bearing premise

The six zoom-in simulations accurately capture real CGM-disk interactions and gas dynamics at the relevant scales without dominant numerical artifacts.

What would settle it

Observing no correlation between CGM HI column density population and disk coherence in a larger sample of real galaxies or in higher-resolution runs with altered subgrid physics.

Figures

Figures reproduced from arXiv: 2511.00158 by Anna C. Wright, Ayan Acharyya, Brian W. O'Shea, Britton D. Smith, Cameron W. Trapp, Cassandra Lochhaas, Jason Tumlinson, Molly S. Peeples, Ramona Augustin, Raymond C. Simons, Vida Saeedzadeh.

Figure 1

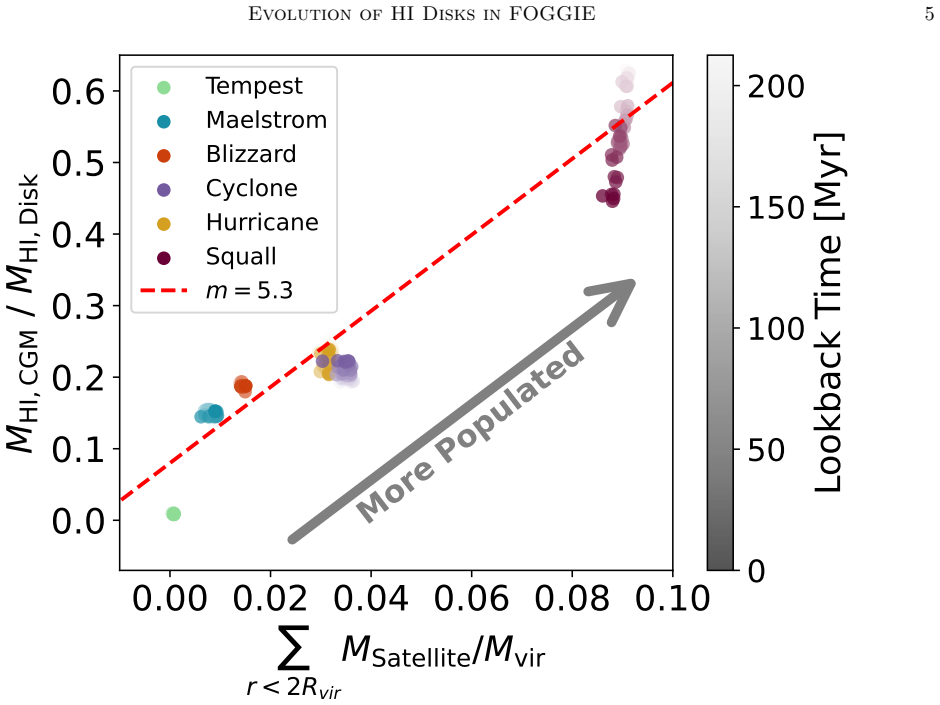

Figure 1. Figure 1: Satellite mass within 2Rvir relative to the main halo virial mass, versus the H I mass in the CGM relative to the H I mass of the disk over the last ∼200 Myr. There is a clear correlation between the relative amount of H I in the CGM with the nearby satellite mass at that time (red-dashed line, slope = 5.3, intercept = 0.06). Systems on the bottom left of this plot are in Less Populated local environments,… view at source ↗
Figure 2
Figure 2. Figure 2: Face- and edge-on H I column densities within Rvir for the six halos considered in this study at redshift z = 0. We subdivide our halos into two distinct categories (Less Populated and More Populated) based on the amount of H I in the CGM. The top row of each category shows the H I column densities for all gas, while the bottom row shows the projections only including gas in our disk definition (see Sec. 3… view at source ↗
Figure 3
Figure 3. Figure 3: Radial profiles for face-on H I column density maps at redshift z = 0 (see [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

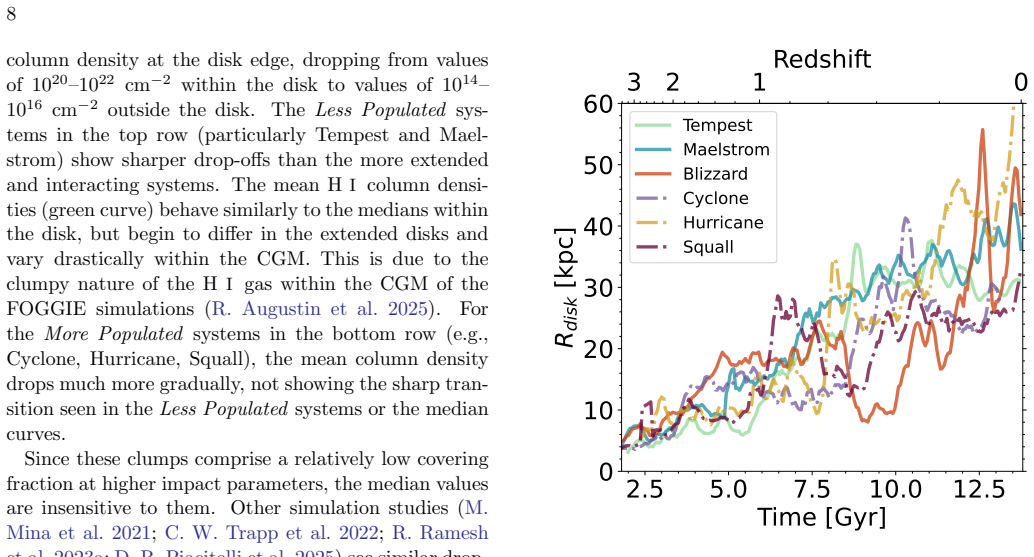

Figure 4. Figure 4: Evolution of the maximum radial extent of each disk, based on our disk definition. All systems grow simi￾larly over cosmological time, despite classification (denoted by line type). Tempest and Maelstrom grow more or less monotonically, while the other systems go through periods of rapid growth and contractions. There is no obvious sig￾nal in disk growth that could be associated with the Less Populated or … view at source ↗
Figure 5

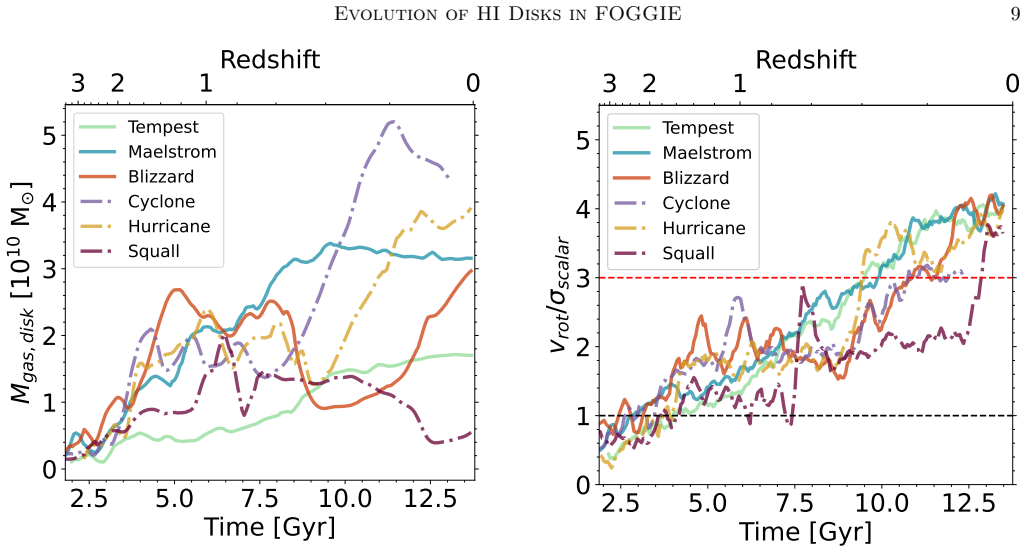

Figure 5. Figure 5: Evolution of the gas mass of each disk, based on our disk definition. Although overall baryon content in￾creases more or less monotonically in all cases, some systems lose large amounts of gas, particularly at higher redshift. Overall trends seem uncorrelated with classification (denoted by line type). Curves were smoothed using a moving average filter (270 Myr) to improve readability. the other halos. Her… view at source ↗
Figure 7
Figure 7. Figure 7: Disk aspect ratio (thickness divided by disk radius) as a function of galactocentric radius. The three Less Populated systems (top) form thin central disks at z = 0, while the More Populated systems (bottom) do not. Disk radius was defined by the cell at the maximum radius of our disk definition. Disk thickness was defined as the difference between the extrema of the height above the disk plane at a given … view at source ↗
Figure 8

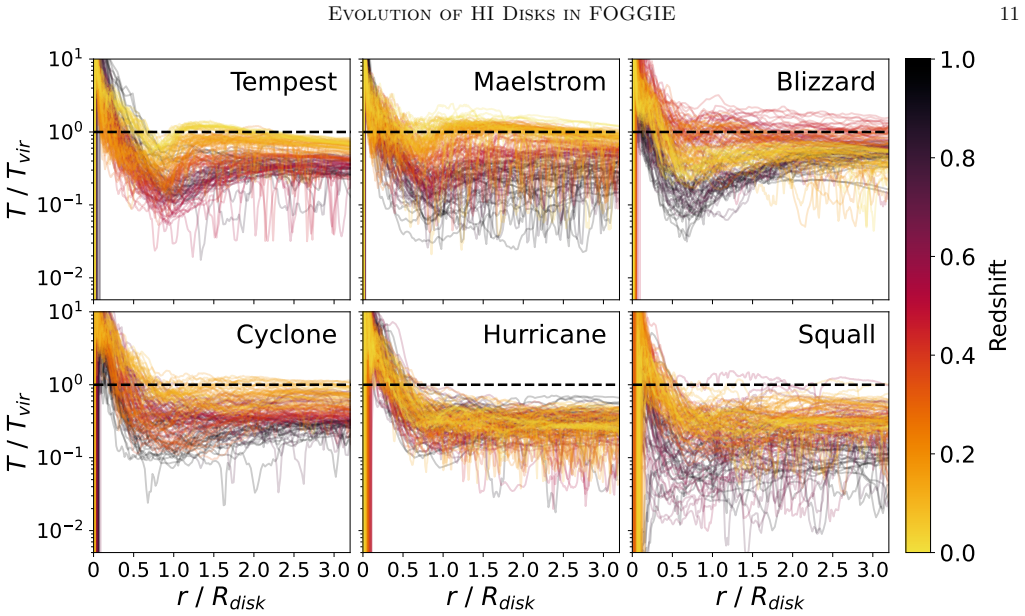

Figure 8. Figure 8: Mass-weighted mean temperature of the CGM normalized to the halo virial temperature Tvir as a function of galactocentric radius, normalized by the disk radius (Rdisk corresponds to ∼0.1–0.15 R200, [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Several key properties of Tempest as a function of time, highlighting the precession of the polar ring formed at t ∼ 6 Gyr to a warped outer disk. The first two panels show ring-averaged values for key properties of the disk as identified by our disk selection criteria. Inclination (left) shows the average tilt of the gas with respect to the disk plane. Nonzero values correspond to some degree of misalignm… view at source ↗
Figure 10

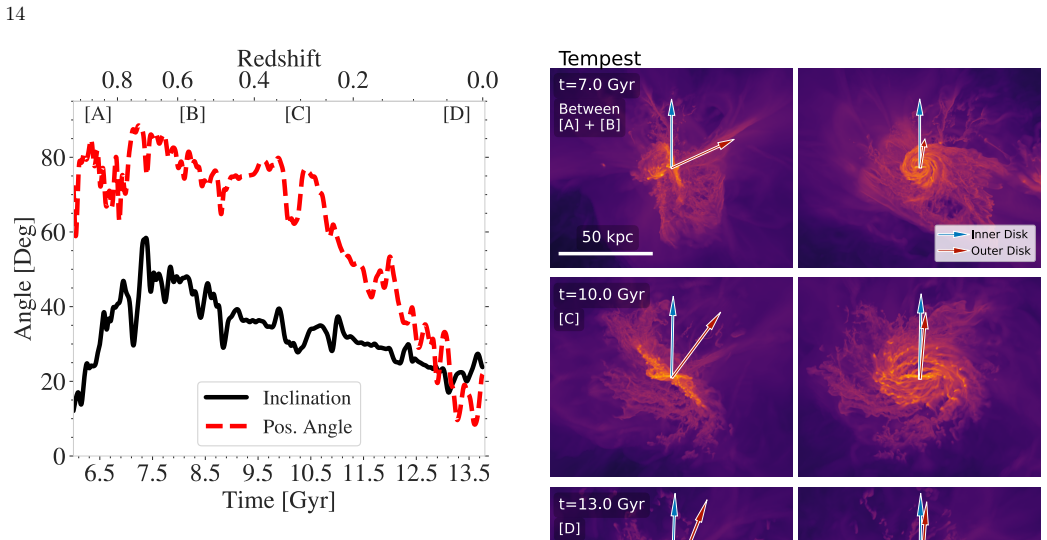

Figure 10. Figure 10: The precession of the polar ring in Tempest into a warp. The black-solid and red-dashed lines shows the mean inclination and position angle of the polar ring, respec￾tively. Letters (A-D) correspond to events shown in [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Evolution of Tempest’s misaligned outer disk. The blue and red arrows show the angular momentum of the aligned and misaligned components, respectively. The left column shows the misaligned component edge-on, while the right column shows it face-on. At t = 7, the outer disk is a distinct polar ring. At t = 10 Gyr, it begins to transition to a warp. At t = 13 Gyr, it is a fully contiguous warp. where L is t… view at source ↗
Figure 12
Figure 12. Figure 12: Orientation evolution of the angular momen￾tum vector of the aligned (inner, blue) and misaligned (outer, red) disks in Tempest between t = 6 − 13.7 Gyr. Text val￾ues show the times in Gyr and corresponding events (A-D) shown in [PITH_FULL_IMAGE:figures/full_fig_p015_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Same as [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Same as [PITH_FULL_IMAGE:figures/full_fig_p017_14.png] view at source ↗
Figure 16
Figure 16. Figure 16: Same as [PITH_FULL_IMAGE:figures/full_fig_p018_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: The H I covering fraction for Tempest as a function of impact parameter in face-on projections. The solid lines show the covering fractions at various column den￾sity cutoffs for the fiducial runs. The dashed lines show the same covering fraction profiles for the same runs without cooling or forced refinement. In the fiducial runs, the disks are larger by about 10 kpc, show a more gradual drop off as a fu… view at source ↗
Figure 20
Figure 20. Figure 20 [PITH_FULL_IMAGE:figures/full_fig_p023_20.png] view at source ↗
Figure 19
Figure 19. Figure 19: Face on projections for gas in the refinement box of Tempest at z = 0, color-coded by the refinement cri￾teria introduced in [PITH_FULL_IMAGE:figures/full_fig_p023_19.png] view at source ↗
Figure 21

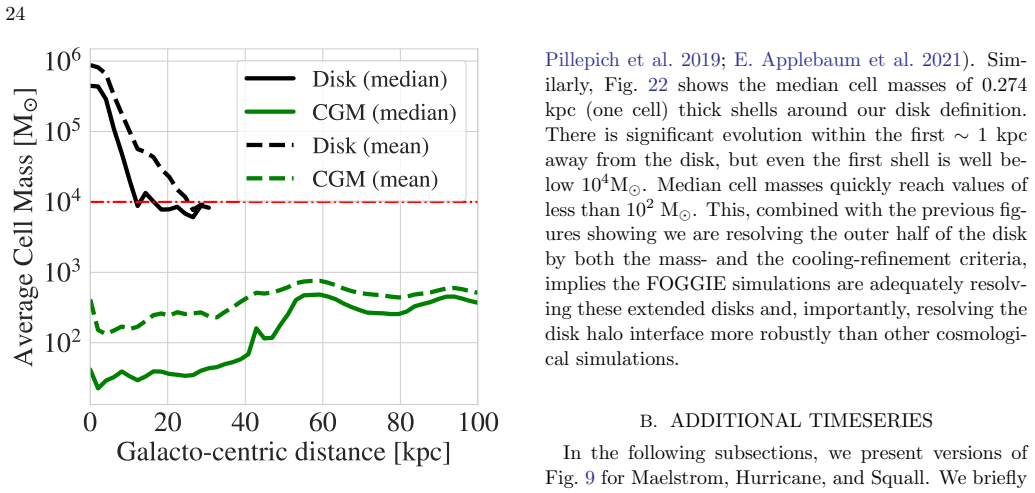

Figure 21. Figure 21: Average cell masses within our disk definition (black) and the CGM (green) for Tempest. The solid lines show median values and the dashed lines show mean values. Cell masses within the disk are large, but the median values in the extended disk are approaching 104 M⊙(red, dash-dot￾ted line), a value typical of other cosmological hydrodynam￾ical galaxy simulations that are not focused on resolving the CGM. … view at source ↗
Figure 22
Figure 22. Figure 22: Median cell masses within 0.274 kpc (1 cell) thick shells around the disk definition. Shells were identified by a binary dilation from the disk surface. Each shell only includes cells outside the definition of the previous shell (and disk). Median cell mass drops below 100 M⊙ within a few shells. hydrodynamical simulations that are not focused on re￾solving the CGM (e.g., P. F. Hopkins et al. 2018; A. Pil… view at source ↗
Figure 23
Figure 23. Figure 23: Same as [PITH_FULL_IMAGE:figures/full_fig_p025_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Same as [PITH_FULL_IMAGE:figures/full_fig_p025_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: Same as [PITH_FULL_IMAGE:figures/full_fig_p026_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: H I column density projections for the disk def￾inition of Tempest at z = 0 before (left) and after (right) the hole filling steps described in Sec. 3. In brief, this pro￾cess fills any true topological holes (fully enclosed) through a binary fill operation, and any “donut” holes that pierce the disk through a binary closing operation. lation/erosion operations are, and thus, the size of the holes that ar… view at source ↗
Figure 28
Figure 28. Figure 28: Same as [PITH_FULL_IMAGE:figures/full_fig_p027_28.png] view at source ↗
read the original abstract

Atomic hydrogen (HI) is an important component of gas in and around galaxies and forms extended disk-like structures well beyond the extent of starlight. Here we investigate the properties and evolution of extended HI disks that emerge in six Milky Way-mass galaxies using cosmological zoom-in simulations from the Figuring Out Gas & Galaxies in Enzo (FOGGIE) suite. We focus on the formation, evolution, and morphology of extended gaseous disks that emerge in all six systems. We find that median HI column densities drop sharply at the disk edge, with mean column densities outside the disk dominated by dense (N_HI~10^{19} cm^{-2}), clumpy structures. All systems have significant misaligned features (warps or polar rings) at some point in their evolution; however, their frequencies, lifetimes, and origins vary significantly. We find that the morphologies of the FOGGIE disks are correlated with properties of their Circumgalactic Medium (CGM). We place these systems along a continuum based on how populated their CGMs are with HI relative to their central disk. All systems kinematically settle similarly by z=0. The less populated systems tend to form coherently rotating, thin, extended disks while the more populated systems do not. Location on this continuum is independent of disk and halo mass, implying a relation to local environmental factors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript analyzes extended HI disks and warps in six Milky Way-mass galaxies from the FOGGIE cosmological zoom-in simulations run with Enzo. It reports that median HI column densities drop sharply at the disk edge with clumpy structures (N_HI ~10^19 cm^{-2}) dominating outside the disk, that all systems develop misaligned features (warps or polar rings) at some point, and that disk morphologies correlate with CGM HI population along a continuum: less-populated CGMs produce thin, coherently rotating extended disks while more-populated ones do not. The location on this continuum is stated to be independent of disk and halo mass, with all systems kinematically settling similarly by z=0.

Significance. If the reported correlation holds after robustness checks, the work would demonstrate that local CGM HI content can shape galactic disk morphology independently of mass, offering a useful framework for interpreting environmental influences on disk structure in galaxy formation simulations. The multi-simulation approach allows direct comparison of trends across systems and highlights the ubiquity of warps.

major comments (2)
  1. [Simulation methods and results sections] The central claim that CGM HI population controls disk morphology along a mass-independent continuum rests on the measured HI column densities and kinematic properties in the simulations. However, no CGM-specific refinement levels, resolution convergence tests, or checks against variations in subgrid physics are reported, leaving open the possibility that numerical diffusion or mixing in the Enzo AMR runs artificially affects the clumpy HI structures at N_HI ~10^19 cm^{-2} and thereby the reported trend.
  2. [Results on continuum and mass independence] The assertion that continuum location is independent of disk and halo mass is load-bearing for the environmental interpretation. With only six systems, this independence requires quantitative support (e.g., explicit correlation coefficients between morphology metrics and mass or a figure showing morphology vs. mass with no trend); the current presentation leaves the statistical basis for the claim unclear.
minor comments (2)
  1. Clarify the exact metric used to quantify 'how populated' the CGM is with HI relative to the central disk, including any thresholds or normalizations applied when placing systems on the continuum.
  2. The statement that 'all systems kinematically settle similarly by z=0' would benefit from a specific quantitative measure (e.g., rotational support parameter or velocity dispersion) and reference to the relevant figure or table.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed and constructive report on our manuscript. Their comments have prompted us to clarify several aspects of our analysis and strengthen the presentation of our results. Below we address each major comment in turn.

read point-by-point responses

  1. Referee: [Simulation methods and results sections] The central claim that CGM HI population controls disk morphology along a mass-independent continuum rests on the measured HI column densities and kinematic properties in the simulations. However, no CGM-specific refinement levels, resolution convergence tests, or checks against variations in subgrid physics are reported, leaving open the possibility that numerical diffusion or mixing in the Enzo AMR runs artificially affects the clumpy HI structures at N_HI ~10^19 cm^{-2} and thereby the reported trend.

    Authors: We agree that the manuscript would benefit from additional discussion of the numerical setup. The FOGGIE simulations use a uniform refinement strategy and subgrid physics package that have been documented and tested for convergence in earlier papers from the suite. The clumpy HI features at these column densities appear consistently across all six independent zoom-in runs despite their differing merger histories, which argues against a purely numerical origin tied to a single simulation. In the revised manuscript we will expand the methods section to specify the CGM refinement levels employed and add explicit references to prior resolution and subgrid-physics convergence studies performed with the same Enzo configuration. revision: partial

  2. Referee: [Results on continuum and mass independence] The assertion that continuum location is independent of disk and halo mass is load-bearing for the environmental interpretation. With only six systems, this independence requires quantitative support (e.g., explicit correlation coefficients between morphology metrics and mass or a figure showing morphology vs. mass with no trend); the current presentation leaves the statistical basis for the claim unclear.

    Authors: We accept that the current text does not present the mass-independence claim with sufficient quantitative rigor. Although the sample comprises only six systems, visual inspection of the data shows no systematic trend with either halo or disk mass. To address the referee’s request directly, the revised manuscript will include a new figure plotting the key morphology and CGM-population metrics against both halo mass and disk mass, together with the corresponding Spearman rank correlation coefficients. These additions will make the statistical basis for mass independence explicit and thereby strengthen the environmental interpretation. revision: yes

Circularity Check

0 steps flagged

No significant circularity in simulation-derived HI disk-CGM correlations

full rationale

The paper's central claims emerge directly from post-processing of six Enzo AMR zoom-in simulation snapshots: HI column density profiles, kinematic settling, warp frequencies, and morphological classifications are measured quantities, not parameters fitted to enforce a continuum or mass-independence result. The placement of systems along a CGM-HI-population continuum is an observational grouping of those measured outputs, and the reported trend (thin extended disks in less-populated CGMs) is a correlation found in the data rather than a definitional or self-referential loop. No equations or sections reduce a prediction to a fitted input by construction, and no load-bearing uniqueness theorem or ansatz is imported via self-citation. The analysis remains self-contained against the simulation data and external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Central claims depend on the validity of Enzo hydrodynamics, subgrid star formation and feedback prescriptions, and Lambda-CDM initial conditions used in the FOGGIE zoom-ins; no new free parameters are introduced in the reported analysis.

axioms (1)
  • standard math Standard Lambda-CDM cosmology and Enzo simulation physics govern the gas dynamics and galaxy formation in the zoom-in runs.
    Invoked throughout the simulation setup and analysis of disk and CGM properties.
