Transport Enhancement and In Situ Control of Electronic Correlation via Photoinduced Modulation Doping of van der Waals Heterostructures

Collin R. Sanborn , Son T. Le , Thuc T. Mai , Maria F. Munoz , Riccardo Torsi , Angela R. Hight Walker , Curt A. Richter , Samuel W. LaGasse
show 2 more authors
Aubrey T. Hanbicki Adam L. Friedman
This is my paper

Pith reviewed 2026-05-22 04:04 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords photoinduced modulation dopingvan der Waals heterostructuresgraphene transportquantum Hall ferromagnetismdisorder controlcarrier density tuningphotoannealing
0
0 comments X

The pith

White light photo-doping adjusts carrier density and reduces disorder in graphene heterostructures to reveal quantum Hall isospin ferromagnetic states.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how shining ordinary white light on hBN-graphene-hBN-SiO2 stacks induces modulation doping that both adds or removes carriers and anneals away local disorder. The resulting changes let researchers measure and tune mobility and scattering length so precisely that the device can be switched between diffusive and quasi-ballistic transport while still inside the cryostat. The same control makes quantum Hall isospin ferromagnetic states appear in a device whose starting quality would otherwise hide them. A reader cares because the method needs no extra gates, lithography, or special light sources, offering a simple route to higher-quality 2D devices for studying correlated states.

Core claim

Photoinduced modulation doping with standard white light dopes the graphene channel and photoanneals the heterostructure, giving reversible, in-situ control over carrier density and charge disorder. Transport analysis with Drude and Landauer models shows that mobility and mean free path can be tuned accurately enough to cross from diffusive to quasi-ballistic regimes. This disorder control is sufficient to make quantum Hall isospin ferromagnetic states observable in an initially lower-quality device.

What carries the argument

Photoinduced modulation doping, a light-driven charge-transfer and annealing process that alters local carrier density and reduces scattering centers without additional fabrication.

If this is right

  • Mobility and mean scattering length of the graphene channel can be tuned reversibly with high accuracy using only light.
  • A single device can be switched in situ between diffusive and quasi-ballistic transport regimes.
  • Quantum Hall isospin ferromagnetic states become visible in heterostructures whose initial disorder would otherwise suppress them.
  • Carrier density and charge disorder can be manipulated independently in van der Waals stacks with no extra fabrication steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same light-based control could be applied to other 2D materials to access correlated phases without complex device redesign.
  • Real-time optical tuning of disorder might enable dynamic studies of how scattering affects interaction-driven states.
  • Extending the method to different wavelengths or intensities could map which photon energies most efficiently reduce specific scattering sources.

Load-bearing premise

The measured transport improvements and appearance of quantum Hall states are caused by the photoinduced doping and annealing rather than by sample heating or unintended photochemical damage.

What would settle it

Repeating the light-exposure experiments while actively stabilizing device temperature or using a narrow-band source that avoids heating should still produce the same mobility increase and quantum Hall states; absence of those changes would falsify the mechanism.

Figures

Figures reproduced from arXiv: 2605.22452 by Adam L. Friedman, Angela R. Hight Walker, Aubrey T. Hanbicki, Collin R. Sanborn, Curt A. Richter, Maria F. Munoz, Riccardo Torsi, Samuel W. LaGasse, Son T. Le, Thuc T. Mai.

Figure 1
Figure 1. Figure 1: (a) Optical Image of encapsulated graphene device used in this work, where heavily doped Si can be used as a global [PITH_FULL_IMAGE:figures/full_fig_p012_1.png] view at source ↗
Figure 2

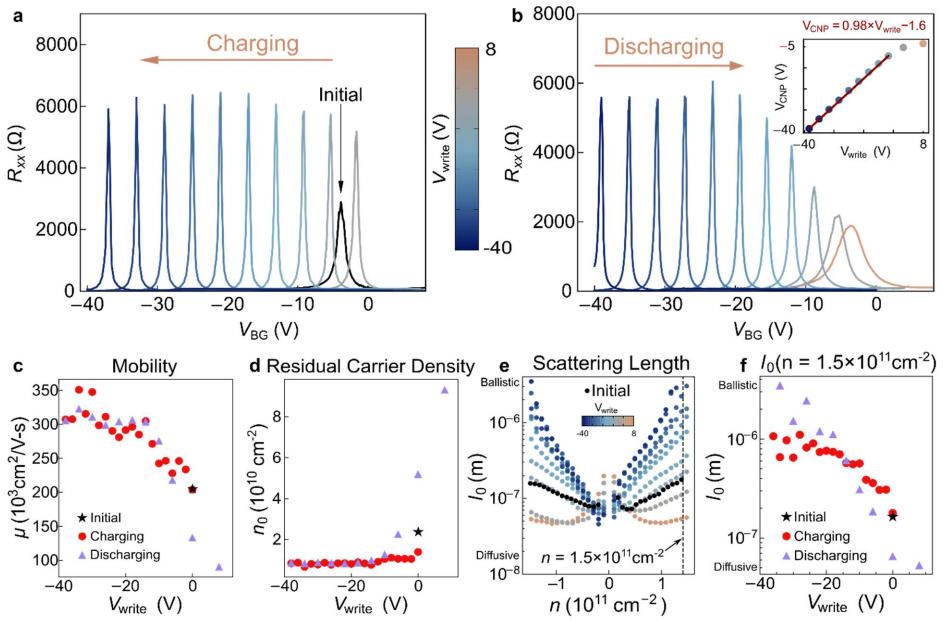

Figure 2. Figure 2: (a) Transfer curve measurements of encapsulated graphene device on SiO2, with increasing magnitude of [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗
Figure 3

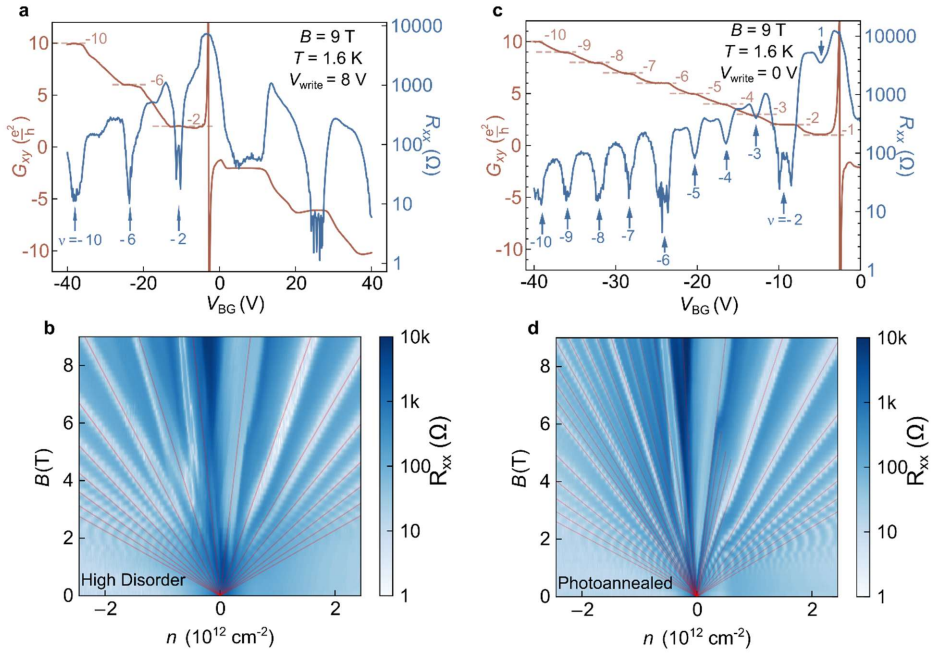

Figure 3. Figure 3: Quantum Hall transport measurements before and after photoannealing the graphene device. (a) Hall conductivity [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
read the original abstract

Modulation doping, a well-established technique for traditional semiconductor heterostructures, is a promising approach for tailoring carrier concentration in 2D materials devices. In this letter we report on photoinduced modulation doping in hBN-graphene-hBN-SiO2 heterostructures utilizing standard white light sources and no additional fabrication complexity. We establish the use of this technique to both dope the channel material and to photoanneal devices, providing control over electronic doping and disorder in the graphene channel. We analyze the transport properties by employing Drude and Landauer transport models, highlighting the ability to reversibly tune the mobility and mean scattering length of the graphene with a high degree of accuracy. This tunability allows us to switch our device between the diffusive and quasi-ballistic transport regimes in situ. We utilize the exceptional control our technique provides over local disorder to realize quantum Hall isospin ferromagnetic states in a device whose initial quality would otherwise leave such states unobservable. These results demonstrate precise manipulation of carrier density and charge disorder in van der Waals heterostructures, providing a highly accessible approach to creating high-quality devices capable of realizing correlated electronic states.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports photoinduced modulation doping in hBN-graphene-hBN-SiO2 van der Waals heterostructures using standard white light sources. The authors claim this enables reversible in-situ doping of the graphene channel and photoannealing to reduce disorder, allowing tuning of mobility and mean free path via Drude and Landauer models to switch between diffusive and quasi-ballistic regimes. They further report that this control over local disorder permits observation of quantum Hall isospin ferromagnetic states in devices that initially lacked sufficient quality for such states to appear.

Significance. If the central attribution holds, the work offers a simple, low-complexity optical method to enhance transport quality and access correlated states such as isospin ferromagnetism in 2D heterostructures without additional fabrication steps. This could broaden access to high-mobility devices for mesoscopic physics studies.

major comments (2)
  1. [§4] §4 (emergence of quantum Hall states): The claim that isospin ferromagnetic states become observable solely due to photoinduced modulation doping and photoannealing is load-bearing for the abstract's strongest assertion, yet no in-situ thermometry, matched-power dark-heating controls, or post-illumination stability tests are described to exclude transient heating or photochemical damage to hBN/interfaces.
  2. [§3] §3 (Drude/Landauer analysis): The reported mobility enhancements and diffusive-to-quasi-ballistic transitions rest on model fits whose robustness cannot be assessed without error bars, fit uncertainties, or explicit exclusion criteria for data points, weakening the quantitative claims of 'high degree of accuracy' and reversible tuning.
minor comments (2)
  1. [Figures 2-4] Figure captions and main text should explicitly state the illumination power density, wavelength range, and exposure times used for the photoinduced effects to allow reproducibility.
  2. [Abstract and Introduction] The abstract and introduction would benefit from a brief comparison to prior optical doping methods in graphene/hBN systems to clarify novelty.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive comments. We address each major point below and have revised the manuscript to strengthen the presentation and interpretation of our results.

read point-by-point responses

  1. Referee: [§4] §4 (emergence of quantum Hall states): The claim that isospin ferromagnetic states become observable solely due to photoinduced modulation doping and photoannealing is load-bearing for the abstract's strongest assertion, yet no in-situ thermometry, matched-power dark-heating controls, or post-illumination stability tests are described to exclude transient heating or photochemical damage to hBN/interfaces.

    Authors: We agree that additional controls would further strengthen the attribution to photoinduced modulation doping rather than transient heating. Our existing data already show that the doping level and enhanced transport properties remain stable in the dark after illumination is removed, and the quantum Hall isospin ferromagnetic states are observed in subsequent dark measurements without continuous light exposure. To address the referee's concern directly, we have added post-illumination stability data in the revised supplementary information, demonstrating that mobility and quantum Hall features persist for at least 24 hours after illumination ceases. We have also included a brief discussion noting that the gate-tunable and fully reversible nature of the observed changes is inconsistent with irreversible photochemical damage. In-situ thermometry and matched-power dark-heating controls were not part of the original experimental design; performing them would require new measurements that are beyond the scope of the current study, but the reversibility and stability data provide supporting evidence for our interpretation. revision: partial

  2. Referee: [§3] §3 (Drude/Landauer analysis): The reported mobility enhancements and diffusive-to-quasi-ballistic transitions rest on model fits whose robustness cannot be assessed without error bars, fit uncertainties, or explicit exclusion criteria for data points, weakening the quantitative claims of 'high degree of accuracy' and reversible tuning.

    Authors: We thank the referee for this observation. We have revised the manuscript to include error bars on all mobility and mean-free-path data points in Figure 3, obtained from repeated measurements on the same device. The methods section has been expanded to describe the Drude and Landauer fitting procedures in detail, including the functional forms used, the range of data points fitted, and the criteria applied for excluding outliers (e.g., points affected by contact resistance or gate leakage). Estimated uncertainties on the extracted parameters are now reported. These additions make the quantitative claims of reversible tuning and the diffusive-to-quasi-ballistic transition more transparent and allow readers to assess the robustness of the model fits. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental results analyzed with standard external models

full rationale

The manuscript is an experimental report on photoinduced modulation doping and photoannealing in hBN-graphene-hBN heterostructures. Transport data are interpreted via the standard Drude and Landauer models, which are invoked as established frameworks rather than derived or fitted within the paper itself. The central claim—that illumination enables in-situ tuning sufficient to reveal otherwise unobservable quantum Hall isospin ferromagnetic states—is presented as an empirical outcome of improved mobility and reduced disorder, not as a mathematical prediction or first-principles result that reduces to its own inputs by construction. No self-definitional equations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the abstract or described analysis chain. The work is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Paper applies established semiconductor concepts to 2D materials; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Drude and Landauer models provide accurate descriptions of carrier transport in the graphene channel under the reported conditions.
    Used to extract mobility and mean scattering length from measured data.
