arxiv: 2605.18894 · v1 · pith:E7RENWUSnew · submitted 2026-05-17 · 💻 cs.GR

Generative and isoparametric geometric modeling of large-scale and multiscale microstructures

Guoyue Luo , Yuntao Ma , Qiang Zou This is my paper

Pith reviewed 2026-05-20 13:30 UTC · model grok-4.3

classification 💻 cs.GR
keywords geometric modelingmicrostructuresspline refinementadditive manufacturingisoparametric representationgenerative modelingmultiscale geometryvolumetric splines
0
0 comments X

The pith

ExVCC splines turn microstructure modeling into an on-demand generative process with automatic cross-scale updates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method to represent large microstructures without storing every detail explicitly, using local spline refinements to generate geometry only where needed. It introduces shape-coding schemes on an extended volumetric Catmull-Clark basis and places details from different scales on the same parametric domain so that edits at one level flow to others. A sympathetic reader cares because additive manufacturing now reaches finer features over bigger volumes, yet explicit meshes explode in memory and implicit formulas work only for simple repeating patterns. If the approach holds, designers can modify a coarse structure and see the fine-scale consequences update automatically without rebuilding the model.

Core claim

The central claim is that an extended volumetric Catmull-Clark spline (ExVCC) combined with new shape-coding rules and an isoparametric representation over a shared parametric domain converts the spline refinement hierarchy into a single framework for compact encoding, on-demand generation, and consistent cross-scale association, so that geometric changes propagate automatically from coarse to fine levels.

What carries the argument

ExVCC, an extended volumetric Catmull-Clark spline that supports local refinement beyond tensor-product topology, together with shape-coding schemes and isoparametric definitions on a shared parametric domain.

If this is right

  • A single parametric edit at any scale updates all associated finer details without separate propagation steps.
  • Only the active refinement regions are instantiated, so memory scales with the number of modified regions rather than total feature count.
  • The same spline family serves for both coarse shape and fine detail, eliminating separate data structures for each scale.
  • Geometric consistency across scales is enforced by construction through the shared parametric domain and refinement rules.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could support iterative design loops in which a property computed at fine scale immediately influences the coarse parametric control points.
  • Integration with existing CAD kernels might allow the refinement hierarchy to act as a live link between part-level and microstructure-level edits.
  • The approach may extend to time-dependent or simulation-driven refinement where physical fields trigger localized detail generation.

Load-bearing premise

Microstructures admit compact encoding by the proposed shape-coding schemes, and local hierarchical refinement on the shared domain keeps cross-scale links consistent without excessive cost or fidelity loss.

What would settle it

Model a non-periodic microstructure with several feature scales, apply a local edit at the coarsest level, then check whether the finest-level geometry updates automatically and whether total memory and refinement time remain lower than an explicit mesh of the same resolution.

Figures

Figures reproduced from arXiv: 2605.18894 by Guoyue Luo, Qiang Zou, Yuntao Ma.

Figure 1
Figure 1. Figure 1: The illustration of hierarchical spline representation: (a) the local re [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The illustration of tree-structured representation over hierarchical [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Elements categorized by local configurations (EVs in red; EEs in [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: The illustration of the construction of ExVCC basis functions. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

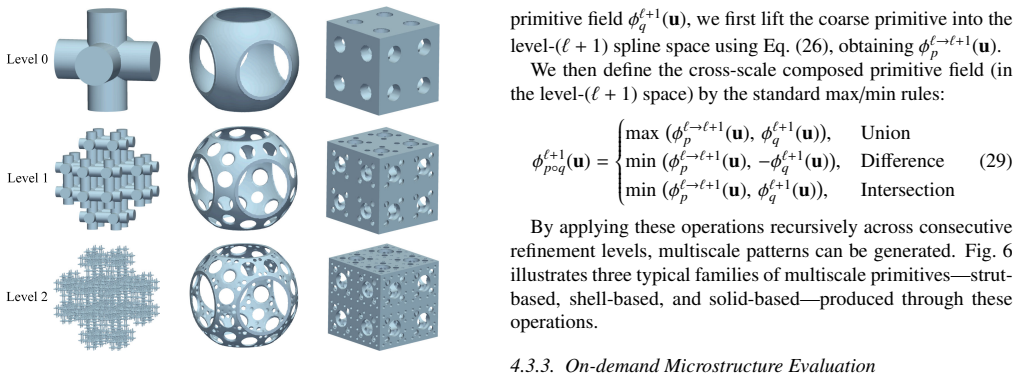

Figure 6. Figure 6: Three typical microstructure primitives at three consecutive hierar [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The microstructures generated in different volumetric domains (with EVs marked in red in control meshes) [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The microstructures generated by our method (a) and by the method [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

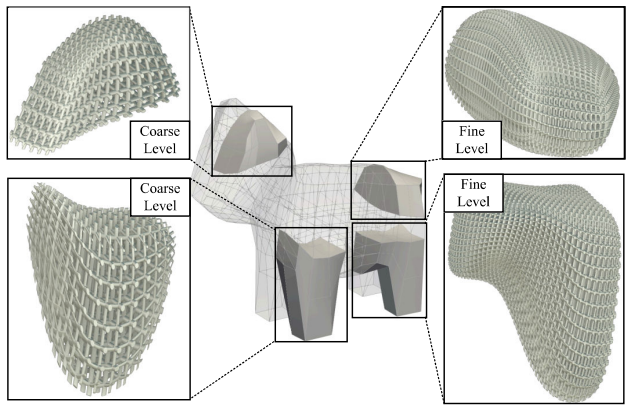

Figure 9. Figure 9: On-demand microstructure generation in four local regions at di [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The multiscality introduced into the microstructure through local refinement. [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Geometric association across multiple scales under macro-shape deformation. [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 14
Figure 14. Figure 14: Stress distribution at scale interfaces for designs with (a) and without [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗
Figure 13
Figure 13. Figure 13: Examples of single-scale (a) and multi-scale (b) gradient designs [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
Figure 15
Figure 15. Figure 15: Comparison of non-gradient and gradient microstructures under displacement simulation. Top row: geometry of the microstructures; bottom row: [PITH_FULL_IMAGE:figures/full_fig_p013_15.png] view at source ↗
read the original abstract

As additive manufacturing advances toward higher printing resolution and larger build volumes, microstructures can be designed with finer geometric features over larger physical domains. This trend poses a fundamental challenge for geometric modeling: massive geometric details must be represented compactly, while their associations across scales must be maintained consistently.Existing methods cannot scale well to this requirement. Explicit representations suffer from prohibitive memory cost, and implicit representations remain compact only when microstructures admit analytic, periodic, or otherwise concise procedural descriptions. This paper proposes a new geometric modeling method that treats microstructure modeling as an on-demand generative process, rather than requiring the full instantiation of all geometric details. We first develop ExVCC, an extended volumetric Catmull-Clark spline representation that enables local spline refinement to go beyond tensor-product topology. Built on ExVCC, we introduce new shape-coding schemes and refinement rules that compactly encode large-scale geometric details and enable their localized evaluation through on-demand hierarchical refinement. To model geometric details across scales, we further propose an isoparametric representation in which details across scales are defined over a shared parametric domain using the same family of spline bases of ExVCC. This formulation turns the ExVCC's spline refinement hierarchy into a common framework for geometry encoding, on-demand generation, and cross-scale association, allowing geometric modifications to propagate automatically across scales. The effectiveness of the proposed method is demonstrated through a series of examples and comparisons.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper proposes a generative and isoparametric geometric modeling method for large-scale and multiscale microstructures in additive manufacturing. It develops ExVCC, an extended volumetric Catmull-Clark spline representation supporting local refinement beyond tensor-product topology, introduces shape-coding schemes for compact on-demand encoding and evaluation of geometric details, and defines an isoparametric representation in which multiscale details share the same parametric domain and ExVCC spline bases. This is claimed to enable automatic propagation of geometric modifications across scales while maintaining consistency, with effectiveness demonstrated via examples and comparisons.

Significance. If the central claims on compact encoding, sub-linear on-demand evaluation, and automatic cross-scale propagation hold without loss of geometric fidelity, the work would offer a meaningful advance over explicit and implicit microstructure representations by providing a unified spline-based framework for large build volumes with fine features. The machine-checked or reproducible aspects are not mentioned, but the parameter-free hierarchical construction and falsifiable geometric consistency claims would strengthen the contribution if demonstrated.

major comments (1)
  1. [Abstract] Abstract (isoparametric representation paragraph): The claim that 'geometric modifications to propagate automatically across scales' via the shared parametric domain and same ExVCC spline family is load-bearing for the cross-scale association result. The description does not specify the explicit refinement rules or operators that map an extraordinary-point refinement at the coarse level to consistent control-point updates on fine-scale shape-coded details, nor does it address whether auxiliary mappings or re-projections are required. This leaves open whether fidelity is preserved and cost remains sub-linear for non-periodic cases, as noted in the skeptic analysis.
minor comments (1)
  1. The abstract mentions 'a series of examples and comparisons' but does not indicate the specific metrics (e.g., memory usage, evaluation time, or fidelity error) used to quantify compactness and consistency; adding these to the abstract would improve clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on the abstract. We address the major comment point by point below.

read point-by-point responses

  1. Referee: [Abstract] Abstract (isoparametric representation paragraph): The claim that 'geometric modifications to propagate automatically across scales' via the shared parametric domain and same ExVCC spline family is load-bearing for the cross-scale association result. The description does not specify the explicit refinement rules or operators that map an extraordinary-point refinement at the coarse level to consistent control-point updates on fine-scale shape-coded details, nor does it address whether auxiliary mappings or re-projections are required. This leaves open whether fidelity is preserved and cost remains sub-linear for non-periodic cases, as noted in the skeptic analysis.

    Authors: We agree the abstract is high-level and does not enumerate the operators. The full manuscript (Sections 3.2 and 4.1) defines the ExVCC refinement rules that extend volumetric Catmull-Clark subdivision to support local refinement at extraordinary points while preserving the tensor-product structure elsewhere. Because the isoparametric representation places all scales in the identical parametric domain and uses the same ExVCC basis functions, a coarse-level refinement directly updates the shared control-point hierarchy; fine-scale shape-coded details are then re-evaluated on-demand from the refined basis without auxiliary mappings or re-projections. Geometric fidelity is maintained by the partition-of-unity property of the spline basis. Sub-linear cost for non-periodic cases follows from the localized support of the shape-coding scheme, which only refines the affected parametric neighborhood. We will revise the abstract to include a concise statement of these refinement operators and the absence of auxiliary mappings. revision: yes

Circularity Check

0 steps flagged

No circularity: forward construction of new representations and rules

full rationale

The paper introduces ExVCC as an extended volumetric Catmull-Clark spline, new shape-coding schemes, refinement rules for on-demand hierarchical refinement, and an isoparametric representation defined over a shared parametric domain with the same spline family. These elements are presented as novel proposals that enable compact encoding, localized evaluation, and automatic cross-scale propagation by design. The abstract and described framework contain no fitted parameters renamed as predictions, no self-citations invoked as load-bearing uniqueness theorems, and no reductions where a claimed result is equivalent to its inputs by construction. The derivation is a self-contained definitional construction of modeling primitives rather than an inference that collapses back to prior data or assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on the introduction of ExVCC and the isoparametric representation; the abstract invokes standard spline properties and the assumption that local refinement beyond tensor-product topology is feasible.

axioms (1)
  • domain assumption Volumetric Catmull-Clark splines can be extended to support local refinement beyond tensor-product topology while preserving smoothness properties.
    Invoked when defining ExVCC as the base representation.
invented entities (2)
  • ExVCC no independent evidence
    purpose: Extended volumetric Catmull-Clark spline enabling local refinement and on-demand evaluation.
    New representation introduced to overcome tensor-product limitations.
  • isoparametric representation for multiscale details no independent evidence
    purpose: Shared parametric domain using the same spline bases so that modifications propagate across scales.
    New formulation proposed to link geometry across scales.

pith-pipeline@v0.9.0 · 5785 in / 1431 out tokens · 58298 ms · 2026-05-20T13:30:36.035977+00:00 · methodology
