Self-Supervised ConvLSTM for Fermi Large Area Telescope Transient Detection

Alberto Garinei; Alessandro Vispa; Andrea Marini; Emanuele Piccioni; Ernesto William De Luca; Francesca Fallucchi; Francesco Longo; Marcello Marconi; Matteo Martini; Romeo Giuliano

arxiv: 2605.22112 · v1 · pith:GKHI26XVnew · submitted 2026-05-21 · 🌌 astro-ph.HE · astro-ph.IM· cs.LG

Self-Supervised ConvLSTM for Fermi Large Area Telescope Transient Detection

Alberto Garinei , Stefano Speziali , Alessandro Vispa , Andrea Marini , Sara Cutini , Emanuele Piccioni , Marcello Marconi , Francesco Longo

show 6 more authors

Matteo Martini Francesca Fallucchi Romeo Giuliano Ernesto William De Luca Umberto Di Matteo Sabino Meola

This is my paper

Pith reviewed 2026-05-22 04:52 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.IMcs.LG

keywords Fermi-LATtransient detectionConvLSTMself-supervised learninggamma-ray astronomyanomaly detectionsimulated sky maps

0 comments

The pith

A self-supervised ConvLSTM trained only on simulated Fermi-LAT sky maps detects real gamma-ray transients by measuring deviations from predicted daily emission.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a method for finding transient gamma-ray events without labeled examples by training a deep learning model exclusively on synthetic data. It generates a ten-year sequence of daily all-sky count and exposure maps using standard simulation tools, then uses a ConvLSTM network to learn the expected time evolution of the sky. Real observations are compared against the model's predictions through pixel-wise residuals, with thresholds and spatial filtering applied to highlight localized excesses. A sympathetic reader would care because the approach offers an automated, scalable way to monitor variable sources and transients across long-duration gamma-ray datasets.

Core claim

A ConvLSTM network trained to reconstruct sequences of simulated daily all-sky maps learns the nominal spatio-temporal evolution of the gamma-ray sky; when the same model is run on actual Fermi-LAT maps, statistically significant pixel-wise residuals that survive local filtering identify time-dependent localized excesses consistent with astrophysical variability or transient events such as flares and GRBs.

What carries the argument

The ConvLSTM network operating on time-ordered sequences of count and exposure maps to predict baseline emission and produce residual anomaly maps.

If this is right

The pipeline automatically flags candidate high-variable sources or transient events such as GRBs in ongoing Fermi-LAT observations.
The approach supplies a reproducible benchmark for testing other anomaly-detection algorithms on long-duration gamma-ray survey data.
Residual maps visualize departures from expected emission without requiring manual labeling of transient events.
The method accommodates both astrophysical variability and instrumental non-stationarities through data-driven prediction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same training-and-residual strategy could be adapted to other all-sky gamma-ray or X-ray monitors that produce daily maps.
Combining the residual scores with simultaneous multi-wavelength alerts might speed up follow-up of candidate transients.
Adding more realistic instrumental noise models during simulation training could further reduce spurious detections from known artifacts.

Load-bearing premise

The synthetic data produced by gtobssim accurately reproduces the statistical properties and instrumental characteristics of non-transient Fermi-LAT observations.

What would settle it

Running the trained model on a stretch of real Fermi-LAT data that includes a documented transient such as a known GRB or flare and verifying whether a significant residual excess appears at the correct sky position and time window.

Figures

Figures reproduced from arXiv: 2605.22112 by Alberto Garinei, Alessandro Vispa, Andrea Marini, Emanuele Piccioni, Ernesto William De Luca, Francesca Fallucchi, Francesco Longo, Marcello Marconi, Matteo Martini, Romeo Giuliano, Sabino Meola, Sara Cutini, Stefano Speziali, Umberto Di Matteo.

**Figure 2.** Figure 2: Training loss (left) and validation loss (right) as a function of epoch. The decreasing trends indicate convergence [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

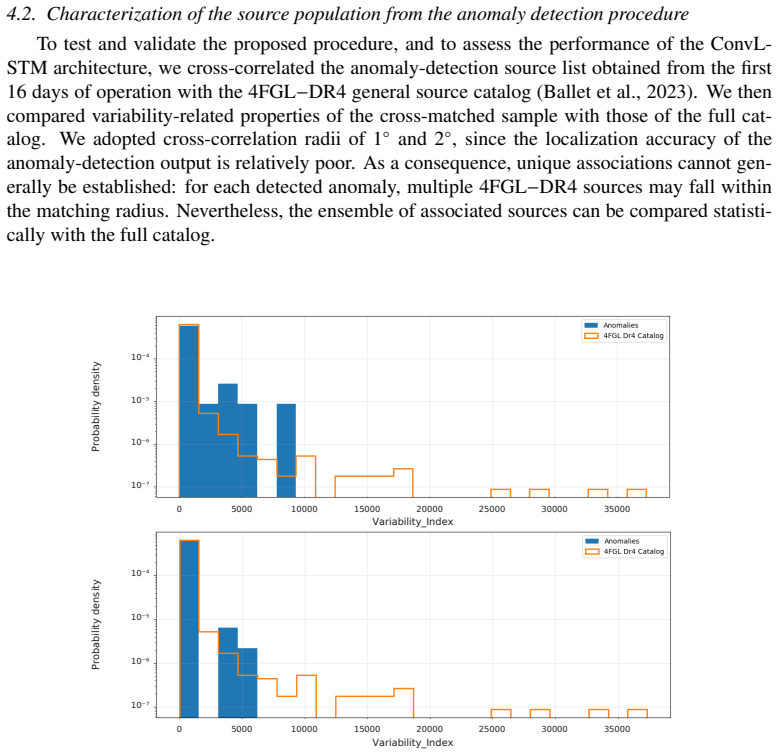

**Figure 3.** Figure 3: Normalized histograms of Variability_Index variable for sources associated to the output of anomalies showed [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗

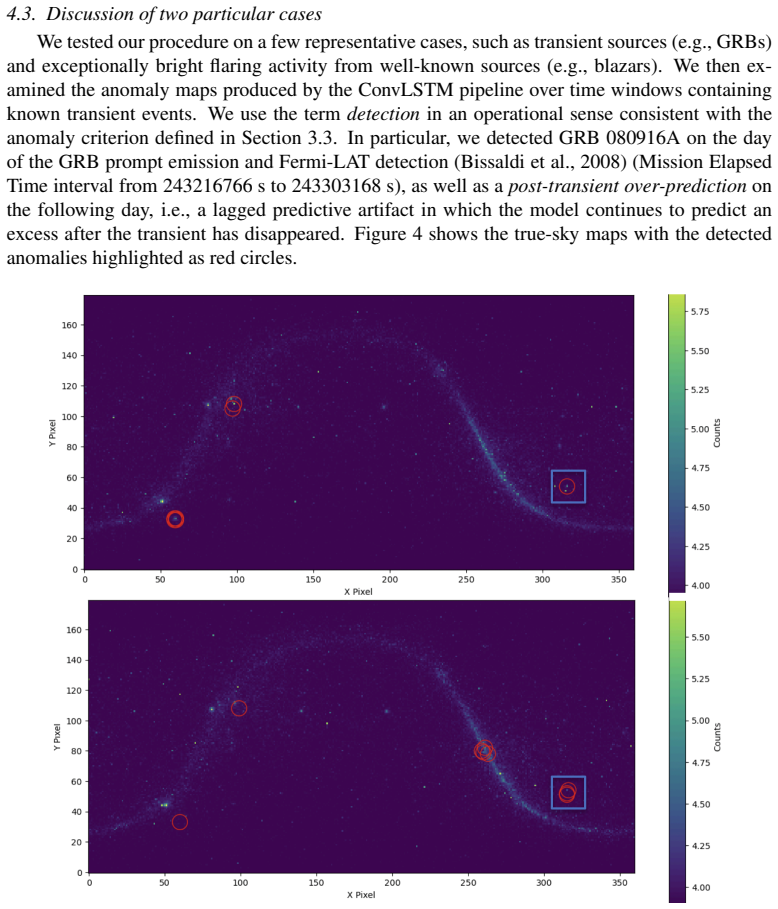

**Figure 4.** Figure 4: True-sky maps showing the list of anomalies indicated by red circles, while the GRB localization is highlighted [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗

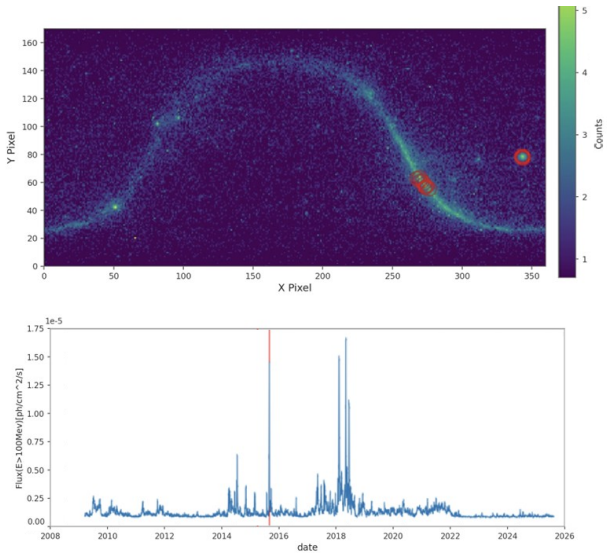

**Figure 5.** Figure 5: Top panel: True sky with indicated the list of anomalies as red circles with the detection of an anomaly [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗

read the original abstract

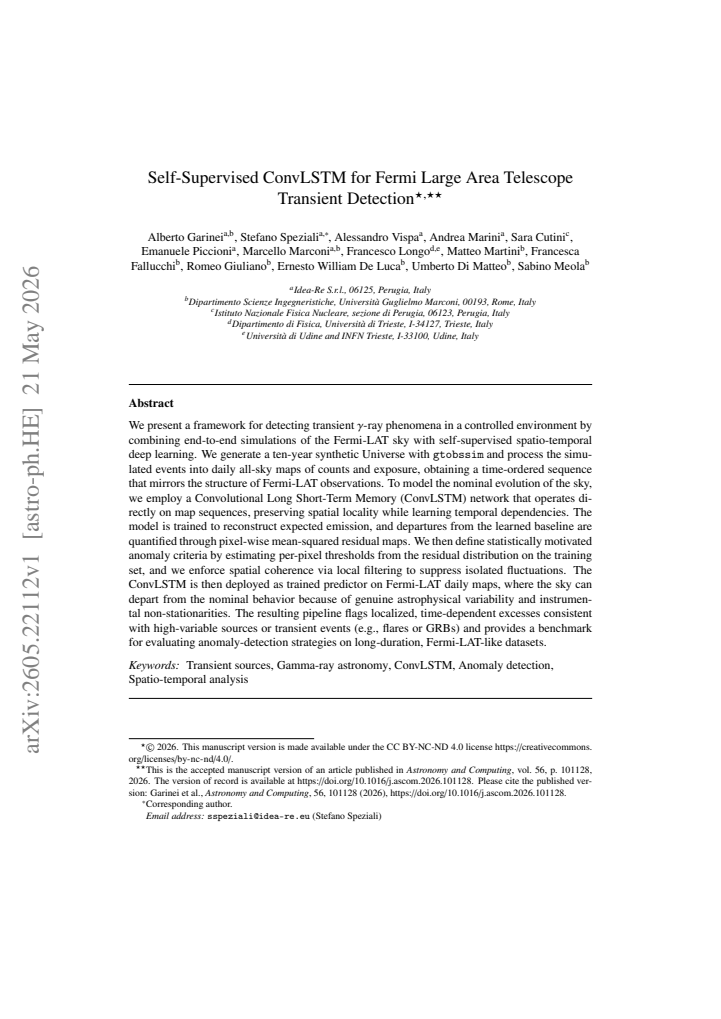

We present a framework for detecting transient gamma-ray phenomena in a controlled environment by combining end-to-end simulations of the Fermi-LAT sky with self-supervised spatio-temporal deep learning. We generate a ten-year synthetic Universe with gtobssim and process the simulated events into daily all-sky maps of counts and exposure, obtaining a time-ordered sequence that mirrors the structure of Fermi-LAT observations. To model the nominal evolution of the sky, we employ a Convolutional Long Short-Term Memory (ConvLSTM) network that operates directly on map sequences, preserving spatial locality while learning temporal dependencies. The model is trained to reconstruct expected emission, and departures from the learned baseline are quantified through pixel-wise mean-squared residual maps. We then define statistically motivated anomaly criteria by estimating per-pixel thresholds from the residual distribution on the training set, and we enforce spatial coherence via local filtering to suppress isolated fluctuations. The ConvLSTM is then deployed as trained predictor on Fermi-LAT daily maps, where the sky can depart from the nominal behavior because of genuine astrophysical variability and instrumental non-stationarities. The resulting pipeline flags localized, time-dependent excesses consistent with high-variable sources or transient events (e.g., flares or GRBs) and provides a benchmark for evaluating anomaly-detection strategies on long-duration, Fermi-LAT-like datasets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

ConvLSTM on gtobssim maps for Fermi transients is a clean pipeline idea but rests on an untested sim-to-real transfer with no recovery numbers shown.

read the letter

Hey, I looked at the arXiv paper on the self-supervised ConvLSTM for Fermi-LAT transient detection. The core claim is that training the network only on ten years of simulated daily maps lets it learn nominal behavior, after which residuals on real maps flag localized excesses as transients or flares. That is the main thing to know up front: the method is simulation-driven and self-supervised, which sidesteps the usual shortage of labeled examples in this domain. It is new in the sense that it puts the full simulation-to-map-to-ConvLSTM sequence together for this specific survey, even if the individual pieces are established tools. The paper does a solid job spelling out the practical steps: gtobssim event generation, daily count and exposure maps, the ConvLSTM architecture that keeps spatial structure while tracking time, per-pixel MSE residuals, and the threshold plus local filter to clean up isolated noise. Those choices line up with the data characteristics and make the pipeline reproducible in principle. The description is clear enough that someone could reimplement the training loop without too much guesswork. The soft spots are mostly around validation. The abstract and setup give no quantitative results—no recovery fractions for injected flares or known GRBs, no residual histogram comparisons between simulated steady regions and real ones, and no baseline against simpler methods like per-pixel sigma clipping. Thresholds are taken directly from the training residuals, so any systematic difference between gtobssim and actual Fermi-LAT instrumental or background behavior could produce false positives that look like astrophysical signals. That domain-shift risk is real and not addressed with the checks one would want before trusting the flags. This paper is aimed at people who build automated pipelines for gamma-ray surveys or who want to test anomaly-detection ideas on long time-series maps. A reader already working on Fermi data or similar high-energy catalogs would get the most out of the framework description and could use it as a starting point for their own tests. It shows straightforward thinking about the problem and honest engagement with the simulation-first constraint, so the work is coherent on its own terms. I would send it to peer review rather than desk reject; the idea is grounded enough that referees can usefully check the implementation details and any extra validation that may be in the full text.

Referee Report

2 major / 2 minor

Summary. The paper presents a self-supervised ConvLSTM framework trained exclusively on ten-year gtobssim simulations of nominal (non-transient) Fermi-LAT emission to detect astrophysical transients in real daily maps. The model reconstructs expected counts and exposure sequences; per-pixel MSE residuals are computed, thresholds are derived from the training residual distribution, and spatial filtering is applied to flag localized, time-dependent excesses interpreted as flares or GRBs.

Significance. If the simulation-to-real generalization holds, the approach would supply a reproducible, label-free benchmark for anomaly detection on long-duration, all-sky gamma-ray datasets and could complement traditional likelihood-based transient searches.

major comments (2)

[Abstract and §4] Abstract and §4 (results): the central claim that flagged excesses are attributable to genuine astrophysical variability rests on untested transfer from gtobssim-only training; no quantitative comparison of residual histograms between synthetic steady-source regions and real data, nor any injection-recovery test on known transients or flares at realistic fluxes, is reported.
[§3.2] §3.2 (anomaly criteria): per-pixel thresholds are estimated directly from the residual distribution on the simulated training set; without a demonstrated match between synthetic and real residual statistics under steady conditions, any excess on real maps could arise from unmodeled instrumental or background features absent from gtobssim.

minor comments (2)

[§3.1] Clarify the precise ConvLSTM architecture (number of layers, hidden dimensions, kernel sizes) and training hyperparameters; these are listed as free parameters but not tabulated.
[§2] Add a brief discussion of how exposure-map variations and PSF convolution are handled in the input sequences, as these are critical for realistic map modeling.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments, which have prompted us to strengthen the validation aspects of the work. We address each major comment below and describe the corresponding revisions to the manuscript.

read point-by-point responses

Referee: [Abstract and §4] Abstract and §4 (results): the central claim that flagged excesses are attributable to genuine astrophysical variability rests on untested transfer from gtobssim-only training; no quantitative comparison of residual histograms between synthetic steady-source regions and real data, nor any injection-recovery test on known transients or flares at realistic fluxes, is reported.

Authors: We agree that the manuscript would be improved by explicit tests of the simulation-to-real transfer. In the revised version we have added a quantitative comparison of per-pixel residual histograms extracted from steady-source regions in the gtobssim training set versus the same regions in real Fermi-LAT data during periods free of reported transients. We have also performed injection-recovery experiments in which synthetic flares and GRB-like signals at realistic fluxes were added to real background maps; the resulting detection efficiencies and false-positive rates are now reported in an expanded §4. These additions directly support the applicability of the trained model to observed data. revision: yes
Referee: [§3.2] §3.2 (anomaly criteria): per-pixel thresholds are estimated directly from the residual distribution on the simulated training set; without a demonstrated match between synthetic and real residual statistics under steady conditions, any excess on real maps could arise from unmodeled instrumental or background features absent from gtobssim.

Authors: We concur that a demonstrated statistical match between synthetic and real residual distributions under steady conditions is necessary to justify the use of simulation-derived thresholds. The revised §3.2 now includes side-by-side histograms and Kolmogorov-Smirnov tests comparing the residual distributions obtained from gtobssim steady-state sequences with those from real Fermi-LAT maps during low-variability intervals. We have also clarified that the spatial-filtering step is intended to suppress isolated instrumental fluctuations and have added a brief discussion of possible unmodeled background features as a limitation of the current implementation. revision: yes

Circularity Check

1 steps flagged

Per-pixel anomaly thresholds fitted directly to simulation residuals tie detection criteria to training distribution

specific steps

fitted input called prediction [Abstract]
"We then define statistically motivated anomaly criteria by estimating per-pixel thresholds from the residual distribution on the training set, and we enforce spatial coherence via local filtering to suppress isolated fluctuations. The ConvLSTM is then deployed as trained predictor on Fermi-LAT daily maps"

Thresholds are estimated from the residual distribution on the simulated training set. When the same model is applied to real daily maps, any localized excess is flagged using criteria whose numerical values were fitted to training residuals, so the anomaly decision boundary is forced by the training distribution rather than independently measured on real or injected data.

full rationale

The pipeline trains ConvLSTM solely on gtobssim synthetic maps containing only nominal emission, computes pixel-wise MSE residuals, and sets per-pixel thresholds from the training residual distribution. These thresholds are then applied unchanged to real Fermi-LAT maps to flag anomalies. While the real-data application step is independent, the anomaly criteria themselves are statistically derived from the training residuals by construction, with no shown external validation or injection-recovery test on real or injected transients. This matches the 'fitted input called prediction' pattern at a moderate level; the central claim of detecting genuine astrophysical transients therefore inherits its decision boundary from the simulation training set rather than from an independent benchmark.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The approach depends on simulation fidelity and the model's ability to learn a stable baseline from synthetic sequences; several architecture and threshold choices are implicit free parameters.

free parameters (2)

ConvLSTM architecture parameters
Number of layers, hidden units, kernel sizes, and sequence length are selected to fit the map data but not quantified in the abstract.
per-pixel anomaly thresholds
Derived from the residual distribution on the training set and used to define detection criteria.

axioms (2)

domain assumption gtobssim-generated synthetic data accurately reproduces the statistical properties of real Fermi-LAT daily maps in the absence of transients.
The entire training and threshold-setting procedure rests on this equivalence between simulation and reality.
standard math ConvLSTM networks can capture the spatio-temporal correlations present in all-sky count and exposure maps.
The model choice presupposes that the architecture is suitable for the data structure.

pith-pipeline@v0.9.0 · 5810 in / 1415 out tokens · 58894 ms · 2026-05-22T04:52:54.251821+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

The model is trained to reconstruct expected emission, and departures from the learned baseline are quantified through pixel-wise mean-squared residual maps. We then define statistically motivated anomaly criteria by estimating per-pixel thresholds from the residual distribution on the training set
IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We generate a ten-year synthetic Universe with gtobssim and process the simulated events into daily all-sky maps of counts and exposure

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
