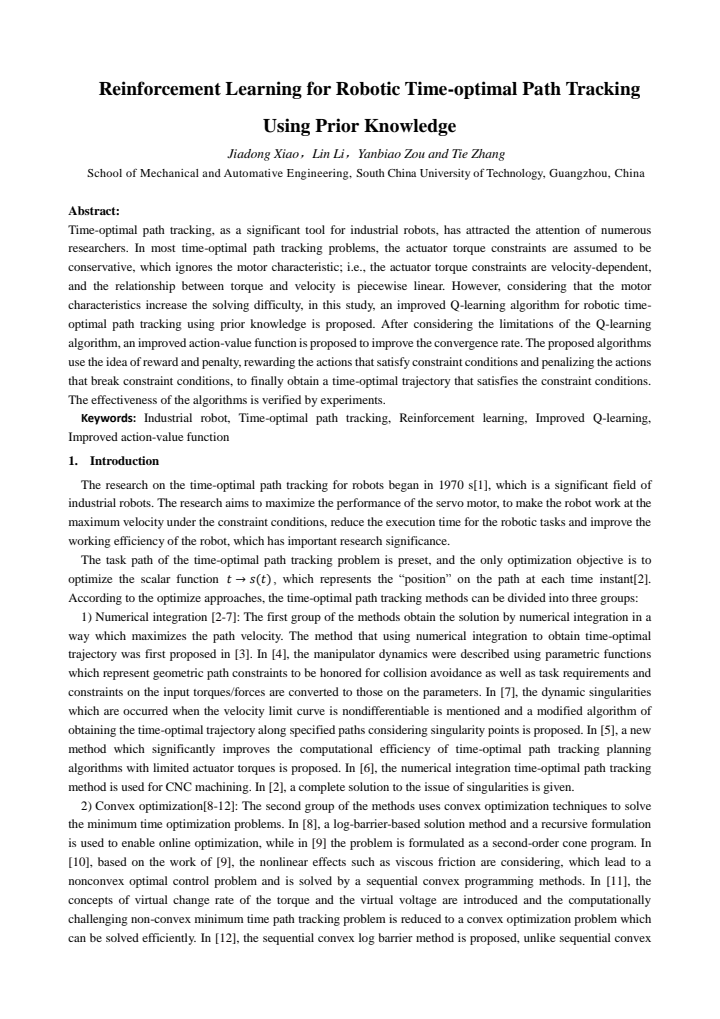

Reinforcement Learning for Robotic Time-optimal Path Tracking Using Prior Knowledge
Pith reviewed 2026-05-25 12:30 UTC · model grok-4.3
The pith
An improved Q-learning algorithm finds time-optimal robot trajectories while respecting velocity-dependent actuator torque constraints.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
After noting the limitations of basic Q-learning, an improved action-value function is introduced to raise the convergence rate; the resulting algorithm uses reward for constraint-satisfying actions and penalty for constraint-violating actions to obtain a time-optimal trajectory that satisfies the velocity-dependent actuator torque constraints.
What carries the argument
The improved action-value function in Q-learning, which encodes prior knowledge by assigning reward when actions satisfy the piecewise-linear torque-velocity constraints and penalty when they do not.
If this is right
- Robots can follow the same geometric path in less time by using the velocity-dependent limits instead of conservative fixed bounds.
- The reward-penalty scheme lets the learner discover feasible high-speed motions without explicit analytic solution of the constrained optimization problem.
- Convergence occurs faster than with unmodified Q-learning because the action-value updates already incorporate constraint knowledge.
- The method produces trajectories that remain within actuator capability at every point along the path.
Where Pith is reading between the lines
- The same reward-penalty structure could be reused for other robotic tasks whose constraints also depend on state in a non-convex way.
- Combining the discrete-action Q-learning with function approximation might allow scaling to higher-dimensional configuration spaces.
- Comparing the learned times against a numerical nonlinear optimizer on the same piecewise-linear model would quantify how close the RL solution comes to true optimality.
Load-bearing premise
The actuator torque limits decrease with velocity in a piecewise linear manner, which both makes the optimization harder and is what the modified Q-learning is built to handle.
What would settle it
Run the algorithm on a robot whose measured torque-velocity curve deviates strongly from piecewise linear and check whether the output trajectory still respects the true limits or exceeds the known minimum travel time.
Figures
read the original abstract
Time-optimal path tracking, as a significant tool for industrial robots, has attracted the attention of numerous researchers. In most time-optimal path tracking problems, the actuator torque constraints are assumed to be conservative, which ignores the motor characteristic; i.e., the actuator torque constraints are velocity-dependent, and the relationship between torque and velocity is piecewise linear. However, considering that the motor characteristics increase the solving difficulty, in this study, an improved Q-learning algorithm for robotic time-optimal path tracking using prior knowledge is proposed. After considering the limitations of the Q-learning algorithm, an improved action-value function is proposed to improve the convergence rate. The proposed algorithms use the idea of reward and penalty, rewarding the actions that satisfy constraint conditions and penalizing the actions that break constraint conditions, to finally obtain a time-optimal trajectory that satisfies the constraint conditions. The effectiveness of the algorithms is verified by experiments.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes an improved Q-learning algorithm for robotic time-optimal path tracking that accounts for velocity-dependent, piecewise-linear actuator torque constraints (rather than conservative constant bounds). After noting standard Q-learning limitations, it introduces a modified action-value function intended to accelerate convergence, combined with a reward/penalty scheme that rewards constraint-satisfying actions and penalizes violations, ultimately producing a feasible time-optimal trajectory; effectiveness is asserted via experimental verification.
Significance. If the modified update rule can be shown to preserve optimality while improving convergence under the stated torque model, the approach would offer a practical RL-based alternative to traditional time-optimal control methods that often rely on overly conservative torque limits, with potential applicability to industrial robot trajectory planning.
major comments (2)
- [Abstract] Abstract: the central claim that the improved action-value function accelerates convergence while still yielding a time-optimal trajectory under piecewise-linear velocity-dependent torque constraints is presented without any derivation, update-rule equation, or argument showing that the modification continues to satisfy the Bellman optimality equation or that the penalty term does not distort the pure time-minimization objective.
- [Abstract] Abstract: the experimental verification is asserted but no quantitative results, baseline comparisons, convergence plots, or constraint-satisfaction metrics are supplied, making it impossible to assess whether the claimed improvements actually support the optimality and feasibility assertions.
minor comments (1)
- [Abstract] The abstract refers to 'the proposed algorithms' (plural) but describes only a single improved Q-learning method; clarify the number and scope of algorithms.
Simulated Author's Rebuttal
We thank the referee for the careful reading and constructive comments on the abstract. We address each point below and will revise the manuscript accordingly.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central claim that the improved action-value function accelerates convergence while still yielding a time-optimal trajectory under piecewise-linear velocity-dependent torque constraints is presented without any derivation, update-rule equation, or argument showing that the modification continues to satisfy the Bellman optimality equation or that the penalty term does not distort the pure time-minimization objective.
Authors: The body of the manuscript (Section 3) derives the modified action-value function, which augments the standard Q-update with a prior-knowledge term derived from the piecewise-linear torque-velocity model; we argue that this term only re-weights feasible actions and therefore preserves the Bellman optimality equation on the feasible subset while accelerating convergence. The reward-penalty scheme is formulated so that the penalty is applied exclusively to infeasible transitions and does not alter the time-minimization objective for feasible trajectories. We agree, however, that the abstract should be self-contained and will revise it to include the explicit update-rule equation together with a one-sentence optimality argument. revision: yes
-
Referee: [Abstract] Abstract: the experimental verification is asserted but no quantitative results, baseline comparisons, convergence plots, or constraint-satisfaction metrics are supplied, making it impossible to assess whether the claimed improvements actually support the optimality and feasibility assertions.
Authors: The experiments section already contains quantitative comparisons against standard Q-learning, convergence curves, achieved trajectory times, and constraint-violation counts. We will revise the abstract to report the key numerical outcomes (e.g., convergence-speed improvement and final trajectory duration) so that the claims can be evaluated directly from the abstract. revision: yes
Circularity Check
No circularity: experimental RL method with independent verification
full rationale
The paper proposes an improved Q-learning variant with a modified action-value function and reward/penalty scheme for time-optimal path tracking under velocity-dependent torque constraints. No derivation chain reduces any claimed result to fitted parameters, self-citations, or ansatzes by construction; the central contribution is presented as an algorithmic modification whose effectiveness is checked via experiments on the robot. The approach is self-contained against external benchmarks (standard Q-learning baselines and physical robot tests) with no load-bearing self-citation or renaming of known results. This is the normal honest case of an applied RL paper whose claims rest on empirical outcomes rather than algebraic reduction to inputs.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Actuator torque constraints are velocity-dependent and the torque-velocity relationship is piecewise linear
Reference graph
Works this paper leans on
-
[1]
Introduction The research on the time -optimal path tracking for robots began in 1970 s[1], which is a significant field of industrial robots. The research aims to maximize the performance of the servo motor, to make the robot work at the maximum velocity under the constraint conditions, reduce the execution time for the robotic tasks and improve the work...
work page 1970
-
[2]
Numerical integration [2-7]: The first group of the methods obtain the solution by numerical integration in a way which maximizes the path velocity. The method tha t using numerical integration to obtain time -optimal trajectory was first proposed in [3]. In [4], the manipulator dynamics were described using p arametric functions which represent geometric...
-
[3]
Convex optimization[8-12]: The second group of the methods uses convex optimization techniques to solve the minimum time optimization problems. In [8], a log-barrier-based solution method and a recursive formulation is used to enable online optimization, while in [9] the problem is formulated as a second -order cone program. In [10], based on the work of ...
-
[4]
Dynamic programming[13-16]: The third group of methods uses dynamic programming following the idea of Bellman[17]. The idea of using dynamic method to solve the time-optimal problem was first proposed in [13], where the dynamic programming method is used to find the positions, velocities, accelerations, and torques that minimize cost. In [14], three perfo...
-
[5]
Constraint conditions and optimization objective This Section mainly analyses the dynamic model of a robot manipulator and transforms the dynamic model from joint space into parameter space. The kinematic and dynamic constraints are sequentially analysed, and these constraints are also transformed from joint space into parameter space . Finally, the optim...
-
[6]
Q-learning algorithm and its limitations Q-learning is a type of reinforcement learning (RL) algorithms developed by Watkins in 1988 [26]. Q-learning applies the concept of reward and penalty in exploring an unknown environment and searching for a policy that maximizes the reward. Figure 1 shows the typical agent -environment interaction in Q-learning. In...
work page 1988
-
[7]
Approaches for setting the reinforcement learning states and improving convergence rate In order to counter the limitation as described above, some approaches for improving the Q-learning algorithm is suggested in this Section. Firstly, in order to avoid the increase of the exploration space and set the discrete reinforcement learning state, it is necessa...
-
[8]
Reinforcement learning algorithms for robotic time-optimal path tracking 5.1 Improved Q-learning (IQL) algorithm for robotic time-optimal path tracking Considering the Q-learning algorithm and its limitations, as mentioned in Section 3, the Q-learning algorithm is improved to make it more suitable for solving the time-optimal path tracking problem. Combin...
-
[9]
Experiment results and performance analysis 6.1 Experimental settings Configuration environment for implementation All the RL algorithms are implemented in MATLAB R2018b on an Intel Core i7 CPU running at 3.40 GHz on a Windows machine. Industrial robot for experiment The industrial robot used for experimental ver ification is a 6-DOF GSK-RB03A1 robot of G...
work page 2000
-
[10]
First successful episode is the episode number in which the agent first reaches or crosses one of the terminal states
-
[11]
The determination of convergence is whether the algorithm converges before reaching the maximum number of episodes
-
[12]
A convergence episode is the episode number in which the algorithm converges
-
[13]
Computation time is the time from the start to the end of the program
-
[14]
Return is the return of the last episode
-
[15]
Execution time is the execution time of the optimal trajectory obtained from the last episode. Table 2 Performance percentage by IQL, IA VRL compared with NI-like, NIGM Grid Algorithm Performance percentage of return compared with NI-like and NIGM (%) Performance percentage of optimal trajectory execution time compared with NI-like and NIGM (%) NI-like NI...
work page 2000
-
[16]
Conclusion In this study, an improved Q -learning algorithm (IQL) and an improved action -value function reinforcement learning algorithm (IA VRL), have been proposed for the time-optimal path tracking problem. In order to construct the reinforcement learning states and decrease the learning dimension, a selective discrete method for discretizing the robo...
work page 2000
-
[17]
M.E. Kahn, B. Roth, The Near -Minimum-Time Control of Open -Loop Articulated Kinematic Chains, Journal of Dynamic Systems, Measurement, and Control, 93 (1971) 164-172. https://doi.org/10.1115/1.3426492
-
[18]
Q. Pham, A General, Fast, and Robust Implementation of the Time-Optimal Path Parameterization Algorithm, IEEE T ROBOT, 30 (2014) 1533-1540. https://doi.org/10.1109/TRO.2014.2351113
-
[19]
J. Bobrow, S. Dubowsky, J. Gibision, Time -Optimal Control of Robotic Manipulators Along Specified Paths, The International journal of robotics research, 4 (1985) 3-17. https://doi.org/10.1177/027836498500400301
-
[20]
K. Shin, N. McKay, Minimum -time con trol of robotic manipulators with geometric path constraints, IEEE T AUTOMAT CONTR, 30 (1985) 531-541. https://doi.org/10.1109/TAC.1985.1104009
-
[21]
J.J.E. Slotine, H.S. Yang, Improving the efficiency of time -optimal path-following algorithms, IEEE Transac tions on Robotics and Automation, 5 (2002) 118-124. https://doi.org/10.1109/70.88024
-
[22]
S.D. Timar, R.T. Farouki, T.S. Smith, C.L. Boyadjieff, Algorithms for time –optimal control of CNC machines along curved tool paths, ROBOT CIM-INT MANUF, 21 (2005) 37-53. https://doi.org/10.1016/j.rcim.2004.05.004
-
[23]
Z. Shiller, H. Lu, Computation of Path Constrained Time Optimal Motions With Dynamic Singularities, Journal of Dynamic Systems, Measurement, and Control, 114 (1992) 34. https://doi.org/10.1115/1.2896505
-
[24]
D. Verscheure, M. Diehl, J. De Schutter, J. Swevers, On -line time -optimal path tracking for robots, 2009 IEEE International Conference on Robotics and Automation, 2009, pp. 599 -605. https://doi.org/10.1109/ROBOT.2009.5152274
-
[25]
D. Verscheure, B. Demeulenaere, J. Swevers, J. De Schutter, M. Diehl, Time -Optimal Path Tracking for Robots: A Convex Optimization Approach, IEEE T AUTOMAT CONTR, 54 (2009) 2318 -2327. https://doi.org/10.1109/TAC.2009.2028959
-
[26]
F. Debrouwere, W. Van Loock, G. Pipeleers, Q.T. Dinh, M. Diehl, J. De Schutter, J. Swevers, Time -Optimal Path Following for Robots With Convex -Concave Constraints Using Sequential Convex Programming, IEEE T ROBOT, 29 (2013) 1485-1495. https://doi.org/10.1109/TRO.2013.2277565
-
[27]
Q. Zhang, S. Li, J. Guo, X. Gao, Time-optimal path tracking for robots under dynamics constraints based on convex optimization, ROBOTICA, 34 (2016) 2116-2139. https://doi.org/10.1017/S0263574715000247
-
[28]
A. Steinhauser, J. Swevers, An Efficient Iterative Learning Approach to T ime-Optimal Path Tracking for Industrial Robots, IEEE T IND INFORM, 14 (2018) 5200-5207. https://doi.org/10.1109/TII.2018.2851963
-
[29]
K. Shin, N. McKay, A Dynamic Programming Approach to Trajectory Planning of Robotic Manipulators, IEEE T AUTOMAT CONTR, 31 (1986) 491-500. https://doi.org/10.1109/TAC.1986.1104317
-
[30]
F. Pfeifer, R. Johanni, A concept for manipulator trajectory planning, IEEE Journal on Robotics and Automation, 3 (1987) 115-123. https://doi.org/10.1109/JRA.1987.1087090
-
[31]
D. Kaserer, H. Gattringer, A. Mueller, Nearly Optimal Path Following With Jerk and Torque Rate Limits Using Dynamic Programming, IEEE T ROBOT, (2018) 1-8. https://doi.org/10.1109/TRO.2018.2880120
-
[32]
D. Constantinescu, E.A. Croft, Smooth and time ‐optimal trajectory plan ning for industrial manipulators along specified paths, Journal of Robotic Systems, 17 (2000) 233 -249. https://doi.org/10.1002/(SICI)1097 - 4563(200005)17:5<233::AID-ROB1>3.0.CO;2-Y
-
[33]
R.E. Bellman, S.E. Dreyfus, Applied Dynamic Programming, Princeton Univ .Press, Princeton,NJ,USA, 1962. https://doi.org/10.2307/2282884
-
[34]
G. Hartmann, Z. Shiller, A. Azaria, Deep reinforcement learning for time optimal velocity control using prior knowledge, arXiv:1811.1615v2, (2019)
-
[35]
R.S. Sutton, A.G. Barto, Introduction to Reinforcement Learning, 1st ed., MIT Press, Cambridge, MA, USA, 1998
work page 1998
-
[36]
M.S. Erden, K. Leblebicioğlu, Free gait generation with reinforcement learning for a six -legged robot, ROBOT AUTON SYST, 56 (2008) 199-212. https://doi.org/https://doi.org/10.1016/j.robot.2007.08.001
-
[37]
N. Navarro -Guerrero, C. Weber, P. Schroeter, S. Wermter, Real -world reinforcement learning for autonomous humanoid robot docking, ROBOT AUTON SYST, 60 (2012) 1400-1407. https://doi.org/10.1016/j.robot.2012.05.019
-
[38]
E.S. Lo w, P. Ong, K.C. Cheah, Solving the optimal path planning of a mobile robot using improved Q -learning, ROBOT AUTON SYST, 115 (2019) 143-161. https://doi.org/10.1016/j.robot.2019.02.013
-
[39]
J. Kober, J.A. Bagnell, J. Peters, Reinforcement learning in robotics: A survey, The International Journal of Robotics Research, 32 (2013) 1238-1274. https://doi.org/10.1177/0278364913495721
-
[40]
D.L. Moreno, C.V. Regueiro, R. Iglesias, S. Barro, Making Use of Unelaborated Advice to Improve Reinforcement Learning: A Mobile Robotics Approach, in: S. Singh, M. Singh, C. Apte, P. Perner (Eds.), Springer Berlin Heidelberg, Berlin, Heidelberg, 2005, pp. 89-98. https://doi.org/10.1007/11551188_10
-
[41]
Craig, Introduction to robotics: mechanics and control, Addison Wesley Pu blishing Company1989
J.J. Craig, Introduction to robotics: mechanics and control, Addison Wesley Pu blishing Company1989
-
[42]
C.J.C.H. Watkins, P. Dayan, Q-learning, MACH LEARN, 8 (1992) 279-292. https://doi.org/10.1007/BF00992698
- [43]
-
[44]
A. Konar, I.G. Chakraborty, S.J. Singh, L.C. Jain, A.K. Nagar, A Deterministic Improved Q -Learning for Path Planning of a Mobile Robot, IEEE Transactions on Systems, Man, and Cybernetics: Systems, 43 (2013) 1141 -1153. https://doi.org/10.1109/TSMCA.2012.2227719
-
[45]
L. Li, J. Xiao, Y. Zou, T. Zhang, Time -optimal path tracking for robots: A numerical integration -like approach combined with an iterative learning algorithm, Industrial Robot: the international journal of robotics research and application, (2019).(In press, see supplementary document)
work page 2019
-
[46]
C.D. Sousa, Dynamic model identification of robot manipulators: Solving the physical feasibility problem, Universidade de Coimbra, Portugal, 2014. http://hdl.handle.net/10316/27082
work page 2014
