Multi-Objective Tweezers in Scattering Media

Cl\'ement Ferise; David Globosits; Jakob H\"upfl; Marlene Hudler; Matthieu Mall\'ejac; Romain Fleury; Stefan Rotter; Tristan Nerson

arxiv: 2511.22279 · v3 · pith:MCCIKOR7new · submitted 2025-11-27 · ⚛️ physics.app-ph · physics.optics

Multi-Objective Tweezers in Scattering Media

Tristan Nerson , Jakob H\"upfl , Cl\'ement Ferise , David Globosits , Marlene Hudler , Matthieu Mall\'ejac , Stefan Rotter , Romain Fleury This is my paper

Pith reviewed 2026-05-21 18:50 UTC · model grok-4.3

classification ⚛️ physics.app-ph physics.optics

keywords radiation forceoptical tweezersacoustic tweezersscattering mediamulti-objective optimizationmomentum transferPareto optimalitywave shaping

0 comments

The pith

Shaping waves in scattering media achieves maximal force or torque on one object and Pareto-optimal control on multiple objects with exact bounds on incompatible goals.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that incident acoustic or electromagnetic waves can be shaped to control momentum transfer to objects inside a complex scattering medium. For one object the method delivers the highest possible force or torque allowed by the medium. For several objects it identifies the full set of best trade-offs between competing objectives and supplies hard upper bounds on what can be achieved simultaneously. A reader would care because this extends wave-based tweezers from clean environments to realistic turbid settings such as tissue or colloidal suspensions. The result matters for applications that require selective, simultaneous manipulation of cells, microrobots or drug carriers without line-of-sight access.

Core claim

Radiation forces and torques can be harnessed by tailoring the incident wave so that momentum transfer to multiple objects occurs simultaneously in a complex scattering medium. For a single object the theory returns the maximal achievable force or torque. For multiple objects it returns Pareto-optimal actuation together with exact bounds on the simultaneous realization of incompatible objectives.

What carries the argument

The linear response operator of the known scattering medium that maps a chosen incident field to the resulting force and torque vectors on each object, allowing optimization of the incident field for desired momentum transfers.

If this is right

Selective manipulation of individual objects becomes possible inside turbid media without direct mechanical contact.
Competing goals such as moving two objects in opposite directions are bounded exactly rather than found by trial and error.
The same framework applies to both sound and light, widening the range of usable wave tweezers.
Applications such as targeted drug delivery or organoid handling gain quantitative performance limits.
Multi-objective control can be extended to time-varying objectives by recomputing the optimal field at each step.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Real-time updating of the medium response operator could allow control inside slowly changing biological environments.
The derived bounds may connect to inverse-design problems that recover medium properties from measured forces.
Numerical tests in simple scatterer geometries would quickly show whether the predicted maxima are reachable in practice.

Load-bearing premise

The scattering medium is treated as perfectly known and linear so the incident wave can be computed exactly to produce any desired momentum transfer.

What would settle it

Apply the computed optimal incident wave to a calibrated single object in a measured scattering medium and record whether the observed force or torque reaches the value predicted by the theory.

Figures

Figures reproduced from arXiv: 2511.22279 by Cl\'ement Ferise, David Globosits, Jakob H\"upfl, Marlene Hudler, Matthieu Mall\'ejac, Romain Fleury, Stefan Rotter, Tristan Nerson.

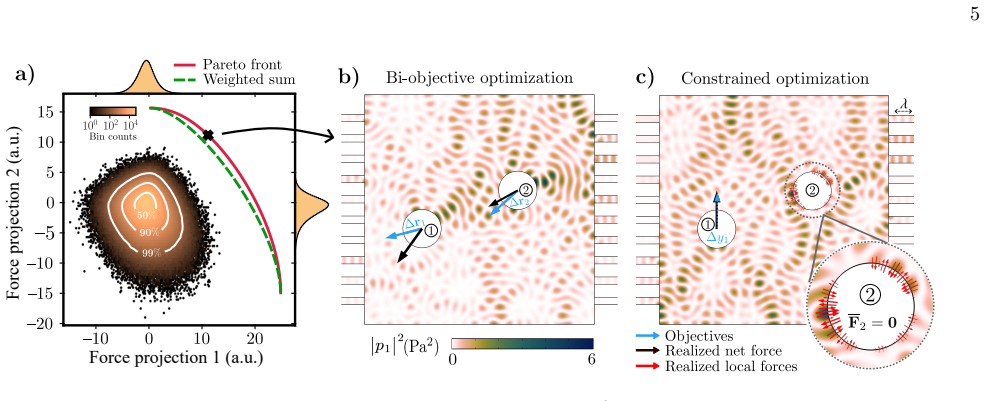

**Figure 2.** Figure 2: FIG. 2. Collective and selective manipulation of objects in scattering media. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

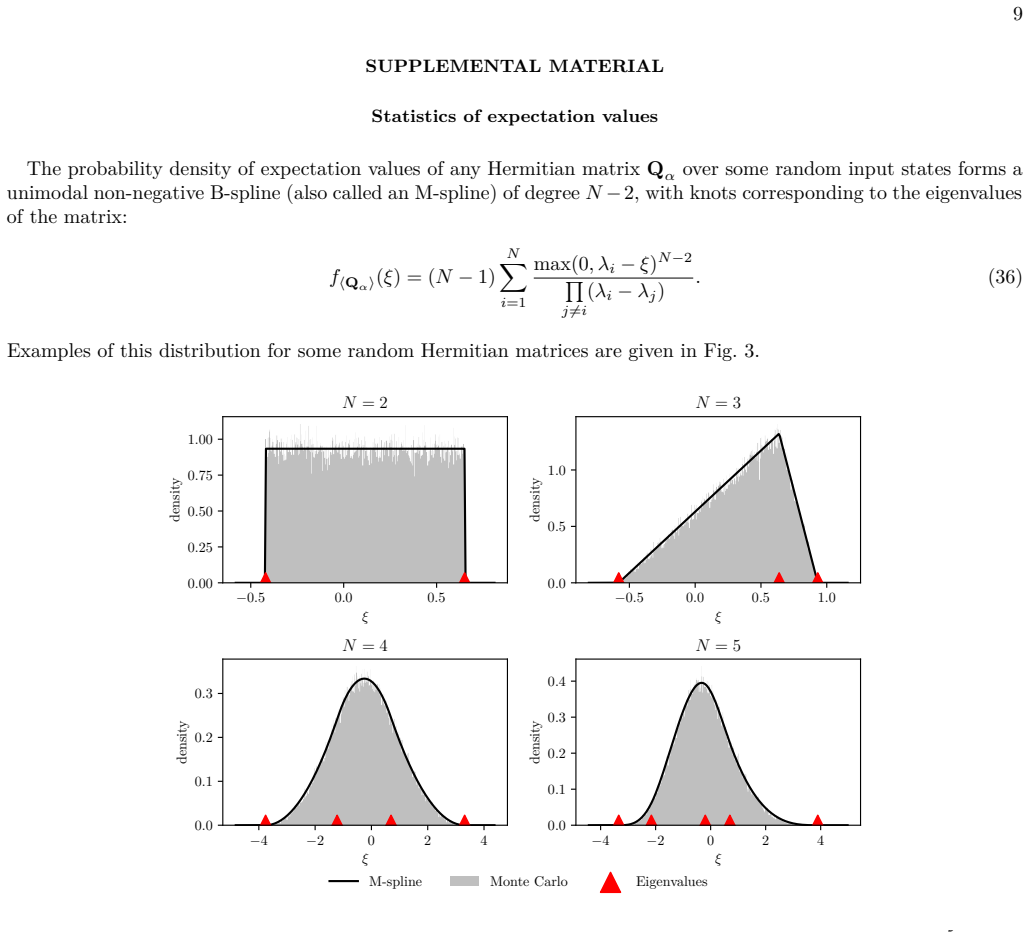

**Figure 3.** Figure 3: FIG. 3. Probability density function of expectation values of Hermitian matrices of size [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

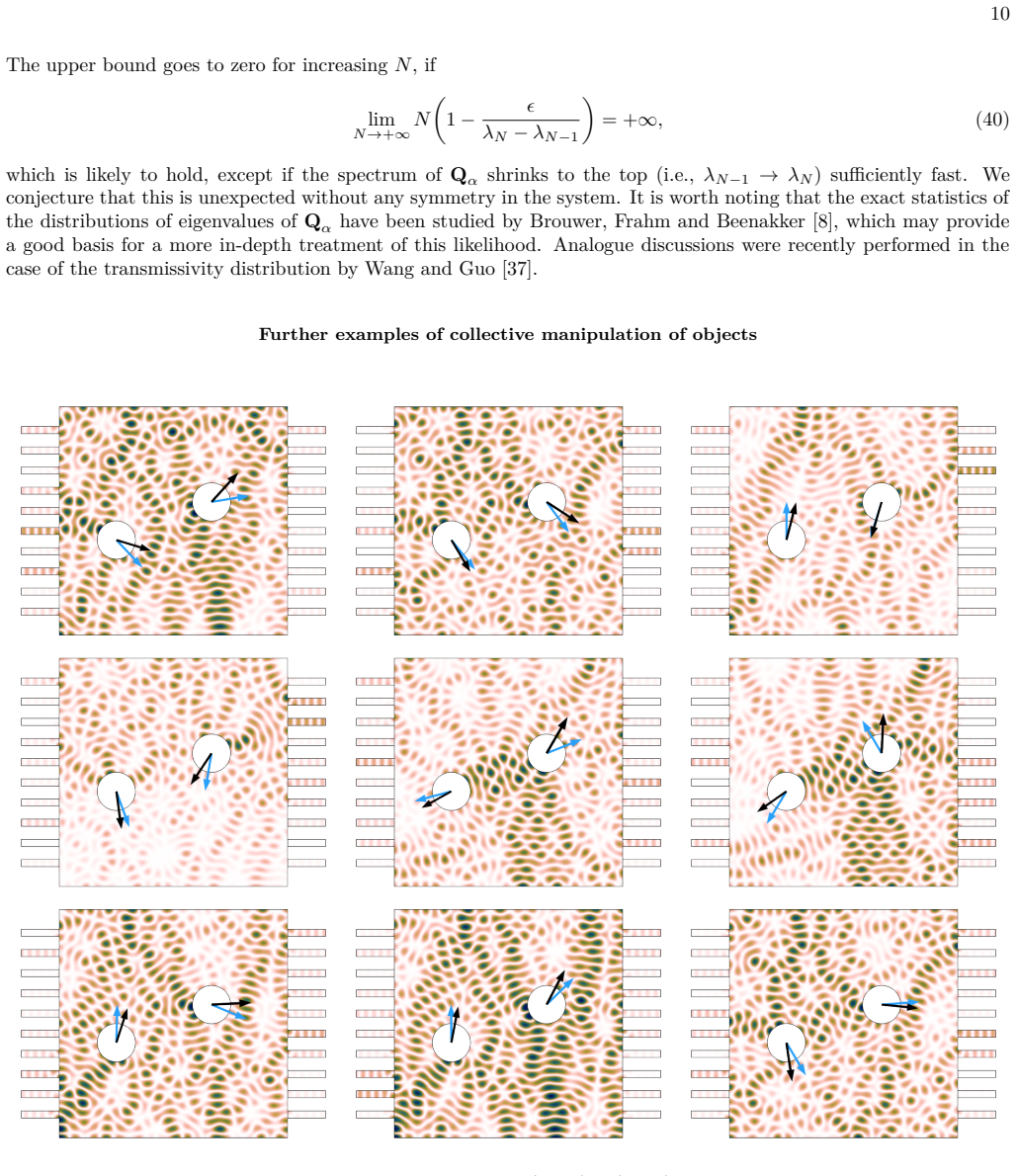

**Figure 4.** Figure 4: FIG. 4. Further examples of bi-objective optimization for which [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

read the original abstract

Radiation forces and torques enable the manipulation of objects with acoustic and electromagnetic waves. Yet, harnessing them in complex scattering media remains a formidable challenge, especially when multiple objects must be controlled under competing objectives. Here, we demonstrate that sound or light can be shaped to tailor momentum transfer to multiple objects simultaneously in a complex scattering medium. For a single object, our theory yields the maximal achievable force or torque; for multiple objects, it produces Pareto-optimal actuation and exact bounds on the simultaneous realization of incompatible objectives. This opens new applications for wave tweezers, enabling selective and precise manipulation of objects within complex media, ranging from the handling of cells, organoids, or microrobots, to targeted drug delivery in biological media.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a clean theoretical map from force/torque goals to optimal incident fields in scattering media, with exact Pareto bounds for conflicting multi-object cases.

read the letter

The core contribution is a way to compute the best incident wave for pushing or rotating several objects at once inside a known scattering medium, plus exact limits on what you can achieve when the objectives pull in different directions. For one object it reduces to an eigenvalue problem on the quadratic force expression; for multiple objects it uses weighted sums to trace the Pareto front and bound the trade-offs. That is the new piece relative to earlier single-object tweezer work. The derivations stay inside the linear scattering model and the stress-test check found no internal contradictions or circularity once the medium response operator is taken as given. The math is straightforward and the bounds follow directly from the formulation. The main limitation is the assumption that the scattering medium is fully known and linear, so the response operator can be inverted or diagonalized exactly. Real biological or turbid samples will have measurement noise and possible weak nonlinearities, and the paper does not quantify how much those degrade the predicted optima. There are also no numerical examples or robustness tests in the material I saw, which leaves open how tight the bounds remain once you move from theory to simulation. This work is aimed at people already doing wave manipulation in complex media who need a systematic way to handle competing goals rather than trial-and-error shaping. A reader working on optical or acoustic tweezers for cells or microrobots would find the Pareto construction useful as a starting point. It is solid enough on its own terms to deserve a serious referee who can check the derivations against the full equations and ask for at least one concrete numerical case.

Referee Report

0 major / 3 minor

Summary. The manuscript develops a theoretical framework for shaping acoustic or electromagnetic waves to tailor momentum transfer to objects in complex scattering media. For a single object, it derives the maximal achievable force or torque; for multiple objects, it yields Pareto-optimal actuation and exact bounds on incompatible objectives, under the assumption of a known linear scattering medium whose response operator maps the desired force/torque vector to the required incident field.

Significance. If the central derivations hold, the work provides a systematic method for multi-objective wave-based manipulation in turbid environments, with exact Pareto bounds as a notable strength. This could enable new applications in biological media, such as handling cells or targeted drug delivery, and in microrobotics. The internal consistency under linear scattering and absence of hidden circularity or unaccounted coupling strengthen the assessment.

minor comments (3)

Abstract: the phrase 'exact bounds on the simultaneous realization of incompatible objectives' would benefit from a brief concrete example of what constitutes incompatibility (e.g., opposing force directions) to improve accessibility for applied-physics readers.
Theory section (around the medium response operator): the operator is referenced implicitly when mapping objectives to incident fields; an explicit definition or equation for this operator, including its linearity assumption, would aid reproducibility.
Figure captions (if present in results): ensure all panels are labeled with the specific objective vectors or weighting parameters used to generate the Pareto fronts.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of our work and for recognizing its potential significance in enabling multi-objective wave manipulation in scattering media. The recommendation for minor revision is appreciated, and we will update the manuscript to improve clarity and presentation where appropriate.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The derivation chain maps force/torque objectives to optimal incident fields through the linear medium response operator, using standard eigenvalue problems for single-object maxima and weighted sums for multi-object Pareto fronts. These steps rest on the external assumption of known linear scattering and do not reduce by construction to fitted parameters or self-citations; the bounds follow directly from the quadratic forms and convex combinations under the stated model, remaining self-contained against standard wave-physics benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on linear wave physics and the ability to shape incident fields; no new particles or forces are introduced and no free parameters are fitted to data in the abstract.

axioms (1)

domain assumption Linear and time-invariant wave propagation in the scattering medium
Required to map desired momentum transfer to a shaped incident wave via superposition.
