Towards compact high-frequency nonreciprocal devices using nanoplasma-switched time-varying metasurfaces

Mikhail Sidorenko , Jin Zhang , Xuchen Wang , Zhipei Sun , Sergei Tretyakov , Viktar Asadchy This is my paper

Pith reviewed 2026-05-21 02:26 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords time-modulated metasurfacesnanoplasma switchesnonreciprocal devicesmicrowave isolator100 GHztime-Floquet methodhigh-frequency nonreciprocity
0
0 comments X

The pith

Nanoplasma switches in time-varying metasurfaces enable nonreciprocal isolators at 100 GHz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an analytical framework based on the time-Floquet method to design nonreciprocal devices from two-state time-modulated elements such as nanoplasma switches. Traditional varactors restrict modulation frequencies to a few gigahertz, while nanoplasma switches, which rely on gas discharge in nanometer gaps, support much higher rates. The authors present a concrete microwave isolator design operating at 100 GHz, verified through both analytical calculations and full-wave simulations, with an additional numerical study of a parallel-plate waveguide realization. A reader would care because this approach removes a key barrier to compact, high-frequency nonreciprocal components useful in communications and sensing systems.

Core claim

Treating nanoplasma switches as ideal two-state time-modulated elements, the time-Floquet method permits the analytical design of time-varying metasurfaces that produce nonreciprocal transmission, as shown by an isolator at 100 GHz whose isolation performance is confirmed analytically and in full-wave simulations.

What carries the argument

The time-Floquet method applied to two-state time-modulated nanoplasma switches, which computes the resulting scattering parameters to enforce nonreciprocity.

If this is right

  • Nonreciprocal effects become achievable at millimeter-wave frequencies well above the few-gigahertz limit of varactor-based modulators.
  • Compact isolator designs for 100 GHz operation can be obtained directly from the analytical framework.
  • The same method extends to other nonreciprocal functions such as frequency conversion in time-varying metasurfaces.
  • Numerical results indicate that the isolator concept can be realized inside a parallel-plate waveguide.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique may scale to terahertz frequencies provided nanoplasma response times remain sufficiently short.
  • Integration with existing metasurface fabrication methods could yield low-loss, chip-scale nonreciprocal components.
  • Similar two-state modulation principles might be adapted to acoustic or optical wave systems for analogous nonreciprocal behavior.

Load-bearing premise

Nanoplasma switches behave as ideal two-state time-modulated elements whose response times are fast enough to support effective nonreciprocal operation at 100 GHz.

What would settle it

Full-wave simulation or measurement at 100 GHz in which forward and reverse transmission coefficients become equal instead of showing the predicted isolation ratio.

Figures

Figures reproduced from arXiv: 2605.20836 by Jin Zhang, Mikhail Sidorenko, Sergei Tretyakov, Viktar Asadchy, Xuchen Wang, Zhipei Sun.

Figure 1

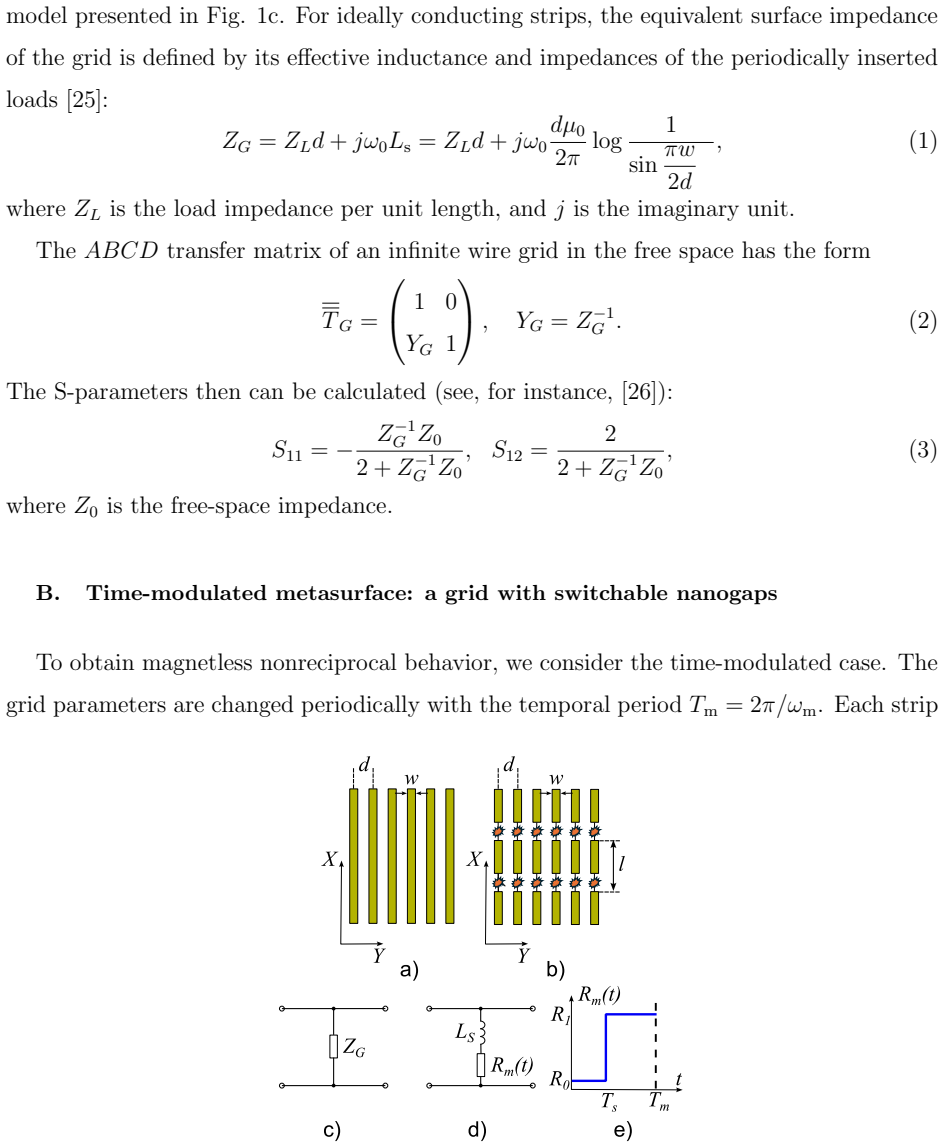

Figure 1. Figure 1: FIG. 1. a) A schematic view of a strip grid; b) a schematic view of a strip grid switched by [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

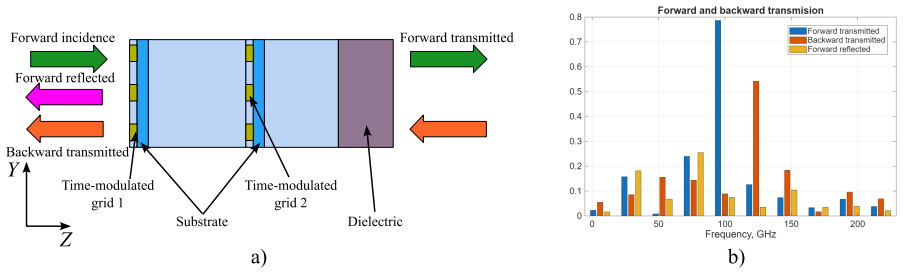

Figure 2. Figure 2: FIG. 2. a) A schematic view of a multi-layered isolator device; b) the amplitude ratio for trans [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3

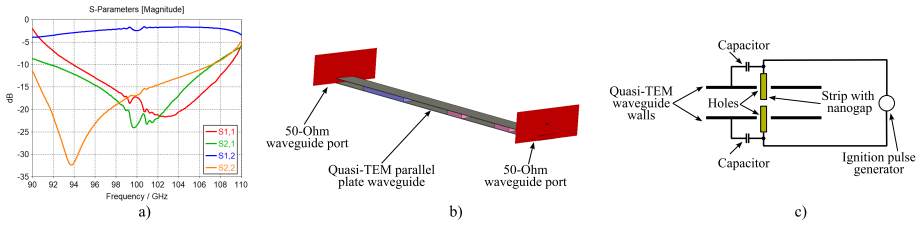

Figure 3. Figure 3: FIG. 3. a) Simulated magnitudes of S-parameters of a time-modulated isolator; b) Schematic of [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
