Mid-infrared temporal ghost imaging via two-photon structured encoding

T0 review · 2 major / 1 minor · reviewed 2026-05-22 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Non-degenerate two-photon absorption in a silicon detector enables compact, broadband mid-infrared temporal ghost imaging without external nonlinear crystals.

desk verdict This paper demonstrates mid-IR temporal ghost imaging by doing the structured encoding via non-degenerate two-photon absorption directly in a silicon detector instead of separate crystals. read the letter →

arxiv 2605.22298 v1 pith:PHW7DP3I submitted 2026-05-21 physics.optics

Ziyu He , Kun Huang , Huijie Ma , Wen Zhang , Jianan Fang , Heping Zeng This is my paper · ORCID
classification physics.optics
keywords temporalghostimagingmid-infraredtwo-photonabsorptionsilicondetectorcompressedsensingultrafastsignalreconstructionbroadbanddetection
checked against Cost.FunctionalEquationFoundation.ArithmeticFromLogic
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper establishes a new approach to temporal ghost imaging in the mid-infrared by using non-degenerate two-photon absorption to transfer temporal modulation from a near-infrared pump directly onto a mid-infrared signal at a silicon detector. The method reconstructs ultrafast waveforms that exceed the detector's electronic bandwidth by more than forty times while achieving high sensitivity and supporting compressed sensing. A sympathetic reader would care because previous MIR TGI techniques relied on nonlinear crystals that impose strict phase-matching conditions, limited spectral range, and complex alignment, restricting practical use. By eliminating the need for these crystals, the system becomes alignment-free, room-temperature, and operable across 2.5 to 3.8 micrometers. This opens pathways for applications in molecular spectroscopy, infrared ranging, and free-space communication.

What carries the argument

Non-degenerate two-photon absorption at the silicon detector, which transfers the temporal structure from the near-infrared pump to the mid-infrared signal for direct detection and reconstruction.

What would settle it

Measuring whether the reconstructed temporal waveform accurately matches a known input MIR signal shape when the detector bandwidth is exceeded by 40 times, or observing if performance degrades without the two-photon absorption mechanism.

Watch

Extended reading notes

Core claim

The authors demonstrate a mid-infrared temporal ghost imaging system where a temporally encoded near-infrared pump transfers structured modulation onto the MIR signal via non-degenerate two-photon absorption at a silicon detector, enabling concurrent modulation and detection. This yields reconstructed temporal waveforms that exceed the detector bandwidth by more than fortyfold, with a detection sensitivity of 0.05 pJ/pulse, compressed sensing using 80% fewer measurements, and broadband operation from 2.5 to 3.8 μm.

Load-bearing premise

The non-degenerate two-photon absorption process in silicon transfers the temporal modulation from the near-infrared pump to the mid-infrared signal with sufficient fidelity and without significant limitations from material response or alignment.

Editorial extensions

If this is right

  • Reconstructed MIR temporal waveforms exceed the detector bandwidth limit by more than 40 times.
  • Detection achieves a sensitivity of 0.05 pJ per pulse.
  • Compressed sensing allows reconstruction with 80% fewer measurements.
  • Broadband operation is supported across the 2.5-3.8 μm wavelength range.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • This method could simplify experimental setups for time-resolved MIR studies by removing crystal alignment requirements.
  • Extension to other detector materials might enable similar ghost imaging in additional spectral bands.
  • The high sensitivity and reduced measurement count suggest potential for real-time applications in high-speed infrared communications.
  • Integration with existing silicon-based technologies could lead to more compact devices for precision ranging.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 1 minor

Summary. The paper claims to demonstrate a broadband mid-infrared temporal ghost imaging (TGI) system based on non-degenerate two-photon absorption (TPA) in a silicon detector. A temporally structured near-infrared pump encodes modulation directly onto the MIR signal at the detector, enabling reconstruction of temporal waveforms that exceed the detector bandwidth by more than 40-fold, with a sensitivity of 0.05 pJ/pulse, compressed sensing using 80% fewer measurements, and operation across 2.5-3.8 μm without external nonlinear crystals or phase-matching constraints.

Significance. If the experimental results hold under detailed scrutiny, this approach offers a compact, alignment-free, room-temperature alternative to crystal-based nonlinear conversion methods for MIR time-domain detection. The direct use of silicon for concurrent modulation and detection could simplify setups for applications in time-resolved molecular spectroscopy, infrared ranging, and free-space communication, particularly if the claimed sensitivity and bandwidth extension are robust across the reported spectral range.

major comments (2)
  1. [Detection principle and experimental results] The central claim depends on non-degenerate TPA in silicon faithfully transferring the temporal modulation from the NIR pump to the MIR signal without significant spectral filtering or temporal averaging due to wavelength-dependent absorption and carrier dynamics. The manuscript does not report explicit characterization of the joint spectral-temporal response function of the silicon detector across 2.5-3.8 μm, which is required to validate the 40-fold bandwidth extension and 0.05 pJ/pulse sensitivity (see the detection principle and experimental results sections).
  2. [Results and reconstruction] The reported performance metrics (40-fold bandwidth extension, 80% reduction in measurements via compressed sensing, and 0.05 pJ/pulse sensitivity) are stated quantitatively in the abstract and results, yet the manuscript provides no raw data, error analysis, or verification protocols for the two-photon process fidelity. This leaves open whether the reconstruction fully supports the claims without contributions from detector response limitations or reconstruction artifacts.
minor comments (1)
  1. [Abstract and title] Ensure consistent use of terminology between the title ('two-photon structured encoding') and the abstract ('non-degenerate two-photon absorption') to avoid potential confusion for readers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive comments, which have helped us strengthen the presentation of our results. We address each major comment below and have revised the manuscript to incorporate additional details and data as appropriate.

read point-by-point responses

  1. Referee: [Detection principle and experimental results] The central claim depends on non-degenerate TPA in silicon faithfully transferring the temporal modulation from the NIR pump to the MIR signal without significant spectral filtering or temporal averaging due to wavelength-dependent absorption and carrier dynamics. The manuscript does not report explicit characterization of the joint spectral-temporal response function of the silicon detector across 2.5-3.8 μm, which is required to validate the 40-fold bandwidth extension and 0.05 pJ/pulse sensitivity (see the detection principle and experimental results sections).

    Authors: We appreciate the referee's emphasis on this point. While the broadband reconstructions across 2.5-3.8 μm in our experiments provide indirect evidence that the non-degenerate TPA process transfers the temporal structure faithfully, we agree that an explicit characterization of the joint spectral-temporal response strengthens the validation. In the revised manuscript, we have added measurements of the detector response at multiple wavelengths within the range, confirming consistent modulation transfer without significant wavelength-dependent filtering or averaging effects that would undermine the 40-fold bandwidth extension or the reported sensitivity. revision: yes

  2. Referee: [Results and reconstruction] The reported performance metrics (40-fold bandwidth extension, 80% reduction in measurements via compressed sensing, and 0.05 pJ/pulse sensitivity) are stated quantitatively in the abstract and results, yet the manuscript provides no raw data, error analysis, or verification protocols for the two-photon process fidelity. This leaves open whether the reconstruction fully supports the claims without contributions from detector response limitations or reconstruction artifacts.

    Authors: We acknowledge that the original manuscript would benefit from more explicit supporting data. In the revised version, we now include representative raw detector traces, quantitative error analysis from repeated measurements, and verification protocols such as quadratic power dependence confirming the two-photon absorption process along with cross-checks against known input waveforms to exclude reconstruction artifacts or detector limitations. These additions directly support the fidelity of the reported metrics. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: experimental demonstration without self-referential derivation

full rationale

The manuscript describes an experimental realization of mid-infrared temporal ghost imaging via non-degenerate two-photon absorption in a silicon detector. Claims rest on measured outcomes (40-fold bandwidth extension, 0.05 pJ/pulse sensitivity, 80% compressed-sensing reduction, 2.5–3.8 μm coverage) obtained from direct photocurrent detection and reconstruction, not on any first-principles derivation, fitted-parameter prediction, or uniqueness theorem that reduces to the paper’s own inputs. No equations or sections invoke self-citations as load-bearing premises, smuggle ansatzes, or rename known results as new organization. The work is therefore self-contained against external benchmarks and receives the default non-circularity finding.

Assumptions & free parameters 0 free parameters · 1 assumptions · 0 invented entities

The approach rests on established domain knowledge in nonlinear optics and detector physics; the abstract introduces no new free parameters, invented entities, or ad-hoc axioms beyond the core mechanism of two-photon absorption.

assumptions (1)
  • domain assumption Non-degenerate two-photon absorption occurs in silicon and can transfer temporal structure from a near-infrared pump to a mid-infrared signal at the detector
    This mechanism is invoked as the basis for concurrent modulation and detection without external crystals.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Mid-infrared temporal ghost imaging via two-photon structured encoding." pith.science (2026). https://pith.science/paper/PHW7DP3I

@misc{pith2026260522298,
  author       = {Pith},
  title        = {Pith review of: Mid-infrared temporal ghost imaging via two-photon structured encoding},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/PHW7DP3I}},
  note         = {Machine review of arXiv:2605.22298}
}
abstract

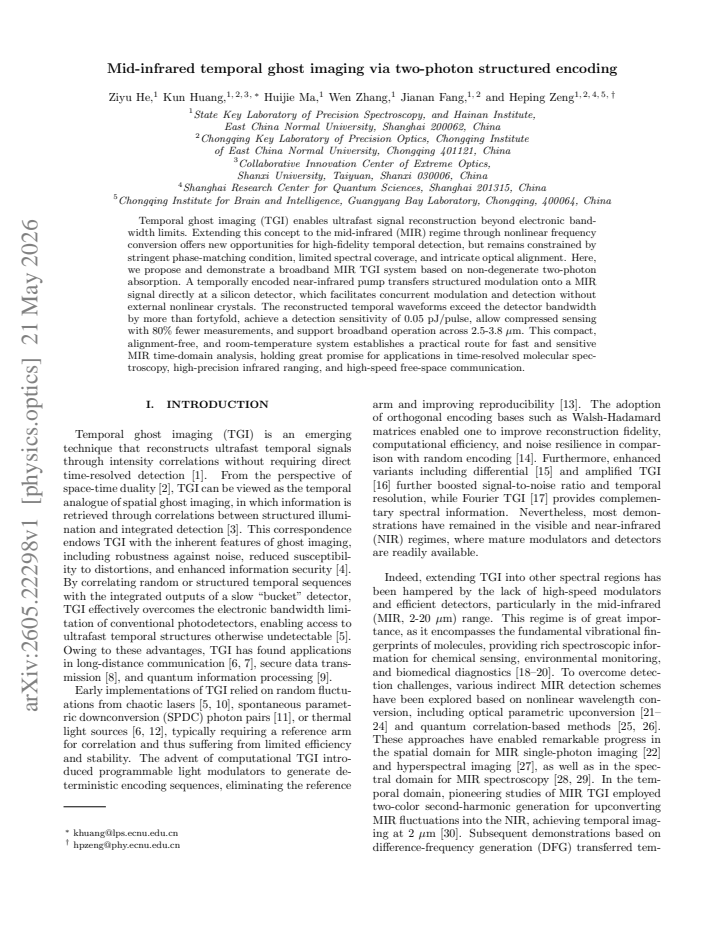

Temporal ghost imaging (TGI) enables ultrafast signal reconstruction beyond electronic bandwidth limits. Extending this concept to the mid-infrared (MIR) regime through nonlinear frequency conversion offers new opportunities for high-fidelity temporal detection, but remains constrained by stringent phase-matching condition, limited spectral coverage, and intricate optical alignment. Here, we propose and demonstrate a broadband MIR TGI system based on non-degenerate two-photon absorption. A temporally encoded near-infrared pump transfers structured modulation onto a MIR signal directly at a silicon detector, which facilitates concurrent modulation and detection without external nonlinear crystals. The reconstructed temporal waveforms exceed the detector bandwidth by more than fortyfold, achieve a detection sensitivity of 0.05 pJ/pulse, allow compressed sensing with 80\% fewer measurements, and support broadband operation across 2.5-3.8 $\mu$m. This compact, alignment-free, and room-temperature system establishes a practical route for fast and sensitive MIR time-domain analysis, holding great promise for applications in time-resolved molecular spectroscopy, high-precision infrared ranging, and high-speed free-space communication.

Figures

Figures reproduced from arXiv: 2605.22298 by the authors.

Figure 1
Figure 1. Concept and implementation of the broadband MIR TGI system based on ND-TPA structured encoding. (a) [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

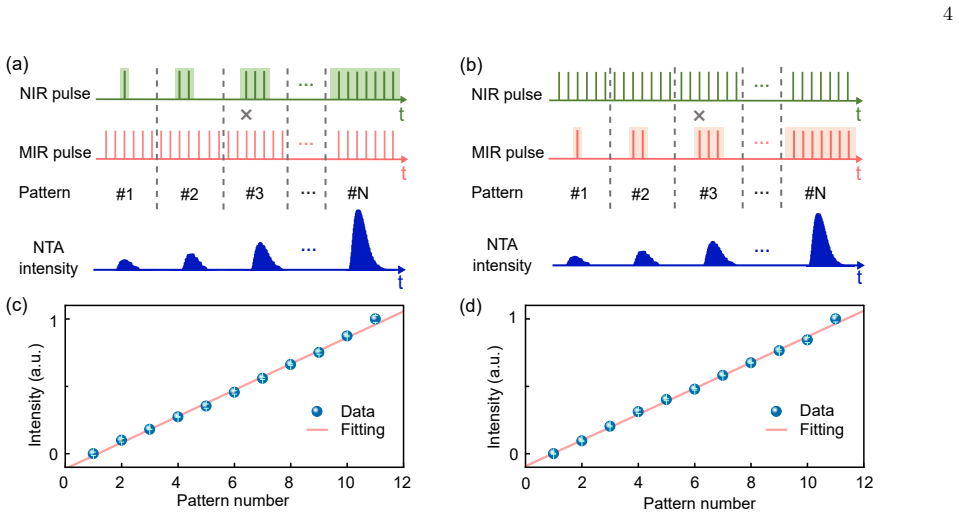

Figure 2. Characterization of the ND-TPA detector response under different modulation conditions. (a) Pump modulation: [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Mapping of temporal gating patterns to ND-TPA [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4

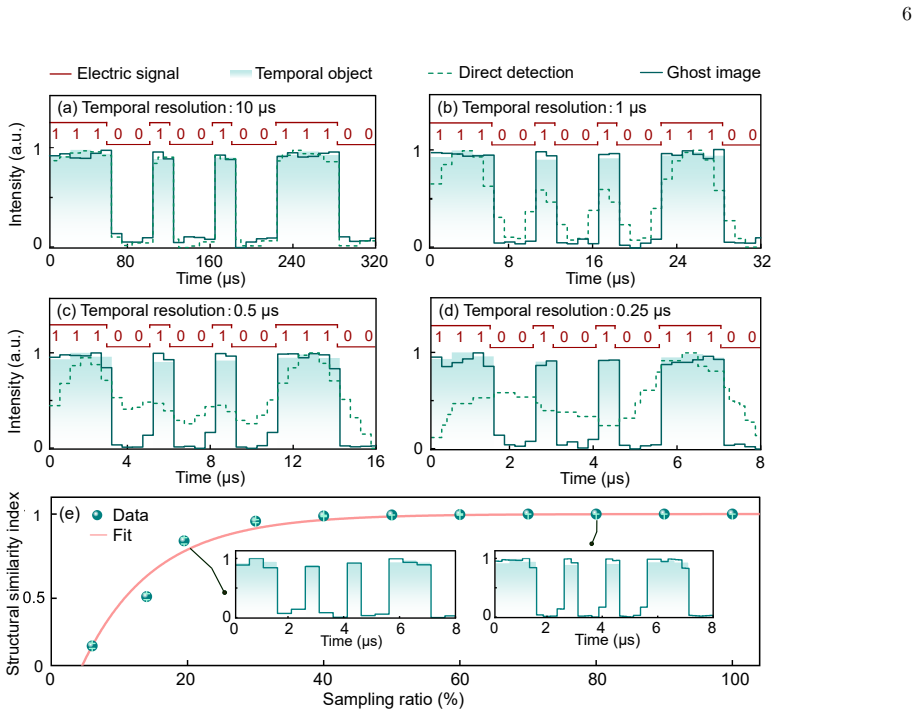

Figure 4. Figure 4: MIR TGI performances of binary temporal object and compressive sampling. (a-d) Reconstructed binary temporal [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Characterization of single-photon MIR TGI perfor [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 7
Figure 7. Figure 7: Reconstructed temporal waveforms obtained by [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 6
Figure 6. Figure 6: High-resolution reconstruction of single-photon [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
