Federated Learning of Nonlinear Temporal Dynamics with Graph Attention-based Cross-Client Interpretability
Pith reviewed 2026-05-21 12:17 UTC · model grok-4.3
The pith
A federated framework uses latent states and graph attention to characterize cross-client temporal interdependencies in nonlinear decentralized systems.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

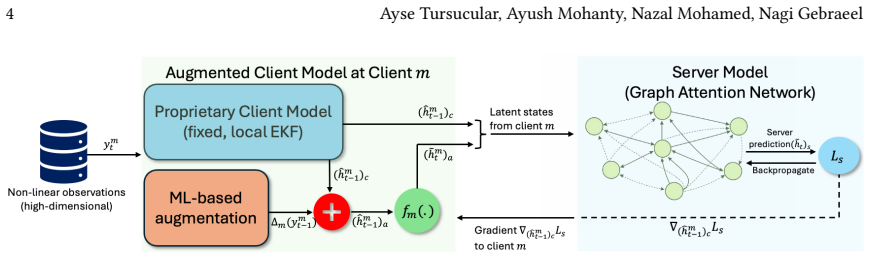

The framework lets each client map its high-dimensional observations to low-dimensional latent states via a fixed nonlinear state-space model; the server learns a graph-structured neural transition over the communicated latents with a Graph Attention Network; cross-client temporal interdependencies are then interpreted by relating the Jacobian of that transition model to the resulting attention coefficients, yielding the first such characterization for decentralized nonlinear systems together with convergence guarantees to a centralized oracle.
What carries the argument
The mapping from the Jacobian of the server-side state transition model to the attention coefficients produced by the Graph Attention Network, which supplies the interpretability of cross-client temporal influences.
If this is right
- Theoretical convergence of the federated procedure to the performance of a centralized oracle is guaranteed.
- Interpretability of interdependencies is obtained without retraining or inspecting any client model.
- Scalability and privacy are preserved while matching the accuracy of decentralized baselines on real data.
- The approach extends to heterogeneous observation spaces across clients.
Where Pith is reading between the lines
- The same Jacobian-to-attention link could be tested in other attention-based federated models outside time-series settings.
- Applications to smart-grid or transportation networks would require checking whether the latent dimensionality chosen locally remains sufficient when subsystem counts grow.
- Noise in the communicated latents could be injected in future experiments to quantify degradation of both prediction and interpretability.
Load-bearing premise
Relating the Jacobian of the learned server-side transition model to attention coefficients provides a valid and interpretable characterization of cross-client temporal interdependencies in nonlinear systems.
What would settle it
A controlled synthetic experiment in which known cross-client coupling strengths are varied and the derived attention coefficients fail to rank or recover those strengths would falsify the interpretability claim.
Figures
read the original abstract
Networks of modern industrial systems are increasingly monitored by distributed sensors, where each system comprises multiple subsystems generating high dimensional time series data. These subsystems are often interdependent, making it important to understand how temporal patterns at one subsystem relate to others. This is challenging in decentralized settings where raw measurements cannot be shared and client observations are heterogeneous. In practical deployments each subsystem (client) operates a fixed proprietary model that cannot be modified or retrained, limiting existing approaches. Nonlinear dynamics further make cross client temporal interdependencies difficult to interpret because they are embedded in nonlinear state transition functions. We present a federated framework for learning temporal interdependencies across clients under these constraints. Each client maps high dimensional local observations to low dimensional latent states using a nonlinear state space model. A central server learns a graph structured neural state transition model over the communicated latent states using a Graph Attention Network. For interpretability we relate the Jacobian of the learned server side transition model to attention coefficients, providing the first interpretable characterization of cross client temporal interdependencies in decentralized nonlinear systems. We establish theoretical convergence guarantees to a centralized oracle and validate the framework through synthetic experiments demonstrating convergence, interpretability, scalability and privacy. Additional real world experiments show performance comparable to decentralized baselines.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces a federated framework for learning nonlinear temporal dynamics across distributed clients with heterogeneous observations and fixed proprietary local models. Each client employs a nonlinear state-space model to map high-dimensional local time series to low-dimensional latent states. A central server then trains a Graph Attention Network (GAT) to model the state transitions over these latents in a graph-structured manner. For interpretability, the paper relates the Jacobian of the learned server-side transition model to the GAT attention coefficients, claiming this yields the first interpretable characterization of cross-client temporal interdependencies in decentralized nonlinear systems. Theoretical convergence guarantees to a centralized oracle are provided, along with synthetic experiments demonstrating convergence, interpretability, scalability, and privacy, plus real-world experiments showing performance comparable to decentralized baselines.
Significance. If the Jacobian-attention relation can be rigorously justified as an interpretable mapping, the work would represent a meaningful advance in federated learning for interdependent dynamical systems, particularly under privacy and proprietary-model constraints common in industrial monitoring. The explicit convergence guarantees to an oracle and the dual validation on synthetic and real data are strengths that support the framework's soundness. The approach integrates SSM encoders with GAT-based transitions in a way that addresses practical decentralization challenges.
major comments (1)
- [Abstract and interpretability discussion] Abstract and interpretability section: the central claim that relating the Jacobian of the server-side GAT transition model to attention coefficients provides a valid interpretable characterization of cross-client temporal interdependencies lacks a derivation. In a nonlinear state-transition function realized by GAT, the attention coefficients are obtained via softmax over a shared attention mechanism applied to node features; they are not required to equal or be monotonically related to the entries of the Jacobian J = ∂f/∂x evaluated at a latent state. No explicit proof or condition is given showing that A_ij ∝ J_ij (or any fixed relation) holds once client SSM nonlinearities and GAT layers are accounted for. This assumption is load-bearing for the headline contribution of 'first interpretable characterization' and requires either a supporting derivation or a clear statement of the (pot
minor comments (1)
- [Experiments] The description of the synthetic experiments would benefit from explicit specification of the nonlinear dynamics and graph topologies used to generate the data, to facilitate exact reproduction of the reported convergence behavior.
Simulated Author's Rebuttal
We are grateful to the referee for their thorough review and valuable suggestions. The feedback highlights important aspects of our interpretability claim that we will address to strengthen the manuscript. We respond to the major comment below.
read point-by-point responses
-
Referee: [Abstract and interpretability discussion] Abstract and interpretability section: the central claim that relating the Jacobian of the server-side GAT transition model to attention coefficients provides a valid interpretable characterization of cross-client temporal interdependencies lacks a derivation. In a nonlinear state-transition function realized by GAT, the attention coefficients are obtained via softmax over a shared attention mechanism applied to node features; they are not required to equal or be monotonically related to the entries of the Jacobian J = ∂f/∂x evaluated at a latent state. No explicit proof or condition is given showing that A_ij ∝ J_ij (or any fixed relation) holds once client SSM nonlinearities and GAT layers are accounted for. This assumption is load-bearing for the headline contribution of 'first interpretable characterization' and requires either a supporting
Authors: We thank the referee for pointing out this important gap in our presentation of the interpretability aspect. Upon reflection, the manuscript indeed does not include a complete mathematical derivation establishing a direct proportionality between the GAT attention coefficients and the Jacobian entries after accounting for the client-side nonlinear SSMs. The relation is motivated by the fact that the attention mechanism in the GAT is intended to capture the pairwise influences between clients' latent states in the transition dynamics, which aligns with the concept of sensitivity analysis via the Jacobian. To address this, we will revise the manuscript to include a supporting derivation in the interpretability section. Specifically, we will show that for a GAT with a single attention head and linear scoring function, the attention coefficients A_ij can be related to the partial derivatives ∂f_i / ∂x_j under the assumption that the attention is computed on the concatenated features and that higher-order nonlinearities are small. We will also explicitly state the conditions and limitations of this approximation, including the impact of the nonlinear encoders. This revision will clarify that the interpretability is approximate but still provides meaningful insights into cross-client dependencies. We believe this will solidify the contribution without overstating the exactness of the relation. revision: yes
Circularity Check
No significant circularity in derivation chain
full rationale
The paper describes a federated setup with client-side nonlinear SSM encoders producing latent states, a server-side GAT for the transition model, and a methodological step that relates the Jacobian of that transition model to its attention coefficients for interpretability. This relation is introduced as an interpretive device rather than a quantity derived from or fitted to the same inputs by construction. Convergence guarantees to a centralized oracle are stated as an external theoretical benchmark. No equations or claims in the abstract reduce a central result to a self-definition, a renamed fit, or a load-bearing self-citation chain. The framework therefore remains self-contained against the described external benchmarks and does not exhibit the enumerated circularity patterns.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
we relate the Jacobian of the learned server-side transition model to the attention coefficients, providing the first interpretable characterization of cross-client temporal interdependencies in decentralized nonlinear systems (Prop. 6.1, Eq. 19)
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
GAT-parameterized server-side state-transition model over communicated latent states
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Battaglia, Razvan Pascanu, Matthew Lai, Danilo Jimenez Rezende, and Koray Kavukcuoglu
Peter W. Battaglia, Razvan Pascanu, Matthew Lai, Danilo Jimenez Rezende, and Koray Kavukcuoglu. 2016. Interaction Networks for Learning about Objects, Relations and Physics. InAdvances in Neural Information Processing Systems
work page 2016
-
[2]
Shaked Brody, Uri Alon, and Eran Yahav. 2022. How Attentive Are Graph Attention Networks?. InInternational Conference on Learning Representa- tions
work page 2022
-
[3]
Philippe Brouillard, Sébastien Lachapelle, Alexandre Lacoste, Simon Lacoste-Julien, and Alexandre Drouin. 2020. Differentiable causal discovery from interventional data.Advances in Neural Information Processing Systems33 (2020), 21865–21877
work page 2020
-
[4]
Chaochao Chen, Jun Zhou, Longfei Zheng, Huiwen Wu, Lingjuan Lyu, Jia Wu, Bingzhe Wu, Ziqi Liu, Li Wang, and Xiaolin Zheng. 2022. Vertically Federated Graph Neural Network for Privacy-Preserving Node Classification. InProceedings of the Thirty-First International Joint Conference on Artificial Intelligence
work page 2022
-
[5]
Lei Chen, Sergey Gorbachev, Dong Yue, Chunxia Dou, Xiangpeng Xie, Shengquan Li, Nan Zhao, and Tingjun Zhang. 2023. Impact of cascading failure on power distribution and data transmission in cyber-physical power systems.IEEE Transactions on Network Science and Engineering11, 2 (2023), 1580–1590
work page 2023
-
[6]
Erdun Gao, Junjia Chen, Li Shen, Tongliang Liu, Mingming Gong, and Howard Bondell. 2023. FedDAG: Federated DAG Structure Learning. Transactions on Machine Learning Research(2023)
work page 2023
-
[7]
Colin Graber and Alexander G. Schwing. 2020. Dynamic Neural Relational Inference. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition
work page 2020
-
[8]
Yu, Yu Rong, Peilin Zhao, Junzhou Huang, Murali Annavaram, and Salman Avestimehr
Chaoyang He, Keshav Balasubramanian, Emir Ceyani, Carl Yang, Han Xie, Lichao Sun, Lifang He, Liangwei Yang, Philip S. Yu, Yu Rong, Peilin Zhao, Junzhou Huang, Murali Annavaram, and Salman Avestimehr. 2021. FedGraphNN: A Federated Learning System and Benchmark for Graph Neural Networks. arXiv:2104.07145 [cs.LG] https://arxiv.org/abs/2104.07145
-
[9]
Hoang, Bao Duong, and Thin Nguyen
Nu T. Hoang, Bao Duong, and Thin Nguyen. 2024. Scalable Variational Causal Discovery Unconstrained by Acyclicity. InProceedings of the 26th European Conference on Artificial Intelligence
work page 2024
-
[10]
Peter Kairouz, H Brendan McMahan, Brendan Avent, Aurélien Bellet, Mehdi Bennis, Arjun Nitin Bhagoji, Kallista Bonawitz, Zachary Charles, Graham Cormode, Rachel Cummings, et al. 2021. Advances and open problems in federated learning.Foundations and trends®in machine learning 14, 1–2 (2021), 1–210
work page 2021
-
[11]
Kipf, Ethan Fetaya, Kuan-Chieh Wang, Max Welling, and Richard Zemel
Thomas N. Kipf, Ethan Fetaya, Kuan-Chieh Wang, Max Welling, and Richard Zemel. 2018. Neural Relational Inference for Interacting Systems. In Proceedings of the 35th International Conference on Machine Learning
work page 2018
-
[12]
Sébastien Lachapelle, Philippe Brouillard, Tristan Deleu, and Simon Lacoste-Julien. 2020. Gradient-Based Neural DAG Learning. InProceedings of the Eighth International Conference on Learning Representations
work page 2020
-
[13]
Tian Li, Anit Kumar Sahu, Ameet Talwalkar, and Virginia Smith. 2020. Federated learning: Challenges, methods, and future directions.IEEE signal processing magazine37, 3 (2020), 50–60
work page 2020
-
[14]
Yaguang Li, Rose Yu, Cyrus Shahabi, and Yan Liu. 2018. Diffusion Convolutional Recurrent Neural Network: Data-Driven Traffic Forecasting. In International Conference on Learning Representations
work page 2018
-
[15]
Tengfei Ma, Trong Nghia Hoang, and Jie Chen. 2023. Federated learning of models pre-trained on different features with consensus graphs. In Uncertainty in artificial intelligence. PMLR, 1336–1346
work page 2023
-
[16]
Peihua Mai and Yan Pang. 2023. VerFedGNN: Vertical Federated Graph Neural Network for Recommender Systems. InProceedings of the 40th International Conference on Machine Learning
work page 2023
-
[17]
Ignavier Ng and Kun Zhang. 2022. Towards federated Bayesian network structure learning with continuous optimization. InInternational Conference on Artificial Intelligence and Statistics. PMLR, 8095–8111
work page 2022
-
[18]
Roxana Pamfil, Nisara Sriwattanaworachai, Shaan Desai, Philip Pilgerstorfer, Konstantinos Georgatzis, Paul Beaumont, and Bryon Aragam. 2020. DYNOTEARS: Structure Learning from Time-Series Data. InProceedings of the 23rd International Conference on Artificial Intelligence and Statistics
work page 2020
-
[19]
Chao Shang, Jie Chen, and Jinbo Bi. 2021. Discrete Graph Structure Learning for Forecasting Multiple Time Series. InInternational Conference on Learning Representations
work page 2021
-
[20]
Dong-Hoon Shin, Dajun Qian, and Junshan Zhang. 2014. Cascading effects in interdependent networks.Ieee Network28, 4 (2014), 82–87
work page 2014
-
[21]
Hyeok-Ki Shin, Woomyo Lee, Seungoh Choi, Jeong-Han Yun, and Byung-Gi Min. 2023. HAI security datasets. https://github.com/icsdataset/hai
work page 2023
-
[22]
Keith Stouffer, Joe Falco, Karen Scarfone, et al. 2011. Guide to industrial control systems (ICS) security.NIST special publication800, 82 (2011), 16–16
work page 2011
-
[23]
Keith Stouffer, Keith Stouffer, Michael Pease, CheeYee Tang, Timothy Zimmerman, Victoria Pillitteri, Suzanne Lightman, Adam Hahn, Stephanie Saravia, Aslam Sherule, et al. 2023. Guide to operational technology (ot) security. (2023). Federated Learning of Nonlinear Temporal Dynamics with Graph Attention-based Cross-Client Interpretability 17
work page 2023
-
[24]
Haobin Tan, Yao Xiao, Amelie Chi Zhou, Kezhong Lu, and Xuan Yang. 2025. Distributed and Adaptive Partitioning for Large Graphs in Geo- Distributed Data Centers.IEEE Transactions on Parallel and Distributed Systems(2025)
work page 2025
-
[26]
Petar Veličković, Guillem Cucurull, Arantxa Casanova, Adriana Romero, Pietro Liò, and Yoshua Bengio. 2018. Graph Attention Networks. In International Conference on Learning Representations
work page 2018
-
[27]
Hao Wang, Hao Luo, Lei Ren, Mingyi Huo, Yuchen Jiang, and Okyay Kaynak. 2024. Data-driven design of distributed monitoring and optimization system for manufacturing systems.IEEE Transactions on Industrial Informatics20, 7 (2024), 9455–9464
work page 2024
-
[28]
Chuhan Wu, Fangzhao Wu, Lingjuan Lyu, Tao Qi, Yongfeng Huang, and Xing Xie. 2022. A federated graph neural network framework for privacy-preserving personalization.Nature Communications13, 1 (2022), 3091
work page 2022
-
[29]
Zonghan Wu, Shirui Pan, Guodong Long, Jing Jiang, Xiaojun Chang, and Chengqi Zhang. 2020. Connecting the Dots: Multivariate Time Series Forecasting with Graph Neural Networks. InProceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining
work page 2020
-
[30]
Zonghan Wu, Shirui Pan, Guodong Long, Jing Jiang, and Chengqi Zhang. 2019. Graph WaveNet for Deep Spatial-Temporal Graph Modeling. In Proceedings of the Twenty-Eighth International Joint Conference on Artificial Intelligence
work page 2019
-
[31]
Luolin Xiong, Anshul Goyal, Kankar Bhattacharya, Yang Tang, Zhaoyang Dong, Feng Qian, and Venkata Balaji Thummalacherla. 2025. DRL-Based Distributed Coordination of ISO and DSOs in Bi-Level Electricity Markets.IEEE Transactions on Industrial Informatics(2025)
work page 2025
-
[32]
Dezhi Yang, Xintong He, Jun Wang, Guoxian Yu, Carlotta Domeniconi, and Jinglin Zhang. 2024. Federated Causality Learning with Explainable Adaptive Optimization. InProceedings of the AAAI Conference on Artificial Intelligence
work page 2024
-
[33]
Bing Yu, Haoteng Yin, and Zhanxing Zhu. 2018. Spatio-Temporal Graph Convolutional Networks: A Deep Learning Framework for Traffic Forecasting. InProceedings of the Twenty-Seventh International Joint Conference on Artificial Intelligence
work page 2018
-
[34]
Yue Yu, Jie Chen, Tian Gao, and Mo Yu. 2019. DAG-GNN: DAG Structure Learning with Graph Neural Networks. InProceedings of the 36th International Conference on Machine Learning
work page 2019
-
[35]
Ke Zhang, Carl Yang, Xiaoxiao Li, Lichao Sun, and Siu Ming Yiu. 2021. Subgraph federated learning with missing neighbor generation.Advances in neural information processing systems34 (2021), 6671–6682
work page 2021
-
[36]
Longfei Zheng, Jun Zhou, Chaochao Chen, Bingzhe Wu, Li Wang, and Benyu Zhang. 2021. ASFGNN: Automated Separated-Federated Graph Neural Network.Peer-to-Peer Networking and Applications14 (2021), 1692–1704
work page 2021
-
[37]
Xun Zheng, Bryon Aragam, Pradeep K. Ravikumar, and Eric P. Xing. 2018. DAGs with NO TEARS: Continuous Optimization for Structure Learning. InAdvances in Neural Information Processing Systems. A Experimental Details A.1 Additional Results on Synthetic Dataset Details on Model Architecture.We used 𝑀= 3clients with latent dimension 𝑝𝑚 = 1, observation dimens...
work page 2018
-
[38]
We optimize the centralized model using Adam with learning rate10 −3, batch size 512, and up to 200 epochs. Early stopping is applied based on validation reconstruction loss with patience 15 and a minimum improvement threshold of10 −5, and the best-performing model parameters are restored. This centralized model explicitly models global interdependencies ...
